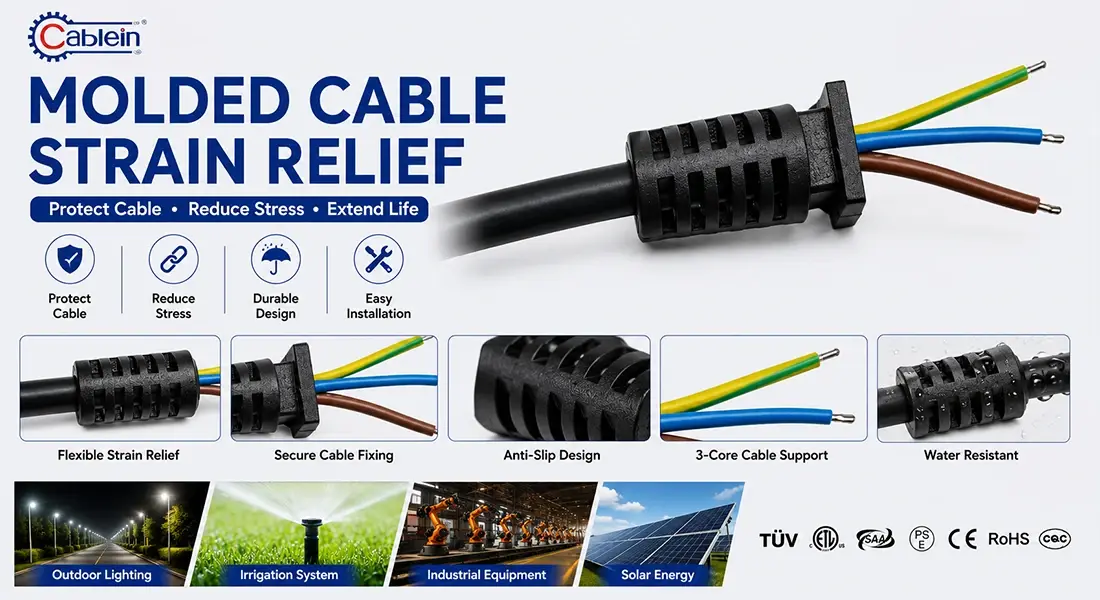

Molded Cable Strain Relief
2. Flat outer surfaces prevent rolling on workbenches and allow wrench-assisted tightening.
3. A silicone rubber seal is integrated during molding to block moisture ingress at IP67/IP68 levels.
4. Designed for equipment with square cutouts where round bushings would spin freely.
5. Rated from -40℃ to 150℃, suitable for both indoor machinery and outdoor enclosures.
6. The square flange provides a larger sealing surface against panel gaskets.
7. CE and RoHS certified, with production monitored under ISO9001.
8. Customizable with pre-printed orientation marks, specific corner radii, or brand logos.
Molded Cable Strain Relief: Enterprise-Grade Protection for Critical Cable Assemblies
When your equipment operates in high-vibration or outdoor environments, traditional cable boots often fall short. Cablein's Molded Cable Strain Relief integrates overmolded PA66 housings with silicone seals to deliver IP67/IP68 waterproof protection. Our square-body plan avoids turn in board cutouts—a common disappointment point where circular bushings turn openly. With temperature resistance from -40℃ to 150℃, UL94 V-0 combustibility rating, and ISO9001-certified generation, each unit disperses mechanical push over more extensive contact ranges. This avoids conductor weariness at end focuses. Over 10,000 pieces stock per thing guarantees 7–10 day conveyance for your generation schedule.
What Makes Our Square-Body Design Different?
You've likely experienced this: introducing a circular strain alleviation bushing into an hardware board, as it were to observe it turn amid cable addition. That turn breaks your seal. It releases connections.
Our square outside shape tackles this issue right away. The level external surfaces sit flush against your board set pattern. No turning. No holes. The geometry itself gives anti-rotation steadiness without extra locking features.
This things when you're collecting hundreds of units per move. Your specialists can wrench-tighten the get together certainly. The square spine makes a bigger fixing surface against board gaskets compared to circular plans. That additional contact region is what pushes your assurance from IP65 to veritable IP68 performance.
The overmolded silicone seal bonds directly to the PA66 housing during injection molding. This creates a hermetic barrier at the cable entry point—the most vulnerable zone for moisture ingress. Unlike mechanical slip-on boots that can shift or separate over time, our Molded Cable Strain Relief forms a permanent integrated seal.
Technical Advantages That Solve Real Problems
Anti-Rotation Stability
Your equipment enclosures feature square cutouts for good reason. Round bushings rotate freely during installation or vibration. Our square body geometry locks into those cutouts. Zero rotation means consistent sealing pressure. It means your IP rating stays intact through thousands of insertion cycles.
Temperature Resilience
Industrial machinery generates heat. Outdoor enclosures face temperature swings. Our PA66 housing maintains structural integrity from -40℃ to 105℃ in static applications. For flexible-grade requirements, we offer TPU and PVC variants with adjusted temperature ranges. The silicone seal retains elasticity across this entire spectrum. You get reliable performance whether you're installing LED stadium lighting in northern winters or solar junction boxes in desert climates.
Wrench-Flat Surfaces
High-vibration applications demand secure tightening. The flat outer surfaces accept standard wrenches. Your assembly teams can apply proper torque values without damaging the housing. This simple mechanical advantage reduces installation time and eliminates hand-tightening inconsistencies.
Customization Flexibility
Every application has unique requirements. We customize corner radii to match your panel thickness. Pre-printed orientation marks ensure correct cable routing during mass assembly. Brand logos can be molded directly into the housing for product identification. Thread types include PG, Metric, and NPT options to match your existing connector standards.
Material Selection for Your Environment
PA66 (Nylon) Standard Grade: Self-extinguishing UL94 V-0 rating. High mechanical strength. Ideal for industrial control cabinets and automation equipment.
TPU Flexible Grade: Superior abrasion resistance. Exceeds 100,000 flex cycles in drag chain testing. Suited for robotic arms and moving cable assemblies.
PVC Flexible Grade: Cost-effective for general-purpose indoor applications. Good chemical resistance to common industrial fluids.
Silicone Seal: High and low temperature resistant (-40℃ to 150℃). Maintains elasticity through thermal cycling. Preferred for outdoor and extreme-climate installations.
NBR Seal: Oil-resistant formulation for machinery exposed to hydraulic fluids and lubricants.
Each material combination undergoes 100% waterproof testing before shipment. We verify IP ratings under actual immersion conditions, not just theoretical calculations.
Applications Across Critical Industries
LED Lighting Systems: Our strain reliefs protect connections in landscape lighting, stadium fixtures, and agricultural grow lights. The square mounting prevents rotation in thin-wall aluminum housings common to LED fixtures.
Solar Energy Installations: Junction box connections face UV exposure, thermal expansion, and moisture. The overmolded seal blocks water ingress while maintaining flexibility for thermal movement.
Industrial Automation: Cable assemblies in conveyor systems, robotic welding cells, and CNC machinery experience constant vibration. Our design distributes mechanical stress to prevent conductor fatigue at termination points.
Outdoor Enclosures: Surveillance cameras, EV charging stations, and rail transportation equipment require reliable sealing against rain, dust, and pressure washing. The square flange creates positive sealing against enclosure gaskets.
FAQ
Q: What is the essential contrast between PVC and TPU for strain help applications?
A: TPU offers essentially higher scraped area resistance and flex life, though PVC is more cost-effective for general-purpose applications where cables stay generally stationary.
Q: Can these accomplish an IP68 waterproof rating?
A: Yes. Appropriate chemical holding between the cable coat and overmold fabric amid infusion molding makes a airtight seal against persistent water submersion up to indicated depths.
Q: How does overmolding influence the cable's least twist radius?
A: A well-designed item really ensures the twist sweep by anticipating sharp kinking. It guarantees the cable takes after a foreordained, secure circular segment or maybe than bowing at a single push point.
Q: Is it conceivable to overmold onto specialized materials like PTFE or Silicone cable jackets?
A: Yes, but it requires particular surface medications such as plasma carving or specialized preliminaries to guarantee satisfactory grip between disparate materials.
Q: What testing standard characterizes the flex life of these components?
A: The IPC/WHMA-A-620 standard gives essential rules for worthiness and testing of molded strain alleviation congregations in proficient cable manufacturing.
Q: Do you keep up stock for fast delivery?
A: We keep steady stock of over 10,000 pieces per thing. Standard items transport inside 7–10 days. Custom orders are planned based on your extend timeline.
Q: Can you coordinate existing connector string standards?
A: Completely. We make PG, Metric, and NPT string sorts to coordinated with your current connector frameworks without connector requirements.
Why Choose Cablein for Your Cable Protection Needs
Since 2017, we've specialized in waterproof connectivity solutions for harsh environments. Our 6,000 ㎡ facility in Shenzhen combines advanced injection molding equipment with experienced engineering support.
Certifications: CE, RoHS, ETL, PSE, SAA, TUV, REACH, CQC, ISO9001:2015
Patents: Over 30 utility model patents in connector and strain relief technology
Quality Control: 100% waterproof testing on every production batch
We understand that cable failures cause production downtime, warranty claims, and safety incidents. That's why our engineering team works with you to specify the correct material combination, thread type, and mounting configuration for your specific operating conditions.
Global logistics partnerships with UPS, DHL, and FedEx ensure your components arrive on schedule, whether you're ordering 100 pieces for prototyping or 10,000 units for production runs.
Ready to Upgrade Your Cable Assembly Protection?
Explore our full technical specifications and request samples to verify fit with your Molded Cable Strain Relief systems. Our engineering team is available to review your panel cutout dimensions, temperature requirements, and IP rating targets.
