water tight strain relief
2. Spring-loaded barbs expand after insertion, securing the assembly without nuts or washers.
3. Provides IP67 and IP68 sealing via a pre-attached silicone gasket compressed during snapping.
4. Accelerates assembly lines by eliminating torque wrench steps for cable entry points.
5. Rated for -40℃ to 150℃, with barbs retaining flexibility across the temperature range.
6. The snap design allows for rapid removal during maintenance or rework.
7. CE and RoHS compliant, with ISO9001 oversight throughout production.
8. Customizable with different barb geometries, release tabs, or panel thickness accommodations.

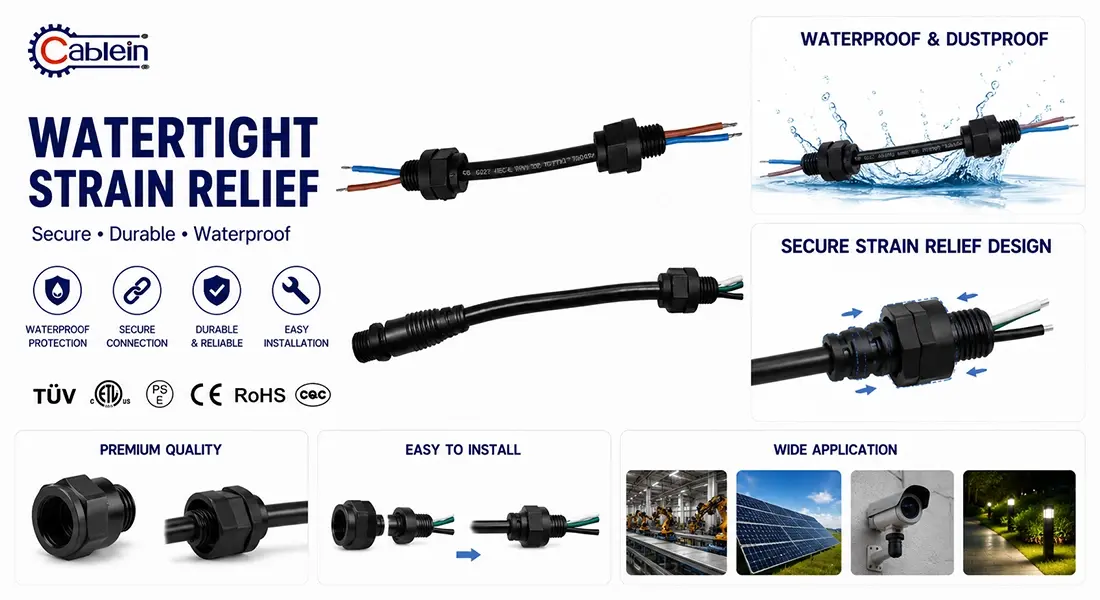

Water Tight Strain Relief: Enterprise-Grade Cable Protection Solutions
When your project demands uncompromising cable entry protection, Cablein Technology's water tight strain relief delivers enterprise-level performance you can trust. Our PA66 molded snap-lock cable organs include IP67/IP68-rated fixing with pre-attached silicone gaskets that compress right away amid establishment. Spring-loaded spikes extend to secure gatherings without nuts or washers, whereas tool-free establishment quickens your generation line by dispensing with torque torque steps. Evaluated from -40℃ to 150℃, these components keep up adaptability over extraordinary temperature ranges. With CE and RoHS compliance sponsored by ISO9001:2015 oversight, our customizable spike geometries oblige different board thicknesses. Your cables get professional-grade strain help and airtight fixing in one quick motion.
What Makes Water Tight Strain Relief Critical for Your Application?
You face constant challenges protecting cables in harsh environments. Water tight strain relief components solve your most pressing concerns: preventing fluid ingress, blocking dust penetration, and eliminating short circuit risks.
Think of these cable organs as your essential defense instrument. They make airtight seals whereas mechanically securing cables against hub pressure and vibration. This double security avoids conductor pullout and weakness at section points.
Your electrical coherence depends on this boundary. Without appropriate strain help, natural stretch devastates associations over time.
The Engineering Behind the Protection
These components work through exact mechanical plan. When you embed a cable organ, spring-loaded thorns grow interior the board gap. The pre-attached silicone gasket compresses at the same time, making an quick seal.
No devices required. No time squandered. Fair dependable protection.
The snap-lock include holds solidly until you require upkeep. At that point the plan permits fast expulsion without board damage.
Real-World Applications Where You Need Maximum Protection
Marine and Offshore Operations
Your deck-mounted control panels face relentless salt spray. Submersible pumps endure hydrostatic pressure and heavy vibration. Standard cable entries fail quickly in these conditions.
Marine-grade strain relief withstands constant seawater exposure. The components maintain sealing integrity despite wave impact and temperature fluctuations.
Food & Beverage Processing Facilities
Your equipment undergoes daily high-pressure washdowns with caustic chemicals. Standard cable protection degrades rapidly under these conditions.
Stainless steel 316L variants provide hygienic compliance. They resist chemical attack while maintaining seal integrity through countless cleaning cycles.
Renewable Energy Installations
Solar inverters and wind turbine junction boxes operate outdoors for decades. They face extreme UV radiation, thermal cycling, and moisture exposure.
Your water tight strain relief must maintain sealing for 20+ years without maintenance. Our components handle cyclical thermal expansion while blocking water ingress season after season.
Technical Specifications That Matter to Your Project
Material Excellence
We construct cable glands from high-grade materials selected for your environment:
Housing Options:
- Polyamide PA66 (UL94 V-0 rated)
- Nickel-plated brass for EMI shielding
- 303/316L stainless steel for corrosive environments
Seal Materials:
- Silicone for -40℃ to +150℃ temperature range
- EPDM for superior UV and ozone resistance
- NBR for oil-resistant applications
Protection Ratings You Can Verify
IP67 Rating: Withstands temporary immersion to 1 meter for 30 minutes. Perfect for outdoor equipment exposed to rain and splashing.
IP68 Rating: Handles continuous immersion under specified pressure. Essential for underground installations and submersible applications.
IP69K Rating: Resists high-pressure steam jets up to 80°C. Required for food processing and pharmaceutical equipment.
Compliance and Certification
Our products meet global standards:
- UL 514B for North American markets
- EN 62444 for European compliance
- RoHS and REACH for environmental safety
- ISO9001:2015 quality management
Why Cablein's Strain Relief Outperforms Alternatives
Tool-Free Installation Saves Production Time
Your assembly line moves faster when workers snap cable glands into place without wrenches. Each installation takes seconds instead of minutes.
The spring-loaded barbs eliminate threading operations. Your team completes more units per shift while reducing assembly errors.
Customization for Your Exact Requirements
Panel thickness varies across your equipment designs. We customize barb geometries to match your specific measurements.
Need special release tabs? Custom cable diameter ranges? Different thread types? We adapt the design to your application.
Quality Control That Protects Your Reputation

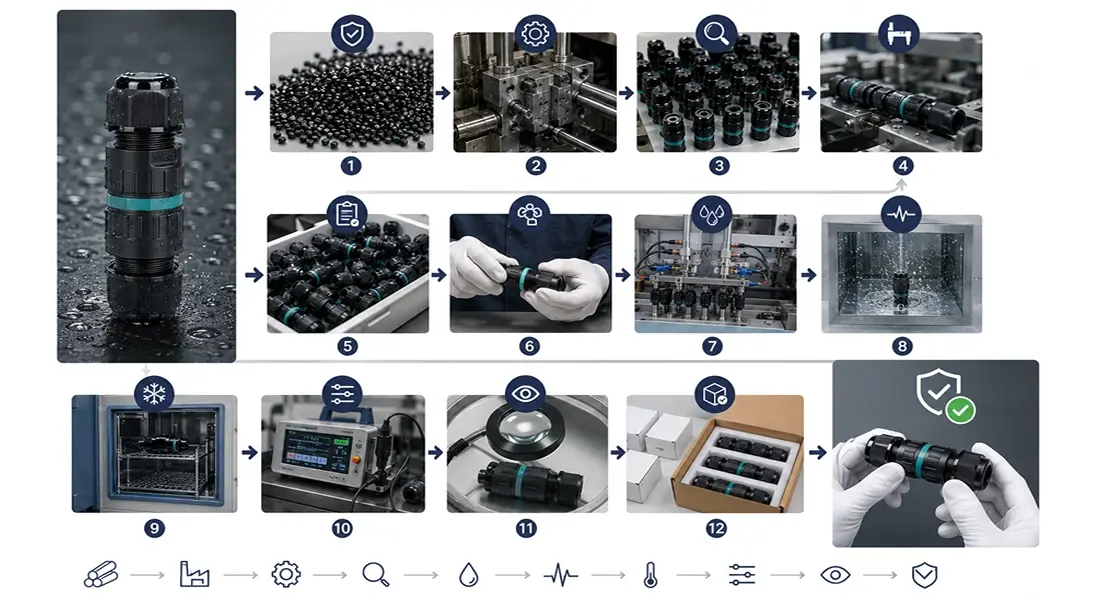

We test every batch through five critical validation procedures:
Pull-out Force Testing: Verifies cable grip withstands specified loads per UL 514B without slippage.
IP Rating Validation: Subjects assemblies to immersion and high-pressure jet testing to confirm seal longevity.
Thread Accuracy: Employs Go/No-Go gauges for Metric, PG, and NPT threads ensuring leak-proof enclosure fit.
Salt Spray Resistance: Minimum 96-hour testing (1000-hour for marine grade) validates corrosion resistance per ASTM B117.
Material Aging Tests: Heat aging and UV exposure confirm seals maintain elasticity over product lifetime.
Frequently Asked Questions About Water Tight Strain Relief
Q: What's the contrast between IP67 and IP68 protection?
A: IP67 ensures against brief submersion for 30 minutes at 1 meter profundity. IP68 handles nonstop submersion beneath more profound, longer conditions indicated by the producer. Select IP68 when your cables stay submerged permanently.
Q: Can I run different cables through one gland?
A: You require specialized multi-hole embeds for numerous cables. Standard single-hole seals cannot make watertight security around different cables. Utilizing the off-base arrangement leads to seal failure.
Q: How do I select the rectify string type?
A: Coordinate the string to your locale and gear. Metric (M) strings work globally. NPT rules North American conduit frameworks. PG strings show up in European bequest apparatus. Check your walled in area details some time recently ordering.
Q: Does cable coat fabric influence sealing?
A: Completely. Your seal fabric must be consistent with the cable coat. EPDM works with PVC coats. Silicone suits high-temperature applications. Chemical contradiction causes seal debasement and possible failure.
Q: What if my cable distance across sits at the least clamping range?
A: Select a estimate where your cable breadth falls mid-range. This guarantees most extreme mechanical strain alleviation and ideal seal compression. Edge-of-range measuring diminishes assurance effectiveness.
Q: How do I evacuate snap-lock cable organs for maintenance?
A: The snap plan permits tool-free expulsion. Carefully compress the discharge tabs whereas pulling back the organ. This avoids board harm amid benefit work.
Ready to Protect Your Critical Cable Connections?
Your projects deserve professional-grade water tight strain relief that performs reliably for years. Contact nick@cableinco.com to discuss your specific requirements, download technical specifications, request samples, or confirm compatibility details for your application.
