Multi Way Waterproof Plug
2. Main trunk passes through the housing while the branch features a threaded port for external connection.
3. Rated IP67 and IP68, protecting all connection points against moisture and dust ingress.
4. Threaded branch port accepts standard cable glands or conduit fittings for secure attachment.
5. Withstands -40℃ to 150℃ temperature extremes while maintaining consistent signal integrity.
6. CE and RoHS certified, with manufacturing processes overseen by ISO9001 standards.
7. The threaded branch interface simplifies field connection of additional devices without splicing.
8. Custom options include branch port thread type (PG, NPT, metric), body dimensions, and pin configuration.
Multi Way Waterproof Plug - Enterprise-Grade Waterproof Connection Solutions
Cablein Technology's Multi Way Waterproof Plug delivers enterprise-grade reliability with IP67 and IP68 protection ratings. Engineered from PA66 nylon with gold-plated copper alloy contacts, these connectors handle extreme temperatures from -40℃ to 150℃. Your operation benefits from 200MΩ insulation resistance and customizable configurations including M16 and M12 formats with 2 to 4 cores. The threaded branch interface accepts standard cable glands for secure field connections. Every unit passes ISO9001-certified quality inspection and carries CE and RoHS compliance. Our stable inventory of 10,000+ pieces per item ensures 7-10 day standard delivery to keep your projects on schedule.
What Makes Our Multi Way Waterproof Plug Different?
Advanced Sealing Technology
Your connection stays protected. The silicone sealing ring creates a barrier against moisture and dust ingress. Main trunk cables pass cleanly through the housing. Branch ports feature precision threads that accept PG, NPT, or metric fittings. This design eliminates vulnerable splice points in the field.
Fast Field Installation
You save time on every connection. The input connector swaps in seconds during maintenance cycles. All output branches arrive overmolded to the main body. No separate seals to track or replace. The plug-and-play design reduces your labor costs and minimizes downtime.
Temperature Resilience
Your system operates in extreme conditions. The connector maintains signal integrity across a -40℃ to 150℃ range. Thermal expansion won't compromise the waterproof seal. This stability matters when your equipment faces desert heat or Arctic cold.
Where You'll Use These Connectors
Industrial Automation & Robotics
Assembly lines demand reliable connections. The Multi Way Waterproof Plug handles sensor-actuator networks where cutting fluids and washdowns are routine. You get multi-channel data feedback even in wet manufacturing environments. The IP68 rating withstands repeated exposure without signal loss.
Marine and Offshore Engineering
Salt spray and hydrostatic pressure test every component. Your sonar systems, underwater ROVs, and navigation equipment need connections that won't corrode or leak. Our plugs deliver years of service in maritime applications where failure isn't an option.
Smart Outdoor Infrastructure
LED architectural lighting and 5G small cells face harsh weather. The connector manages complex RGBW signals or high-speed data through rain, snow, and UV exposure. You're investing in a 10-15 year lifecycle product that reduces maintenance visits.
Technical Specifications That Matter
Core Performance Parameters
- Main Line Diameter: 7-11mm or 4-8.5mm options
- Core Count: M16 (2/3 cores), M12 (2/3/4 cores)
- Insulation Voltage: Matches your wire rating
- Rated Current: Based on connected wire specifications
- Protection Grade: IP67 certified
- Operating Temperature: -40℃ to +150℃
- Electrical Connection: Series or parallel (customizable)
- Soldering Method: Wire soldering or PCB mounting
Material Excellence
The housing uses PA66 nylon for UV resistance and mechanical strength. Gold-plated copper alloy contacts keep resistance below 5-10mΩ. This combination delivers consistent performance across thousands of mating cycles.
Customization Options
You specify the details:
- Branch port thread type (PG, NPT, metric)

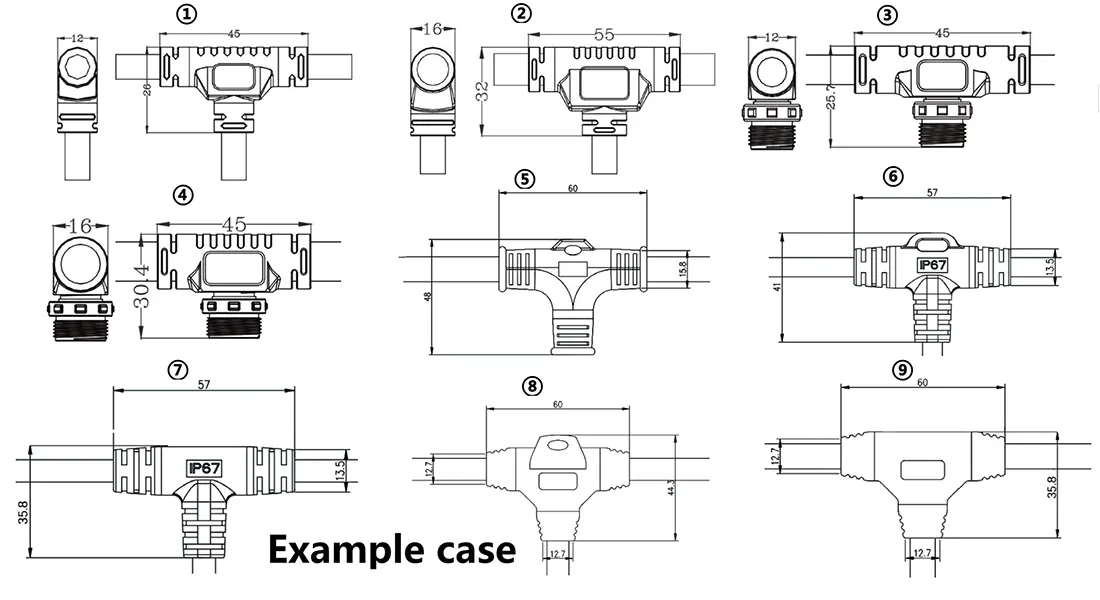

- Body dimensions for space-constrained installations
- Pin configuration to match your circuit requirements
- Contact plating for specific environmental challenges
Why Cablein Waterproof Connectors Outperform
Proven Durability
Repeated plugging and unplugging won't degrade the IP68 seal. The threaded locking mechanism maintains electrical continuity under vibration and mechanical shock. Your connection survives the conditions that destroy standard connectors.
Simplified Maintenance
The input-side waterproof connector allows quick equipment swaps. You don't need field splicing expertise. Replacement takes minutes instead of hours. Your maintenance team appreciates the straightforward design.
Quality You Can Verify
Every connector undergoes comprehensive testing:
- Salt spray exposure per ASTM B117
- Thermal shock testing per IEC 60068-2-14
- 100% waterproof performance inspection
- Insulation resistance verification at 500V DC
- Insertion force testing for 500-1000 cycles
Frequently Asked Questions
Q: What's the difference between IP67 and IP68 protection?
A: IP67 protects against temporary immersion for 30 minutes at 1 meter depth. IP68 suits continuous submersion at depths specified by the manufacturer, often 3 meters or more. Choose based on your actual operating conditions.
Q: How does pin count affect current capacity?
A: As the number of pins increases in a product, current capacity per pin may decrease due to heat buildup. Always consult the derating curve for your specific configuration. We provide detailed technical documentation with every order.
Q: Can these connectors handle electromagnetic interference?
A: High-end versions include 360-degree shielding shells and conductive gaskets. These features protect sensitive data signals from EMI and RFI interference in electrically noisy environments.
Q: Are the seals resistant to chemicals?
A: Standard seals use NBR or silicone for general applications. For exposure to oils, fuels, or aggressive chemicals, we recommend Viton (FKM) seals. These prevent swelling and maintain seal integrity over time.
Q: How do I select the correct wire gauge?
A: Each product design specifies contact sizes and sealing grommet dimensions. Using wire with an outside diameter too small for the grommet compromises waterproof integrity. Our technical team helps you match wire specifications to connector requirements.
Q: What's your lead time for custom configurations?
A: Standard items ship within 7-10 days from our 10,000+ piece inventory. Custom configurations require flexible scheduling based on complexity. We work with your timeline to meet project deadlines.
Get Your Technical Specifications Today
Ready to solve your harsh-environment connection challenges? Contact our engineering team at nick@cableinco.com for detailed datasheets, sample inquiries, and technical consultations. Bookmark this page for quick reference when you need reliable Multi Way Waterproof Plug solutions.
