T Junction Waterproof Plug
2. Triangular gussets at the branch-trunk junction add structural rigidity for high-vibration environments.
3. IP67 and IP68 waterproof integrity is maintained across all branch entry points.
4. Triangular reinforcement absorbs lateral forces, preventing joint fatigue during cable flexing.
5. Operates reliably from -40℃ to 150℃, with UV additives preventing sunlight degradation.
6. CE and RoHS compliant, with production verified under ISO9001 oversight.
7. The all-in-one overmolded housing replaces multiple individual splitters, saving panel space.
8. Your design realized with flexible channel configurations, tailored body shapes, and size adjustments.
T Junction Waterproof Plug: Enterprise-Grade Three-Way Connectivity Solution
When you need reliable power distribution in challenging outdoor conditions, Cablein's T Junction Waterproof Plug delivers enterprise-level protection with IP67/IP68 ratings. Our precision-engineered solution features reinforced PA66 housing with silicone rubber seals, supporting cable diameters from 4-9mm and operating temperatures from -40℃ to 150℃. With triangular gussets providing structural rigidity and insulation resistance exceeding 200MΩ, this three-way connector eliminates the 80% failure rate of hand-taped splices. Our overmolded construction maintains waterproof integrity across all branch points while delivering consistent performance across voltage ranges your application demands. CE and RoHS certified under ISO9001:2015 quality systems, you get factory-molded reliability that removes loose connection risks entirely.
What Makes Our T Junction Waterproof Plug Different
Traditional electrical splicing methods fail when moisture creeps through cable jackets. You've probably experienced corroded connections or short circuits after heavy rain. Our T Junction Waterproof Plug solves this with one-piece overmolded design that seals every entry point.
The specialized T-geometry lets you branch one input line into two outputs without bulky junction boxes. This matters when you're installing LED street lighting arrays or connecting underwater sensors where space is tight.
Unlike multi-part assemblies with dozens of potential leak paths, our plug uses triangular reinforcement at branch joints. This absorbs lateral forces during cable flexing, preventing the micro-cracks that destroy conventional splitters over time.
Where You'll Use This Connector
Smart City Lighting Networks
Your architectural facade lighting needs parallel wiring across long outdoor runs. Rain, humidity, and temperature swings challenge every connection point. Our plug maintains IP68 protection even when mounted on exposed building exteriors.
Marine and Aquaculture Operations
Fish farm aerators and pond pumps face constant salt-mist corrosion. The UV-stabilized housing prevents sunlight degradation while the hermetic seal stops capillary water migration that damages electronics.
Industrial Automation Systems
Greenhouse irrigation controllers and outdoor conveyor lines endure high-pressure washdowns. Our connector operates reliably through chemical exposure from fertilizers and cleaning agents, maintaining secure connections where others corrode.
Energy Infrastructure
Solar panel junction points and EV charging stations require connections that survive desert heat and arctic cold. The -40℃ to 150℃ operating range keeps your renewable energy systems running year-round.
Technical Specifications That Matter
You need numbers you can trust. Here's what our T Junction Waterproof Plug delivers:
Environmental Protection: IP67/IP68 rating verified through hydrostatic pressure testing. Your connections stay dry during temporary immersion (IP67) or continuous submersion (IP68) at specified depths.
Thermal Performance: Operates from -40℃ to 150℃. The reinforced PA66 material resists thermal expansion-contraction cycles that crack inferior housings.
Electrical Integrity: Insulation resistance exceeds 200MΩ. Contact resistance stays below 5mΩ for consistent power delivery. Supports customizable voltage ratings based on your connected wire specifications.
Mechanical Strength: Triangular gussets at the branch-trunk junction prevent joint fatigue. Cable retention testing confirms the mechanical grip withstands pulling forces without loosening.
Chemical Resistance: UV additives prevent photodegradation. The housing maintains flexibility and seal integrity after 2,000+ hours of salt spray exposure (ASTM B117).
Installation Advantages
The factory-molded input cable eliminates your biggest installation headache—loose connections at the entry point. You simply route your branch cables, tighten the strain relief nuts, and verify continuity.
No separate cable glands needed on each output. The overmolded branch exits include integrated sealing, cutting your component count by 60% compared to traditional junction box assemblies.
Field rewiring remains possible with screw-terminal designs. When you need to modify circuits later, the plug opens for maintenance without replacing the entire assembly.
Quality Control You Can Verify

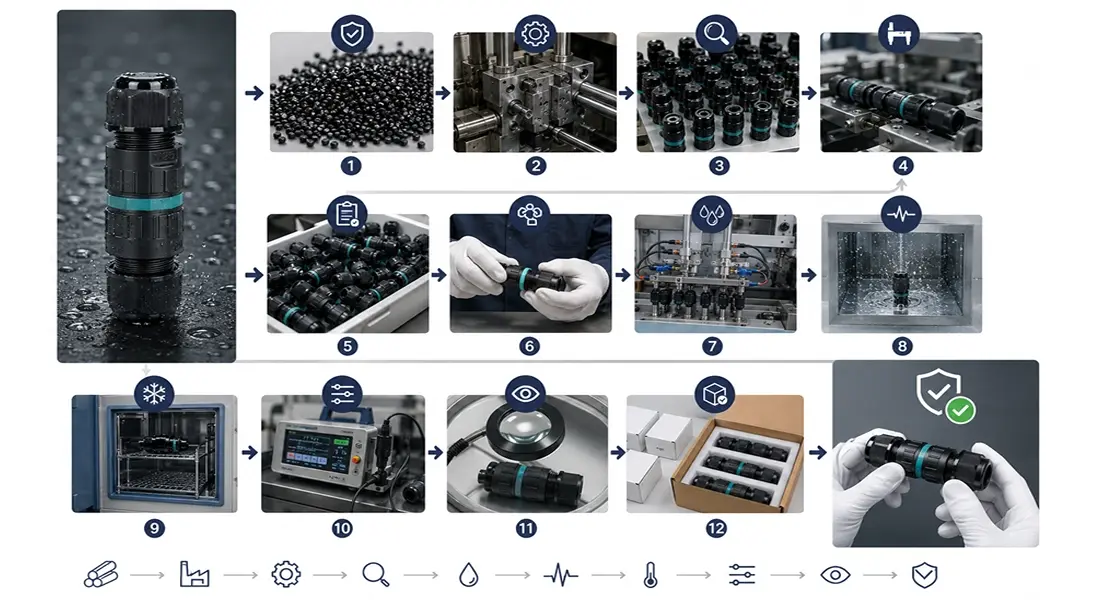

Every unit undergoes five critical inspections before shipping:
- Hydrostatic pressure testing confirms seal integrity at rated depths
- Salt spray testing validates corrosion resistance of internal contacts
- Cable pull-out force testing ensures strain relief adequacy
- Thermal cycling tests identify micro-cracks from temperature shifts
- Dielectric withstand voltage testing verifies zero leakage current at high potential
Our ISO9001:2015 certified production facility in Longgang, Shenzhen maintains stable inventory exceeding 10,000 pieces per item. You get consistent quality backed by CE, RoHS, TUV, and CQC compliance.

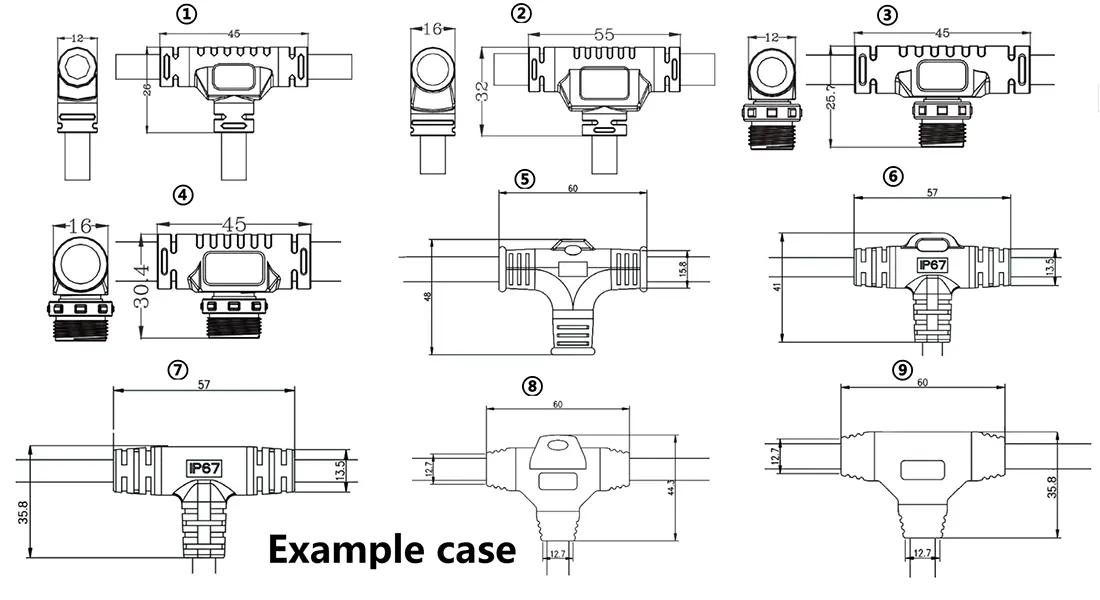

Customization for Your Application
Standard configurations might not match your exact cable sizes or electrical requirements. We offer flexible customization:
- Channel configurations: Adjust input/output wire gauge combinations
- Body shapes: Modify housing geometry for tight mounting spaces
- Connection types: Choose between series or parallel electrical paths
- Termination methods: Select solder or PCB soldering based on your assembly process
Our R&D team holds over 30 utility model patents in quick-connect and solder-free waterproof technology. With 9 years specializing in harsh-environment connectors, we translate your specifications into reliable production reality.
Common Questions Answered
Q: Can this plug work in underground installations?
A: Yes, when specified with IP68 rating and anti-aging polymers resistant to soil acids. Verify the depth rating matches your burial conditions.
Q: How do I select the correct seal size?
A: The internal silicone O-ring must match your cable's outer diameter precisely. Even 1mm mismatch compromises the waterproof seal. Measure your cable OD before ordering.
Q: Is the connection reusable after installation?
A: Screw-terminal versions allow field re-wiring for circuit modifications. Overmolded types provide permanent connections optimized for set-and-forget applications.
Q: What's the practical difference between IP67 and IP68?
A: IP67 protects against 30-minute immersion at 1-meter depth—suitable for rain exposure. IP68 handles continuous submersion at manufacturer-specified depths—required for underwater use.
Q: Will this affect my data signal quality?
A: For signal applications, request gold-plated contacts and verify shielding continuity. This prevents impedance mismatch and oxidation-induced noise in sensitive circuits.
Q: How does temperature cycling affect seal life?
A:Our silicone seals maintain elasticity through -40℃ to 150℃ cycles. Expect 10+ years outdoor service life in typical climate conditions when properly installed.
Contact Us
Ready to eliminate connection failures in your next project? Contact our engineering team at nick@cableinco.com to discuss cable specifications, confirm technical compatibility, and request T Junction Waterproof Plug samples for validation testing.
