waterproof t type cable splitter
2. Triangular support ribs at the branch junction combined with an integrated mounting ear for dual reinforcement.
3. Delivers IP67 and IP68 waterproof protection for harsh industrial and outdoor environments.
4. Ideal for applications requiring both vibration resistance and permanent panel fixation.
5. Rated for -40℃ to 150℃ temperature range, with a UL94-V0 flame-retardant body.
6. TUV and CE certified, manufactured under ISO9001 quality management systems.
7. The overmolded design integrates strain relief at each branch exit, preventing wire pull-out.

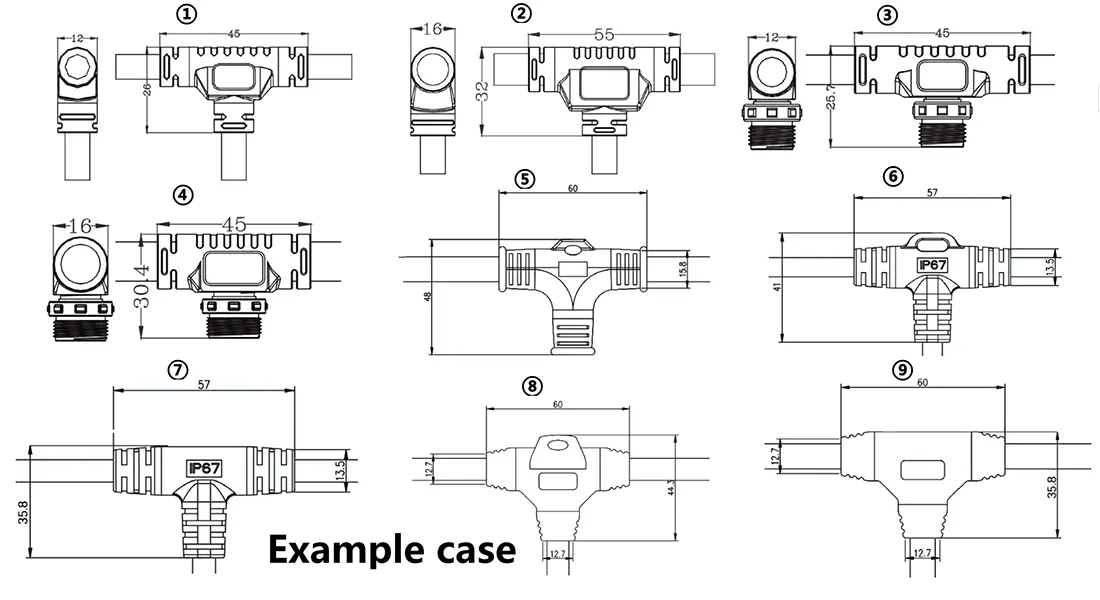

8. We accommodate unique branch counts, custom splitter geometries, and specified envelope dimensions.
Waterproof T Type Cable Splitter – Reliable Power Distribution for Harsh Environments
When your industrial or outdoor lighting project demands flawless connectivity in wet, dusty, or submersible conditions, Cablein Technology's waterproof t type cable splitter delivers enterprise-grade reliability. Built from high-impact PA66 thermoplastic with gold-plated contacts and exactness silicone O-rings, our splitter accomplishes IP67/IP68 assurance appraisals and works over an extraordinary -40℃ to 150℃ temperature extend. With separator resistance surpassing 200MΩ, triangular support ribs at department intersections, and TUV/CE certification beneath ISO9001 quality frameworks, this arrangement disposes of field end blunders whereas giving UL94-V0 flame-retardant security. The overmolded plan coordinating strain help at all exits, supporting custom department tallies and cable breadths from 4-9mm for your specialized applications.
What Is a Waterproof T Type Cable Splitter?
A waterproof t type cable splitter is a high-performance electrical connector that distributes power or data signals from one source into two separate branches in a T configuration. It's specifically designed for environments where moisture, dust, or submersion poses a risk.
Technically, it coordinating a strong PA66 nylon lodging with silicone or EPDM fixing gaskets to accomplish IP67 or IP68 entrance assurance. This component addresses basic industry torment focuses such as dampness wicking through cable centers, complex field wiring time, and framework disappointments caused by warm expansion.
You'll appreciate how it kills the require for chaotic preparing compounds or heat-shrink tubing in proficient open air and mechanical installations.
Key Features & Advantages
Superior Material Construction
Your splitter arrives crafted from high-impact PA66 thermoplastic. Gold-plated contacts resist corrosion. A precision silicone O-ring creates a watertight seal at every junction.
The housing features UV stabilization, so it won't become brittle under direct sunlight. IK08+ impact resistance protects against accidental strikes during installation.
Dual Reinforcement Design
Triangular support ribs at the branch junction absorb pulling forces. An integrated mounting ear provides permanent panel fixation.
This dual reinforcement prevents cracks from starting at stress points. You can confidently install the splitter in high-vibration environments.
Factory Pre-Assembled
The factory-attached input cable eliminates field termination. You save labor costs and prevent wiring mistakes.
All three cable entries are sealed during molding. No field sealing steps are required. The splitter arrives as a single assembly, simplifying your inventory management.
Extreme Temperature Performance
Your product handles temperatures from -40℃ to 150℃. This makes it suitable for outdoor infrastructure projects in any climate.
Flexible silicone O-rings maintain constant compression even as the plastic housing expands or contracts with temperature changes.
IP68 Submersible Rating
IP68 waterproofing means you can place the splitter in wet areas or bury it directly underground without failure. It withstands continuous submersion at manufacturer-specified depths.
Vacuum-sealed immersion testing verifies this integrity before shipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Main Line Diameter | 4-9mm |
| Branch Line Diameter | 4-9mm |
| Rated Current | Based on connected wire voltage |
| Insulation Voltage | Based on connected wire voltage |
| Insulation Resistance | 200MΩ |
| Protection Grade | IP67/IP68 |
| Operating Temperature | -40℃ to +150℃ |
| Electrical Connection | Customizable (Series or Parallel) |
| Flame Rating | UL94-V0 |
| Contact Plating | Gold-plated brass |
Where You'll Use This Splitter
Outdoor Architectural & Landscape Lighting
The waterproof t type cable splitter facilitates daisy-chaining of LED floodlights and streetlamps. This modular approach allows you to replace individual fixtures without disrupting your entire circuit.
Industrial Automation & Sensors
In smart factory environments, you'll use these splitters to branch M12 or M8 signal lines in areas subject to high-pressure washdowns or coolant exposure.
Renewable Energy Systems
In solar PV arrays and offshore wind power monitoring, the splitter manages power distribution and data feedback from sensors. It thrives in environments with extreme temperature fluctuations and high humidity, where traditional junction boxes would be too bulky or prone to seal failure.
Agricultural Lighting
Your greenhouse operations benefit from reliable connections that resist fertilizer spray and high humidity.
Quality Control That Protects Your Investment
Cablein implements five critical inspection vectors:
Ingress Protection Test: Vacuum-sealed immersion verifies IP68 integrity.
Tensile Strength Test: The integrated cable gland withstands specified Newtons of force without compromising the seal.
Thermal Cycling Test: We cycle the splitter between -40°C and +105°C to detect material fatigue or seal shrinkage.
Salt Spray Test: 48-96 hours of testing simulates coastal or corrosive industrial atmospheres.
Dielectric Strength Testing: Ensures no flashover occurs at high voltages, confirming the safety of internal insulation barriers.
Every product undergoes 100% inspection before leaving our 6,000 ㎡ facility.
Frequently Asked Questions
Q: What's the contrast between IP67 and IP68 ratings?
A: IP67 secures against transitory drenching for 30 minutes at 1m profundity. IP68 means persistent submersion at more prominent profundities indicated by the producer. Select based on your establishment environment.
Q: Can I utilize this splitter for both control and data?
A: Yes. Depending on the inner stick arrangement (2-pin to 5-pin), you can utilize it for high-current control dispersion or protected flag transmission.
Q: Do I require uncommon instruments for installation?
A: Most plans include screw-terminal or push-in connectors requiring as it were standard devices. A few mechanical variations utilize pleating for most extreme vibration resistance.
Q: How does the splitter handle warm expansion?
A: High-quality silicone O-rings and gaskets keep up consistent compression indeed as the lodging grows or contracts with temperature.
Q: Is the lodging flame-retardant?
A: Yes. Our splitters utilize UL94-V0 appraised plastics that self-extinguish inside 10 seconds of expelling a fire source, guaranteeing fire security in mechanical installations.
Why Choose Cablein Technology?
Since 2017, we've operated from Shenzhen's high-tech manufacturing hub. Our 200+ person team holds over 30 utility model patents.
We maintain stable inventory of more than 10,000 pieces per item. Standard delivery takes 7-10 days. Our partnerships with UPS, DHL, and FedEx ensure fast global shipping.
TUV and CE certification under ISO9001:2015 quality management systems gives you confidence. We accommodate unique branch counts, custom splitter geometries, and specified envelope dimensions through our OEM/ODM services.
Get Your Custom Solution Today
Ready to upgrade your connectivity infrastructure? Send your technical requirements to nick@cableinco.com to request detailed specifications, waterproof t type cable splitter samples, or confirm custom configurations. Bookmark this page for future reference, and let our engineering team assist with your specific application challenges.
