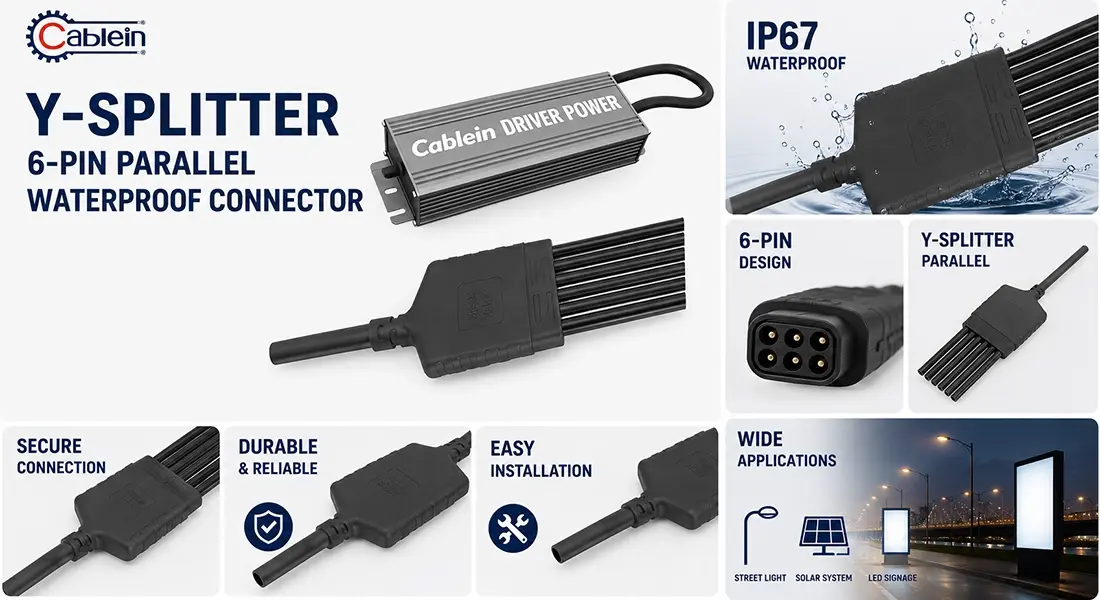

Y-Splitter 6-Pin Parallel Waterproof Connector
2. One input feeds six separate output branches, reducing wiring complexity in dense installations.
3. IP67 and IP68 waterproof integrity is maintained across all branch entry points.
4. Designed for telecommunications base stations, traffic signal cabinets, and industrial IoT gateways.
5. Operates reliably from -40℃ to 150℃, with UV additives preventing sunlight degradation.
6. CE and RoHS compliant, with production verified under ISO9001 oversight.
7. The all-in-one overmolded housing replaces multiple individual splitters, saving panel space.
8. Your design realized with flexible channel configurations, tailored body shapes, and size adjustments.
Y-Splitter 6-Pin Parallel Waterproof Connector – Enterprise-Grade Signal Distribution Solution
When your outdoor installation demands parallel power and signal distribution with absolute environmental protection, Cablein's Y-Splitter 6-Pin Parallel Waterproof Connector delivers proven reliability. Designed with fortified PA66 lodging and silicone elastic seals, this connector accomplishes IP67/IP68 assurance over all six department focuses. Working faultlessly from -40℃ to 150℃, it bolsters separator resistance of 200MΩ and keeps up full execution beneath ISO9001-verified fabricating guidelines. One input bolsters six isolated yields, dispensing with complex intersection boxes whereas guaranteeing each stick keeps up steady voltage over parallel branches—critical for synchronized frameworks in marine gadgets, shrewd lighting, and mechanical automation.
What Is a Y-Splitter 6-Pin Parallel Waterproof Connector?
A Y-Splitter 6-Pin Parallel Waterproof Connector is a specialized distribution component that splits one 6-wire input into multiple 6-wire outputs while maintaining hermetic environmental sealing. Unlike series configurations, the parallel internal circuit ensures voltage remains constant across every output branch.
This plan fathoms your point-to-multipoint wiring challenges. You dispose of bulky intersection boxes and field soldering—two essential disappointment focuses in high-humidity situations. The connector's overmolded development evacuates potential spill ways at association interfaces.
In high-end open air gadgets and mechanical frameworks, this connector sort addresses basic wiring complexity. Your hardware dispersing prerequisites are met through customizable input cable lengths. The factory-preassembled cable input interfaces straightforwardly to upstream gadgets without extra adapters.
Core Technical Properties
Physical Architecture
The product features gold-plated brass contacts that deliver contact resistance below 10mΩ. Your connection integrity remains stable thanks to phosphor bronze construction that prevents oxidation even in corrosive atmospheres.
Material specifications include:
- Housing: UV-resistant PA66 with reinforced structure
- Seal system: Multi-layer silicone rubber gaskets
- Cable range: Accommodates 3-14mm diameter wires
- Locking mechanism: Threaded nut or bayonet coupling for vibration resistance
Electrical Parameters
Your system benefits from these verified electrical characteristics:
- Insulation voltage: Based on connected wire rating
- Insulation resistance: 200MΩ minimum
- Current capacity: Determined by wire gauge specifications
- Temperature range: -40℃ to +150℃ operational window
The parallel wiring architecture ensures each branch receives identical voltage. This configuration is essential when you're synchronizing RGB+CCT lighting fixtures or networked sensor arrays.
Primary Application Scenarios
Smart Urban Lighting Networks
Your architectural lighting projects require precise color control across multiple fixtures. The connector distributes power and complex color-mixing signals simultaneously to parallel-connected luminaires. Six pins manage separate channels for RGB, CCT, and power lines without signal degradation.
Marine Electronics Systems
In NMEA 2000 networks and proprietary sensor installations, you need reliable connectivity for sonar and GPS transducers. The IP68-rated protection prevents salt-water infiltration that causes short circuits. Your navigation equipment maintains signal integrity in continuous immersion conditions.
Industrial Agricultural Automation
Greenhouse automation and irrigation systems operate in wash-down zones with fertilizer exposure. The product networks multiple sensors—soil moisture, humidity, temperature—while withstanding high-pressure water cleaning protocols.
Manufacturing Advantages
Integrated Overmolded Design
Your installation benefits from cable and splitter body molded as one seamless unit. This construction eliminates leak points at cable entry. The design prevents accidental disconnection from vibration or pulling force—critical for permanent installations.
Factory-Assembled Input Cable
You receive connectors with preassembled input cables ready for direct connection. No field assembly means reduced installation time and zero risk of improper sealing. Custom cable lengths match your specific equipment spacing.
Extended Environmental Protection
IP68 certification covers the entire signal path from input to each branch output. Your system operates reliably in:
- Continuous submersion conditions
- Dusty industrial environments
- Direct UV exposure with anti-degradation additives
- Extreme temperature cycling from -40℃ to 150℃
Quality Assurance Process
Every Y-Splitter 6-Pin Parallel Waterproof Connector undergoes comprehensive testing before shipment:
Structural Integrity Tests:
- Vacuum leakage verification of overmolding seal
- Tensile strength validation exceeding 100N pull force
- Salt spray aging (ASTM B117) for 48-96 hours
Electrical Performance Tests:
- Dielectric withstanding voltage at 1000V+
- Contact resistance measurement across all pins
- Insulation resistance verification at 200MΩ minimum
Durability Validation:
- Mating cycle testing beyond 500 connections
- Thermal cycling across full temperature range
- UV exposure testing for outdoor longevity
Your quality assurance is backed by ISO9001:2015 certified production processes. CE and RoHS compliance documentation accompanies every shipment.
Frequently Asked Questions
Q1: What differentiates parallel from series Y-splitters?
A: A parallel configuration maps every pin 1:1 across outputs, maintaining consistent voltage. This architecture is essential for synchronized systems where signal integrity cannot be compromised.
Q2: Can you customize branch cable lengths?
A: Yes. We manufacture custom branch lengths to minimize cable management issues in your specific installation footprint. Provide your dimensional requirements during the inquiry stage.
Q3: How does UV resistance affect product lifespan?
A: UV-stabilized PA66 prevents shell brittleness and cracking under continuous sunlight exposure. Your connectors maintain structural integrity for years in outdoor installations.
Q4: Which wire gauges are compatible?
A: The connector accommodates main line diameters from 5-14mm and branch lines from 3-12mm. Internal crimp or solder cups can handle various AWG sizes—consult our specification sheet for your specific requirements.
Q5: What certifications should I verify?
A: Look for CE, RoHS, and UL certifications alongside verified IP68 test reports. These documents confirm global compliance and validated waterproof performance.
Q6: Can the connector handle repeated mating cycles?
A: Our locking mechanism and gold-plated pins maintain integrity beyond 500 connection cycles. This durability supports maintenance requirements in field-serviceable equipment.
Transform Your Installation Reliability
Your critical systems deserve connectivity solutions engineered for demanding environments. The Y-Splitter 6-Pin Parallel Waterproof Connector simplifies complex wiring while delivering enterprise-grade environmental protection. Take the next step: Contact us at nick@cableinco.com to discuss your specific requirements.
