Y-Splitter Waterproof Plug 3way
2. One incoming line branches into three separate outputs, enabling multi-device feeding from a single source.
3. IP67 and IP68 waterproof performance is assured for exposed or submerged installations.
4. Ideal for garden lighting networks, fountain pump systems, and outdoor sensor arrays.
5. UL94-V0 flame-retardant housing resists ignition and self-extinguishes quickly.
6. Production complies with TUV and CE requirements, backed by ISO9001 certification.
7. Pre-molded overmolded structure eliminates separate sealing components, reducing part count.
8. We tailor branch quantities, splitter housing geometry, and external size to your specifications.

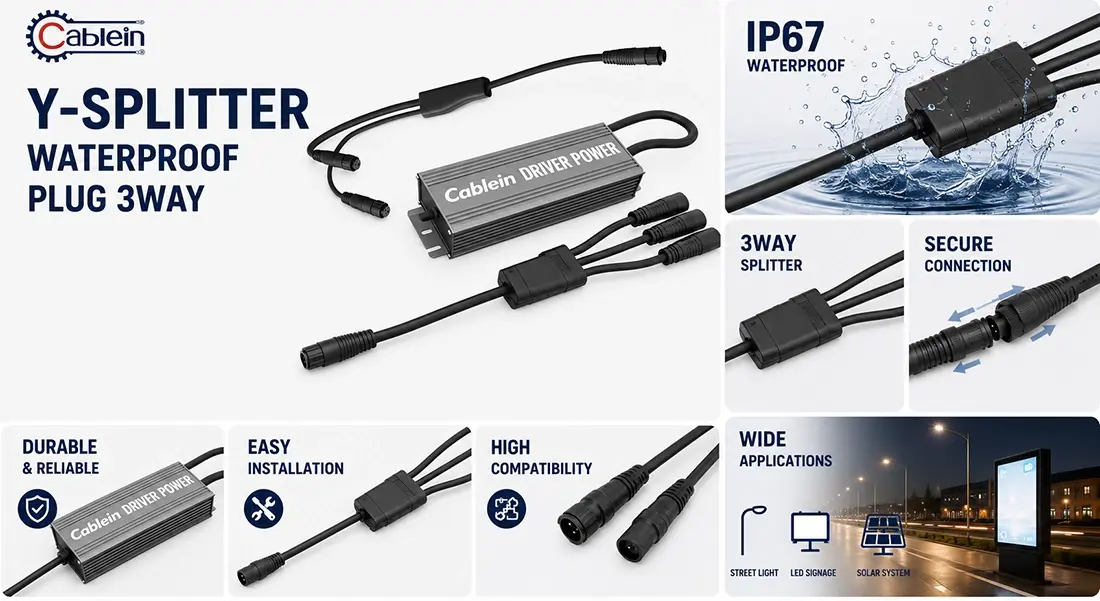

Y-Splitter Waterproof Plug 3way – Reliable 3-Way Power Distribution for Harsh Environments
When your outdoor installation demands robust multi-point power distribution, the Y-Splitter Waterproof Plug 3way from Cablein Technology delivers enterprise-grade performance. Manufactured from high-strength PA66 with gold-plated contacts and silicone-sealed lodging, this connector accomplishes IP67 and IP68 waterproof appraisals for submerged or uncovered applications. Our pre-molded overmolded structure handles cable breadths from 3-8mm, works from -40℃ to +150℃, and keeps up 200MΩ cover resistance. Compliant with TUV, CE, and ISO9001:2015 guidelines, each unit highlights UL94-V0 flame-retardant lodging and customizable department arrangements. With steady stock surpassing 10,000 pieces per SKU and 7–10 day standard conveyance, Cablein guarantees your extend remains on schedule.
What Is a Y-Splitter Waterproof Plug 3way?
A Y-Splitter Waterproof Plug 3way is a precision-engineered branch connector that divides one electrical input into three distinct output channels. It maintains hermetic sealing against water, dust, and moisture ingress.
In proficient interconnect frameworks, this component tackles basic challenges. Conventional intersection boxes require manual get together, expanding labor costs and potential disappointment focuses. Non-sealed terminal pieces come up short rapidly in high-humidity situations. Space-constrained establishments require compact, plug-and-play arrangements that protect circuit integrity.
This 3-way splitter addresses all three torment focuses. You get factory-sealed unwavering quality, moment field arrangement, and IP-rated protection—all in a single compact unit.
Key Applications: Where You Need 3-Way Distribution
Outdoor Architectural and Landscape Lighting
Your LED floodlights and wall washers need seamless daisy-chaining across building facades. The Y-Splitter Waterproof Plug 3way reduces cable clutter while surviving heavy rainfall and irrigation exposure. Each branch maintains individual IP68 sealing, preventing cross-leakage between circuits.
Renewable Energy Systems
Solar PV installations require parallel module connections and sensor integration. Our splitter withstands intense UV radiation and temperature fluctuations from -40℃ to +105℃. Pre-assembled overmolded design eliminates field assembly time, accelerating commissioning schedules.
Marine and Aquaculture Engineering
Underwater lighting and automated feeding systems face constant salt spray and moisture. Standard connectors corrode within weeks. Our Y-shaped housing geometry reduces cable exit stress while gold-plated contacts resist oxidation. Protection Grade IP68 ensures continuous submersion reliability.
Garden Lighting Networks and Fountain Systems
Outdoor sensor arrays and pump circuits benefit from customizable output cable gauges. Single incoming line distributes power to three separate channels, simplifying wiring in tight landscape installations.
Technical Specifications That Matter
You need precise parameters for procurement confidence:
| Parameter | Specification |
|---|---|
| Main Line Diameter | 3-8mm |
| Branch Line Diameter | 3-8mm |
| Protection Grade | IP67 / IP68 |
| Insulation Resistance | 200MΩ |
| Operating Temperature | -40℃ to +150℃ |
| Housing Material | PA66 with UL94-V0 flame retardancy |
| Contact Plating | Gold-plated for low resistance |
| Electrical Connection | Customizable (Series or Parallel) |
Our rated voltage and current align with your connected wire specifications. Insulation voltage scales accordingly, ensuring safe operation across diverse load requirements.
Why Cablein's 3-Way Splitter Outperforms Alternatives
Single-Source Multi-Point Distribution
One input feeds three separate outputs without additional junction boxes. You eliminate intermediate failure points and reduce installation complexity.
Individual Branch Sealing
Each port maintains independent IP68 protection. If one branch suffers mechanical damage, the remaining two continue operating—critical for fail-safe lighting and monitoring systems.
Pre-Molded Overmolded Construction
Factory-sealed design arrives ready for immediate deployment. No separate sealing components mean faster installation and zero assembly errors.
Thermal and Mechanical Resilience
Rated from -40℃ to +105℃, our splitters handle Arctic cold and desert heat. High-strength PA66 housing resists impact and UV degradation over multi-year service life.

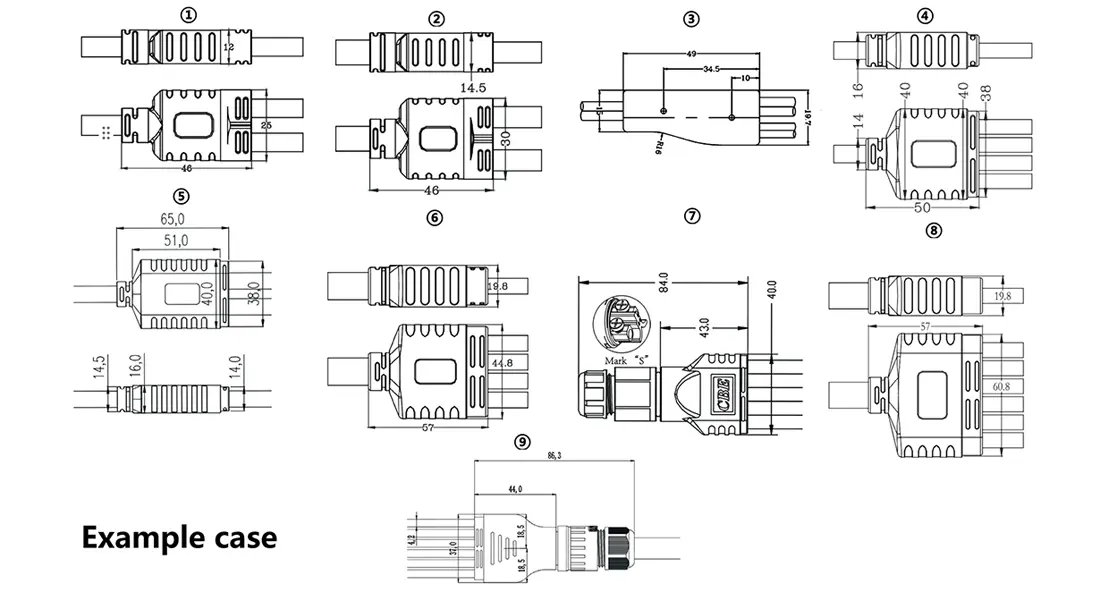

Customizable Branch Configurations
We tailor branch quantities, housing geometry, and external dimensions. Different output cable gauges and lengths adapt to asymmetric load distributions in complex installations.

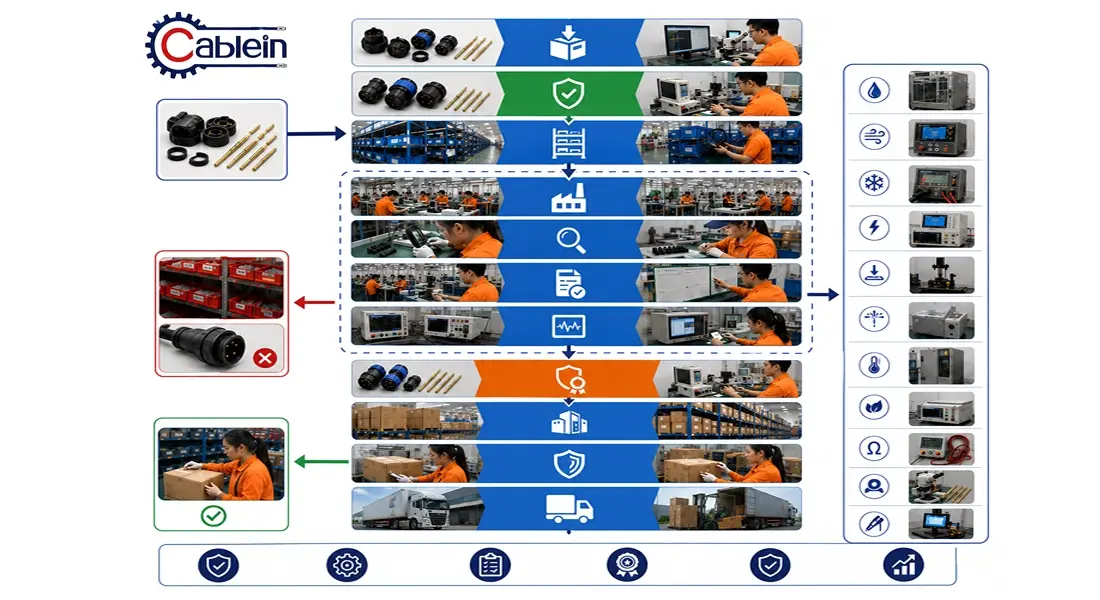

Quality Assurance: Five Essential Tests
Professional procurement demands rigorous validation. Cablein implements comprehensive testing protocols:
- Vacuum Leakage Test – Detects microscopic voids in overmolding that could cause capillary moisture ingress.
- Salt Spray Aging (ASTM B117) – Verifies contact corrosion resistance over 48–96 hours.
- High-Voltage Insulation Test – Confirms dielectric strength prevents arcing at peak loads.
- Mechanical Pull Force Test – Ensures wire-to-plug connections meet industry-standard retention force.
- Thermal Cycling Test – Validates seal integrity across expansion and contraction cycles.
Every product undergoes 100% inspection before shipment, backed by ISO9001:2015 certification and TUV compliance.
Frequently Asked Questions
Q: Can the item handle both DC and AC power?
A: Yes. Given voltage and current stay inside evaluated determinations, it suits low-voltage DC Driven frameworks and AC mains conveyance equally.
Q: What's the viable contrast between IP67 and IP68 ratings?
A: IP67 withstands transitory inundation (30 minutes at 1 meter profundity). IP68 underpins persistent submerged operation at indicated depths—essential for wellspring pumps and submersible lighting.
Q: How do I keep up waterproof astuteness over a long time of field use?
A: Torque the coupling nut to producer determinations amid establishment. Confirm the O-ring is situated accurately and free from flotsam and jetsam. Occasional visual assessment catches early signs of wear.
Q: Are diverse wire gages congruous with one splitter model?
A: Factory-molded adaptations are optimized for particular wire sizes. Field-assembly variations offer conversely cable organs to suit different external diameters—contact us for custom configurations.
Q: Does the lodging stand up to chemical introduction past water?
A: Standard PVC forms handle dampness superbly. For oil, fuel, or dissolvable situations, indicate PUR (Polyurethane) jacketed Y-splitters for predominant chemical and scraped area resistance.
Fast Delivery and Global Logistics
Cablein maintains stable inventory exceeding 10,000 units per item. Standard orders ship within 7–10 days. Our partnerships with UPS, DHL, and FedEx ensure cost-effective air freight, while experienced forwarders handle sea shipping for bulk orders.
Flexible scheduling accommodates custom mold development and private-label OEM/ODM projects. Our 6,000 ㎡ production facility and 200-employee team guarantee consistent quality and scalable output.
Professional Support from Inquiry to Installation
Cablein keeps up steady stock surpassing 10,000 units per thing. Standard orders dispatch inside 7–10 days. Our organizations with UPS, DHL, and FedEx guarantee cost-effective discuss cargo, whereas experienced forwarders handle ocean shipping for bulk orders.
Flexible planning suits custom form improvement and private-label OEM/ODM ventures. Our 6,000 ㎡ generation office and 200-employee group ensure reliable quality and versatile output.
Contact Us
Ready to streamline your 3-way power distribution? Email nick@cableinco.com to request technical specifications, confirm customization details, or discuss Y-Splitter Waterproof Plug 3way sample availability for testing.
