Y Type Electrical Waterproof Connector
2. A single input is distributed across four output channels, accommodating multiple downstream devices.
3. Delivers reliable IP67 and IP68 protection for permanent outdoor or wet-location deployment.
4. Commonly deployed in commercial parking lot lighting, irrigation control hubs, and signage networks.
5. Rated for -40℃ to 150℃ continuous operation without performance degradation.
6. Holds ETL and CE certifications, manufactured under strict ISO9001 quality controls.
7. The compact overmolded body consolidates four connections into one entry point.

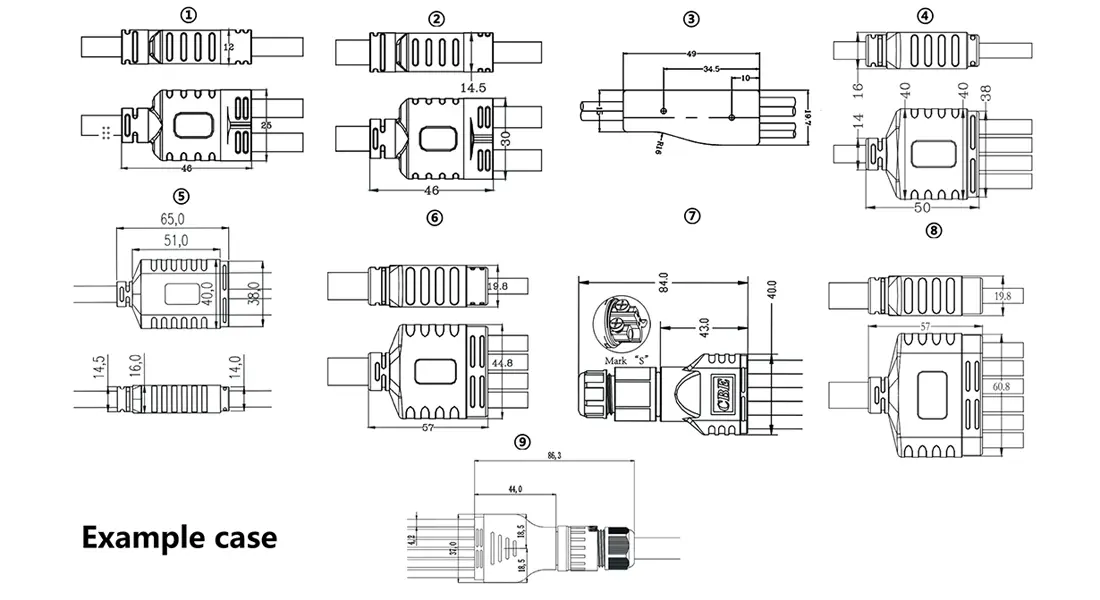

8. Customizable features range from number of outputs to splitter body contour and dimensional layout.
Y Type Electrical Waterproof Connector – Enterprise-Grade Distribution Solution
When your project demands reliable power distribution in challenging outdoor environments, Cablein's Y Type Electrical Waterproof Connector delivers unmatched performance. Built from impact-resistant PA66 thermoplastic and fixed with precision-molded silicone O-rings, this connector changes one input into four free yield channels. It accomplishes IP67/IP68 security over an extraordinary temperature run of -40℃ to +150℃, with cover resistance surpassing 200MΩ. Certified to ETL and CE measures beneath ISO9001:2015 quality controls, our arrangement dispenses with bulky intersection boxes whereas keeping up airtight keenness. Whether you're conveying commercial stopping parcel lighting, sun based clusters, or mechanical robotization systems, this compact overmolded plan solidifies different associations into a single weatherproof section point—saving establishment time and decreasing long-term support costs.
What Makes This Waterproof Splitter Essential?
The Y Type Electrical Waterproof Connector is a specialized industrial-grade branching assembly engineered to split a single electrical input into multiple outputs. Unlike traditional T-junctions or terminal blocks, this connector maintains a hermetic seal at every branch point.
You're looking at a arrangement that addresses three basic challenges. To begin with, it kills complex manual wiring interior intersection boxes, cutting your establishment time essentially. Moment, it anticipates dampness entrance through capillary action—a common disappointment mode in open air branching focuses. Third, it optimizes cable administration in high-density formats where space is at a premium.
Our plan employments UV-stabilized materials appraised UL94-V0 for fire retardancy. The lodging stands up to mechanical affect whereas inside silicone gaskets keep up versatility over temperature swings. You get solid operation whether you're confronting leave warm or cold cold.
Technical Specifications That Matter
Built from PA66 thermoplastic, each connector features die-cut silicone O-rings that seal against environmental intrusion. Here's what you need to know:
Main line diameter: 3-9mm or 3-14mm (depending on model)
Branch line diameter: 3-9mm or 3-10mm
Protection grade: IP67/IP68 (submersible to specified depths)
Operating temperature: -40℃ to +150℃ continuous
Insulation resistance: 200MΩ minimum
Current rating: Based on connected wire specification
Contact material: Gold-plated or nickel-plated copper alloy
Contact resistance: <5mΩ for optimal conductivity
The electrical connection can be customized for series or parallel configuration. Soldering methods include traditional soldering or PCB mounting, depending on your application requirements.
Where You'll Deploy This Connector
Outdoor Architectural Lighting
Commercial parking lots, landscape installations, and signage networks rely on these connectors to daisy-chain LED fixtures. The IP68 rating withstands constant UV exposure and heavy rain while enabling rapid plug-and-play replacement of faulty units.
Renewable Energy Systems
Solar PV arrays use these connectors for parallel module connections. You can increase current output without compromising waterproof integrity against soil moisture, snowmelt, or humidity. The -40℃ rating ensures reliability in harsh climates.
Industrial Automation & Marine Applications
From factory automation to underwater sensors, the Y Type Electrical Waterproof Connector handles high-salinity environments and mechanical stress. Ships, aquaculture systems, and rail transportation equipment depend on its corrosion resistance and vibration tolerance.
Irrigation Control Systems
Agricultural installations benefit from the ability to split power to multiple valve controllers from a single trunk line. The sealed construction prevents soil contaminants from degrading electrical connections.
Design Advantages That Reduce Your Total Cost
Centralized Distribution Hub
One input feeds four independent outputs from a single molded body. This replaces multiple individual splitters, saving panel space and reducing potential failure points.
Multi-Directional Moisture Protection
Silicone sealing rings on each cable entry block water ingress from any angle. Even under submersion, the gasket compression maintains vacuum-tight performance.
Independent Channel Control
Each output can be connected or disconnected without affecting other branches. This modularity simplifies troubleshooting and system modifications.
Extreme Climate Tolerance
The -40℃ to 105℃ temperature range covers everything from Canadian winters to Middle Eastern summers. UV-stabilized housing prevents brittleness and cracking over years of sun exposure.
Customization Flexibility
You specify branch lengths, pin configurations, and even splitter body dimensions. We offer varied output counts and mixed electrical specifications to match your exact requirements.
Quality Control You Can Trust
Cablein implements five-stage quality verification for every waterproof connector:
Ingress Protection Testing
Vacuum leak detection and pressurized water immersion confirm IP68 compliance. We follow ASTM standards to ensure submersion performance.
Environmental Stress Screening
Salt spray testing (ASTM B117) evaluates corrosion resistance for coastal and marine environments. Thermal aging in climatic chambers predicts 10-15 year outdoor lifespan.
Mechanical Durability Assessment
Mating cycle tests exceed 500 operations. Cable pull-out force testing validates strain relief gland integrity under structural tension.
Electrical Safety Verification
Dielectric Withstanding Voltage (DWV) tests prevent insulation breakdown. Contact resistance testing ensures connections won't overheat during high-current transmission.
100% Final Inspection
Every connector undergoes waterproof performance validation, electrical continuity checks, and visual inspection before packaging. Our ISO9001:2015 certification guarantees consistent quality.
Frequently Asked Questions
Q: Can you customize cable distances across for diverse branches?
A: Yes. We give measured fixing grommets measured autonomously for trunk and department cables. This guarantees culminate compression fit in any case of wire gage variations.
Q: What's the viable contrast between IP67 and IP68 ratings?
A: IP67 permits transitory submersion for 30 minutes at 1-meter profundity. Our IP68-rated connectors bolster ceaseless submersion at 2 meters or more profound, depending on the particular show you choose.
Q: How do you anticipate dampness wicking through cable cores?
A: We utilize inside preparing and overmolded structures that make a auxiliary dampness obstruction. This avoids water from traveling through wire strands into the connector body—a common disappointment mode in second rate products.
Q: Are these consistent with both AC and DC power?
A: Completely. The connectors handle widespread electrical transmission, given you remain inside the evaluated current and voltage determinations of your chosen model.
Q: Do I require uncommon instruments for field installation?
A: Numerous models include tool-free screw-terminal or push-lock instruments. High-reliability mechanical forms may require a torque torque to accomplish the indicated fixing nut compression for ensured IP68 performance.
Why Choose Cablein for Your Waterproof Connectors
Since 2017, we've manufactured industrial connectivity solutions from our 6,000㎡ facility in Shenzhen. Our 200+ person team holds over 30 utility model patents, with certifications including CE, RoHS, ETL, PSE, TUV, and ISO9001:2015.
We maintain stable inventory exceeding 10,000 pieces per item, enabling 7-10 day standard delivery. Custom orders benefit from our flexible scheduling and OEM/ODM capabilities. Through partnerships with UPS, DHL, and FedEx, we provide cost-effective worldwide shipping.
Every product undergoes strict testing before leaving our production line. Our 24-hour technical support team assists with project planning, customization consultation, and after-sales service.
Ready to Secure Your Next Project?
Contact nick@cableinco.com to discuss technical specifications, request Y Type Electrical Waterproof Connector samples, or confirm customization details for your application requirements.
