LP12 5-Pin Plastic Waterproof Solder-Type Connector
2.5 solder pins run separate channels for power and signal, all through one slim cable instead of multiple runs.
3.Rated at 5A/125V for 0.34-0.75 mm² wire—built for small loads and compact devices, not heavy motors.
4.IP67 seal locks out water for 5-7mm cables, so a bit of rain or washdown won't reach the solder joints.
5.Solder joints offer lower resistance than screw terminals, keeping the connection stable under vibration.
6.Tight handles or cramped junction boxes? This mini 5-pin plug slips right in where standard metal connectors won't.
7.From Cablein Technology—standard versions in stock, with custom pin layouts if your project needs something specific.
8.Part Number：LP-12-J05PE-02-001 LP-12-C05PP-02-001 LP-12-C05SX-02-101 LP-12-C05SX-02-401.

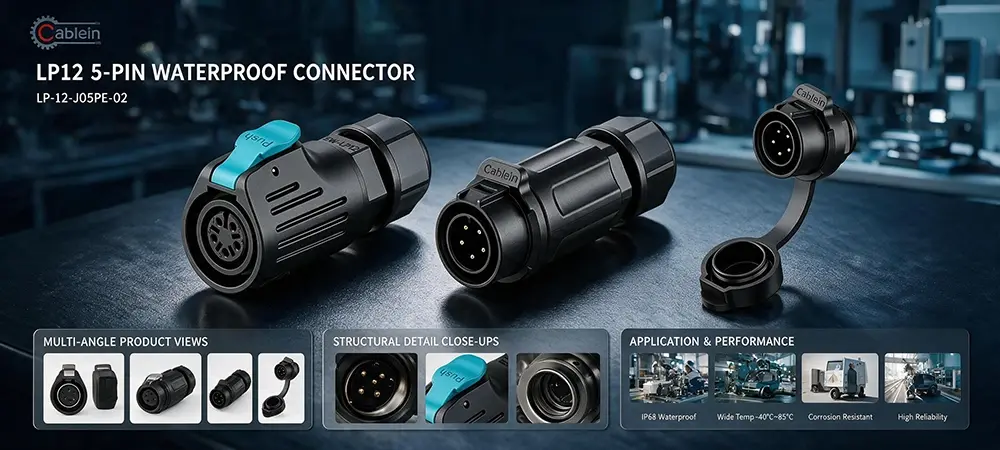

LP12 5-Pin Plastic Waterproof Solder-Type Connector——Compact 5-Pin Wiring for Small, Wet Equipment
Small devices often get stuck with connectors that are too bulky to fit. The LP12 5-Pin Plastic Waterproof Solder-Type Connector from Cablein Technology gives you 5 solder pins in a tiny all-plastic package. It handles 5A at 125V and seals 5-7mm cables with an IP67 rating, so a bit of moisture won't cause trouble.
Why Choose Our 5-Pin Plastic Waterproof Solder-Type Connector?
5 Pins in a Tiny Shell
Five pins give you enough channels for a small motor or a mix of signal and power lines. We use solder joints because they offer lower resistance than screw terminals. It takes a few extra minutes to wire, but the connection won't shake loose on vibrating equipment.
All-Plastic Body Keeps It Light
No metal means no rust and less weight dragging on your wiring. It's built for smaller devices where a bulky metal shell would be overkill.
IP67 Sealing for 5-7mm Cables
The silicone ring is sized for slim cables. Tighten the connector down, and it squishes into a solid seal. A bit of rain or washdown won't get inside.
Handles 5A at 125V
Rated at 5A and 125V, it takes 0.34-0.75 mm² wire. It's made for small loads, not big motors, which is exactly what compact devices need.

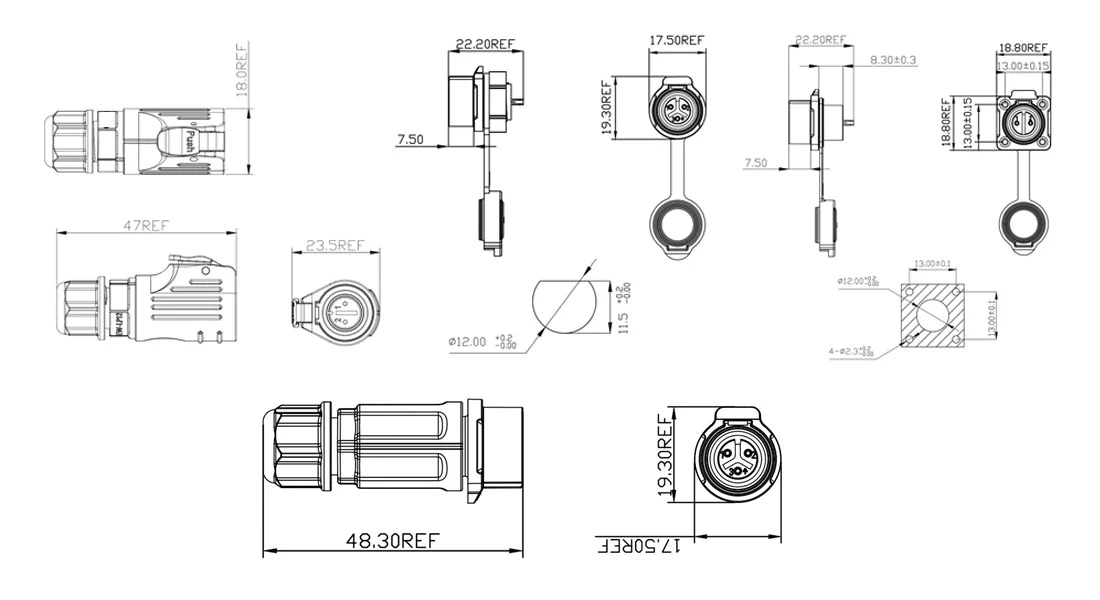

Technical Specifications
|
Connector Series |
LP12 |
Rated Voltage |
125V |
|
Number of Pins |
5 |
Withstand Voltage |
1500V |
|
Termination Type |
Solder |
Ingress Protection |
IP67 |
|
Installation Style |
Cable-to-Cable / Panel / Flange |
Cable Diameter Range |
5–7 mm |
|
Housing Material |
Plastic |
Operating Temperature |
-40°C to +80°C |
|
Rated Current |
5A |
Compatible Wire Gauge |
0.34–0.75 mm² |
Where This 5-Pin Connector Earns Its Keep
Three-Phase Miniature Motor Control
Take small stepper or servo motors. You've got three phases and two hall sensors—that's five wires right there. This connector lets you cram all of them into one thin cable. And the solder joints won't crack loose when the motor starts vibrating.
Compact RGBW LED Strips
Five pins line up perfectly for RGBW plus ground. When you're squeezing this into tight outdoor LED profiles, the plastic body keeps the weight off the fixture. And since it's IP67 sealed, a bit of rain isn't going to short anything out.
Small Drone Battery Connectors
Building a custom drone means cramming wires into tight spots. You need a compact 5-pin plug to handle battery power and telemetry. Because it's plastic, it won't rust on you. And if a wire ever snaps, you can just re-solder it instead of tossing the whole connector.
Portable Medical Device Sensors
Handheld diagnostic tools are always tight on space, so you need something small and light. The LP12 5-Pin Plastic Waterproof Solder-Type Connector slips into those cramped handles without weighing them down. And since it's plastic, wiping it down with alcohol won't make it corrode.
Compact Irrigation Solenoid Controllers
Five wires give you enough channels to run a few valves from a single small box. The plastic body won't rot in damp soil, and with the IP67 seal, water can't get into the solder joints.
Quality Control at Cablein Technology
Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP67 seal holds at the 5-7mm cable range. We test the 5A/125V rating and 1500V withstand voltage. We also pull on the solder joints to make sure they hold. It means the LP12 5-Pin Plastic Waterproof Solder-Type Connector you receive is ready for the field.
Common Questions
Q: Can I get this connector with a different number of pins?
A: Yes, we make them in 2, 3, 4, 5, 6, 7, and 8 pin versions. Tell us what your application needs.
Q: Is this for high-power loads?
A: No. The 5-pin version is rated at 5A/125V, which is ideal for small devices and light loads. If you need higher current, check out our larger LP16 or LP20 models.
Q: Will my cable fit?
A: The standard sealing ring is sized for 5 to 7 mm cables. If you're using a different cable size, let us know and we can match the right ring.
Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.
