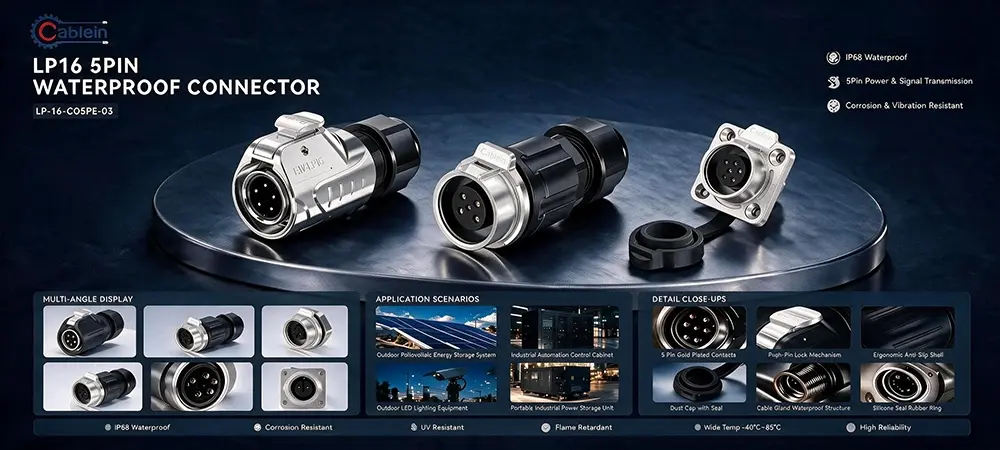

LP16 5-Pin Metal Waterproof Aviation Connector Solder Type
2.5-pin solder contacts handle 5A at 250V, offering lower resistance than screw terminals and resisting vibration.
3.Full metal housing takes impact and heat better than plastic, and helps block electrical interference.
4.Threaded coupling locks securely, so it won't pop loose on machinery or moving equipment.
5.Works reliably from -40°C to +85°C, suitable for freezing cold or high-heat environments.
6.Accepts standard 0.5mm² wire; panel, cable, and flange versions are available for different layouts.
7.Direct from Cablein Technology—stable stock, quick lead times, and OEM customization on request.
8.Part Number：LP-16-C05PE-03-001 LP-16-J05PP-03-001 LP-16-J05SX-01-101 LP-16-J05SX-01-401.
LP16 5-Pin Metal Waterproof Aviation Connector Solder Type———Built for Wet and Vibration-Prone Setups
If your equipment runs outdoors or gets washed down, connection points are a common failure spot. The LP16 5-Pin Metal Waterproof Aviation Connector Solder Type from Cablein Technology addresses this with a full metal housing and a 5-pin solder setup. It holds an IP68 rating, handles 5A at 250V, and accepts cables from 7 to 9 mm in diameter.
Why Choose Our Waterproof Aviation Connector?
Full Metal Shell
Plastic threads tend to strip out when operators plug and unplug them constantly. The metal housing on this LP16 stands up to impact and heat. It also helps block electromagnetic interference in crowded control cabinets.
5-Pin Solder Connection
We chose solder termination over screw terminals here. It takes a little longer to wire up, but soldered joints offer much lower contact resistance. This means less heat buildup and a connection that won't shake loose under constant vibration. You get 5 pins for combined power and signal runs.
IP68 Seal with 7-9 mm Ring
A lot of waterproof connectors struggle when you use thicker cable. Our silicone sealing ring is designed for 7 to 9 mm cable outer diameters. When you tighten the coupling, the seal compresses properly to maintain IP68 protection even if the cable gets pulled.
Threaded Locking Mechanism
Push-pull connectors can work themselves loose on vibrating machinery. The threaded coupling on this model keeps the mating pair secure until you intentionally unscrew it.
Technical Specifications
| Connector Series | LP16 | Withstand Voltage | 1500V |
| Number of Pins | 5 | Ingress Protection | IP68 |
| Termination Type | Solder | Cable Diameter Range | 7–9 mm |
| Housing Material | Full Metal | Operating Temperature | -40°C to +85°C |
| Rated Current | 5A | Compatible Wire Gauge | 0.5 mm² |
| Rated Voltage | 250V |
Where This Connector Fits Best
Industrial Control Cabinets
Panel-mount versions of the LP16 5-Pin Metal Waterproof Aviation Connector Solder Type are used in control boxes where power and signal lines need a secure entry point. The metal body handles heat inside enclosed cabinets.
Outdoor Lighting and Signage
LED floodlights face rain and temperature swings daily. The IP68 seal and wide operating range keep the connection stable through seasonal changes.
Food Processing Equipment
Washdown areas require connectors that tolerate moisture and cleaning cycles. The metal shell resists corrosion much better than plastic in these environments.
Marine and Coastal Gear
Salt spray destroys cheap connectors. The metal housing and sealed design offer solid protection for dockside equipment and marine electronics.
Automotive Test Rigs
Solder connections and threaded locking make this suitable for test setups and mobile equipment where vibration and moisture are constant factors.
Quality Control at Cablein Technology
Every batch leaving our factory gets checked against ISO9001:2015 standards. We run immersion tests to confirm the IP68 seal holds at the specified cable diameter. We also check solder joint strength and thread durability before packing. This ensures the LP16 5-Pin Metal Waterproof Aviation Connector Solder Type you receive is ready for field installation.
Common Questions
Q: Is the LP16 connector available in other pin counts?
A: Yes. The series includes 2, 3, 4, 5, 7, 8, and 9 pin versions. The 5-pin is a common choice for combined power and signal lines.
Q: What cable size works with this connector?
A: The standard sealing ring fits cables with an outer diameter of 7–9 mm.
Q: Can I order samples before bulk purchase?
A: Yes. Cablein Technology supports sample orders so you can verify fit and sealing before committing to a larger quantity.
Q: Does the metal housing require grounding?
A: The metal shell can be grounded if your application requires shielding or earth continuity.
Work With Cablein Technology
Cablein Technology manufactures waterproof connectors for industrial and outdoor applications. We keep stock on common configurations and support custom pin layouts. If you need a reliable LP16 5-Pin Metal Waterproof Aviation Connector Solder Type for your next project, reach out to our team at nick@cableinco.com with your cable diameter and quantity requirements.
