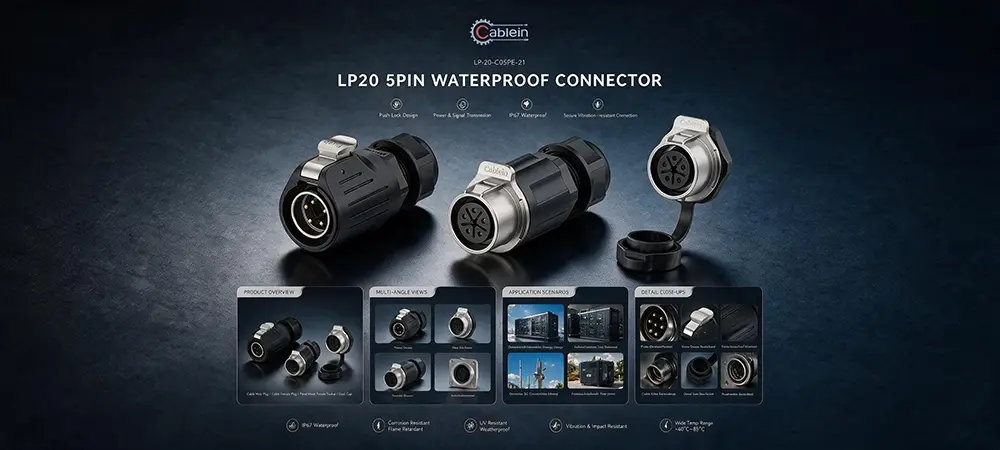

LP20 5-Pin Heavy Duty Waterproof Wire Connector
2.5 pins give you plenty of room for both power and control signals in a single cable.
3.Rated at 10A/250V for 1-1.5 mm² wire, perfect for control circuits and mixed power bundles.
4.Metal takes the hits and soaks up heat, while plastic keeps the whole assembly light and easy to route.
5.IP67 seal locks out water and dust for 8-12mm cables, so hosing it down or leaving it in the rain is fine.
6.Screw terminals clamp the wire tight, so normal vibration won't shake the connection loose.
7.From Cablein Technology—standard versions in stock, with custom pin layouts available if you need something specific.
8.Part Number：LP-20-C05PE-21-001 LP-20-J05PP-21-001 LP-20-J05SX-21-101 LP-20-J05SX-21-401.
LP20 5-Pin Heavy Duty Waterproof Wire Connector——Fast Wiring for Heavy-Duty Control Circuits
Running power and signal lines to a machine and don't want to mess with a soldering iron? The LP20 5-Pin Heavy Duty Waterproof Wire Connector from Cablein Technology gets you wired up fast. You just strip the wire, shove it into the terminal, and crank the screw down tight. That gives you a solid 10A/250V connection. And because the seal fits 8 to 12 mm cables, it’s IP67 rated, so water and dust stay outside.
Why Choose Our 5-Pin Heavy Duty Waterproof Wire Connector?
Screw Terminals for Quick Field Wiring
No soldering, no crimping tools. Just a screwdriver. If you're wiring up multiple machines on site, this saves you a ton of time. Once that screw is tight, the terminal clamps the wire hard enough that normal vibration won't shake it loose.
Metal and Plastic Work Together
Metal does the heavy lifting here—it takes the impacts and handles the heat. The plastic is just there to keep the weight down so the cable isn't a pain to bend. That combo also helps block electrical noise—a lifesaver in crowded control cabinets.
IP67 Sealing for 8-12mm Cables
The silicone ring is sized for thicker cables. Crank the connector down tight, and it squishes into a solid seal. Hose it off or leave it in the rain—water isn't getting inside.
Handles 10A at 250V
Rated at 10A and 250V, it takes 1-1.5 mm² wire. It's not built for massive power runs, but it's perfect for control circuits and mixed power-signal bundles.

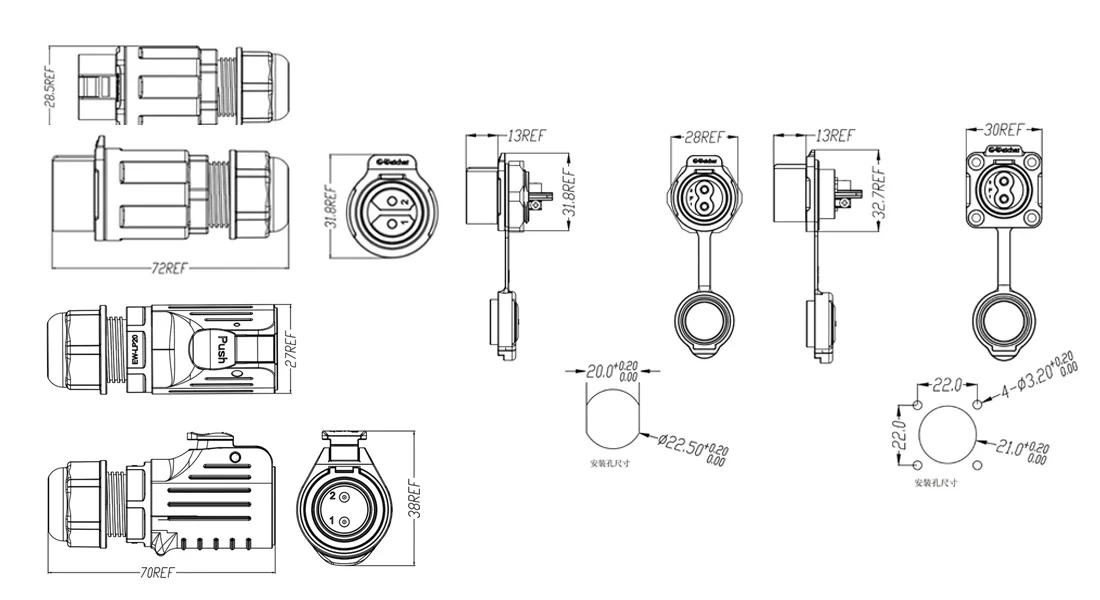

Technical Specifications
|
Connector Series |
LP20 |
Rated Voltage |
250V |
|
Number of Pins |
5 |
Withstand Voltage |
1500V |
|
Termination Type |
Screw |
Ingress Protection |
IP67 |
|
Installation Style |
Cable-to-Cable |
Cable Diameter Range |
8–12 mm |
|
Housing Material |
Plastic + Metal |
Operating Temperature |
-40°C to +80°C |
|
Rated Current |
10A |
Compatible Wire Gauge |
1–1.5 mm² (18-16AWG) |
Where This 5-Pin Connector Earns Its Keep
Mixed Power and Signal Control Lines
When a machine needs a few power wires plus a couple of signal lines, a 5-pin layout saves you from running two separate cables. One connector handles both.
Stage and Event Lighting
On a gig, you're usually running multiple control channels for lights and controllers. If a wire goes bad, you just loosen the screw, swap it out, and you're back up in minutes. And the IP67 seal means the weather won't ruin the show.
Agricultural Irrigation Controllers
Lights and controllers eat up a lot of channels on a gig. When a wire dies—and it always does—just loosen the screw, yank it out, and stick a new one in. Takes a minute, tops. Oh, and the IP67 seal means the rain won't short the whole rig either.
Marine Electronics Panels
Salt spray just destroys cheap plastic plugs. That’s why the metal body on this one matters—it actually holds up against corrosion. And with that IP67 seal, moisture won't get inside and mess up your control signals.
Food Processing Control Boxes
Food plants get hosed down constantly. Standard plastic plugs just crack and fall apart under that kind of chemical abuse. The metal parts on this one actually survive it, which means you aren't constantly swapping them out.
Quality Control at Cablein Technology
Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP67 seal holds at the 8-12mm cable range. We test the 10A/250V rating and 1500V withstand voltage. We also check the screw threads to make sure they don't strip. It means the LP20 5-Pin Heavy Duty Waterproof Wire Connector you receive is ready for the field.
Common Questions
Q: Can I get this connector with a different number of pins?
A: Yes, we make them in 2, 3, 4, 5, 7, 9, and 12 pin versions. Tell us what your application needs.
Q: Is this for high-power loads?
A: No. The 5-pin version is rated at 10A/250V, which is ideal for mixed power and signal circuits. If you need higher current, check out our 2-pin or 3-pin models.
Q: Will my cable fit?
A: As long as your cable's outer diameter is between 8 mm and 12 mm, the standard sealing ring will work.
Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.
Get in Touch with Cablein Technology
Cablein Technology has been making waterproof connectors for industrial and outdoor use for years. We keep standard versions in stock and can customize pin layouts for your specs. If you need the LP20 5-Pin Heavy Duty Waterproof Wire Connector for your next project, email us at nick@cableinco.com with your cable diameter and quantity.
