LP20 12-Pin Plastic Metal Waterproof Signal Connector
2.Rated at 5A/250V for 0.34-0.75 mm² wire, so it's built for signal routing, not heavy power loads.
3.Metal takes the hits and sheds heat, while plastic keeps the whole plug light and easy to bend around corners.
4.IP67 seal locks out water and dust for 12mm cables—hose it down or leave it in the rain, it won't care.
5.Solder joints offer lower resistance than screw terminals, so the connection won't shake loose on a vibrating machine.
6.Got a packed control cabinet? 12 pins mean fewer cables to pull between modules.
7.From Cablein Technology—standard versions in stock, with custom pin layouts if your project needs something specific.
8.Part Number：LP-20-C12PE-01-001 LP-20-J12PP-01-001 LP-20-J12SX-01-101 LP-20-J12SX-01-401.

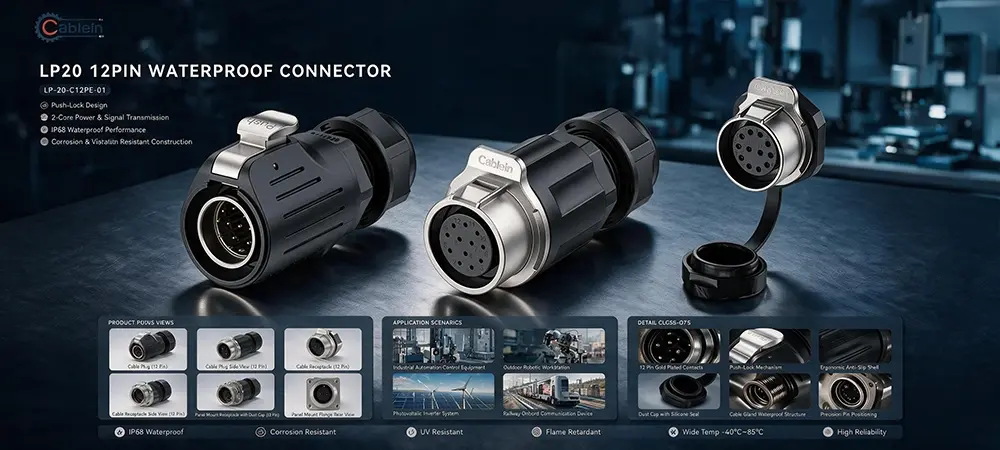

LP20 12-Pin Plastic Metal Waterproof Signal Connector——High-Density Signal Routing for Complex Control Panels
When you've got a dozen sensor lines or control signals to run, the LP20 12-Pin Plastic Metal Waterproof Signal Connector from Cablein Technology saves you from pulling multiple cables. It packs 12 solder pins into one rugged shell, handles 5A at 250V, and seals 12 mm cables with an IP67 rating.
Why Choose Our 12-Pin Plastic Metal Waterproof Signal Connector?
12 Pins for High-Density Wiring
Twelve pins give you serious room for sensor arrays and multi-channel control lines. We use solder joints because they offer lower resistance than screw terminals. It takes a few extra minutes to wire, but the connection won't shake loose when the machine is running.
Metal and Plastic Work Together
The metal parts take the physical hits and soak up heat, while the plastic keeps the whole thing light and easy to route. That combo also helps block electrical noise—a lifesaver in crowded control cabinets.
IP67 Sealing for 12mm Cables
The silicone ring is sized for 12 mm cables. Crank the connector down tight, and it squishes into a solid seal. Hose it off or leave it in the rain—water isn't getting inside.
Handles 5A at 250V
Rated at 5A and 250V, it takes 0.34-0.75 mm² wire. It's not built for high-power runs, but it's perfect for dense signal bundles and control circuits.

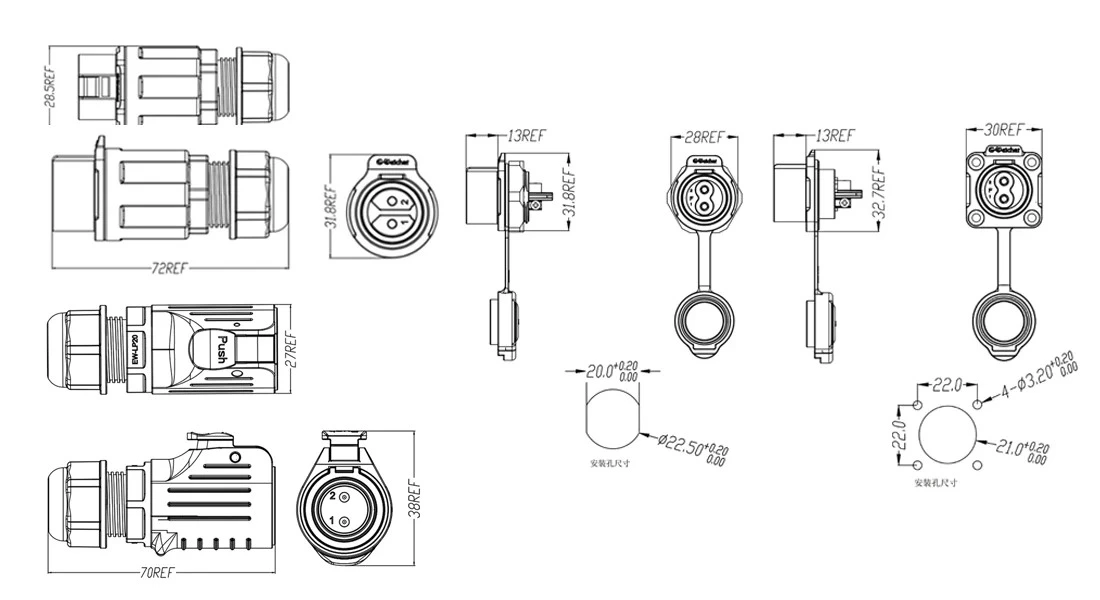

Technical Specifications
|
Connector Series |
LP20 |
Rated Voltage |
250V |
|
Number of Pins |
12 |
Withstand Voltage |
1500V |
|
Termination Type |
Solder |
Ingress Protection |
IP67 |
|
Installation Style |
Cable-to-Cable |
Cable Diameter Range |
12 mm |
|
Housing Material |
Plastic + Metal |
Operating Temperature |
-40°C to +80°C |
|
Rated Current |
5A |
Compatible Wire Gauge |
0.34–0.75 mm² (22-20AWG) |
Where This 12-Pin Connector Earns Its Keep
High-Density Sensor Arrays
When you're routing a dozen sensor lines back to a data logger, 12 pins let you keep them in one cable. The solder joints won't shake loose on vibrating equipment.
Stage and Event Control
Lighting desks and controllers need multiple channels. If a wire gets damaged, you'll need to re-solder it—but the IP67 seal means outdoor gigs won't be ruined by rain.
Agricultural Irrigation Systems
Outdoor irrigation panels face constant moisture. The 5A rating is plenty for valve controllers and sensors, and the threaded coupling keeps everything locked tight under vibration.
Marine Electronics Panels
Salt spray kills cheap connectors. The metal parts resist corrosion, and the IP67 seal stops water from shorting out your control signals.
Food Processing Control Boxes
Washdowns are a daily reality in food plants. The metal components resist corrosion far better than standard plastic plugs, giving you a longer service life.
Quality Control at Cablein Technology
Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP67 seal holds at the specified cable diameter. We test the 5A/250V rating and 1500V withstand voltage. We also pull on the solder joints to make sure they hold. It means the LP20 12-Pin Plastic Metal Waterproof Signal Connector you receive is ready for the field.
Common Questions
Q: Can I get this connector with a different number of pins?
A: Yes, we make them in 2, 3, 4, 5, 7, 9, and 12 pin versions. Tell us what your application needs.
Q: Is this for high-power loads?
A: No. The 12-pin version is rated at 5A/250V, which is ideal for signal and control circuits. If you need higher current, check out our 2-pin or 3-pin models.
Q: Will my cable fit?
A: The standard sealing ring is sized for 12 mm cables. If you're using a different cable size, let us know and we can match the right ring for you.
Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.
Get in Touch with Cablein Technology
Cablein Technology has been making waterproof connectors for industrial and outdoor use for years. We keep standard versions in stock and can customize pin layouts for your specs. If you need the LP20 12-Pin Plastic Metal Waterproof Signal Connector for your next project, email us at nick@cableinco.com with your cable diameter and quantity.
