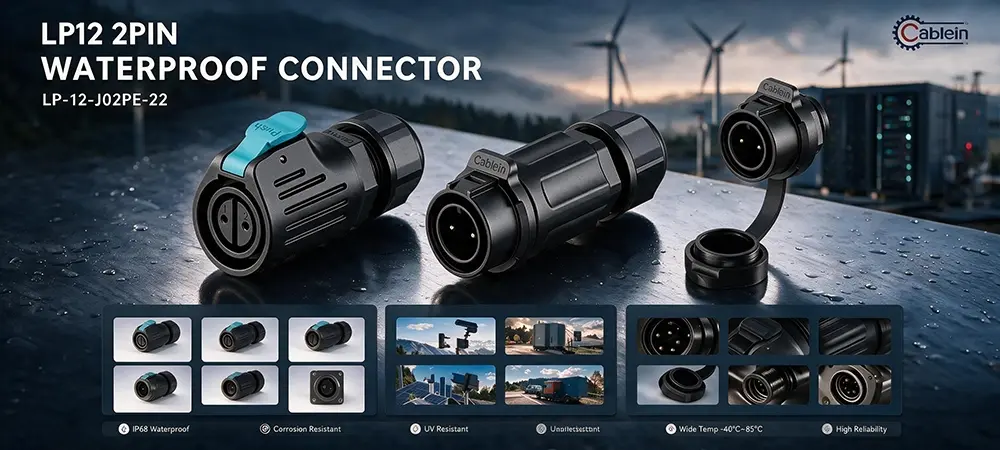

LP12 2-Pin Plastic Waterproof Compact Screw Connector
2.2 screw terminals handle 5A at 125V for 0.75-1 mm² wire—no soldering iron needed.
3.IP67 seal locks out water for 5-7mm cables, so a bit of rain or damp air won't cause trouble.
4.Just strip the wire, push it in, and crank the screw down. Done in under a minute.
5.Screw terminals clamp the wire tight, so normal vibration won't shake the connection loose.
6.Got a small sensor box or LED fixture with no room to spare? This compact connector slips right in.
7.From Cablein Technology—standard versions in stock, with custom pin layouts if your project needs something specific.
8.Part Number:LP-12-J02PE-22-001 LP-12-C02PP-22-001 LP-12-C02SX-22-101 LP-12-C02SX-22-401.
LP12 2-Pin Plastic Waterproof Compact Screw Connector——Solder-Free Wiring for Tight, Wet Enclosures
Tight spaces and soldering irons don't mix. The LP12 2-Pin Plastic Waterproof Compact Screw Connector from Cablein Technology lets you wire up small devices without any heat. You just strip the wire, shove it in, and crank the screw down tight. That's it. It'll take 5 amps at 125 volts, and the IP67 seal handles cables from 5 to 7 mm—so a bit of water won't bother it.
Why Choose Our 2-Pin Plastic Waterproof Compact Screw Connector?
Screw Terminals for Tight Spaces
No soldering, no crimping tools. All you need is a tiny screwdriver. A big metal connector won't fit into tight spots, but this little plastic one will. And once you crank that screw down, normal vibration won't budge it.
All-Plastic Body Keeps It Light
No metal means no rust and less weight dragging on your wiring. It's built for smaller devices where a bulky metal shell would be overkill.
IP67 Sealing for 5-7mm Cables
The silicone ring is sized for slim cables. Tighten the connector down, and it squishes into a solid seal. A bit of rain or washdown won't get inside.
Handles 5A at 125V
Rated at 5A and 125V, it takes 0.75-1 mm² wire. It's made for small loads, not big motors, which is exactly what compact devices need.
Technical Specifications
|
Connector Series |
LP12 |
Rated Voltage |
125V |
|
Number of Pins |
2 |
Withstand Voltage |
1500V |
|
Termination Type |
Screw |
Ingress Protection |
IP67 |
|
Installation Style |
Cable-to-Cable |
Cable Diameter Range |
5–7 mm |
|
Housing Material |
Plastic |
Operating Temperature |
-40°C to +80°C |
|
Rated Current |
5A |
Compatible Wire Gauge |
0.75–1 mm² |
Where This Compact Screw Connector Earns Its Keep
Small Sensor Enclosures
When your sensor box has almost no room to spare, a full-size connector won't fit. The LP12 slips into tight spots, and the screw terminal means you don't need to drag a soldering iron into the field.
Portable Lighting and Fixtures
Small LED fixtures and portable lights don't have room for bulky connectors. That's why this plastic body matters—it keeps weight off the fixture. And with the IP67 seal, a little rain won't ruin the connection.
Battery Packs and Small Chargers
Small chargers and battery packs usually just need two wires. This plug takes the 5A without taking up much room. And if a wire ever goes bad, the screw terminals let you fix it right on the spot.
Waterproof junction boxes
Inside sealed enclosures, you don't need a bulky metal shell. The LP12 gives you a waterproof pass-through that's easy to route in tight boxes.
Garden and Drip Irrigation Controls
Irrigation controllers sit outside in the wet all day. At least the plastic body won't rust on you. And because it's IP67 sealed, moisture stays away from the contacts.
Quality Control at Cablein Technology
Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP67 seal holds at the 5-7mm cable range. We test the 5A/125V rating and 1500V withstand voltage. We also check the screw threads to make sure they don't strip. It means the LP12 2-Pin Plastic Waterproof Compact Screw Connector you receive is ready for the field.
Common Questions
Q: Can I get this connector with a different number of pins?
A: Yes, we make them in 2, 3, 4, 5, 6, 7, and 8 pin versions. Tell us what your application needs.
Q: Is this for high-power loads?
A: No. The 2-pin version is rated at 5A/125V, which is ideal for small devices and light loads. If you need higher current, check out our larger LP16 or LP20 models.
Q: Will my cable fit?
A: The standard sealing ring is sized for 5 to 7 mm cables. If you're using a different cable size, let us know and we can match the right ring.
Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.
Get in Touch with Cablein Technology
Cablein Technology has been making waterproof connectors for industrial and outdoor use for years. We stock the standard versions so you aren't waiting around, and we can customize the pins for your setup. Got a project coming up? Shoot an email to nick@cableinco.com and tell me your cable diameter and quantity for the LP12 2-Pin Plastic Waterproof Compact Screw Connector. I'll take care of the rest.
