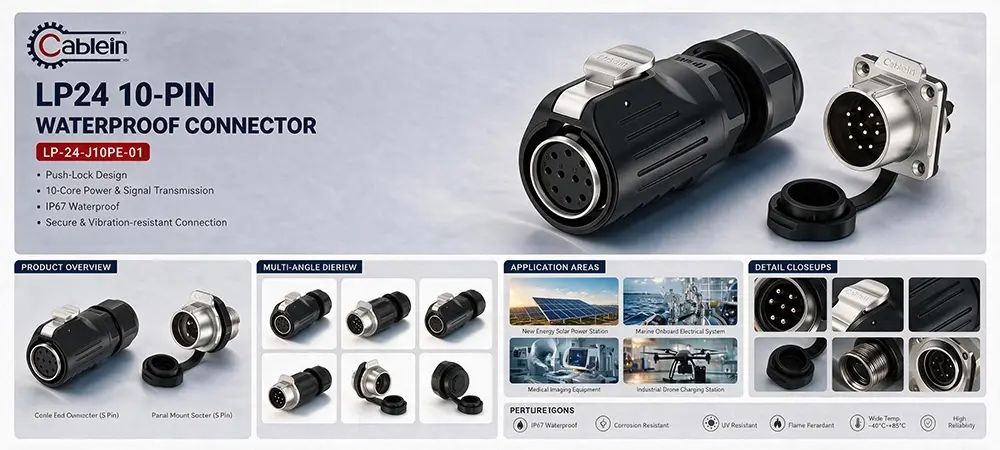

LP24 10-Pin Waterproof Multi-Pole Connector

LP24 10-Pin Waterproof Multi-Pole Connector – 10A Ten-Pole Connection with IP68 Sealing

Ten wires into one plug. That's the problem this one solves. The LP24 10-Pin Waterproof Multi-Pole Connector runs 10A per contact at 250V through ten separate poles, sealed to IP68 and wired with solder terminals. Control signals, multi-line sensor arrays, low-voltage circuits — whatever needs ten lines to move through a wet or dirty environment, this handles it without stacking connectors.

LP24 10-Pin Waterproof Multi-Pole Connector – Built for Cable Runs That Need Ten Separate Lines

Ten poles is past the point where you can just eyeball the wiring. It's control cables, multi-sensor arrays, low-voltage distribution — the kind of run that needs everything labeled before you start. The LP24 10-Pin Waterproof Multi-Pole Connector keeps the job manageable. Solder terminals hold each line tight. Cable entry takes 1.5mm² (16 AWG) wire with a 14mm outer diameter.

Ten contacts at 10A each. That's not a power connector — it's a multi-line workhorse. We've seen these end up on CNC control panels, multi-sensor automation cells, and outdoor monitoring stations where ten separate lines all have to reach the same enclosure.

Sealed Where It Matters

The housing is metal on the coupling thread — that's the part that takes the beating when someone cranks it too hard in the field — and plastic everywhere else to keep it light. IP68 sealing, so rain, washdown, and wet factory floors aren't a problem. Tested at 2 meters for 24 hours. Nothing fancy. It just holds.

Technical Specifications at a Glance

Where This 10-Pin Connector Actually Gets Used

Ten-line runs in wet environments. CNC control panels. Multi-sensor automation cells. Outdoor monitoring stations. Industrial camera arrays. Test and measurement equipment. Agricultural control boxes. Anywhere you've got ten separate lines running into equipment that gets wet — and that's where the LP24 10-Pin Waterproof Multi-Pole Connector ends up.

Each production batch goes through a phase-to-phase insulation test, plus the usual dielectric and waterproof checks. Ten poles means more paths for a fault to hide, so the testing takes longer on this one than on our 2-pin and 3-pin versions. Worth it.

Quality Control and Certifications

The LP24 series carries TUV, CE, and RoHS. We run ISO9001:2015, so material sourcing is consistent and production records are traceable. And the quality system actually gets audited — not just claimed.

Quick Questions We Get Asked

Q: Is this for power or signal?

A: Either, but ten poles at 10A is usually signal or control. For high-current power, the 2-pin and 3-pin LP24 versions are the better fit.

Q: How do I keep ten lines straight?

A: Label everything before you start. Use the keyway on the housing to orient the connector the same way every time. Ten poles is where mix-ups happen most.

Q: What cable size does it take?

A: 1.5mm² (16 AWG) with a 14mm outer diameter. Signal and control class.

Q: Can it stay submerged?

A: Yes. IP68 covers continuous immersion. We test at 2 meters for 24 hours.

Want to Know More?

For specs, custom pin counts, or samples of the LP24 10-Pin Waterproof Multi-Pole Connector, email nick@cableinco.com. Tell us your signal layout — we'll confirm the build.
