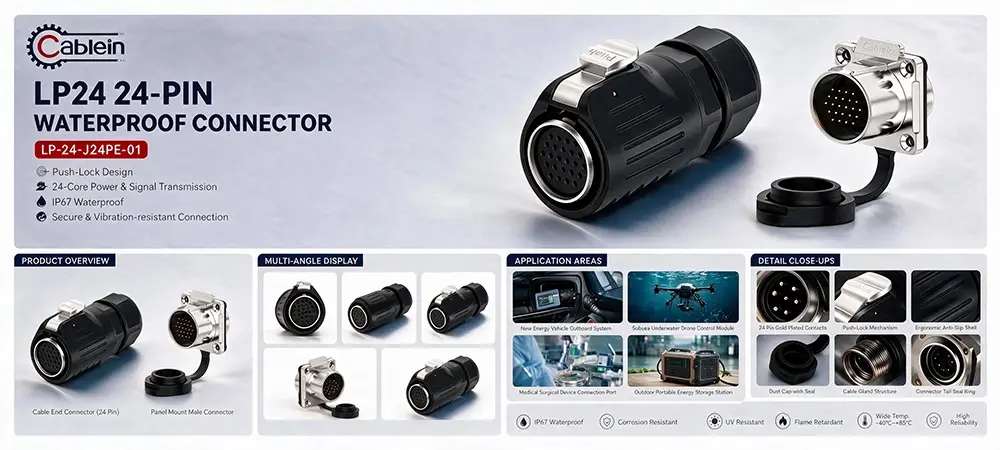

LP24 24-Pin Waterproof Solder Connector

LP24 24-Pin Waterproof Solder Connector – 5A Twenty-Four-Pole Connection with IP68 Sealing

Twenty-four lines. One shell. The LP24 24-Pin Waterproof Solder Connector is the top of the LP24 series — 5A per contact at 250V across twenty-four separate poles, sealed to IP68 and wired with solder terminals. Twenty-four is a lot to route through one enclosure. Doing it with three or four smaller connectors eats panel space and adds failure points nobody needs.

LP24 24-Pin Waterproof Solder Connector – Built for the Densest Wiring Runs

Most multi-pole connectors top out at 12 or 19 poles. Twenty-four is where engineers usually give up and split into two shells. The LP24 24-Pin Waterproof Solder Connector keeps it in one. 0.5mm² (20 AWG) wire, 14mm outer diameter, metal thread on the coupling, plastic everywhere else.

A 24-core cable is heavy and stiff. Whoever wires it in the field will crank the coupling hard to make sure it's seated — that's where the metal thread earns its keep. The plastic keeps the weight sane. And the keyway keeps orientation consistent so you're not guessing which pin is which.

Sealed Where It Matters

IP68 at 2 meters for 24 hours. Twenty-four poles means twenty-four potential leak paths, so we run a phase-to-phase insulation test on every batch before it ships — not just a spot check. The silicone seal does the rest.

Technical Specifications at a Glance

Where This 24-Pin Connector Actually Gets Used

Twenty-four-line runs where panel space is tight. Multi-axis robot control cabinets. CNC gantry systems. Semiconductor test equipment. Medical imaging gantries. Flight simulator wiring harnesses. Broadcasting control rooms. Anywhere twenty-four separate lines have to reach one enclosure that gets wet — and that's where the LP24 24-Pin Waterproof Solder Connector ends up.

Every batch gets a dielectric test, a waterproof check, and the phase-to-phase insulation test I mentioned. Twenty-four poles is a lot of places for a fault to hide. Testing takes longer on this one than on any other LP24 in the line. Worth it.

Quality Control and Certifications

The LP24 series carries TUV, CE, and RoHS. We run ISO9001:2015, so material sourcing is consistent and production records are traceable. And the quality system actually gets audited — not just claimed.

Quick Questions We Get Asked

Q: Is this for power or signal?

A: Signal. Twenty-four poles at 5A is for control, data, and instrumentation. For higher current, step down to our 2-pin or 3-pin LP24.

Q: How do I keep twenty-four lines straight?

A: Label every wire before you start. Use the keyway on the housing to orient the connector the same way every time. Twenty-four poles is where mix-ups happen most — the phase-to-phase test won't catch a swap, only a short.

Q: What cable size does it take?

A: 0.5mm² (20 AWG) with a 14mm outer diameter. Signal-class wire.

Q: Can it stay submerged?

A: Yes. IP68 covers continuous immersion. We test at 2 meters for 24 hours.

Want to Know More?

For specs, custom pin counts, or samples of the LP24 24-Pin Waterproof Solder Connector, email nick@cableinco.com. Tell us your signal layout — we'll confirm the build.
