Solar AC Connector

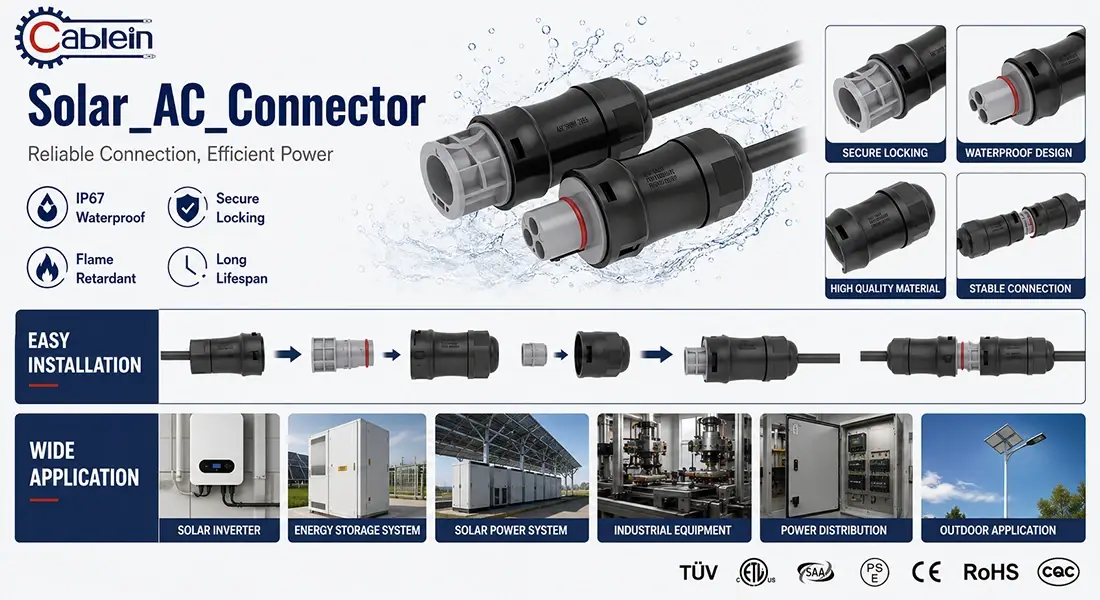

Solar AC Connector: Enterprise-Grade Photovoltaic AC Interconnection Solution

Cablein Technology's Solar AC Connector delivers enterprise-level performance for photovoltaic AC output connections. Rated at 250V (TUV) and 350V (CSA) with 2P+PE configuration, this connector guarantees dependable single-phase AC transmission from micro-inverters to framework. Its IP68 waterproof rating withstands 1.5m submersion for 24 hours, whereas silver-plated copper combination contacts keep up contact resistance ≤1mΩ for proficient control conveyance. The UL94-V0 flame-retardant lodging works in extraordinary temperatures from -40℃ to +85℃, supporting 25A current with 4mm² conductors. Screw-type end acknowledges 1.0-4.0mm² cables with 8.5-13mm external breadth, empowering tool-friendly field wiring for private and commercial solar installations.

What is a Solar AC Connector?

A Solar AC Connector is a specialized electrical component designed for the AC side of photovoltaic systems. It creates a reliable link between microinverters or string inverters and your AC bus or grid connection.

This connector replaces conventional hardwiring strategies. You get a polarized 'plug-and-play' plan that kills field mistakes. It decreases your establishment time significantly.

The connector addresses basic industry challenges. It withstands extraordinary warm cycling and UV presentation that regularly harms standard mechanical connectors. Your framework keeps up long-term electrical steadiness in unforgiving open air conditions.

Key Properties and Technical Advantages

Voltage and Current Specifications

Our connector supports:

• TUV rated: 250V AC
• CSA rated: 350V AC
• Rated current: 25A (with 4mm² conductors)
• Electrode configuration: 2P+PE for standard single-phase transmission

Material Excellence

The housing uses high-performance polymers with UL94-V0 flame retardancy. You benefit from superior UV resistance in outdoor installations.

Silver-plated copper alloy contacts deliver contact resistance ≤1mΩ. This ensures minimal power loss during AC transmission.

Protection Rating

IP68 certification means complete dust protection and water immersion resistance. Your connector withstands 1.5 meters of water for 24 hours.

This protection level maintains performance in:

• Heavy rain conditions
• Coastal environments
• Agricultural settings with high humidity

Temperature Performance

Operating range: -40℃ to +85℃

Your system remains functional in extreme climates. The connector handles desert heat and winter cold without degradation.

Primary Application Scenarios

Residential Microinverter Systems

Perfect for rooftop installations where you need:

• Daisy-chaining AC trunk cables
• Compact size for limited spaces
• Reliable locking in high-vibration environments
• Quick installation to reduce labor costs

Commercial and Industrial Rooftops

Ideal for large-scale string inverter AC output stages. You can:

• Facilitate rapid maintenance
• Enable modular system expansion
• Reduce downtime during repairs
• Simplify cable management

Harsh Environment Projects

Specifically designed for coastal and agricultural installations. The connector's salt-mist resistance and hermetic sealing prevent:

• Terminal oxidation
• Leakage currents
• Corrosion-related failures
• System performance degradation

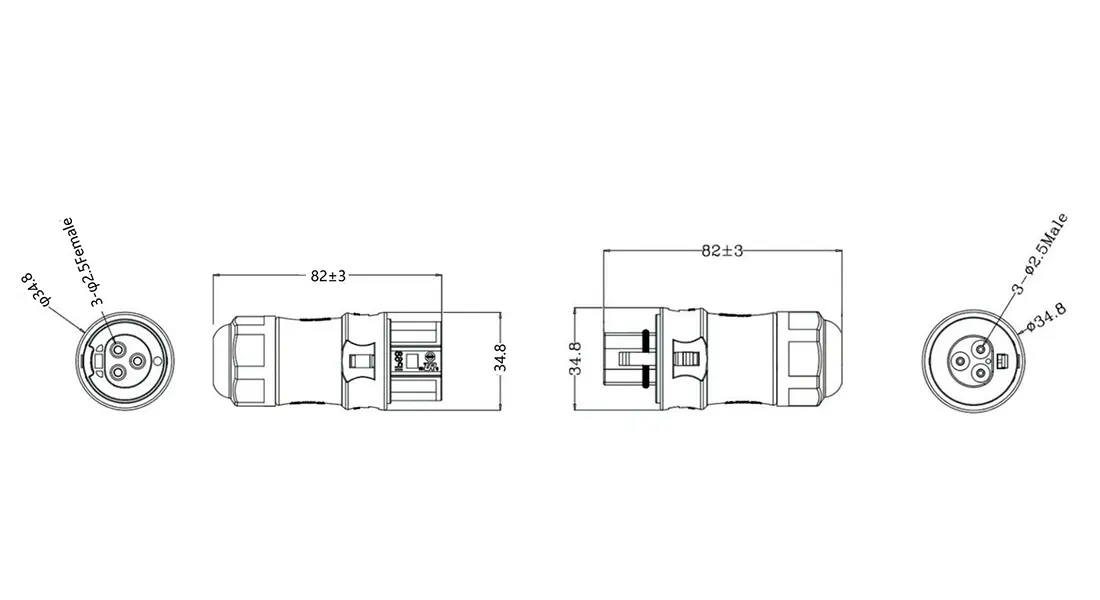

Installation and Compatibility

Cable Specifications

Applicable wire gauge: 1.0~4.0mm²

Outer cable diameter options:

• 8.5~11mm
• 11~13mm

Connection Method

Screw-type termination provides:

• Secure wire attachment
• Tool-friendly field wiring
• Reliable long-term connections
• Easy troubleshooting when needed

System Compatibility

Works seamlessly with:

• Standard PV cables
• Micro-inverters
• String inverters
• Grid connection equipment

Quality and Safety Standards

Electrical Performance

• Insulation resistance: ≥100MΩ
• Rated impulse withstand voltage: 4000V AC
• Pollution degree: 2
• Over-voltage category: III

Mechanical Specifications

• Insertion and withdrawal force (unlocked): 10~50N
• Salt spray resistance for coastal installations
• Ammonia resistance for agricultural environments

Compliance

Our products meet international standards including CE, RoHS, TUV, and ISO9001:2015. You receive certified components that comply with grid safety requirements.

Frequently Asked Questions

Q: Can I blend distinctive connector brands?

A: No, you ought to not inter-mate diverse brands. Whereas they may show up comparable, producers utilize changing resiliences. Blending brands can cause arcing, fire risks, and certification voids.

Q: What is the anticipated lifespan?

A: A high-quality item is planned for 25 a long time of benefit life. This matches the life span of your sun oriented boards for steady framework performance.

Q: Do I require uncommon devices for installation?

A: Our screw-type end requires standard devices for wire association. The connector highlights secure locking components that guarantee legitimate mating.

Q: How does temperature influence performance?

A: The connector works dependably from -40℃ to +85℃. Extraordinary temperatures may require current derating to avoid overheating, taking after standard electrical practices.

Q: What indicates a failing connector?

A: Watch for these warning signs:

• Housing discoloration
• Visible melting or deformation
• Increased heat during operation
• Infrared inspection showing hot spots

Replace any connector showing these symptoms immediately to maintain system safety.

Why Choose Cablein Technology

Manufacturing Excellence

Our 6,000㎡ production facility in Shenzhen ensures:

• Advanced precision manufacturing
• Strict quality control
• 100% waterproof performance testing
• Consistent product reliability

Inventory and Delivery

We maintain:

• Stable inventory exceeding 10,000 pieces per item
• Standard delivery within 7-10 days
• Flexible scheduling for custom orders
• Global logistics support via UPS, DHL, FedEx

Customization Services

Need specific requirements? We offer:

• Custom cable lengths
• Pre-assembled AC harnesses
• OEM/ODM development
• Private mold design

Our engineering team provides 24-hour technical support throughout your project.
