Companies offering custom M8 overmolded connector solutions?
When looking for M8 overmolded waterproof connector options, buyers need to work with partners who know how to strike the right mix between technical performance, the ability to make changes, and on-time delivery. Custom M8 overmolded waterproof connector companies offer designed solutions that are much better than off-the-shelf goods. These solutions can solve specific problems in LED lighting, industrial automation, new energy systems, and security equipment. These companies use advanced overmolding techniques and strict quality controls to make connections that are rated IP67 or IP68 and can survive harsh outdoor conditions, mechanical vibration, and long-term exposure to water. Not only does the right provider give you connectors that are already put together and ready to install, but they also offer technical support, fast development, and scalable production that fits your project's schedule and budget.
Understanding M8 Overmolded Waterproof Connectors

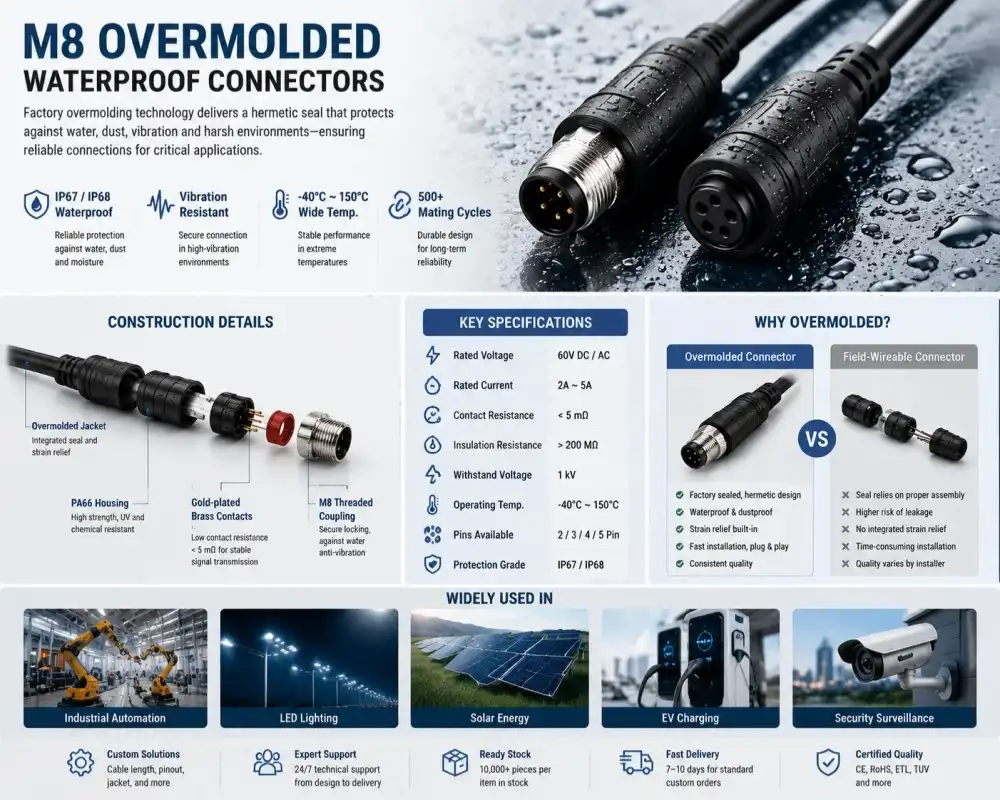

Understanding what makes M8 overmolded waterproof connectors perfect for harsh settings is the first step in choosing the right connections. The 8mm locking thread on these small circle interconnects makes them secure. They are made using an injection molding process that bonds the wire firmly to the connection housing. This combination creates a hermetic seal that eliminates common failure points associated with options assembled in the field.
What Makes Overmolding Essential
Overmolding is the process of covering the connection assembly in a protected material like PA66 nylon or thermoplastic elastomers. This makes a single sealed unit that doesn't let water, dust, or mechanical stress in. The overmolded design, unlike standard connections with separate cable glands, keeps moisture from getting into the cable entry points. This is a huge benefit for outdoor LED installations, farm lighting systems, and EV charge infrastructure. Strain relief is built right into the body of the connection during this process. This keeps the solder joints and crimped contacts inside from getting strained or bent during installation and use.
Core Technical Specifications
Good M8 overmolded waterproof connectors usually have strong brass contacts that are gold-plated and have a contact resistance below 5 mΩ. This makes sure that signals and power are sent and received reliably. The PA66 nylon shell is very resistant to UV light, grease, and chemicals, which makes it last longer in harsh settings. Silicone rubber plugs stay flexible in a wide temperature range, usually from -40℃ to 150℃. This means that these joints can be used in both the Arctic cold and the hot desert. These parts meet the strict electrical safety standards needed by the new energy and industrial automation sectors because they have an insulation resistance of more than 200 MΩ and a handle voltage grade of 1 kV.
Industry Applications and Performance Requirements
M8 overmolded waterproof connectors are used in many situations where room is limited and environmental safety is important. In industrial automation, they connect small proximity sensors, photoelectric switches, and motors on robotic production lines that are shaken all the time and get washed every so often. LED lighting companies use these connections for architectural fixtures outside, arena floodlights, and garden installations where IP67 protection keeps water damage from happening during storms. Connectors for solar energy systems and charging points for electric vehicles need to be able to consistently handle high currents and not rust from road salt and humidity. These connectors are used by security video integrators in outdoor CCTV cameras and traffic tracking systems that need to stay connected in all kinds of weather.
Why Choose Custom M8 Overmolded Connectors?
Standard M8 overmolded waterproof connector products cannot always meet the unique technical requirements and operational constraints of specialized equipment. A custom M8 overmolded waterproof connector transforms a generic component into an optimized connectivity solution that improves system performance and reduces total ownership costs. When connections are customized, they go from being general parts to optimized solutions that improve system performance and lower the total cost of ownership.
Limitations of Standard Solutions
Off-the-shelf plugs often have flaws that make installation less efficient and affect their long-term dependability. Fixed cable lengths can leave extra wire that causes clutter or electromagnetic interference in control cabinets. On the other hand, cables that are too short require expensive field patching that adds potential failure points. Standard pin layouts might not work with your PCB layout, which means engineers have to rethink boards or add adapters that make the building process more difficult. Shell materials that are designed for general industrial use may break down too quickly when they come into contact with certain chemicals that are common in food processing or farming settings.
Customization Options That Matter
A custom M8 overmolded waterproof connector can be tailored to match the exact electrical, mechanical, and environmental requirements of your application. You can choose the right conductor sizes for your present needs, such as 2A for simple sensors or 5A for LED drivers. You can also pick a jacket material made of PVC, PUR, or silicone based on how it will be exposed to the environment. Different signal and power needs can be met by pin setups ranging from 2-contact to 5-contact designs. Coding choices (A-coding for sensors and B-coding for fieldbus) keep connections from being made by accident. Straight, right-angle, or custom-made exit orientations make routing easier in tight areas by lowering the mechanical stress on wires.
Business Benefits for OEMs and System Integrators
Customized fittings help products stand out in markets with lots of competition. To protect intellectual property and make money from service sales through new part sales, you can include connections with special wire routing or pinouts. The pre-built and proven construction gets rid of wiring mistakes that happen in the field and lead to warranty claims and service calls, which greatly lowers the cost of support. Custom solutions also make sure that regulations are followed for certain markets, like getting ETL certification for installations in North America or SAA certification for projects in Australia. This makes it easier for new companies to get into those markets. Being able to exactly match connector specs to application needs cuts down on overengineering costs while keeping the performance gaps needed for long-term reliability.
Leading M8 Overmolded Waterproof Connector Manufacturers and Suppliers
When choosing a manufacturing partner, you need to look at their professional skills, quality processes, and how quickly they can respond to your service requests. The best providers have both technical know-how and flexible production capacity, so they can help with both making prototypes and making a lot of them.
Key Evaluation Criteria for Suppliers
When selecting an M8 overmolded waterproof connector manufacturer, quality systems and production capabilities should be evaluated carefully. The ISO9001:2015 certification shows that the company follows an organized approach to quality management. RoHS and REACH compliance shows that the company cares about the environment, which is important for both European and global markets. A third party tests products with ETL, PSE, or SAA approvals to make sure they meet the safety standards of their area. In addition to certifications, you should check to see if the seller has its own testing labs that can verify IP ratings, run salt spray rust tests, and do mating cycle endurance tests that go over 500 cycles. Manufacturing capacity is also important. Reliable partners keep a steady stock of common parts and raw materials, which lets them offer wait times of 7–10 days for normal custom configurations and faster production for projects that need to be done quickly.
What Established Manufacturers Provide
Professional M8 overmolded waterproof connector manufacturers provide much more than connector production. Their expert teams look over your requirements, suggest the best materials and layouts, and make CAD models for your approval before investing in tools. Prototyping services quickly send you working models that you can test for fit, form, and function in your equipment before you commit to making a lot of them. Flexible minimum order amounts allow for both small-scale tests and large-scale operations. For example, some sources will accept prototype orders of less than 100 pieces while still having enough space to ship more than 50,000 units every month. After-sales support includes full product instructions, help with installation, and troubleshooting that lets your field teams quickly fix problems.
Why Choose Cablein as Your M8 Overmolded Waterproof Connector Manufacturer
As a professional M8 overmolded waterproof connector manufacturer, Cablein has refined its customization process through years of experience serving LED lighting, industrial automation, and new energy customers worldwide. Our 6,000-square-meter building has high-tech injection molding machines and automatic assembly lines that are run by more than 200 skilled workers who know how precise things need to be to get consistent IP67/IP68 performance. We keep more than 10,000 of each standard item in stock, which lets us quickly fill restocking orders while our tech team works together on new custom designs. Early involvement is a big part of our method. We share datasheets, talk about application problems, and give you samples so you can test performance before going live. With certifications like CE, RoHS, ETL, and TUV, we make sure that your connectors meet the rules for the places you want to reach. Plus, our expert help is available 24 hours a day, 7 days a week, so you can get answers no matter what time it is in your area.
How to Procure Custom M8 Overmolded Waterproof Connectors Efficiently
Strategic buying cuts down on development times and lowers the risks in the supply chain. An organized method makes sure that you get connectors that work best for your application while staying on budget and on schedule.
Defining Technical Requirements Clearly
Successfully sourcing a custom M8 overmolded waterproof connector begins with clearly defining technical requirements. Write down your rated voltage and current needs, along with any surge or inrush currents that the connection needs to be able to handle. Choose the IP grade that works best for where you want to use it. IP67 is fine for most outdoor uses where water may be present sometimes, but IP68 is required for places that are submerged or constantly wet. Figure out the mechanical needs, like how to stop vibrations for mobile tools or how long the wire can bend for uses that require it. Describe the substances, temperatures, and UV levels that the connection will be exposed to. These affect the choice of the right housing and sealing materials.
Engaging Suppliers Effectively
When purchasing a custom M8 Overmolded Waterproof Connector, early communication with suppliers can significantly reduce development time. Ask for product datasheets that have dimensions, electricity rates, and material details that you can use to check against your needs. Ask for samples of similar setups that are already being made. Looking at real goods shows you things about the quality of the manufacturing and the design that you can't see in the paperwork. Ask for thorough quotes that show unit prices across different levels of volume, the cost of making custom molds if needed, and wait times for both samples and full production orders. Knowing the minimum order quantity helps you plan your stocking strategy and get better terms for the trial phase compared to the production phase.
Validation and Quality Assurance
Every M8 overmolded waterproof connector should undergo thorough validation testing before mass production approval. Immersion tests in water should be used to confirm the IP grade, especially if the connections will be washed with high-pressure water or submerged. Thermal cycling between your working temperature ranges should be done on samples to make sure the seal is intact and the contact is stable. Do binding cycle tests to make sure the link keeps working with electricity after being connected and disconnected many times. For important uses, ask the supplier's quality lab for approval paperwork and test results. For uses where failure could put people in danger or cost a lot of money, think about getting third-party validation.
Troubleshooting and Maintaining M8 Overmolded Waterproof Connectors
Even high-quality plugs need to be handled correctly and inspected on a regular basis to make sure they last as long as they're supposed to. Knowing about common failure modes gives your repair teams the tools they need to stop problems before they happen and quickly fix them when they do.
Common Issues and Their Causes
Even a high-quality M8 overmolded waterproof connector can experience performance issues if installation or operating conditions are not properly controlled. M8 connectors need about 0.4 Nm of tightening torque. Not enough torque leaves holes that let water in, and too much force can bend the O-ring seal or break the housing of the connection. When moisture gets through weak seals on brass contacts, corrosion happens. This is especially likely to happen near the coast where the air is salty or in factories where acidic chemicals are constantly vaporizing. Connection problems are usually caused by vibrations that loosen connections that aren't properly attached or mechanical damage to wires near the connector body, where stress builds up when they bend.
Preventative Maintenance Practices
Set up installation processes that tell you how to use measured tools and the right amount of torque to avoid both under-tightening and over-tightening. Installers should be taught to check O-rings for damage, contamination, or movement before joining connections, because even small particles stuck in the seal can make leak paths. Plan regular visual checks to look for damage to the wire jackets near the overmold and to the connection housings from impacts and to make sure the locking rings are properly engaged. During maintenance windows, clean the joints with the right solvents that get rid of dirt and grime without damaging the seal materials. Check with the maker for information on cleaning agents that are compatible. Write down the results of the inspection to find trends that point to environmental factors or operating stresses that are higher than what was expected in the original design.
Leveraging Supplier Technical Support
Working closely with your M8 overmolded waterproof connector supplier can help resolve technical issues quickly and improve long-term system reliability. Based on failure trends they've seen in many customer applications, experienced sellers can often quickly find the root causes. They might suggest changes to the setup that will help with certain environmental problems, like using better materials for the wire jacket, better seal designs, or different pin treatments. In addition, suppliers can offer replacement parts, emergency field service, and product changes based on real-world operating data. This can turn small problems into chances to make things more reliable.
Conclusion
When looking for custom M8 overmolded waterproof connectors, you need to think about technical performance, the ability to make changes, the dependability of the provider, and the total cost. The overmolded building method protects the environment better and installs faster than field-assembled options. This is why these connections are necessary for harsh environments in LED lighting, industrial automation, new energy, and security applications. Procurement teams get connectors that work best for their uses by being clear about what they need, working with qualified sources early on, and making sure samples are fully tested. When you put something correctly and do regular maintenance, you can make it last longer and have less downtime.
FAQ
What is the typical lifespan of custom M8 overmolded connectors?
Quality overmolded M8 connectors that are designed for 500+ binding cycles usually last between 10 and 15 years if they are put correctly and kept up in the conditions that are recommended for them. How long something lasts depends on a lot of things, like how much UV light it gets, how often it touches chemicals, how quickly the temperature changes, and how much it shakes during use.
How do IP67 and IP68 ratings differ in practical application?
Connectors with an IP67 rating can be submerged in water up to 1 meter deep for 30 minutes. This means they can be used in outdoor setups that get wet occasionally. IP68 plugs can withstand being submerged in water for more than one meter for a long time. This means they need to be used for underground equipment, washdown zones, and places that are always wet and have water pressure higher than atmospheric levels.
Can suppliers accommodate small prototype orders?
Most reputable makers will take orders for prototypes of 50 to 500 pieces. This way, customers can make sure they like the designs before committing to large-scale production. The price of a prototype is cheaper because it's made in smaller quantities, but it reduces risk by proving function before investing in tools and making a lot of them.
Partner With Cablein for Your Custom Connector Needs
With nine years of specialized knowledge and full M8 overmolded waterproof connector production skills, Cablein Technology can meet the needs of demanding uses in the security, LED lighting, and new energy sectors. Our factory is ISO9001:2015 approved and makes connectors with confirmed IP67/IP68 ratings, gold-plated brass contacts, and flexible wire configurations that are backed by CE, RoHS, ETL, and TUV certifications. As a dedicated M8 overmolded waterproof connector seller, we keep more than 10,000 of each item in stock so that we can deliver quickly. We also offer open OEM services that can be tailored to your specific needs. Our engineering team is available 24 hours a day to help you with technical issues from the time you begin specifying products to the time they go into production and beyond. Cablein offers reliable connectivity options that are tailored to your unique working setting, whether you need a small number of prototypes for validation testing or a lot of products at a consistent quality level. Email our team at nick@cableinco.com to discuss your custom M8 connection needs and receive thorough specs tailored to your unique application.
References
1. Smith, J. & Anderson, P. (2021). Industrial Waterproof Connector Design and Applications. Technical Press International.
2. European Committee for Electrotechnical Standardization. (2019). IEC 61076-2-104: Connectors for Electronic Equipment - Part 2-104: Circular Connectors with M8 Screw-Locking. CENELEC Standards Publication.
3. Liu, H., Chen, M., & Zhao, Y. (2020). Overmolding Technologies for Enhanced Connector Reliability in Harsh Environments. Journal of Manufacturing Processes, 58(4), 312-328.
4. Thompson, R. (2022). LED Lighting System Integration: Connector Selection and Installation Best Practices. Illumination Engineering Society.
5. Martinez, C. & Kumar, S. (2020). New Energy Infrastructure: Electrical Interconnection Standards and Performance Requirements. Renewable Energy Technologies Handbook, 3rd Edition.
6. Industrial Automation Council. (2021). M8 Connector Applications in Factory Automation: Technical Guidelines and Case Studies. Automation Technology Publishers.
