How do M8 overmolded connectors improve system reliability?

When production lines stop because of broken connectors or outdoor LED systems flicker after it rains, it's usually because the connection points aren't sealed well enough or are mechanically weak. These major weaknesses are fixed in M8 Overmolded Waterproof Connectors, which use a factory-integrated design to firmly join the wire and connection housing through injection molding. This hermetic seal stops moisture from getting in, vibrations from making parts loose, and installation mistakes that happen with field-assembled alternatives. This directly increases system uptime and lowers unplanned maintenance in LED lighting, industrial automation, solar energy, and security surveillance.

M8 Overmolded Waterproof Connectors application

Understanding M8 Overmolded Waterproof Connectors

Small circle connections with an 8mm threaded coupling are now used to connect sensors and power to equipment that doesn't have a lot of room. These units are different from regular screw-terminal designs because they are overmolded, which means the cable-entry zone is enclosed with thermoplastic elastomers during production. This makes a single, unchangeable assembly.

Core Construction and Material Engineering

The base of solid signal transfer is made up of high-quality PA66 nylon housings and gold-plated brass contacts. The contacts keep their contact resistance below 5 milliohms, which means that the power supply stays stable even when the temperature changes from -40°C to 150°C. Silicone rubber plugs press against matching threads to achieve IP67 and IP68 ratings for ingress protection. This is proven by long-term immersion testing. This construction can handle oil, hydraulic fluids, and weak acids that are popular in outdoor and factory automation systems.

Electrical Specifications and Application Scope

With a rating of 60V DC/AC and current levels ranging from 2A to 5A based on pin layout, these connectors are good for sensor power feeds and low-voltage control circuits. For proximity sensors, photoelectric switches, and actuator feedback loops, the 1KV withstand voltage and 200MΩ insulation resistance are more than enough to make sure that they work safely. They come in 2, 3, 4, and 5 pole configurations, so they can be used with a wide range of wiring methods, from simple on-off signals to shielded analog data transfer.

Overmolded Versus Field-Wireable Designs

In traditional field-assembled connectors, techs have to physically place contacts, strip wires, and crimp terminals. These steps are prone to mistakes that can damage the seal. The M8 Overmolded Waterproof Connector version comes pre-wired and tested, which cuts installation time by up to 70% and eliminates the chance of cable glands not being properly torqued. This factory-sealed method works especially well in high-mix production settings where maintaining quality across hundreds of link points has a direct effect on how well the equipment works as a whole.

Common Challenges in Connector Reliability and How M8 Overmolding Solves Them

Mechanical and natural forces are always putting stress on industrial connections. Most sensor signal drift and intermittent faults are caused by moisture getting into the system. This is especially true for outdoor LED street lighting and farm grow systems that are open to rain and irrigation spray. In factories, dust builds up and blocks up spaces for unsealed connectors, and steady machine shaking wears down threaded joints over time. These types of failure lead to unplanned downtime, emergency calls, and insurance claims, all of which cut into profits.

Enhanced Environmental Protection Through Integrated Sealing

The overmolding process covers the cable jacket and connection body joint in a single layer of polymer. This gets rid of the weak spot where water usually seeps along the conductor strands. Protocols for testing IP68 performance include submersion at a depth of 1 meter for 24 hours, which can be used to simulate floods or high-pressure washdowns in food processing facilities. Along with keeping water out, the sealed interface stops small particles and corrosive salts that are found in seaside wind farms and traffic tracking systems along the sides of roads.

Vibration Resistance and Mechanical Durability

Strong strain relief is needed for systems that bend and shock loads from robotic arms or moving belts. Instead of putting all of the force at one crimp point, the overmolded cable exit spreads the twisting stress out over a slow transition zone. Accelerated lifecycle testing shows that the seal doesn't break down or the contacts wear out after 500+ mating rounds. This means that the system will work for years without any upkeep. This durability is very important for automated guided cars and train transit systems, where connectors are constantly being jostled.

Measurable Uptime Improvements

A Midwest LED stadium lighting contractor said that the number of service calls went down by 40% after they switched from field-assembling M8 overmolded waterproof connectors to pre-molded kits. The most common causes of failure were taken away when installation factors like wrong torque, broken O-rings, and misaligned pins were taken away. In the same way, a company that makes solar inverters saw a drop in guarantee returns from 3.2% to 0.8% after requiring M8 overmolded waterproof connectors for DC combiner boxes that were exposed to dust storms and changes in temperature in the desert.

Comparing M8 Overmolded Connectors with Alternative Solutions

When procurement teams look at connection choices, they have to weigh performance against cost and compatibility issues. M12 connectors can handle more power and have more poles, but the 12mm thread size often takes up too much mounting room on small photoelectric sensors and solenoid valves. Standard M8 fittings with separate cable glands let you use unique wire lengths, but they require more work to put together, and the quality can vary.

Performance Advantages Over Standard M8 Designs

When tested next to each other with salt spray, the non-overmolded connectors show obvious rust on the exposed brass threads after 48 hours, while the M8 Overmolded Waterproof Connector counterpart shows no degradation at 96 hours. The factory-applied seal keeps its tension even when the temperature changes a lot. This keeps the gasket from relaxing and hardening in the field, which wears it down. Overmold materials that are UV-stabilized don't chalk or crack when they are exposed to direct sunlight for a long time. This makes outdoor LED signs and solar tracking systems last longer.

M8 Versus M12 Size and Application Trade-Offs

The small M8 footprint works great for dense sensor arrays on packing machines and vehicle screening gates that don't have a lot of space for mounting. Different types of M12 can handle up to 12A and work with Ethernet fieldbus protocols, which makes them better for motor drives and industrial camera networks. On the other hand, the higher cost (30–50%) and bigger size of M12 options often make M8 overmolded waterproof connectors the better choice when power needs are less than 5A and room is limited.

Material Considerations: Metal Versus Plastic Housings

When it comes to uses that need to mate many times or are likely to be hit, nickel-plated brass coupling nuts are the best choice because they block out EMI and are also very strong. However, the extra weight and ability to conduct heat can be problems in robotics that is sensitive to weight or in sensor circuits that are electrically separated. PA66 nylon housings cut 40% of the weight of connectors while still being very resistant to chemicals. This makes them the best choice for places where chemicals are likely to damage things and for mobile equipment where every gram counts.

Procurement Considerations for M8 Overmolded Waterproof Connectors

To choose the right provider and product design, you have to weigh technical requirements against practical business issues. To get the best total cost of ownership, production numbers and budgets must match up with application-specific needs like cable length, exit angle, and shielding.

Certification and Compliance Requirements

OEMs that want to export choose providers with TUV, CE, and RoHS certifications to make it easier for European and North American markets to approve products. LED drivers and power sources sold in the US and Japan must carry ETL and PSE marks. Manufacturing certification to ISO9001:2015 means stable process control, which lowers variation from batch to batch and makes quality checks easier. Managers in charge of buying things should make sure the certificates are valid and ask for test results that include measures of contact resistance, flammability, and IP ratings.

Supplier Selection and Customization Capabilities

Global connector names like Amphenol and TE Connectivity have large catalogs and well-established distribution networks that make sure common setups have short wait times. Their base order amounts and tooling costs for custom versions, on the other hand, are often too high for mid-volume projects' budgets. Regional manufacturers like Cablein Technology provide flexible OEM services, including custom cable lengths from 0.5 to 10 meters, mixed color coding for phase identification, and shield grounding treatments tailored to fieldbus protocols. This flexibility in customization comes in handy when adding ports to custom sensor designs or changing old equipment to work in new environments.

Lead Times, Inventory, and Bulk Pricing

Standard catalog items are shipped within 7–10 days from stores that keep more than 10,000 of each SKU in stock. This helps with just-in-time production plans and last-minute replacement needs. For custom setups, the process of making the tools and inspecting the first piece takes three to four weeks. Prices start to drop when 500 pieces are ordered. Framework deals with yearly promises of 10,000 units or more can lead to cost cuts of 15-20% and better allocation of resources during supply chain disruptions. The people in charge of buying things should also look at the logistics ties of their suppliers. Having good relationships with DHL, FedEx, and freight forwarders can help you get reliable shipping times and low costs.

Maximizing System Reliability with Proper Integration and Maintenance

If you don't follow the right steps for installation or upkeep, even the strongest M8 overmolded waterproof connector will break early. The right amount of torque, wire routing, and regular check rules keep the guarantee valid and increase the service life.

Installation Best Practices and Torque Management

Threaded couplings need 0.4 Nm of twisting force to squeeze seals without breaking threads or plastic housings. Over-torquing pulls threads and breaks O-rings, while under-torquing leaves holes where water can get in. When building a panel, using measured torque screwdrivers takes the guessing out of it and makes sure that the sealing pressure is the same at all hundreds of connections. Within 10 cm of the connection exit, cable routing should avoid sharp turns. Gradual curves keep the overmold's strain-release function and keep the conductor from wearing out.

Preventive Maintenance and Environmental Monitoring

Inspections should be done every three months to make sure that the connecting nuts stay hand-tight and that the overmold material doesn't crack. In outdoor settings, UV light breaks down even stable plastics over time. Connectors that show surface chalking should be replaced before the seal fails. Monitoring the environment helps figure out how often maintenance needs to be done. For example, sites near the coast that get salt spray may need seal checks once a year, but climate-controlled indoor automation equipment can work for years without needing to be inspected.

Scalability and Future-Proofing Connectivity Architecture

Modular wiring systems based on standard M8 overmolded waterproof connectors make it easier to add new equipment and increase capacity. When you add sensors to a current production line, you can plug them in without having to rewire the control panels because the pigtails are already molded and have the same pinouts and cable specs. This modularity cuts down on the time needed for setup and lets maintenance teams keep a stock of general replacement parts instead of dozens of different types of custom cables.

Conclusion

Through factory-integrated sealing, pretested parts, and materials designed for harsh conditions, M8 overmolded waterproof connectors turn industrial communication from a weakness into an advantage for reliability. When you get rid of mistakes made during field assembly and improve defense against water and vibration, you can see a clear drop in downtime and repair costs. The best value for money is found by choosing providers with strong customization tools, well-known certifications, and a transportation network that has been used before and works well with the needs of the application and the amount of production.

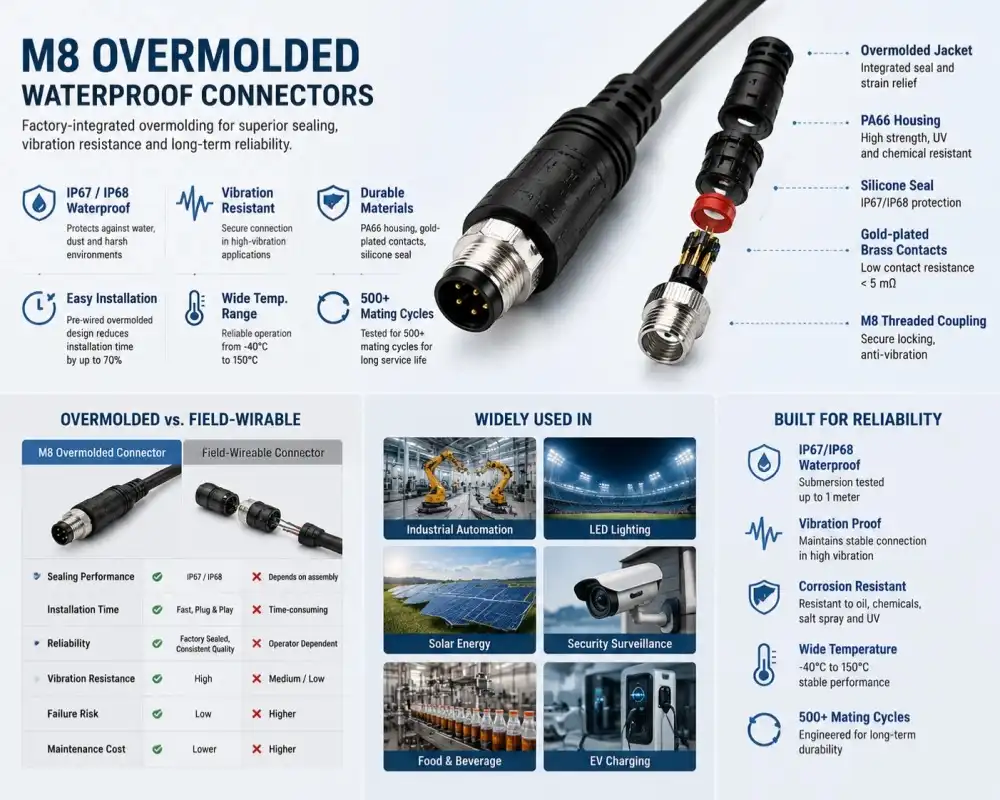

M8 overmolded waterproof connectors

FAQ

What IP Rating Do I Need for Outdoor LED Applications?

Most outdoor systems that aren't directly hit by water jets, like garden lighting and parking lot lights, only need IP67 protection. Connectors with an IP68 rating are needed for underwater uses like fountain lights or equipment that is washed under high pressure in food processing areas. The better grade doesn't add much to the cost, but it protects against flooding or repair tasks that require cleaning under pressure.

Can These Connectors Support High-Speed Data Transmission?

Standard power and signal types can safely handle DC control inputs and low-frequency sensor outputs. For Profibus and Ethernet protocols, there are special 4-pole and 8-pole setups that use insulated twisted pairs and keep impedance control through the overmold, which lets data rates reach 100 Mbps. When connecting smart devices to networked control systems, application engineers should choose these fieldbus-ready models.

How Do I Request Samples or Custom Configurations?

The best companies that make M8 Overmolded Waterproof Connectors have expert sales teams that help with application advice and sample planning. Initial questions that include details about the cable length, number of poles, exit direction, and environmental exposure speed up the development of prototypes. Many makers give away samples for free so that you can try them out. Custom tooling costs are only added after the design is approved and a production promise is made.
