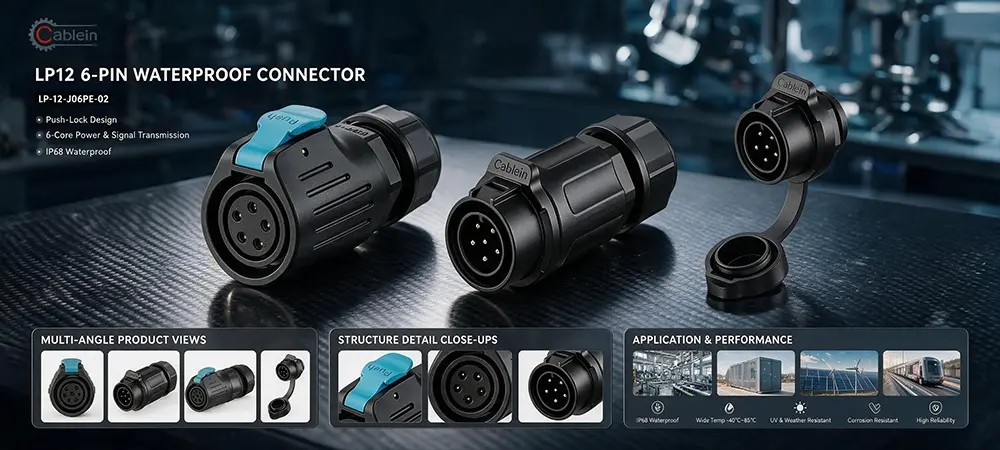

LP12 6-Pin Plastic Waterproof Solder Wire Plug
2.6 solder pins let you run a mix of signal and power lines through one slim cable instead of pulling multiple runs.
3.Rated at 5A/125V for 0.34-0.75 mm² wire—built for small loads and compact devices, not heavy motors.
4.IP67 seal locks out water for 5-7mm cables, so a bit of rain or washdown won't reach the solder joints.
5.Solder joints offer lower resistance than screw terminals, keeping the connection stable under vibration.
6.Tight handles or cramped junction boxes? This 6-pin plug slips right in where standard metal connectors won't.
7.From Cablein Technology—standard versions in stock, with custom pin layouts if your project needs something specific.
8.Part Number：LP-12-J06PE-02-001 LP-12-C06PP-02-001 LP-12-C06SX-02-101 LP-12-C06SX-02-401.
LP12 6-Pin Plastic Waterproof Solder Wire Plug——Compact 6-Pin Wiring for Small, Wet Equipment
Tight spaces and bulky metal connectors don't mix. The LP12 6-Pin Plastic Waterproof Solder Wire Plug from Cablein Technology gives you 6 solder pins in a tiny all-plastic package. It handles 5A at 125V and seals 5-7mm cables with an IP67 rating, so a bit of moisture won't cause trouble.
Why Choose Our 6-Pin Plastic Waterproof Solder Wire Plug?
6 Pins in a Tiny Shell
Six pins give you enough channels for a small motor or a mix of signal and power lines. We use solder joints because they offer lower resistance than screw terminals. It takes a few extra minutes to wire, but the connection won't shake loose on vibrating equipment.
All-Plastic Body Keeps It Light
No metal means no rust and less weight dragging on your wiring. It's built for smaller devices where a bulky metal shell would be overkill.
IP67 Sealing for 5-7mm Cables
The silicone ring is sized for slim cables. Tighten the connector down, and it squishes into a solid seal. A bit of rain or washdown won't get inside.
Handles 5A at 125V
Rated at 5A and 125V, it takes 0.34-0.75 mm² wire. It's made for small loads, not big motors, which is exactly what compact devices need.

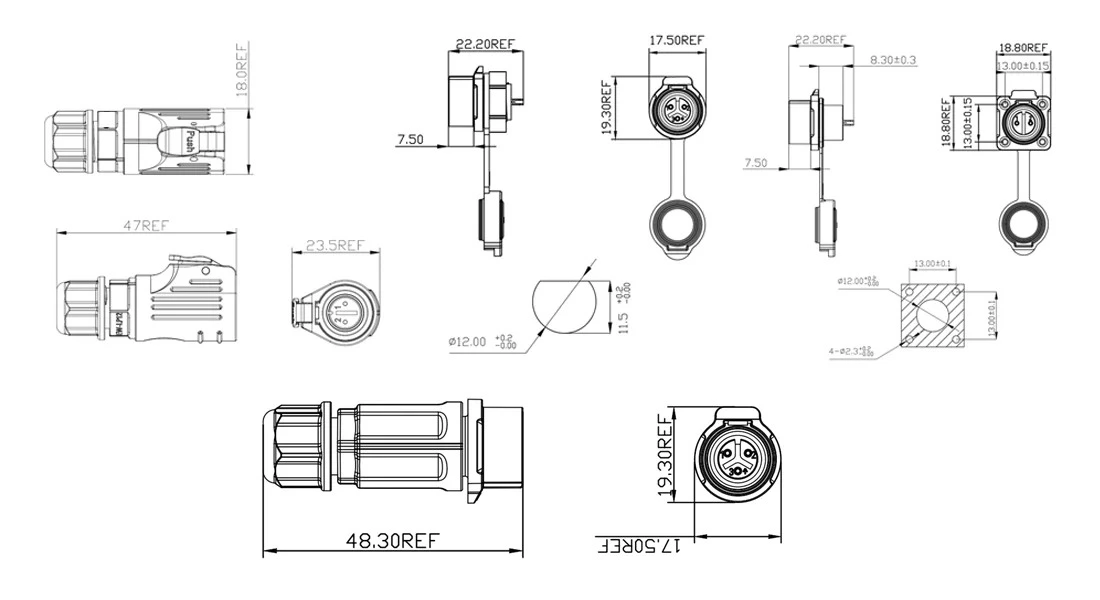

Technical Specifications
|
Connector Series |
LP12 |
Rated Voltage |
125V |
|
Number of Pins |
6 |
Withstand Voltage |
1500V |
|
Termination Type |
Solder |
Ingress Protection |
IP67 |
|
Installation Style |
Cable-to-Cable / Panel/Flange |
Cable Diameter Range |
5–7 mm |
|
Housing Material |
Plastic |
Operating Temperature |
-40°C to +80°C |
|
Rated Current |
5A |
Compatible Wire Gauge |
0.34–0.75 mm² |
Where This 6-Pin Plug Earns Its Keep
Multi-Channel Sensor Wiring
Small sensor boxes often need several separate signal lines. This 6-pin plug lets you pull all the signal lines through one thin cable. And since they're soldered in, vibration from the machine won't crack the joints.
Compact RGB LED Controllers
Six pins cover separate channels for RGB plus power and ground. Tight outdoor LED profiles don't leave much room, and every gram matters. The all-plastic body keeps the weight off the fixture. And with the IP67 seal, a bit of rain won't short anything out.
Portable Medical Devices
Handheld diagnostic tools need small, lightweight connections. The LP12 6-Pin Plastic Waterproof Solder Wire Plug fits into tight handles and survives alcohol wipe-downs without corroding.
Small Drone Builds
Custom drone builds often need a compact 6-pin link for battery power and telemetry. The plastic housing won't rust, and the solder terminals let you swap a damaged wire without replacing the whole plug.
Irrigation Valve Controllers
Irrigation controllers sit outside in the wet all day. At least the plastic body won't rust on you. And because it's IP67 sealed, moisture stays away from the contacts.
Quality Control at Cablein Technology
Before anything leaves our factory, it goes through strict ISO9001:2015 checks. We dunk them in water to confirm the IP67 seal holds at the 5-7mm cable range. We test the 5A/125V rating and 1500V withstand voltage. We also pull on the solder joints to make sure they hold. It means the LP12 6-Pin Plastic Waterproof Solder Wire Plug you receive is ready for the field.
Common Questions
Q: Can I get this connector with a different number of pins?
A: Yes, we make them in 2, 3, 4, 5, 6, 7, and 8 pin versions. Tell us what your application needs.
Q: Is this for high-power loads?
A: No. The 6-pin version is rated at 5A/125V, which is ideal for signal and control circuits. If you need higher current, check out our larger LP16 or LP20 models.
Q: Will my cable fit?
A: The standard sealing ring is sized for 5 to 7 mm cables. If you're using a different cable size, let us know and we can match the right ring.
Q: Can I test one before placing a big order?
A: Absolutely. We recommend getting a sample first. You can check the fit and the seal on your actual cable before committing to a full run.
Get in Touch with Cablein Technology
Cablein Technology has been making waterproof connectors for industrial and outdoor use for years. We stock the standard versions so you aren't waiting around, and we can customize the pins for your setup. Got a project coming up? Shoot an email to nick@cableinco.com and tell me your cable diameter and quantity for the LP12 6-Pin Plastic Waterproof Solder Wire Plug. I'll take care of the rest.
