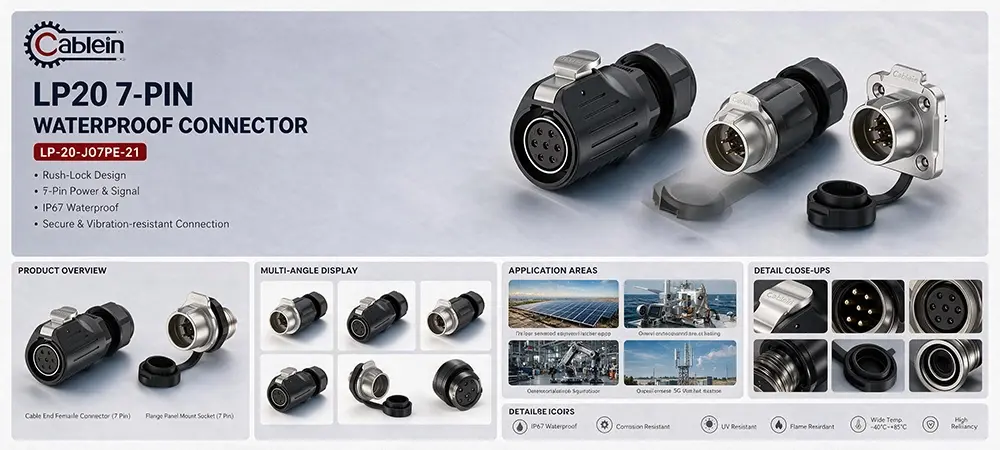

LP20 7-Pin Waterproof Screw Terminal Connector

LP20 7-Pin Waterproof Screw Terminal Connector – Field-Wired Connection for Signal-Dense Equipment

We build industrial connectors for a living, and the LP20 7-Pin Waterproof Screw Terminal Connector is what we hand to customers when they've got seven lines to route through a damp or dusty spot and no patience for crimping tools on site. Screw terminals instead of crimped contacts — strip, insert, tighten, done. Seven pins is enough to cover several signal lines, control circuits, or a mix of power and signal, all through one sealed plug.

LP20 7-Pin Waterproof Screw Terminal Connector – Built for Signal-Dense Field Wiring

Seven pins sits in a sweet spot for equipment that needs more than a handful of low-voltage lines. Sensors, encoders, relay circuits, control panels — gear where six pins feels a little tight and eight is more than you need. The higher-current LP20 versions are built for amps; this 7-pin model is built for clean signals instead.

Every line stays seated tight thanks to the screw terminals, and the gold-plated contacts resist oxidation in humid or salty air. We've seen these end up on packaging lines, outdoor control enclosures, and agricultural equipment — places where a loose contact means a false signal and a service call.

Why Screw Terminals Make Sense in the Field

Crimped connections are fine when you're at a bench with the right die and a calibrated tool. Out on site, that's a different story. Someone forgets the crimper, the die wears out, or the tech hasn't been trained on that tool. Screw terminals take that variable out of the equation. The connection quality depends on your hand and a screwdriver — nothing else.

Metal on the coupling thread where it takes the wear, plastic everywhere else to keep the weight down — that's how this housing is put together. IP67 sealing shrugs off rain, washdown, and wet factory floors. Cable entry handles 1 to 1.5mm² signal cable with an outer diameter between 5 and 6.5mm.

Technical Specifications at a Glance

Where This 7-Pin Connector Actually Gets Used

This connector shows up in equipment that runs on several low-voltage lines at once. Industrial sensors and encoders. PLC I/O modules. Outdoor control boxes. Packaging and labeling machines. Conveyor systems. Agricultural implements. Anywhere you've got seven signals to route and no patience for crimping tools on site.

We test every batch for dielectric strength and waterproof performance. The screw terminals get torque-checked, not just eyeballed. It adds time, but it saves callbacks.

Quality Control and Certifications

The LP20 series carries TUV, CE, and RoHS certifications, and we operate under ISO9001:2015. Consistent material sourcing, traceable production records, and a quality system that gets audited — not just claimed.

Quick Questions We Get Asked

Q: Is this 7-pin version meant for power or signal?

A: Signal primarily. Each contact handles 5A at 250V, so it's suited to low-voltage control and sensor lines rather than high-current power runs.

Q: What cable sizes does it accept?

A: 1 to 1.5mm² (18-16 AWG) with an outer diameter of 5 to 6.5mm.

Q: Do I need any special tools?

A: A screwdriver and a wire stripper — that's it. No crimping tool, no calibration, no training course.

Q: Can I mix power and signal on the same connector?

A: You can, but for higher-current power, we recommend the 2-pin or 3-pin LP20 variants. This 7-pin version is optimized for signal-dense applications.

Ready to Get Started?

For specs, custom pin configurations, or samples of the LP20 7-Pin Waterproof Screw Terminal Connector, email nick@cableinco.com. Tell us your signal layout — we'll confirm the right build.
