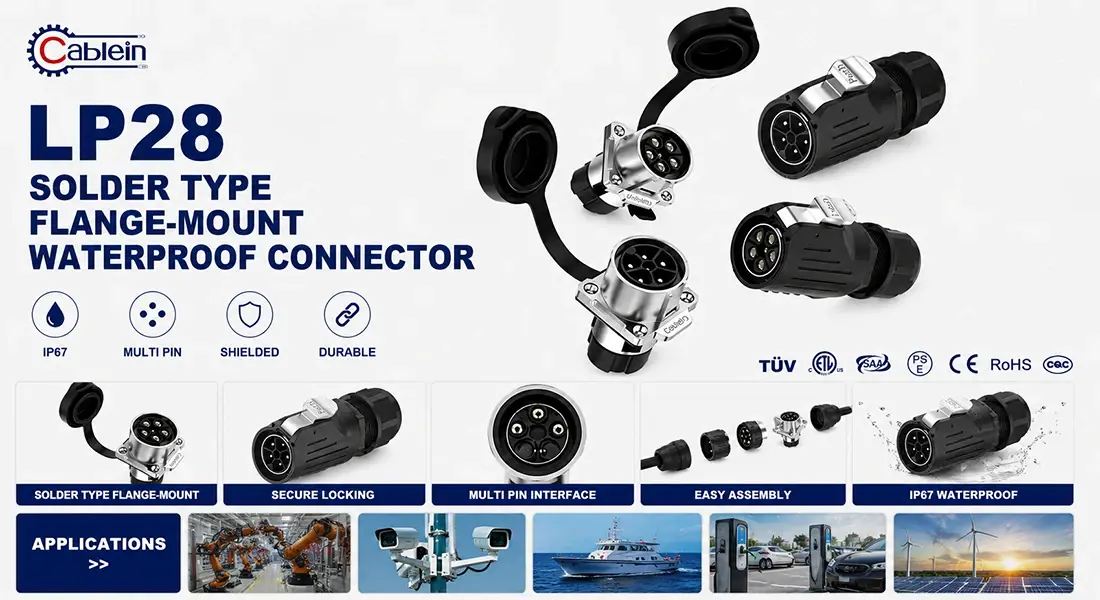

LP28 Solder Type Flange-Mount Waterproof Connector

LP28 Solder Type Flange-Mount Waterproof Connector

When your equipment demands bulletproof connectivity in harsh environments, the LP28 Solder Type Flange-Mount Waterproof Connector delivers enterprise-level performance. Engineered by Cablein Technology, this connector highlights IP67/IP68 waterproof security, supporting 2-8 pins with evaluated streams up to 35A and voltages coming to 500V. Its PA66 nylon lodging withstands -40℃ to +105℃ working temperatures, whereas gold-plated copper amalgam contacts guarantee 2000+ mating cycles. Four-hole spine mounting conveys push equally, and the φ14mm silicone gasket makes a watertight boundary at board interfacing. UL94-V0 fire retardant certification and TUV/CE compliance make it your solid choice for mechanical mechanization, marine framework, and renewable vitality systems.

What Makes This Connector Essential for Your Application?

You confront consistent challenges with gear uncovered to dampness, vibration, and temperature extremes. Conventional connectors fall flat when you require them most—corroded contacts, broken seals, and discontinuous signals taken a toll you downtime and revenue.

This 28mm shell breadth circular connector fathoms those torment focuses. Its flange-mounting instrument makes basic astuteness beneath mechanical stretch. The solder-type end shapes a lasting, low-resistance metallurgical bond that beats pleated associations in high-vibration environments.

Think of establishments where water entrance implies disastrous disappointment. Seaward wind turbines. Submerged mechanical autonomy. Sun oriented inverter boards. This connector keeps up airtight seals at board interfacing where others leak.

The four mounting gaps spread connection strengths equally. No more push concentration that splits walled in area dividers. Front-mount spine plan lets you introduce the repository some time recently fitting inside components—a genuine time-saver amid assembly.

Technical Specifications That Matter

Pin Configurations & Ratings:

• Available in 2, 3, 4, 5, 6, and 8-pin versions
• Current capacity: 15A, 30A, or 35A depending on pin count
• Voltage ratings: 300V, 400V, or 500V
• Wire sections: 4mm², 6mm², 10mm², or 16mm²

Environmental Resilience:

• Temperature range: -40℃ to +105℃
• Cable diameter compatibility: Φ13mm to Φ20.5mm
• IP68 protection for continuous submersion
• Salt spray resistance for coastal applications

Material Excellence:

• Housing: PA66 nylon with UL94-V0 flame rating
• Contacts: Gold-plated copper alloy (<1.0mΩ contact resistance)
• Seal: High-grade silicone gasket
• Shell options: Zinc alloy with chrome plating or UV-resistant PBT

The gold plating isn't just for show. It resists corrosion when exposed to salt spray or high humidity—critical for marine equipment and outdoor installations.

Where You'll Use This Connector

Industrial Automation & Robotics:

Your multi-axis robotic arms and CNC controllers face constant movement and oil exposure. The flange-mount stability and solder reliability keep connections secure through millions of motion cycles.

Marine and Outdoor Infrastructure:

Offshore wind turbines demand connectors that laugh at salt spray. High-definition LED outdoor displays need data integrity against moisture ingress. This LP28 Solder Type Flange-Mount Waterproof Connector delivers both.

Renewable Energy Systems:

Solar inverter panels and battery energy storage systems (BESS) require secure, weatherproof transitions from internal electronics to external power grids. Extreme thermal environments don't phase this connector's performance.

Urban Landscape Lighting:

Stadium lighting systems and agricultural installations benefit from the connector's vibration resistance and environmental sealing.

Installation Advantages You'll Appreciate

Screw compression wiring improves termination speed compared to traditional soldering methods. You'll appreciate this during large-scale installations.

The precision bayonet or threaded coupling system allows rapid mating. Your technicians spend less time on each connection point.

Front-mount accessibility means you can service the connector without dismantling entire assemblies. That's less downtime during maintenance.

The φ14mm silicone gasket sits between flange and panel, forming a watertight barrier that withstands hydrostatic pressure testing for 48+ hours.

Quality Control Standards

Every LP28 Solder Type Flange-Mount Waterproof Connector undergoes rigorous validation:

Hydrostatic Pressure Testing: Verifying IP68 integrity at specified depths for extended periods.

Salt Spray Corrosion Testing (ASTM B117): Flange and shell endure 96 to 720 hours of corrosive mist exposure.

Insulation Resistance Testing: Confirming levels above 5000MΩ to prevent short circuits in your systems.

Mechanical Durability: Validating 500+ mating cycles minimum without degradation in contact pressure.

Thermal Shock Analysis: Testing solder joints and gaskets through rapid temperature fluctuations between -55℃ and +125℃.

This testing protocol ensures you receive connectors that perform reliably from installation through years of service.

Customization Options for Your Specific Needs

Your application might require hybrid power and data transmission. Custom inserts allow simultaneous high-current power and high-speed signal transfer.

Need specific pin counts beyond standard offerings? Cablein's engineering team can develop private molds for specialized configurations.

Metal-shell variants provide 360-degree shielding, significantly reducing electromagnetic interference in sensitive signal applications.

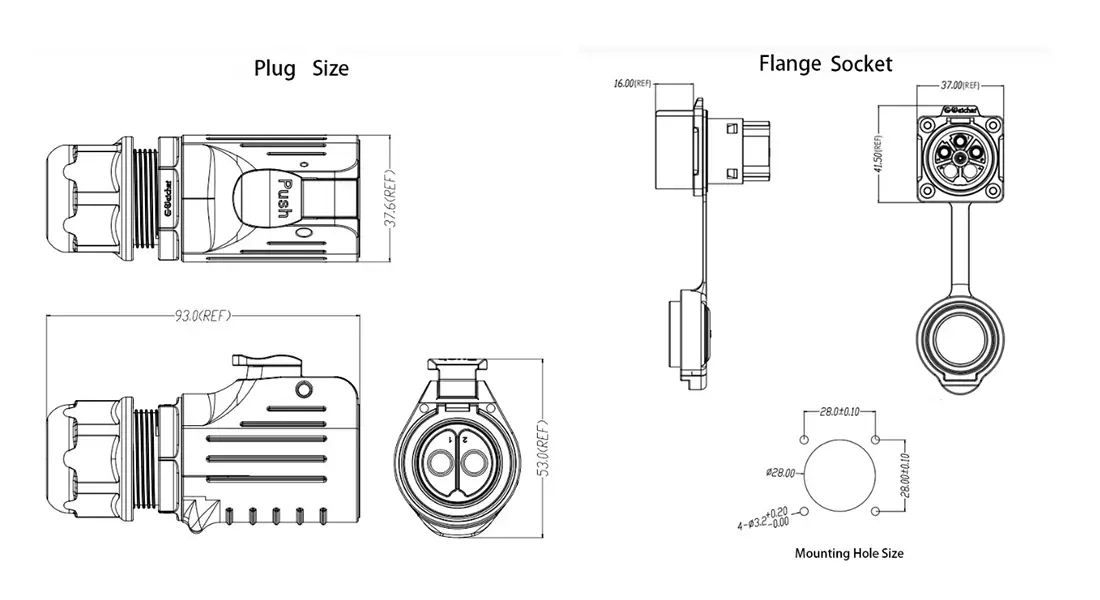

The connector follows standard industrial dimensions, ensuring compatibility with existing panel cutouts designed for LP-series 28mm connectors.

Why Cablein Technology

With 9 a long time of specialized encounter, Cablein Innovation works a present day 6,000 ㎡ generation office in Shenzhen's high-tech fabricating center. Our group of over 200 experts guarantees steady quality and quick delivery.

We keep up steady stock of more than 10,000 pieces per thing. Standard conveyance takes fair 7-10 days. That implies shorter lead times for your projects.

Our ISO9001:2015 certified quality administration framework guarantees 100% review for waterproof execution, strength, and electrical reliability.

Over 30 utility show licenses illustrate our commitment to development in waterproof association technology.

Frequently Asked Questions

Q1: Can this connector be customized for crossover control and data?

A1: Yes, custom embeds empower synchronous transmission of high-current control and high-speed signals in a single connector.

Q2: What fastening temperature ought to I utilize for the contacts?

A2: We prescribe 350°C-380°C for no more than 3 seconds per stick to dodge harming the inner insulator.

Q3: Does the flange-mount adaptation incorporate a gasket?

A3: Yes, high-quality units incorporate a silicone or NBR O-ring/gasket guaranteeing a waterproof seal between connector body and mounting panel.

Q4: How does it handle EMI interference?

A4: Metal-shell variations give 360-degree protecting, essentially diminishing electromagnetic obstructions in delicate applications.

Q5: Is it consistent with standard 28mm punch-hole patterns?

A5: Yes, it takes after standard mechanical measurements for consistent integration with existing board cutouts.

Ready to Enhance Your Connectivity Solution?

Contact us at nick@cableinco.com to discuss your specific requirements, download technical specifications, request samples, or confirm compatibility with your LP28 Solder Type Flange-Mount Waterproof Connector application.
