How to Choose the Right LP16 Inline Cable Connector for Outdoor Use

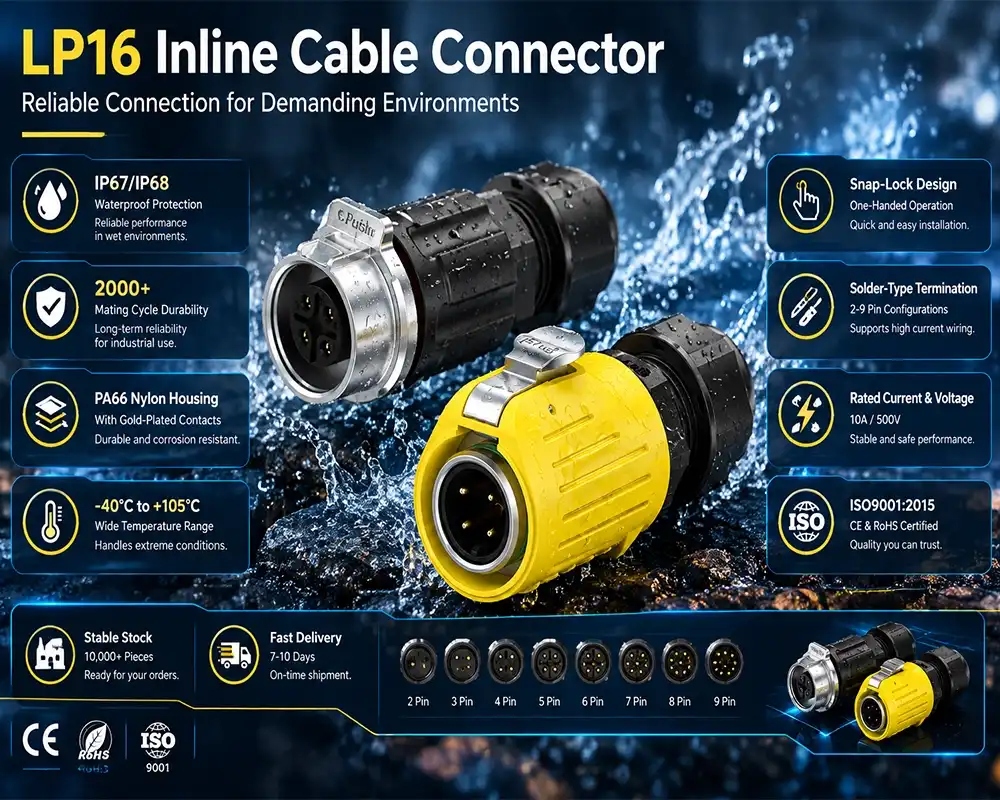

Choosing the right LP16 inline cable connector for outdoor use starts with understanding your environment, electrical requirements, and installation constraints. The LP16 inline cable connector is a compact, circular waterproof connector engineered for cable-to-cable connections in demanding outdoor conditions. With IP67/IP68 ratings, gold-plated copper alloy contacts, and a snap-lock bayonet coupling, it delivers reliable performance across temperature extremes from -40℃ to +105℃. Whether you're deploying LED lighting infrastructure, solar monitoring systems, or industrial automation networks, selecting the right configuration—pin count, housing material, and sealing grade—determines long-term reliability and reduces costly field failures.

Understanding LP16 Inline Cable Connectors for Outdoor Use

What Sets Inline Connectors Apart from Panel-Mount Designs?

Inline waterproof connectors make flexible cable-to-cable bridges in the field, unlike panel-mount connectors that need to be fixed to the chassis. This is very important in situations where you need to be able to change to route wires through tight pipe runs or across modular equipment parts. The LP16 inline cable connector format, named after its 16mm diameter housing, fits into small spaces while still having the mechanical stability needed for outdoor use.

The connector's PA66 nylon cover doesn't break down when exposed to UV light, which is important for setups that will be in full sunlight for a long time. According to IEC 60529, IP67-rated connectors can handle being submerged in water up to 1 meter deep for 30 minutes. IP68-rated units, on the other hand, can handle being submerged continuously at greater depths and for longer periods of time. Cablein's LP16 series meets both standards, and before it ships, each unit is checked to make sure it is completely waterproof.

At the point where two parts fit together, silicone sealing rings create two barriers that keep moisture out during rain, pressure washing, or long periods of being exposed to humidity. When engineers specify fittings for LED signs along the coast or greenhouse lights in agriculture, this sealing design immediately means less downtime for maintenance and longer system uptime.

Essential Criteria to Evaluate When Choosing LP16 Inline Cable Connectors

IP Rating, Material Quality, and Electrical Specifications

To choose the right waterproof circle connector, you have to carefully consider three factors: how well it protects the environment, how long the material will last, and how well it works electrically. The LP16 inline cable connector is the standard that provides the baseline for these evaluations.

The IP number is the standard that can't be changed. IP67 is good enough for most outdoor LED lighting and surveillance systems that will be exposed to water from time to time. IP68 is required for uses that are underwater, cable runs that go underground, or places where water regularly pools, like solar farm junction boxes in areas that are prone to flooding.

The choice of material affects how well it resists rust and how long it lasts mechanically. The LP16's housing is made of PA66 nylon, which has a good strength-to-weight ratio and is naturally resistant to UV light. The gold-plated copper alloy contacts keep contact resistance below 5mΩ, which reduces resistive losses in high-current circuits rated up to 10A at 500V. For uses that need to block electromagnetic interference, zinc alloy housing options offer extra safety without changing the small size of the connection.

Before buying, here are the most important electrical and mechanical specs to check:

• Contact resistance: Below 5mΩ ensures minimal power loss across the connection interface, critical for 24V LED driver circuits and low-voltage sensor networks.
• Insulation resistance: Exceeding 500MΩ protects signal integrity in data-carrying pins within multi-function configurations.
• Mating cycle endurance: Validated at 2,000+ cycles, which supports applications requiring regular maintenance access, such as portable industrial monitoring stations.
• Temperature range: Rated from -40℃ to +105℃, covering Arctic outdoor deployments and high-ambient industrial enclosures equally.
• Flame retardancy: UL94-V0 housing material certification reduces fire propagation risk in rail transit and energy storage installations.

The total cost of ownership, not just the original unit price, is based on these specs. When a connector fails after 500 mating cycles or the seal breaks down within two years, it costs a lot more to replace and hire someone to do it, which is more than the premium paid for a certified, durability-tested part. Any supplier's quality paperwork should include proof of thermal shock tests and salt spray protection validation for at least 96 hours in coastal areas.

Comparing LP16 Inline Cable Connectors with Other Connector Types

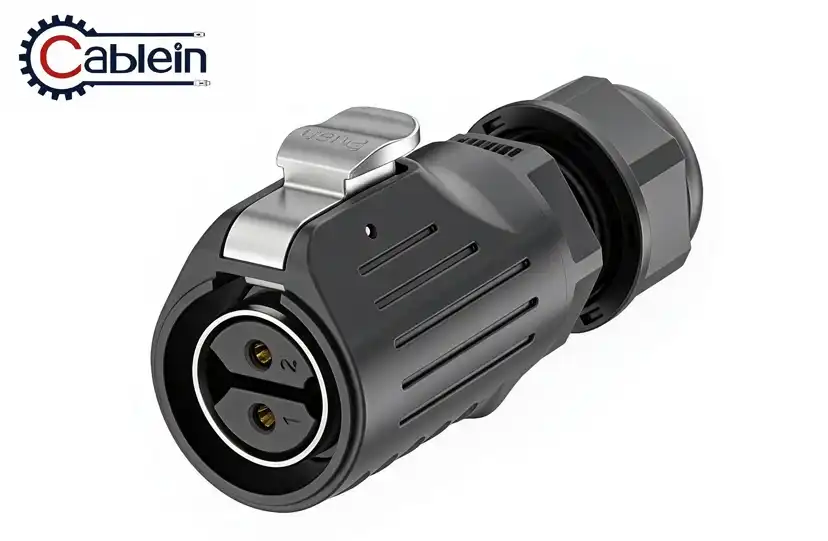

LP16 vs. LP20 and Standard Circular Connectors

The LP16 inline cable connector fits in a certain space between small, low-current plugs and larger industrial plugs. The LP16 has a smaller footprint than the LP20, which makes it better for cable runs that aren't very wide. It can still support up to 9-pin configurations for mixed power-and-signal applications, though. The LP20's larger diameter lets it handle higher current ratings, but it makes it bulkier to place in enclosures with limited room.

Most of the time, standard M12 and M8 circular plugs don't have the same inline freedom as the LP16. M12 ports work great for panel-mount sensor uses, but they need stable mounting points that inline deployments don't have. The LP16's snap-lock bayonet coupling works better than threaded couplings in places with a lot of vibration, like train transit and robotic arm installations, where threaded interfaces can gradually come free due to repeated mechanical stress.

When it comes to buying things, the LP16 gives you a competitive edge. Its standard 16mm interface works with existing cable assemblies without the need for special tools, and Cablein keeps more than 10,000 pieces of each SKU in stock, so you can buy them quickly in an emergency without having to wait for longer lead times.

Procurement Guide: How to Source Quality LP16 Inline Cable Connectors

Verification, Customization, and Supply Chain Reliability

When buying industrial waterproof plugs for big projects, purchasing managers face two types of risks: not meeting technical requirements and supply problems. Both need planned ways to reduce their effects.

The first step is to make sure the certification is correct. As standard, suppliers should give out CE statements of conformity, RoHS compliance paperwork, and ISO9001:2015 quality management certificates. These shouldn't be records that need a lot of follow-up work. Cablein's factory in Longgang, Shenzhen, follows ISO9001:2015 standards and has CE and RoHS certifications for all of its LP16 inline cable connectors. For certain applications, TUV and ETL certifications are also available.

Customization directly affects how well a project fits. Standard catalog connectors work well for most uses, but OEMs need to be able to be flexible for unique situations, like when farm lighting grids need non-standard cable exit angles or when EV charging stations need specific pin arrangements for power and CAN-bus signals. The LP16 line can handle:

• Pin count selection: 2 through 9 pins, covering both single-phase power circuits and complex multi-signal industrial IoT configurations.
• Housing material variants: PA66 nylon for weight-sensitive installations; zinc alloy for EMI-sensitive environments.
• Cable length customization: Pre-terminated assemblies reduce field labor costs and eliminate hand-termination errors on large-scale deployments.

Project performance trust is based on how reliable the delivery is. Cablein sends basic LP16 configurations in 7–10 business days. Customized assemblies are planned based on the timing of the project. Customers in North America can count on steady foreign logistics thanks to partnerships with DHL, UPS, and FedEx.

Troubleshooting and Best Practices for LP16 Inline Cable Connectors in Outdoor Settings

Diagnosing Seal Failures and Preventing Premature Wear

When outdoor connectors fail in the field, it's usually because the mating surfaces are dirty or the wire strain is too high for the connector's stated bending radius. Taking care of these issues ahead of time cuts down on service calls by a large amount.

When a waterproof seal breaks down, it usually shows up as sporadic circuit faults after it rains or the temperature changes. When checking a possible bad connection, look at the silicone O-ring for signs of compression deformation, surface cuts, or chemical contamination from cleaners. Most ingress-related problems can be fixed by replacing the closing ring and making sure the bayonet is fully engaged. The snap-lock mechanism lets you know when it's fully engaged—an audible click and resistance to a light axial pull show that it's mated correctly.

Equal attention should be paid to cable pressure reduction for the LP16 inline cable connector. When installed in places with a lot of wind, connectors that don't have enough cable support are repeatedly bent at the point where the cable enters the connector. Using the right pipe fittings or strain relief devices for the cable diameter—the LP16 can handle Φ4mm to Φ9mm cable ODs—keeps the conductor from cracking from overuse over long periods of time.

For outdoor installations, the mating interface should be visually checked every six months as part of the regular maintenance schedule. This is especially important in coastal or industrial settings where airborne particles and salt deposits speed up surface corrosion on metal parts that are exposed.

Conclusion

For outdoor use, choosing the right waterproof inline connection means matching the IP protection grade to the climate, checking the material certifications, and making sure the electrical ratings fit your circuit needs. The LP16 inline cable connector is a good choice for LED lighting, green energy, industrial automation, security, and train transit because it is sealed to IP67/IP68 standards, has gold-plated contacts, and can be installed quickly and easily with a snap-lock. Getting it from a seller that offers certified quality, a lot of customization options, and dependable delivery completes the buying process.

FAQ

What IP rating should I specify for a fully outdoor installation?

IP67 protects against most outdoor activities that happen above ground, such as rain, hose-down cleaning, and short-term exposure to puddles. Choose IP68 when connectors will be buried or sit in water for a long time, like at underground cable junction points or in solar farm pipe systems in places where it rains a lot.

Can the LP16 carry both power and data signals in the same connector?

Yes. Mixed power and data wiring is possible with multi-pin setups that have anywhere from 2 to 9 pins. Engineers often use signal pins for sensor data or control communication along with dedicated pins for 24V power supply in the same mating interface.

What customization options are available for OEM projects?

Cablein lets you choose the number of pins (2–9 pins), the material of the housing (PA66 nylon or zinc alloy), the length of pre-terminated cable assemblies, and the creation of a private mold for connection shapes that are specific to your application.

How long does bulk order delivery typically take?

Standard setups are sent out from Cablein's Shenzhen plant within 7–10 business days. Customized assemblies are made according to a schedule set during the technical discussion phase. For projects that need to be made quickly, this schedule can be changed.

Are LP16 connectors compliant with North American market requirements?

With CE and RoHS approvals, you can sell your products in Europe and other countries. For projects in North America that need certain agency marks, get in touch with Cablein's technology team to make sure your application has the right approval status.
