What are the common applications for M10 PA66 waterproof electrical connectors?

Field equipment failure due to water penetration stalls manufacturing lines and requires costly repairs. The small, sturdy M10 PA66 waterproof connector solves this crucial problem by safeguarding electrical connections in harsh situations. These connectors include 10mm metric threads and Polyamide 66 housings, a high-performance engineering material with mechanical and thermal durability. They safeguard electrical integrity against moisture, dust, and pollutants with IP67 and IP68 ingress ratings. These connections are used in reliable sectors like outdoor lighting and renewable energy.

Understanding M10 PA66 Waterproof Electrical Connectors

M10 PA66 waterproof Connector engineering combines material science and precise manufacturing. PA66 nylon has excellent mechanical strength and dimensional stability at many temperatures. This material is perfect for long-term outdoor deployment since it resists abrasion, solvents, and UV radiation.

Core Material Properties

PA66 nylon has UL94V-0 flame retardancy, reducing industrial electrical fire hazards. Typical production lubricants, fuels, and cleaning agents do not harm the material. Its glass transition temperature and excellent tensile strength keep threaded connections stable under persistent vibration. PA66 meets the requirement for small equipment by being lightweight and durable, unlike metal alternatives.

Technical Specifications That Matter

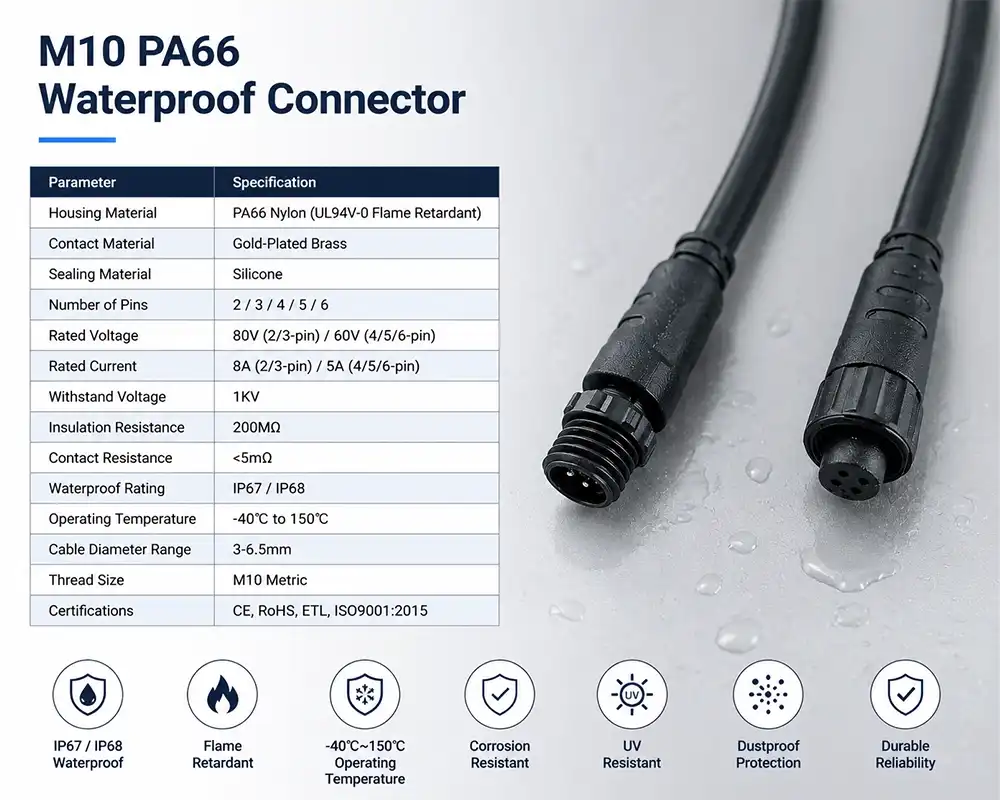

Carefully developed requirements make our M10 waterproof connections dependable. Stable signal and power transmission is achieved with contact resistance below 5 mΩ and insulation resistance above 200 MΩ. The working temperature range is -40℃ to 150℃, suitable for arctic and high-heat industrial settings. There are 2, 3, 4, 5, and 6-contact pin combinations with 8A and 5A rated currents, respectively. The injection-molded cable diameter range of 3-6.5 mm allows for different cable kinds and gauges.

Waterproof Protection Standards

IP67 and IP68 ratings indicate environmental protection. IP67 protection against temporary water immersion up to 1 meter for 30 minutes is adequate for most outdoor installations exposed to rain and splashing. IP68 certification ensures sustained underwater operation, crucial for maritime applications and washdown-prone equipment. Both grades have comprehensive dust protection to prevent particle infiltration and electrical performance degradation.

Common Applications of M10 PA66 Waterproof Connectors

When used in numerous sectors, M10 PA66 waterproof connectors show their adaptability. Each app uses connection attributes to solve operational problems.

Outdoor LED Lighting Systems

Landscape architects and stadium lighting designers struggle to illuminate during inclement weather. Weatherproof connections prevent signal wavering and power disruptions. These connections function well in architectural floodlighting installations from summer heat to winter cold. The one-piece overmolded structure relieves pressure at cable entrance points, minimizing wire breakage when fixtures shift in heavy winds. Since sealed connections resist corrosion and retain electrical contact integrity for years, municipal lighting projects require fewer maintenance visits.

Renewable Energy Installations

Solar panels and wind turbines operate in exposed areas where environmental protection is essential. These connections safely connect solar inverters, circuit boxes, and monitoring devices. Gold-plated brass pins withstand oxidation in humid coastal settings, and UV-resistant PA66 housing prevents sun brittleness. These connections provide electricity outdoors for EV charging, and IP68-rated units can withstand occasional floods or severe rain. They link battery packs to management electronics in energy storage systems, assuring interior and outdoor deployment safety.

Industrial Automation and Control

Manufacturing has specific connection issues. Food processing plant components must withstand high-pressure water jets and caustic cleaning solutions during sanitation. The M10 connection fits in tight sensor housings and actuator assemblies. CNC machining centers and automated manufacturing lines benefit from its hydraulic oil and coolant resistance. Vibration-resistant architecture helps robotic systems transmit signals reliably despite frequent mechanical motions. Quick-connect decreases equipment setup and reconfiguration labor costs by reducing installation time compared to field-wired connections.

Marine and Aquaculture Electronics

Unprotected electrical connections on ships and offshore rigs corrode faster with salt spray. These watertight connections protect deck-mounted sensors, navigation lights, and communication equipment against corrosion. Continuous immersion requires IP68 protection for underwater temperature sensors and feeding system controllers in aquaculture monitoring systems. The silicone sealing ring stays impermeable even when heat cycling affects equipment dimensions. The connections' electrical continuity under saltwater and mechanical shock impresses fishing fleet operators.

Smart City Infrastructure

Urban sensor networks and outdoor surveillance systems need long-term connectivity options. Traffic monitoring cameras connect the power supply to signal processing devices using these connections, enduring harsh temperatures and storms. Sensor arrays connected by waterproof cables measure air quality and meteorological data at environmental monitoring stations. Street furniture with digital displays and public WiFi access points use these connectors to safeguard power and data from vandalism and weather.

Comparative Insights: M10 PA66 vs Other Waterproof Connectors

Understanding design and material trade-offs helps choose the best connection. Small yet current-carrying, the M10 PA66 waterproof connector fits a specific niche.

Size and Thread Compatibility

M12 connections are better for large industrial machines due to their greater current ratings and stronger threading. Their bigger diameter restricts employment in space-constrained situations where the M10 form factor thrives. While fitting in smaller enclosures, the 10mm thread provides enough mechanical strength for most sensor and lighting applications. Compared to connections with finer thread pitches, thread engagement secures the connection in a few revolutions, expediting field installation.

Material Performance Comparison

Silicone-insulated cables with metal connector bodies are flexible at sub-zero temperatures but cost more than PA66 housings. Industrial applications require temperature and chemical tolerance, which PVC alternatives lack. The engineering-grade PA66 material retains mechanical qualities from -40℃ to 150℃, unlike cheap plastics that become brittle or mushy at severe temperatures. This reliability lowers failure rates and extends service intervals.

Certification and Compliance Considerations

These connections fulfill European and North American environmental laws with RoHS and REACH certification. Commercial electrical safety is assured by ETL certification under UL requirements. ISO9001:2015 manufacturing quality control ensures product performance across batches, lowering the chance of faulty components reaching essential applications. These certifications matter when product failures pose safety risks or regulatory fines.

How to Procure M10 PA66 Waterproof Connectors Effectively

Strategic sourcing affects project costs and operational dependability. Working with established M10 PA66 waterproof connector manufacturers brings technical experience and supply chain reliability.

Supplier Selection Criteria

Reputable manufacturers assess waterproof performance before shipment. Find vendors who perform vacuum leak, salt spray, and mechanical cycle testing as quality control. Application assistance from a good technical team can match connection specifications to environmental requirements. Suppliers with broad inventories enable speedy prototyping and emergency order fulfillment, reducing project delays.

Customization and OEM Opportunities

Standard catalog goods meet typical needs, but unusual applications require custom solutions. Without field splicing, cable length modification reduces failure sites. Custom pin layouts allow combined signal and power in one connection. Hydraulic equipment has oil-resistant cable jackets, and robotic applications have more flexibility. Patent-protecting private mold creation optimizes connection integration and allows proprietary system designs.

Pricing and Lead Time Considerations

Bulk purchases are cheaper for large projects since unit costs drop with order volume. Keeping 10,000 items per SKU in stock lets suppliers fulfill regular orders in 7-10 days. Tooling and production setup for customized orders take 2-4 weeks, depending on complexity. Express air shipment is available for urgent needs and affordable marine freight for scheduled output. Multi-year supply agreements ensure pricing stability and allocation amid supply chain disruptions.

Ensuring Optimal Use and Maintenance of M10 PA66 Waterproof Connectors

Good installation and maintenance extend M10 PA66 waterproof connector life and avoid failure. Even the most resilient components fail when misdeployed.

Installation Best Practices

Thread engagement needs hand-tightening and a quarter-turn with appropriate equipment to squeeze the sealing ring. Overtightening can remove PA66 threads or distort the O-ring, jeopardizing waterproofing. Cable routing should avoid steep bends near the connection body, which concentrate mechanical stress at the strain release point. Check mating surfaces for debris or damage before final connection to ensure sealing. Orient connections in outdoor installations to minimize water gathering near the connection point, even when sealed designs should withstand it.

Environmental Stress Management

Check PA66 compatibility with operational-environment chemicals. Although resistant to most industrial chemicals, prolonged contact with solvents or strong acids may destroy the housing material. Critical systems benefit from periodic examination because temperature cycling loosens threaded connections. UV stabilizers in PA66 reduce sun-induced brittleness, although conduit or shielding enhances service life in harsh sunlight.

Inspection and Troubleshooting

Flexing or abrasion can cause cable jacket damage around the connection entrance point, which should be visually inspected. A megohmmeter checks insulation resistance to detect moisture penetration before it fails. Contact resistance tests reveal voltage-dropping corrosion or weak connections. Thermal imaging shows hot regions suggesting high-resistance connections for troubleshooting intermittent failures. Replacement is needed when thread damage inhibits mating or O-ring seals distort or fracture permanently.

Conclusion

M10 PA66 waterproof connector solutions provide environmental protection and mechanical endurance for outdoor and industrial applications. Their modest thread size allows space-limited installations while providing current for lights, sensors, and low-voltage power distribution. IP67/IP68 ratings prohibit water and dust infiltration into the PA66 housing, which withstands temperature fluctuations, chemicals, and UV radiation. These connections handle the problem of electrical integrity in extreme circumstances in LED lighting, renewable energy, industrial automation, maritime electronics, and smart city infrastructure. Strategic purchases from established vendors boost system dependability and TCO by providing certified items, customization, and technical support.

FAQ

What temperature range do M10 PA66 waterproof connectors support?

Ideal for arctic outdoor installations and high-temperature industrial applications, these connections perform reliably from -40℃ to 150°C. PA66 is mechanically strong and dimensionally stable across this range, unlike cheap plastics that become brittle in cold or mushy in heat.

How do IP67 and IP68 ratings differ in practical applications?

IP67 protection is sufficient for outdoor equipment exposed to rain and splashing for 30 minutes of 1 meter water immersion. Marine applications and equipment subjected to repeated high-pressure washdowns require IP68 certification for sustained underwater operation. Both levels protect against dust completely.

Can I get bespoke cable assemblies using these connectors?

Absolutely. Our custom cable assembly services include length, wire gauge, and color coding to meet system needs. Mixed pin layouts meet signal and power demands, while specialty cable jackets improve grease resistance or flexibility.

What certifications validate the quality and safety of these connectors?

Made under ISO9001:2015 quality control, our products are ETL, CE, RoHS, REACH, and regionally certified. Before shipment, each connection is vacuum leak, salt spray, and mechanical cycle tested for waterproof performance and durability.

Partner with Cablein for Reliable M10 PA66 Waterproof Connector Solutions

Cablein Technology designs waterproof connectivity solutions for vital electrical infrastructure. Since 2017, we have provided precise production and customized services for LED lighting, new energy, industrial automation, and surveillance applications as a renowned M10 PA66 waterproof connector manufacturer. With over 10,000 parts per item in stock, our 6,000 m² facility offers 7-10 day delivery on conventional configurations and special specifications for particular project needs. We supply connections that fulfill strict international requirements with ISO9001:2015 quality control and ETL, PSE, SAA, CE, and TUV certifications. We offer 24-hour connection selection, application help, and OEM development support from our engineering staff. Talk to nick@cableinco.com about how our M10 PA66 waterproof connections may improve electrical system durability and longevity in harsh conditions.
