Mastering M12 Connectors: A Comprehensive Guide for Industrial Connectivity
In industrial automation, connectivity isn't just about linking components—it's about ensuring operations continue without interruption in challenging conditions. The M12 straight waterproof cable connector has become essential infrastructure across manufacturing floors, outdoor installations, and harsh processing environments. These compact, threaded connectors protect critical signal and power pathways from moisture, dust, and vibration, solving persistent reliability issues that plague industrial operations. Whether you're an R&D engineer specifying components or a procurement manager evaluating suppliers, understanding M12 technology helps you make decisions that reduce downtime and total cost of ownership.
Understanding M12 Straight Waterproof Cable Connectors
What Defines the M12 Standard?
The M12 connector has a 12 mm metric threaded locking device that makes links that are safe and won't shake. IEC 61076-2-101 sets the rules for this standard interface, which makes sure that all makers and programs can use it. When working with machinery that shakes a lot, the threaded coupling offers mechanical stability that push-pull designs just can't match.
When you properly set up M12 connections, three major problems go away. The signal quality stops getting worse when moisture and particles get in. It becomes almost impossible for moving equipment to disconnect by accident. Hard-wiring takes a lot of time, but plug-and-play installation is much faster and costs a lot less.
Internal Architecture and Pin Configurations

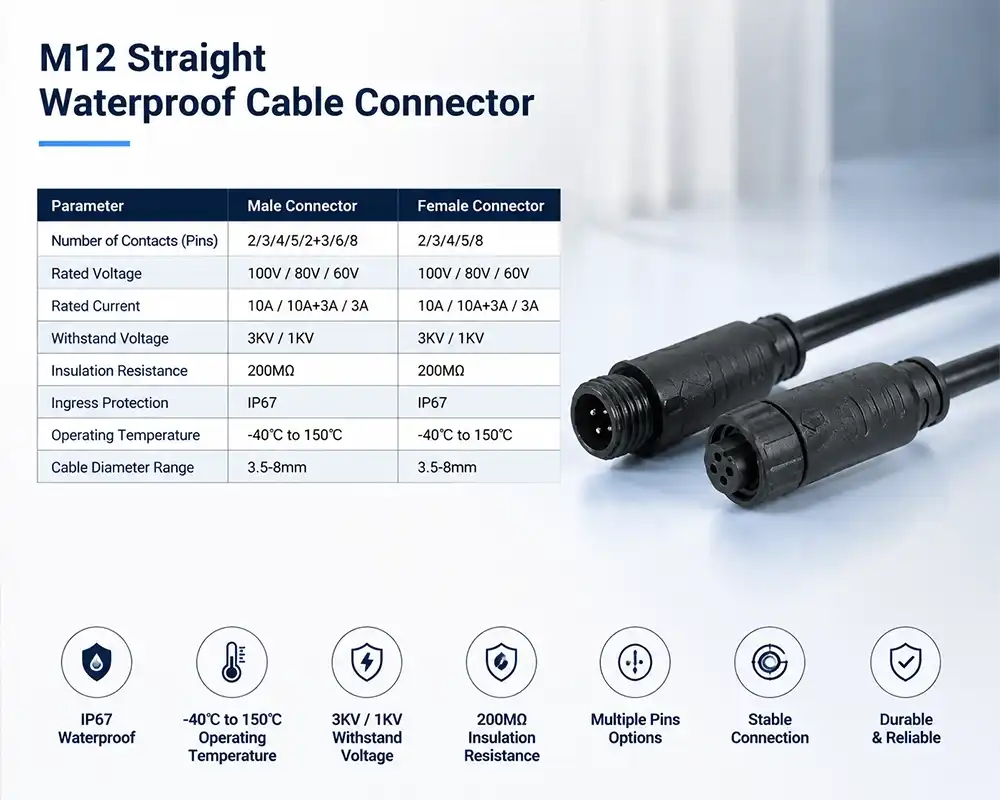

Gold-plated copper alloy contacts inside each connection keep the resistance below 5 mΩ for the life of the product. The PA66 nylon shell is very resistant to chemicals, and the waterproof seal made of silicone gaskets meets IP67 or IP68 standards. Different types of coding, such as A, B, D, and X, keep systems that don't work together from mating incorrectly.
Depending on the job, pin configurations can have anywhere from 3 to 12 points. Most of the time, A-coded versions can handle sensor signals and up to 10A of DC power. D-coded versions work with industrial networks that use 100 Mbit Ethernet. This variety lets you precisely match electrical needs without giving too many details.
IP67 vs IP68: Choosing the Right Protection Level
With an IP67 grade, you'll be safe from water immersion for up to 30 minutes at a time. This works well for most plant floor uses where cleaning cycles might occasionally splash or flood for a short time. IP68 adds protection for continuous submersion at depths and for lengths of time specified by the manufacturer. This is very important for underwater robots or outdoor sensors that are left in place all the time.
Temperature performance is just as important. Good M12 assemblies work reliably from -40°C to 150°C, keep their 200MΩ insulation resistance, and can handle 3kV test voltages. These specs aren't just guesses; they tell you right away if your connections will be able to handle arctic cold or radiant heat from factories.
Advantages and Performance Comparison of M12 Straight Waterproof Connectors

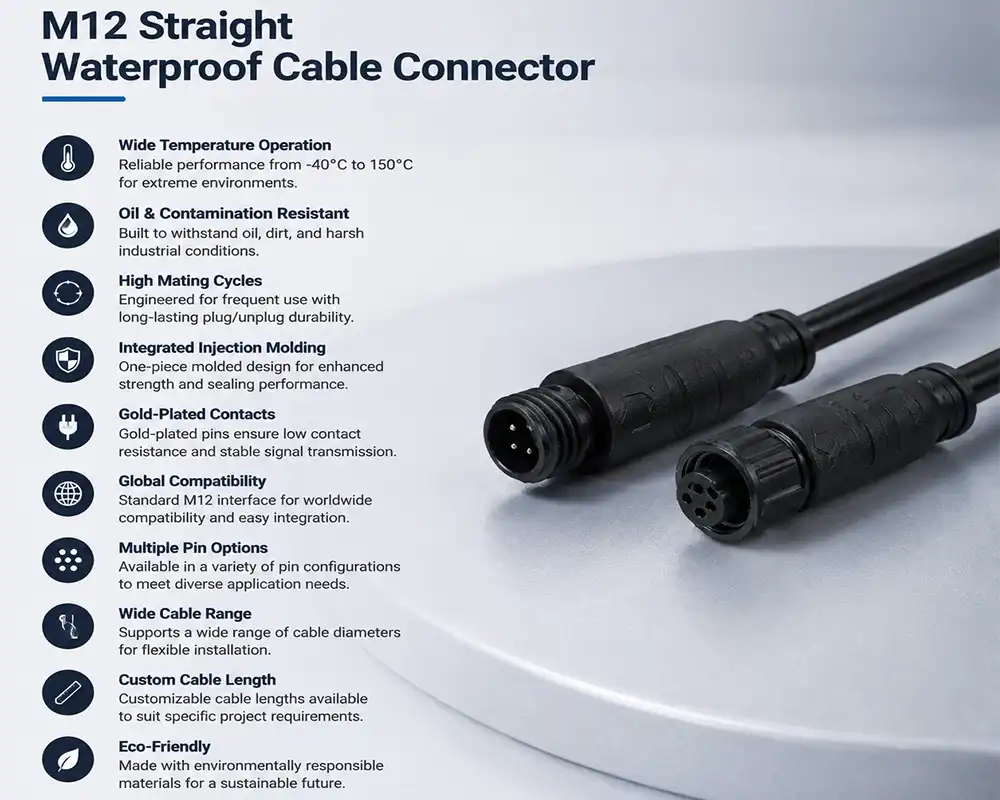

Core Benefits That Drive Adoption
With pre-wired building, there is no need for field termination work or the weak spots that come with putting things together by hand. When Cablein sends out factory-overmolded M12 assemblies, the wire and connection are bundled together into one unit. You just plug it in. There's no need to strip the wires or crimp the terminals, and there are no chances for installation mistakes that show up months later as intermittent faults.
Vibration-resistant locking of the M12 straight waterproof cable connector gives your tools the mechanical steadiness it needs. Even when it's attached to a conveyor belt, a robotic arm, or other mobile equipment, the precision-threaded coupling stays in place. Protecting the environment is more than just keeping water out. When connections are properly sealed, high-pressure washing, oil contamination, and metal dust can't get in. This keeps your signs clean and reliable.

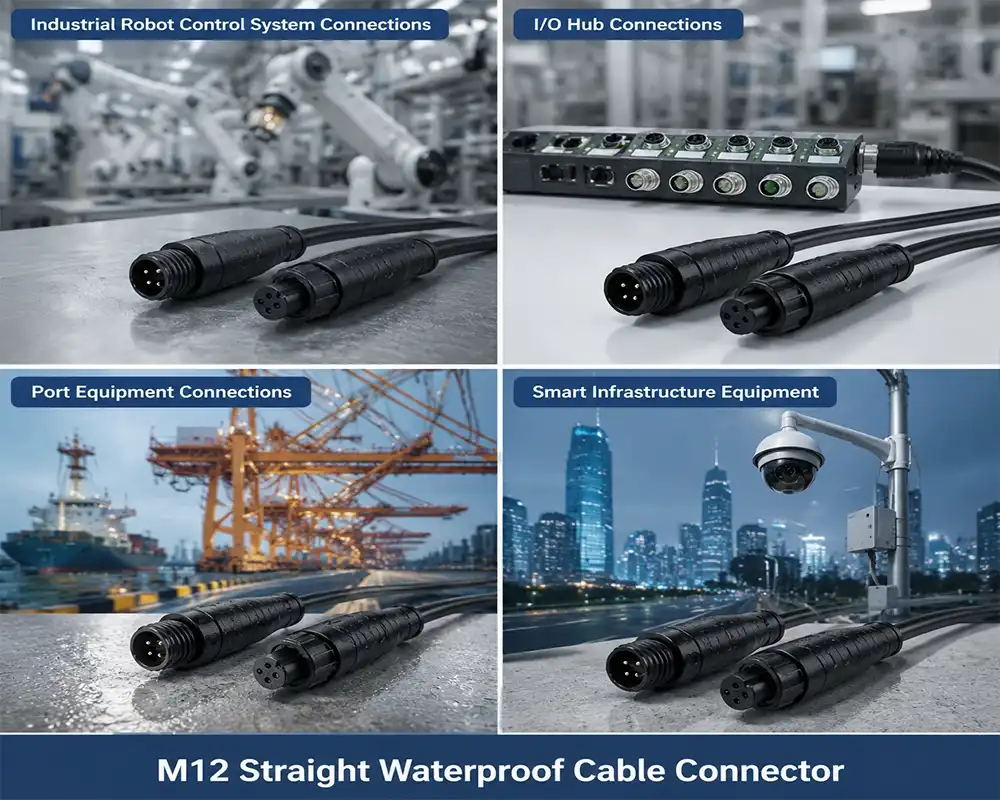

Testing for UV protection and salt spray shows that it will last for a long time. When placed in marine facilities, solar panels, or traffic control systems, environmental exposure doesn't affect how well they work. When you're putting together parts from different vendors, universal compatibility is important. Standard connections in the industry work well with current sensors, switches, and automation units, so you don't have to stick with a single brand.
Straight vs Angled: Selecting the Right Form Factor
In standard panel installations and drag chain systems where cables follow clear paths, straight configurations work best. The inline design keeps cable strain to a minimum and works well in enclosures with enough room for expansion. Angled versions work better in tight spaces and on robotic joints where space is limited. Because the 90-degree elbow cuts down on the cable bend radius, it keeps fails from happening in situations where the cable is always moving or where there isn't much room to put it.
There aren't many changes in performance between these versions—they both meet the same electrical and IP grades. Your choice is based only on how you want to place it and how much space you have around the connection points.
Material Selection: Balancing Cost and Durability
Stainless steel housings are the most resistant to rust and can be found in chemical plants, marine settings, and places where salt is always present. The material doesn't break down when exposed to harsh cleaners or sudden changes in temperature. PA66 nylon is less expensive and has great chemical stability and UV protection. This engineering thermoplastic can be used in most industrial automation tasks that don't need to worry about severe corrosion.
When used with good gaskets and the right amount of torque during installation, both materials do a good job of protecting internal contacts. The choice is based on specific problems with the environment and limited funds, not on basic achievement gaps.
Installation, Wiring, and Maintenance Guide
Preparatory Steps Before Connection
Before each placement, check the wire ends and connector threads. Check for dirt, broken pins or skewed O-rings that make closing less effective. If there is dirt on the threads, clean them with rubbing alcohol and a lint-free cloth. Do not push connections; threads that are not lined up properly show cross-threading, which destroys the waterproof integrity.
Make sure that the coding types on the male and female connectors are the same. The keying stops the wrong joining, but making sure they are compatible saves time and keeps expensive parts from getting damaged.
Proper Connection Technique
Make sure the connector is lined up straight on the plug. Do not tilt it. Tighten by hand until you feel resistance. Then, use a measured torque wrench to add the final torque, which should be between 0.4Nm and 0.6Nm. Moisture can get in through holes caused by under-tightening, while over-tightening hurts O-rings and makes stress points that fail too soon.
Cablein's pre-wired kits come with color-coded wires that meet industry standards. In most cases, brown wires carry positive voltage, blue wires connect to ground, and black wires handle signal paths. If you're not sure about the wire colors, always check the technical documents instead, especially for custom setups.
Troubleshooting Common Issues
Signals that come and go are usually caused by not enough torque or dirty contacts in the M12 straight waterproof cable connector. Disconnect, clean the contacts with contact cleaner, and then reattach the right way. If you lose all signals, it means that pins are broken or cables are broken near the overmold. For these problems, the connectors need to be replaced instead of being fixed.
Even if the IP rating is right, water usually gets in because the seals are damaged or the fitting torque is wrong. Check the O-ring for cuts, damage from being compressed, or chemical breakdown. If the sealing parts are worn out, the whole link system needs to be replaced.
Maintenance Strategy for Long Service Life
Visual inspections every three months find problems before they become major problems. Check for damage to the cable jacket, rust around the threads, and tight mounting. Once a year, the seals are disconnected and then connected again to make sure they are still working well and to check the gasket. If connectors are getting close to their recommended service life, you should replace them even if they seem to work. Preventive replacement costs a lot less than unplanned downtime.
Procurement Insights and Buying Guide for M12 Straight Waterproof Cable Connectors
Matching Technical Requirements to Application Demands
First, describe the conditions of the environment. Outdoor projects need materials that are resistant to UV light and have an IP68 grade. IP67 protection against cleaning and accidental contact is good for indoor automation. Extreme temperatures mean that you need to make sure that the materials used for the housing and the parts inside stay in good shape throughout the whole working range.
Pin count and coding are based on electrical needs. For simple sensor inputs, you need models with 3 or 4 A-coded pins. For Ethernet fieldbus to work, the assemblies must be D-coded and have the right impedance matching. Current capacity must be higher than maximum load with a safety buffer. Contacts that are too small cause voltage drop and heat buildup, which shortens their life.
Evaluating Supplier Capabilities
The standard of manufacturing changes a lot from one supplier to the next. As a standard for quality management, look for ISO9001:2015 certification. International safety approvals, such as CE, ETL, TUV, and RoHS compliance, show that a product meets the standards of an international market and has been properly tested.
When normal options don't meet your needs, being able to customize is important. Can the supplier change the length of the cable, change the way the pins are arranged, or make custom tools for specific needs? The stability of your inventory and lead times have a direct effect on your output plan. Your operations run smoothly because your suppliers keep 10,000+ pieces of each item in stock and offer 7–10 day delivery windows.
Understanding Total Cost of Ownership
The initial buy price is only one part of the total cost. Pre-wired parts cut down on the need for field labor and mistakes during installation that lead to calls back. Connectors of higher quality that last longer require less repair and upkeep work. Technical support from the supplier stops specification mistakes and speeds up troubleshooting when they happen.
Figure out the total cost of ownership, which includes the time it takes to install, how often it needs to be replaced, and the money lost when it breaks down. When problems keep happening because of poor quality, the lowest unit price often means the highest total cost.
Future Trends and Innovation in M12 Connector Technology
Enhanced Environmental Protection
As material science progresses, seal compounds and house plastics keep getting better. Newer versions make them more resistant to chemicals and work in a wider range of temperatures while still being flexible in a wider range of weather conditions. Now, manufacturers make different kinds of these materials for different businesses. For example, food-grade materials are used in processing equipment, and fire-retardant chemicals are used in transportation.
Industry 4.0 Integration
For smart factory projects to work, connectors need to do more than just send power and signals. Newer versions of the M12 have monitoring features that check the health of the connections and tell you when maintenance is due. As Ethernet protocols get faster, they need better shielding and tighter control of impedance in small M12 packages.
Future-Proofing Your Infrastructure
Choose connecting systems that have clear ways to be upgraded as communication methods get better. Suppliers of the M12 straight waterproof cable connector who put money into research and development show that they are committed to keeping standards up-to-date. When you work with companies that have utility patents and active development programs, you can easily adopt new technologies without having to replace your infrastructure.
Separating wire assemblies from equipment-mounted plugs in modular designs lowers the cost of replacements and makes field updates easier. Obsolescence problems can be avoided by using standard mounting patterns and pinouts across different versions of products.
Conclusion
When industries are connected, they need to be completely reliable, because if something goes wrong, it can cause business loses and safety risks. M12 connectors offer standard, tested protection against water, vibration, and other environmental problems that damage other types of connections. If you know about technical specs, the right way to put things, and how to buy things, you can choose solutions that meet practical needs without being too detailed.
Quality varies a lot from one manufacturer to the next. As important as technical specs are, certifications, the ability to customize, and the stability of the supplier are also very important. The total cost of ownership goes down when you buy the right M12 connection because it lasts longer, requires less upkeep, and doesn't break down in the field.
FAQ
What distinguishes A-coded from D-coded M12 connectors?
Versions with an A code can handle DC power up to 10A and common sensor data. For reliable data transmission, D-coded assemblies support 100 Mbit Industrial Ethernet with the right impedance characteristics and shielding.
Can M12 connectors withstand complete submersion?
IP68-rated assemblies can be submerged continuously at certain depths and for certain amounts of time. Always make sure that the depth and time ratings given by the manufacturer are right for your application. This is especially important for underwater robotics or places that are always wet.
Why does torque specification matter for waterproof seals?
When torque is just right, between 0.4Nm and 0.6Nm, O-rings are compressed enough to seal without breaking. When you over-tighten something, you crush the gaskets and cause stress cracks that break before they should.
How does cable jacket material affect performance?
TPU (Thermoplastic Polyurethane) is better than PVC at resisting oils, abrasion, and germs, so it is better for difficult plant floors and outdoor installs. PVC is cheaper and better for indoor uses that don't need to be very strong.
Ready to Upgrade Your Industrial Connectivity?
Cablein Technology specializes in providing industrial-grade M12 straight waterproof cable connector solutions that make sure your most demanding applications never lose connectivity. Our plant already puts together PA66 nylon housings with gold-plated brass contacts that meet IP67 and IP68 standards and work successfully from -40°C to 150°C. Our 6,000㎡ building is home to more than 200 trained workers. We keep an inventory of more than 10,000 pieces of each item and send them within 7–10 days.
As a well-known provider of M12 straight waterproof cable connectors, we offer full customization—you can choose the type of cable, length, pin layout, and direction to meet your exact needs. Every assembly meets international standards thanks to CE and TUV certifications that are part of ISO9001:2015 quality management. If you need stable bulk supply for production lines or rapid prototyping for new designs, our engineering team can help you find technical solutions that lower your total ownership costs.
Email our team at nick@cableinco.com to talk about your unique connection issues and get samples that show how well they work before you commit fully.
