How to install QC12 straight quick clamp waterproof cable connectors properly

If you install the QC12 straight quick clamp waterproof cable connector properly, you can be sure that your electrical connections will be safe and waterproof in harsh settings. This connector has a quarter-turn locking mechanism that makes installation easier in the field and keeps the IP67 waterproof rating. It works reliably in outdoor LED lights, solar setups, and industrial control systems thanks to its PA66 nylon housing, gold-plated brass pins, and silicone closing ring. To install it correctly, you need to prepare the cable ends, line up the connector pins, fully insert them, and then turn the quick clamp a quarter turn until you hear a click. This means the connection is sealed and stable, ready for long-term use.

Understanding QC12 Straight Quick Clamp Waterproof Cable Connectors

The QC12 Straight Quick Clamp Waterproof Cable Connector is a big step forward in the technology used to connect things in factories. Traditional screw-terminal connectors need tools and precise torque application. This straight-through design, on the other hand, uses a new mechanical clamping system that securely locks cables with little effort. The housing is made of PA66 nylon, an industrial thermoplastic with high performance that is known for its high tensile strength and resistance to UV light, temperature cycling, and chemical exposure. This material doesn't lose its shape at temperatures ranging from -40°C to 105°C, so it can be used for harsh outdoor projects.

Inside the connector, solid brass contact pins that have been gold-plated make it better at conducting electricity and resisting corrosion. Over time, gold treatment stops oxidation, which keeps the signal strong even in wet or salty air that is common in coastal industrial zones. The rubber sealing ring makes a multi-level barrier against moisture entry. It has IP67 protection, which means it can withstand being submerged in water up to one meter deep for 30 minutes. For deeper or longer submersion uses, IP68 protection can be added.

Technical Specifications That Matter

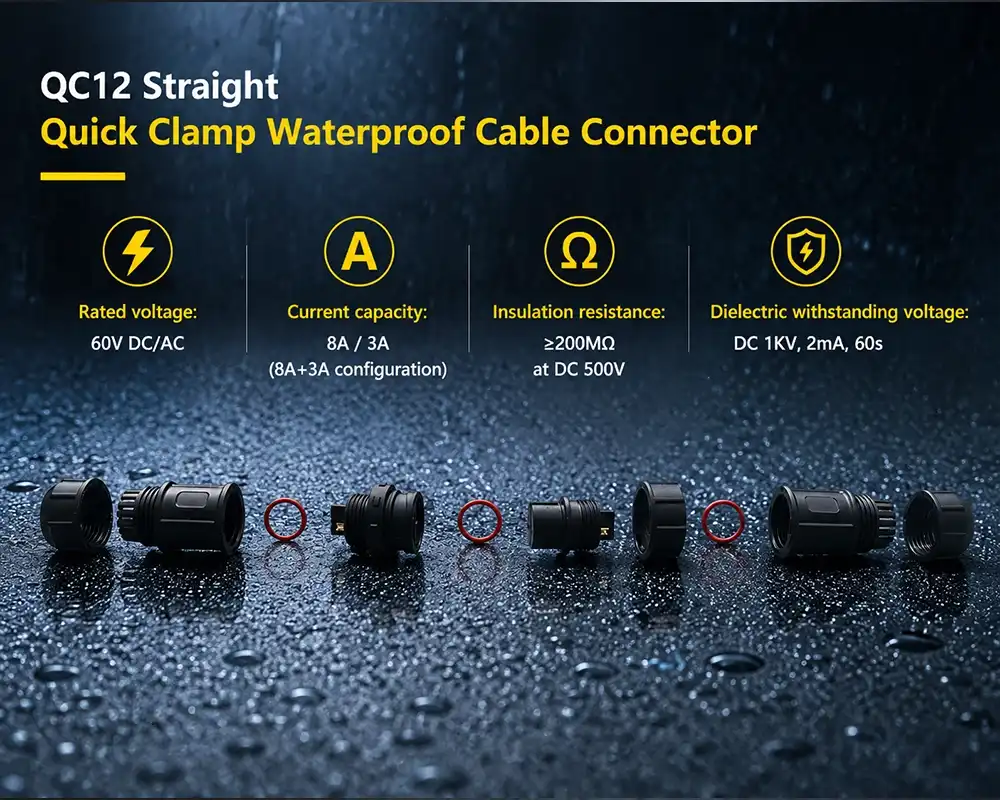

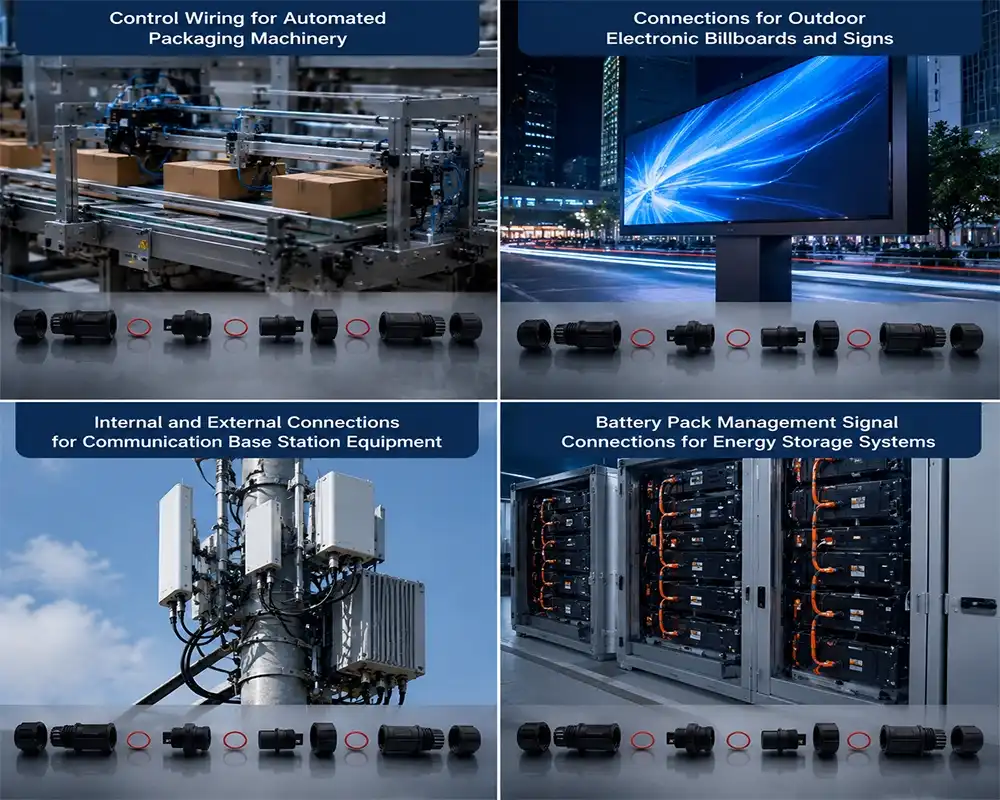

The rated voltage is 60V DC/AC, and the current capacity is 8A for power circuits and 3A for signal lines. This makes it flexible for use in LED displays, sensor networks, and control systems where both power and data need to be sent. The dielectric can withstand a voltage of up to 1 kV at 2 mA for 60 seconds, showing that it is a strong insulator that keeps electricity from leaking when it's under stress. Insulation resistance is higher than 200MΩ at DC 500V, which is an important factor for keeping signals intact in busy industrial settings with lots of electromagnetic interference.

The injection-molded cable diameter of the QC12 Straight Quick Clamp Waterproof Cable Connector ranges from 2 mm to 9 mm, so it can fit different wire gauges without the need for special adapters. This adaptability makes it easier to manage goods when buying things and makes it easier for workers to work on a variety of projects. Each connection goes through strict testing that includes more than 500 mating cycles. This proves that it is durable, which means that it will need less upkeep and have fewer service breaks over a normal 10-year working lifespan.

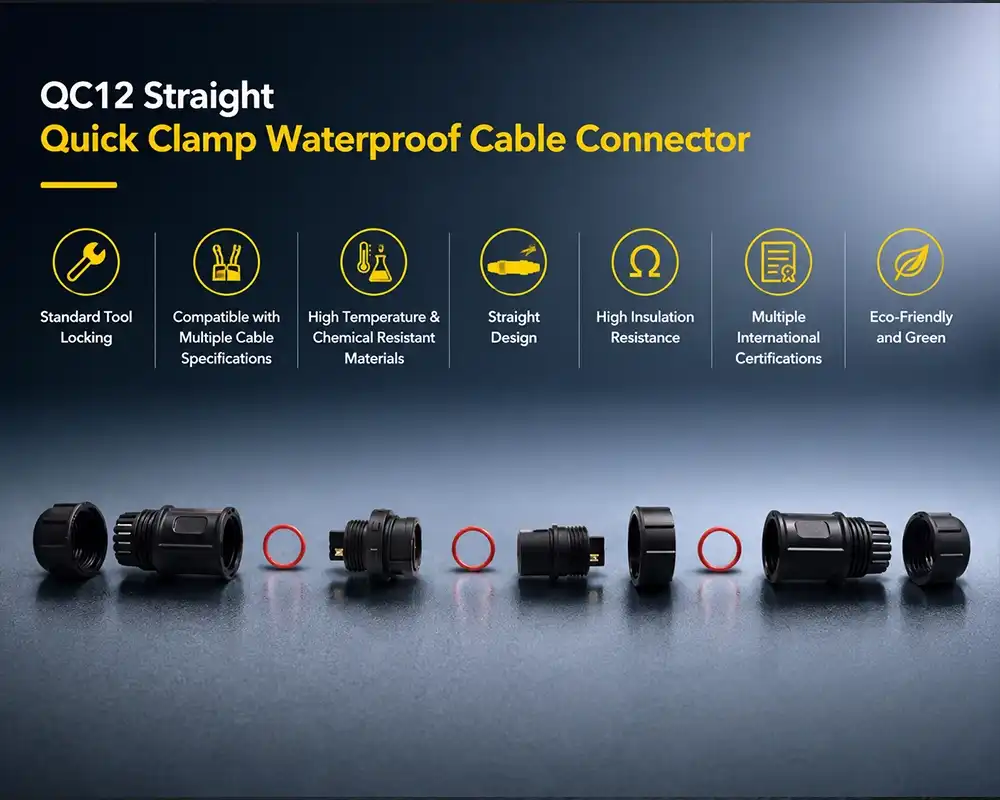

Why Quick Clamp Technology Outperforms Traditional Methods

If you use too little or too much torque on traditional screw-clamp connectors, the connection will break when the cable moves. If you use too much torque, the threads will strip or damage the cable insulation. This doubt is taken away by the quick clamp device. When the handle is turned a quarter of the way, internal springs or cam-lock parts connect and clamp the wire evenly around its circumference. This design keeps things from getting too tight while keeping the contact pressure the same on all pins. This lowers the failure rate that comes with heat cycles of expansion and contraction.

In comparison to screw-type options, we've seen installation times cut by up to 70%. When used on a large scale, like for stadium perimeter lights or solar farm array wiring, this efficiency adds up to big savings on labor costs. The ability to work without tools also lowers the chance that less experienced techs will install it incorrectly, which increases the total reliability of the system and lowers the number of guarantee service calls.

Step-by-Step Installation Guide for QC12 Straight Quick Clamp Connectors

Before you start installing, make sure you have the right tools, such as wire strippers that are rated for the cable gauge you're using, a clean, lint-free cloth, and dielectric grease if you'll be working in a marine or chemical environment that is very harsh. Check that the width of your wire is between 2 and 9 mm and that the cross-section of the conductors fits within the range of 0.5 mm³ to 2.5 mm³ that the QC12 Straight Quick Clamp Waterproof Cable Connector can handle. Check both the male and female connection halves for damage to the housing or sealing rings that happened during shipping. Even small cracks can make the waterproofing less effective.

Preparing the Cable End

Take care not to damage the inner wire insulation as you peel back the outer cable jacket about 8 to 10 mm. Damaged insulation makes short-circuit points possible and lowers the dielectric strength of the connection. If you are using stranded wire, make sure that none of the filaments are loose by twisting the strands tightly and giving them a light tug. Loose strands can stop the full pin from insertion and create high-resistance contact points that heat up during operation.

Isopropyl alcohol can be used to clean the surface of the stripped wire to get rid of any oxidation, dust, or factory marks. The gold-plated pin contact can be messed up by contaminants, which could lead to higher resistance over time as vibrations push particles into the interface. Make sure the sealing ring fits correctly in its gap as you slide the wire through the connector's cable gland. If this step isn't done right, there will be gaps that can be seen after installation, which lets water in and breaks the IP67 rating.

Engaging the Quick Clamp System

Align the connector pins of the QC12 Straight Quick Clamp Waterproof Cable Connector with their sockets, making note of any keying features that stop connections of the wrong polarity. While turning the outer clamp collar clockwise a quarter turn, gently press forward on it. As the internal cam surfaces connect, you should feel more resistance. Then you should hear a clear "click" and feel a small rebound as the locking mechanism fits fully. This audio and tactile feedback confirms that the engagement is correct. Installations that don't have this confirmation usually have pins that aren't lined up right or foreign material that is blocking full entry.

Post-Installation Validation

Visual inspection is still the easiest and most effective way to check the grade. Make sure the locking collar sits flush against the housing and that no wire insulation is pinched or sticking out of the gland opening. Even gaps around the connector body are a sign that it is properly seated. For important installs, use a digital voltmeter to check the contact resistance. Readings should stay below 5m per pin to avoid heating up in one area when the load is on it.

During electrical testing, continuity should be checked and insulation resistance should be measured between pins that are next to each other and from all pins to ground. If the reading is less than 200M, it means that the insulation isn't working well and will fail early if it gets wet. For places that might shake, like train travel or mounting mobile equipment, do a mechanical stress test by bending the wire close to the connector body through its normal range of motion while checking for short-term electrical continuity.

Troubleshooting Common Issues with QC12 Connectors

The most common installation mistake for the QC12 Straight Quick Clamp Waterproof Cable Connector is not fully engaging the clamps. Symptoms include gaps that can be seen between the locking collar and the connector body, the ability to separate with little force, and electrical connections that come and go as the wire moves. This usually happens when you try to turn the clamp before the pins are fully entered. To fix the problem, you need to take it apart, carefully realign the pins, and make sure you push the two halves of the connection together until their matching surfaces are flush before starting the quarter-turn lock sequence.

Problems with the sealing rings are usually to blame for water getting in even when the IP rating is correct. Silicone seals can get dirty or develop lasting compression set over time. This is when the material stops returning to its original shape after being compressed. As part of regular upkeep, check the sealing rings for surface cracks and loss of elasticity and that they are in the right place in their gaps. When you need to replace a sealing ring, you should only buy original maker parts. Aftermarket options often use cheaper elastomers that harden or grow when exposed to certain chemicals.

Addressing Connection Resistance Problems

When there is a lot of contact resistance, the voltage drops when the load is applied, the connection gets too hot, or the whole circuit fails. Even though gold-plated pins don't rust, they can still get dirty during installation. If you're having problems with resistance, turn off the power, take the connection apart, and look at the pin surfaces for damage like discoloration, cracking, or foreign matter. Electronic contact cleaner and a soft brush can be used to clean up light dirt. If a connection has severe rust or mechanical damage, it should be replaced instead of being tried to be fixed.

When installations are outside and the temperature changes, metal parts expand and contract at different rates than plastic housings. This can make the mechanical link between the pins and their mounting points inside the connector body less stable after thousands of rounds. As part of the yearly inspections, the electrical parameters should be tested again, and the results should be compared to the initial measurements that were taken during installation. A slow rise in contact resistance shows that problems are starting to show, so they can be replaced before they become too big to fix.

Comparing QC12 Quick Clamp Connectors with Other Waterproof Cable Connectors

For traditional screw-clamp waterproof connectors, technicians have to manually tighten many screws to specific torque levels. This can go wrong and takes a long time to do in the field. The QC12 Straight Quick Clamp Waterproof Cable Connector's quarter-turn system automatically levels out the clamping force, so you don't need torque wrenches, and the fitting time is cut by about 60–70%. With tight project deadlines, this efficiency comes in very handy for large-scale deployments that need to finish hundreds of connections quickly.

Compared to the QC14 and similar models with more pins, the QC12 Straight Quick Clamp Waterproof Cable Connector has a smaller footprint that makes it better for applications with limited space. There isn't always room for bigger link bodies in LED display screens, outdoor sign cabinets, and small sensor housings. The straight-inline design lets cables go straight through narrow conduit runs and tight equipment mounting spaces that would need more space for right-angle or panel-mount designs. This saves room, which lowers the overall size of the machine and makes designing the enclosure easier.

Material Durability and Environmental Performance

The QC12 Straight Quick Clamp Waterproof Cable Connector's PA66 nylon shell has a UL94-V0 flame retardant grade, which means that it goes out on its own in 10 seconds after the flame is taken away and doesn't make any flaming drips that could fire other materials. This safety feature is important in places where flammable materials are present or where fire rules require parts to be low-flammability. Other adapter housings made of standard PVC or ABS plastics don't have this approval and are more likely to spread fire.

In an accelerated lab setting, salt spray research mimics decades of contact with the coast. After being exposed to salt fog for 48 to 96 hours straight, QC12 Straight Quick Clamp waterproof cable connectors still work properly, meeting standards for marine and offshore installations. When you combine gold-plated contacts with silicone sealing—rather than cheaper rubber materials that crack when exposed to UV light—you get reliable operation in places where cheaper connections break within months. This means that the total cost of ownership is cheaper, even though the initial price may be higher than for non-rated options.

Procurement Considerations for QC12 Straight Quick Clamp Waterproof Cable Connectors

When looking for QC12 Straight Quick Clamp Waterproof Cable Connectors, you need to pay attention to more than just price when comparing suppliers. Check that the sellers have up-to-date approvals for CE, RoHS, REACH, and any regional standards that apply, such as ETL for North American markets or PSE for Asia-Pacific markets. There is still a risk of buying fake electrical parts because fake suppliers often use convincing paperwork that can't be checked in more detail. Before agreeing to a purchase order, you should ask for certificate serial numbers and check their validity on your own through the online records of the organizations that issued them.

For standard configurations, the minimum order quantity is usually between 100 and 500 units. Volume discounts start to apply at 1,000-piece thresholds. For custom requirements like non-standard cable lengths, specific jacket colors for identification, or changed pin arrangements, tooling costs usually need to be covered by 500 to 1,000 units at least. Lead times for stock items are usually between 7 and 10 business days, but for custom orders, they can take up to 3 to 4 weeks, depending on the factory's production schedules and how much capacity is being used at the moment.

Evaluating Total Cost of Ownership

The price of the connection is only one part of its economy. Figure out the fixed cost by adding up the time saved by faster installation, the number of calls back due to mistakes during installation, and the longer time between servicing visits due to longer product life. A connection that costs 20% more than options but can be installed in half the time and fails only 10% of the time saves a lot of money over the life of a project. Ask for sample units to be tested in the field under real operating conditions before committing to full production volumes. This is because hands-on evaluation shows performance characteristics that spec sheets can't fully describe.

The level of expert help a supplier offers separates qualified partners from generic vendors. During the design phase, engineering advice is helpful for complex installations, as is rapid prototyping for custom configurations and quick troubleshooting help when problems happen in the field. Check to see if suppliers can give you detailed CAD models that can be used in the design of your equipment. You should also look at how reliable their delivery history is and how many items they keep in stock in case you need to place an emergency order. Strong partnerships between suppliers lower project risks and speed up the time it takes for products that use these interconnection solutions to reach the market.

Conclusion

When QC12 Straight Quick Clamp Waterproof Cable Connectors are installed correctly, they make sure that electrical connections work well in harsh industrial and outdoor settings. The quarter-turn closing system makes work easier in the field while still protecting against water and dirt up to IP67/IP68 standards. By following organized steps for planning, installing, and testing, you can reduce the number of connection failures and increase the system's useful life. The connector's gold-plated contacts, PA66 construction, and silicone sealing all work together to give it performance that makes it a good choice for mission-critical uses in areas like LED lighting networks and renewable energy infrastructure. Your expert teams will be able to confidently install strong electrical systems if they understand these installation principles and troubleshooting methods.

FAQ

1. What cable diameters work with QC12 connectors?

The injection-molded cable gland can fit cable diameters between 2 mm and 9 mm, which is the range of most common industrial cable sizes. The silicone sealing ring can be squished into this range while still being waterproof up to IP67 standards. Custom gland setups are possible for wires that aren't in this range, but you have to order a certain number of QC12 Straight Quick Clamp Waterproof Cable Connectors.

2. Can these connectors handle direct burial applications?

The IP68 rating lets you submerge, but you need extra security for straight burial. Aside from water exposure, soil acidity, ground movement, and animals that dig holes are also dangers. To make sure the connection works well for a long time, we suggest putting it in secure conduit or resin-filled casings that are rated for underground service.

3. How does the quarter-turn mechanism improve reliability compared to screw terminals?

The quick clamp automatically applies even pressure, so there is no room for error when applying torque. Screw connections often get over-tightened, which damages the threads, or under-tightened, which lets vibrations free them. The cam-lock design keeps the contact force constant even when the temperature changes and the parts are under a lot of mechanical stress. This makes field failure rates much lower.

4. What maintenance schedule should be followed?

Most situations only need to be inspected once a year. Check the sealing rings for cracks or lasting compression, measure the contact resistance to see if it's going down over time, and look over the case to see if it's damaged. Reviews every six months are helpful in harsh places like chemical plants and naval sites to find problems before they cause downtime.

Partner with Cablein for Reliable Waterproof Connector Solutions

Cablein Technology designs and manufactures QC12 Straight Quick Clamp Waterproof Cable Connector products that are backed by ISO9001:2015 quality management and a wide range of foreign certifications. As a specialized manufacturer with more than 30 utility patents and nine years of experience in the field, we keep more than 10,000 of each item in stock so that your projects can be put into action quickly. Our in-house research and development (R&D) team can customize the length of the cable, the color of the jacket, and the way the pins are set up to meet your exact needs. Before it is shipped, every connection is tested to make sure it works well and lasts a long time.

We know that choices about buying have to take into account technical performance, delivery efficiency, and the total cost of ownership. Our expert support team is available 24 hours a day to help with installation problems, questions about compatibility, and the creation of unique solutions. You can email our team at nick@cableinco.com to talk about bulk prices for waterproof connector providers, get samples to test in the field, or see our full catalog of products. With stable stock availability and standard shipping times of 7–10 days, we get rid of the supply chain risks that slow down your production plans while giving your projects the quality assurance they need.
