P20 Waterproof Plug Current Rating Guide: How to Choose the Right Connector

Choosing the right connector for outdoor or industrial use starts with understanding the current rating. The P20 circular waterproof plug is a field-assembled, self-locking connector built from PA66 nylon with gold-plated brass contacts and a silicone O-ring seal. It carries a rated current of up to 20A at 380V, supports 2–9 pin configurations, and maintains IP67/IP68 protection even after field assembly. Whether you source it for LED lighting, solar arrays, or marine equipment, matching the plug's current capacity to your system load is the single most important step in avoiding connector failure.

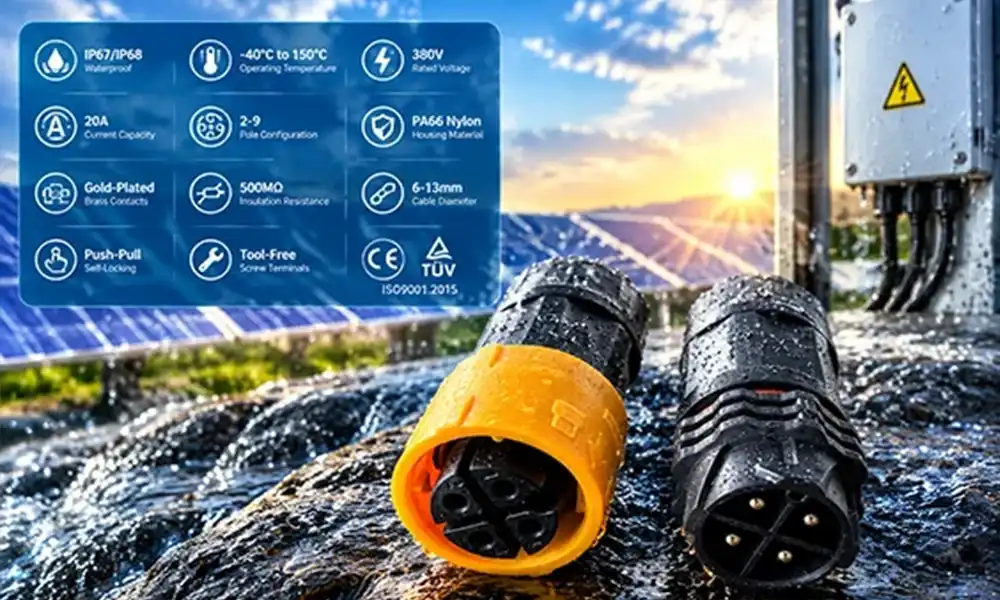

P20 circular waterproof plug

Understanding P20 Circular Waterproof Plugs

The name "P20" originates from the fact that the width of the panel cutout is determined to be twenty millimeters. It is easy to install in tight locations since it has a small footprint, and it does not cause the structure of the building to become more vulnerable as a result of the installation. A sealing system that has been painstakingly designed to resist the harm that is faced in the real world is hidden behind its relatively small size.

Structure and Materials

The body is made from PA66 nylon, a material that is strong, doesn't fade in UV light, and doesn't catch fire. Gold plating on the brass contacts keeps oxidation low even after years of being in humid places. The rubber O-ring is evenly compressed during assembly, creating the main barrier against water that gives the product its IP68 grade.

Pin Configurations and Dimensions

Engineers can use power-only, signal-only, or hybrid wire methods because pin layouts can have anywhere from 2 to 9 poles. The flexible cable gland can fit cable outer diameters ranging from 6mm to 13mm, so you can use the same family of connectors for a wide range of wire gauges without having to order extra parts.

Waterproof Ratings Explained

IP67 means that it can be submerged in water up to 1 meter deep for up to 30 minutes. IP68 adds to that by allowing continuous underwater exposure at depths set by the manufacturer. Immersion testing, not just design review, is used to back up both ratings. The dielectric withstand voltage can go up to 3KV, and the insulation resistance must be at least 500MΩ.

Decoding Current Rating for P20 Waterproof Plugs

The greatest amount of continuous amperage that a connection is able to handle before the contacts get overheated and cause damage to either the seal or the wire is indicated by the connector's current rating, which is one of the properties of a connector. If this number is calculated incorrectly, it is possible that the insulation will be scorched, the seals will burst, and the circuits will trip at the most inopportune time that is even remotely possible.

Why Contact Material Matters

The P20 circular waterproof plug has gold-plated brass contacts that keep the contact resistance below 5m©. Less contact resistance means that less heat is made per amp of current. Since heat can't get out of sealed connectors quickly, the best way to increase rated life is to start with low-resistance contacts.

Temperature and Environmental Factors

This link can work in a wide temperature range, from -40°C to 150°C. Gaskets get stiffer in cold places, but the silicone O-ring stays flexible in all of those temperatures. It's not out of the ordinary for high temperatures to happen near industrial motors or farm dryers; this means that the current grade doesn't change much when temperatures are normal.

Reading the Datasheet

When you look at the P20 datasheet, you should pay attention to these four numbers: the rated current (20A), the rated voltage (380V AC/DC), the insulation resistance (≥500MΩ), and the contact resistance (<5mΩ). It's time to move up to the next level of connectors if any one of these numbers doesn't meet those needs. Don't think that a higher IP rating means a higher current capacity. Those are two different things.

How to Choose the Right P20 Plug Based on Current Rating

There are three factors that need to be taken into consideration in order to choose the ideal waterproof circular connector at the appropriate moment. These factors are the load current, the working environment, and the manner in which the connection will be established. Let's take a look at a solution that makes sense in order to maximize the likelihood of that match being successful.

Step 1 — Calculate Your Load with a Safety Margin

Always use a derating factor that is 20% to 25% less than the maximum current of the connection. The continuous draw of 16A from your circuit means that a 20A-rated P20 plug is safe to use. This is the right way to do things because it follows NEC rules for continuous-load circuits and keeps the connection and the equipment below it safe.

Step 2 — Match the Environment to the IP Rating

Different things can put stress on outdoor LED stadium lights and marine battery packs. Direct rain hits wire openings, and salt spray hurts solder joints and plating. IP68 is the right floor for marine and farming uses; it's not a plus. For indoor control panels that only get wet sometimes, IP67 may be enough. It lowers the cost of the connectors without lowering their reliability.

Step 3 — Choose the Right Pin Count and Wiring Method

The screw terminal design in the P20 line lets you connect and strip wires without a crimping tool. For field teams working on solar installations or irrigation systems that are far away, this saves time and the need to bring special tools. There are hybrid designs that mix power and signal pins, but when signal integrity is important, proper insulation should be checked.

Procurement Guide: Buying P20 Circular Waterproof Plugs

There's more to finding waterproof connections than just checking prices per unit. The total cost of ownership of a product over its service life is based on its delivery dependability, licensing status, and ability to be customized.

Before making an order, these are the main things that B2B buying teams should think about:

Certification coverage: Look for TUV and CE marks backed by ISO9001:2015 registration and RoHS compliance. These are not marketing claims—they are audited annually and traceable. Cablein carries CE, TUV, RoHS, and ISO9001:2015 certifications across its P20 circular waterproof plug product line.
Minimum order quantity and lead time: Standard P20 configurations ship within 7–10 days from stable stock of over 10,000 pieces per item. Custom pin configurations or private-mold cable assemblies carry longer lead times, typically scheduled to customer timelines.
Customization capability: Cablein's engineering team supports OEM/ODM requests including non-standard pin counts, alternative cable lengths, and complete wiring harnesses tested before shipment. Over 30 utility model patents back that development track record.
Counterfeit risk management: Request batch test reports and ask for IP rating test certificates tied to the specific production run, not generic product photos. Authentic P20 connectors from Cablein include 100% inspection before shipping.

These things together decide if a relationship with a source will last when the schedule for a project changes or when a batch needs to be replaced right away.

Case Studies and FAQs

Real-World Application: Stadium LED Retrofit

A company that was replacing 800 floodlights in a stadium needed a connector that assembly crews could use while standing on scaffolding and not having to use soldering tools. By switching to the P20 screw-terminal connection, the time it took to wire each fixture was cut by about 40%, and there were no more calls because of cold solder joints failing in the winter rain. It rained three times during the IP68 closing period, but no water was recorded getting in.

Real-World Application: Agricultural Irrigation Control

A company that makes irrigation equipment used to put standard IP65 plugs on pump controls. Within one growing season, fertilizer residue wore away at the contacts. Over the course of two years, field failure reports dropped by a large amount after gold-plated P20 plugs with silicone O-ring seals were used.

Conclusion

When choosing a P20 circular waterproof plug for use outside, in industry, or at sea, the current rating is the most important thing to look at. It can handle 20A, is protected by IP67/IP68, has gold-plated brass contacts, and is designed to be put together in the field. These features make the P20 plug ideal for use in harsh environments. If you match those specs to your actual load, environment, and installation method, you'll get a connection that works well and doesn't need much maintenance for thousands of hours. When procurement teams check a supplier's certification status and ability to deliver, they protect their projects from both technical problems and supply problems.

FAQ

1. What is the maximum current the P20 waterproof plug supports?

At 380V AC/DC, the P20 circular waterproof plug can handle 20A of current. Contact resistance stays below 5m©, so very little heat is generated even when the device is running all the time.

2. What is the difference between IP67 and IP68 for this connector?

IP67 means that it can be submerged for 30 minutes at a depth of 1 meter. IP68 allows for continued underwater exposure up to a certain depth set by the maker. Both ratings are for the P20 series and have been proven by immersion testing.

3. Can I terminate the P20 plug in the field without special tools?

Yes. The screw termination design works with stripped wire right away, so you don't need a crimping press or soldering iron. The cable gland can be screwed on by itself and can fit cables with outer sizes of 6 to 13 mm.

4. Does pin count affect current rating?

The number of pins changes how current flows between contacts. For single-circuit uses that need a lot of current, use fewer pins that can handle the full maximum load. For hybrid designs with separate power and signal pins, you need to make sure that each contact group stays within its own current limit.

5. Are P20 connectors RoHS compliant?

Yes, Cablein's P20 circular waterproof plug is compliant with RoHS and REACH. This means it can be shipped into EU markets and used in projects that need to be eco-friendly.
