Complete Guide to IP Ratings for M10 Waterproof Connectors

Understanding IP (Ingress Protection) ratings is crucial when buying M10 PA66 waterproof connectors for industrial outdoor applications. Strong PA66 nylon housing and precision-engineered sealing mechanisms protect these connections from environmental infiltration to different degrees. IP67 and IP68 certifications provide dust-tight protection but differ greatly in water immersion. IP67 connections can withstand 1 meter of water for 30 minutes, making them acceptable for most outdoor installations with heavy rain or periodic splashing. IP68 variations provide continuous protection while submerged beyond 1 meter, meeting crucial demands in maritime equipment, underwater sensors, and flood-prone applications. This basic difference in equipment dependability, maintenance costs, and long-term operational safety affects LED lighting systems, renewable energy installations, and industrial automation networks.

Understanding IP Ratings and Their Impact on M10 PA66 Connectors

IP ratings standardize electrical connection resistance to solid particles and dampness. A two-digit identifier represents solid protection (0–6) and liquid protection (0–9) in this widely accepted scheme. These values translate into performance reliability in difficult conditions for outdoor connection applications, especially those using M10 PA66 waterproof connectors because of their high dimensional stability and chemical resistance.

Decoding the IP Rating System

The first IP number protects against solid particles. A "6" rating means the enclosure is dust-tight regardless of particle size or duration. This is useful in dusty factories, construction sites, and farms where tiny particles offer continual contamination threats. The second digit measures moisture resistance: "7" protects against transient water immersion, and "8" assures safety during sustained submersion under pressure. These ratings are based on thorough laboratory testing and IEC 60529 international standards.

IP67 vs IP68: Key Distinctions

Although IP67 and IP68 certifications provide comparable dust protection, their water resistance differs greatly. IP67-rated M10 PA66 waterproof connectors can withstand 30 minutes of 1-meter immersion without electrical damage. Outdoor LED lights, rooftop solar junction boxes, and equipment controls exposed to rain or high-pressure washdown are suitable for this criterion. IP68 connections exceed this requirement, preserving sealing integrity for extended submersion deeper than 1 meter—manufacturer specifications vary, with some tested to 3 meters for continuous operation. This increased protection is essential for underwater robots, maritime navigation equipment, and flood-prone sensor networks that operate in protracted submersion.

Material Science Behind PA66 Performance

PA66 nylon has excellent mechanical qualities that boost IP ratings. This engineering thermoplastic exhibits exceptional tensile strength, abrasion resistance, and heat stability, with a temperature range from -40°C to 150°C. M10 threading and sealing surfaces remain dimensionally accurate in humid settings because of the material's low moisture absorption coefficient, which is lower than ordinary nylon. PA66 housings with gold-plated brass contact pins and precision-molded silicone sealing rings produce multi-barrier protection systems that retain IP performance for thousands of mating cycles. The material's flame retardancy (UL94V-0 rating) reduces fire propagation hazards in electrical applications compared to lower-grade connectors.

Technical Specifications of M10 PA66 Waterproof Connectors by IP Rating

M10 PA66 waterproof connectors balance compactness, electrical performance, and environmental protection. For mobile equipment and transportation applications, these connectors provide 10mm metric threading for robust mechanical connection and vibration resistance. The one-piece overmolded design reduces leak routes in multi-component installations, making it more watertight than field-assembled alternatives.

Electrical Performance Parameters

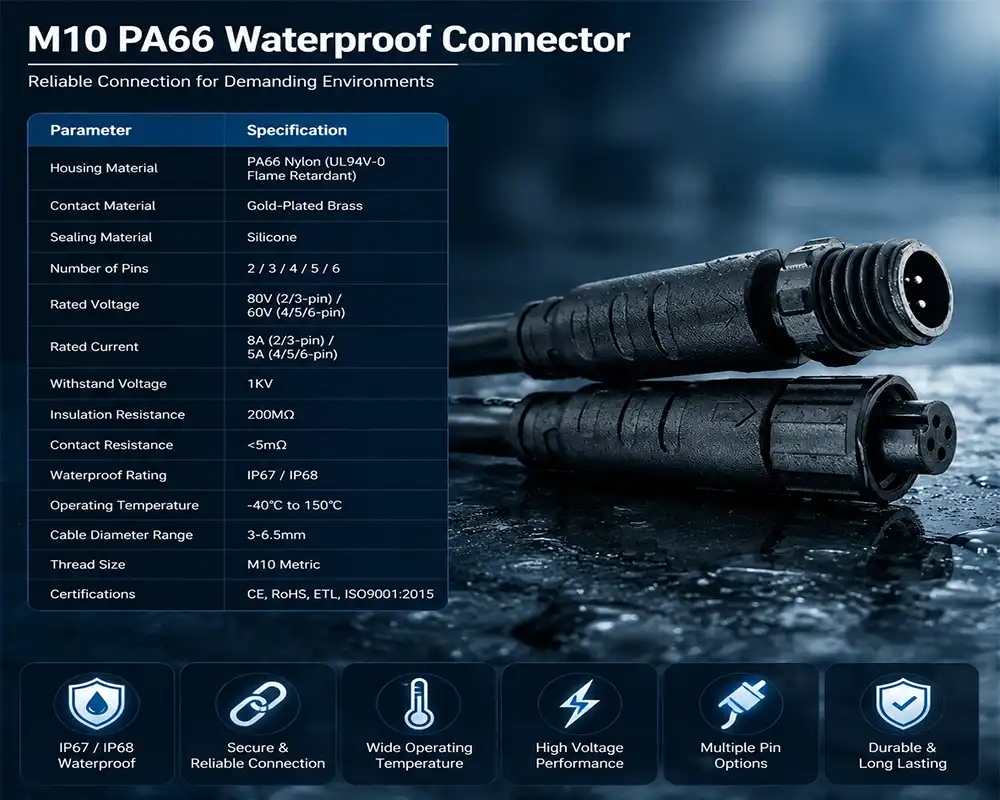

With low-voltage industrial requirements, our M10 PA66 waterproof connectors transmit electricity reliably. The 2-pin and 3-pin variants handle an 80V rated voltage at 8A current for LED driver connections and power distribution networks. More pins (4-pin through 6-pin) allow 60V at 5A for signal transmission and sensor interface when several circuits need unified communication. All variations have contact resistance below 5 mΩ, reducing voltage loss and heat production during operation. Insulation resistance surpasses 200MΩ, eliminating signal integrity leaks and safety problems in damp situations. The 1KV withstand voltage rating protects against transient overvoltage incidents in industrial power systems and lightning-prone outdoor installations.

Environmental Resilience Features

These connectors can be used in Arctic monitoring stations and desert solar farms, thanks to their -40°C to 150°C operational temperature range. This thermal performance comes from PA66's glass transition temperature and the silicone sealing ring's flexibility at severe temperatures. For cable diameters from 3mm to 6.5mm, the injection-molded cable strain relief provides strong grip to prevent wire withdrawal pressures from reaching solder joints or crimp connections. For agricultural machinery and mobile surveillance systems that experience frequent movement or vibration, this incorporated strain relief enhances service life compared to connections without cable management.

Installation and Maintenance Considerations

In field situations, connection IP protection depends on proper installation. Incorrect seal location, contaminated O-rings, and poor torque application undermine waterproof integrity, but the factory pre-assembled cable and connection architecture overcomes these issues. When making connections, clean the threaded coupling and sealing surfaces to avoid leaks. Hand-tightening the M10 threaded connection offers sufficient sealing force without tools, but excessive torque might strip threads or distort seals. Scheduled inspections for obvious seal degradation, cable jacket damage, and contact point corrosion help identify probable problems before system downtime. RoHS-compliant materials and construction ease end-of-life disposal and recycling, promoting environmental compliance and operational performance.

Practical Applications and Suitability by IP Rating

Instead of choosing maximum requirements, consider your application's environmental exposure while choosing IP67 or IP68 protection levels. This purchase decision affects upfront investment and long-term operations expenses, making application-specific matching crucial.

IP67 Applications and Use Cases

Outdoor applications with occasional water exposure benefit from IP67-rated M10 PA66 waterproof connectors. Landscape lighting solutions enjoy rain resistance without the expense penalty of IP68 standards. Stadium floodlighting, outdoor digital signs, and architectural accent lighting are perfect IP67 deployments for rain, snow, and periodic pooling. IP67 connections safeguard industrial automation systems in covered outdoor locations, including loading docks, semi-enclosed production zones, and equipment shelters, without overspecifying. IP67 protection is suitable for greenhouse and livestock lighting systems that are frequently washed down with high-pressure water, as long as effective drainage prevents submersion. The standard is also useful in traffic signal controllers, roadside sensor networks, and electric car charging stations where mounting positions eliminate standing water.

IP68 Applications and Use Cases

IP68 protection is required for equipment in flood-risk areas or continuously exposed to water. Marine navigation equipment, underwater pool and fountain illumination, and aquaculture monitoring systems require IP68 protection for safety and dependability. IP68 protects solar panel junction boxes in places with heavy rainfall or snow when drainage design can't remove water under IP67's 30-minute threshold. Water treatment, sewage monitoring, and environmental sensing networks in wetlands or coastal zones need IP68 ratings to survive seasonal floods. Below-grade equipment vaults and underground cable distribution boxes need IP68 groundwater protection. IP68 is a performance criterion and a method for reducing maintenance costs through prolonged service intervals in offshore wind farms where salt spray and wave action quickly destroy lower-rated connections.

Cost-Benefit Analysis Across Applications

A 15% to 30% pricing difference exists between IP67 and IP68 versions, depending on pin configuration and customization. This upfront cost difference should be compared to equipment damage, emergency repair calls, production delay, and safety issues caused by inadequate protection. In appropriate situations, an IP67 connection provides IP68 dependability at a cheaper cost. Using IP67 connections in places where they might get wet is a false economy because they fail early and need to be replaced often, which quickly costs more than using IP68 connections. Our technical team helps clients execute environmental assessment surveys that capture real exposure circumstances rather than theoretical assumptions, enabling evidence-based specification decisions that maximize performance and budget allocation.

Comparing M10 PA66 Waterproof Connector IP Ratings with Other Connector Types

Many connectors provide M10 PA66 waterproof connector equivalents, each with pros and cons. Understanding these comparison characteristics helps procurement experts choose the best components rather than using typical specs that may not work.

M10 vs M12 Connector Comparison

M12 connections are the most popular M10 variant, featuring 12mm threading that provides greater contact surfaces and higher current capacities. Unlike M10's 5A to 8A ratings, M12 variations handle 4A to 16A depending on pin count. M12 is better for high-power LED drivers or equipment that needs power and data transfer. M12's bigger form factor limits space in tight enclosures or densely packed control panels, while M10's smaller footprint is desirable. Both connection families attain IP67 and IP68 ratings using comparable sealing methods; therefore, size and electrical capacity are more important than environmental protection. In signal-transmission situations where M12's larger current capacity is wasted, M10 connections save money while they retain watertight performance.

Plastic vs Metal Housing Considerations

Waterproof connections made of brass, stainless steel, or zinc alloy are stronger and more electromagnetically shielded than PA66 housings. Metal variations withstand physical impact, which is advantageous in severe industrial applications where mobile machinery or handling equipment may collide. Metal connections have various drawbacks that restrict their use. They are heavier than nylon equivalents, making drones and portable gadgets unsuitable. Metal housings transmit electricity, necessitating more insulation and risking ground loops in delicate signal circuits. In salt spray conditions, PA66's intrinsic corrosion resilience outperforms protective plating or coating that declines over time. Metal connections cost 40% to 80% more to make than PA66 equivalents, making plastic options cheaper where their mechanical qualities meet application needs.

Quick-Connect vs Threaded Coupling Systems

Rotary installation of threaded M10 PA66 waterproof connectors can be difficult in tight places or when cable stiffness resists twisting. Push-lock quick-connect alternatives allow single-handed operation and speedier installation, reducing labor costs for large-scale installations. We found that quick-connect systems save 60% more time per connection than threaded couplings, saving money in projects with hundreds of connection points. Threaded systems are better for mobile equipment, transit, and mechanically stressed installations because of their vibration resistance and pull-force retention. Proper coupling system selection should take into account installation requirements and operating environment rather than connection speed, since wrong specifications lead to field failures that offset installation efficiency advantages.

Procurement Guide: Sourcing Reliable M10 PA66 Connectors with Desired IP Ratings

Successful procurement involves assessing supplier skills, certification legitimacy, and long-term relationship possibilities, not just datasheets. We've found numerous key differences between trusted M10 PA66 waterproof connector providers and competitors selling comparable items at low costs.

Certification Verification and Compliance

Product certification shows manufacturer adherence to testing standards and quality consistency, not just marketing promises. ETL, PSE, SAA, and CE certifications validate regional safety and performance criteria, allowing legal market entrance and lowering liability. Instead of trusting assertions, get certification documentation from providers. Certifications with registration numbers verified by issuing body databases are legitimate. RoHS and REACH compliance paperwork is crucial for European market access and environmentally aware buying worldwide. ISO9001:2015 accreditation shows systematic quality management practices that maintain product consistency throughout manufacturing batches, minimizing variability for uncertified enterprises. Suppliers without certificates often offer attractive prices, but quality inconsistencies, compliance issues, and liability exposure usually outweigh any initial savings.

Lead Times and Inventory Management

Established providers with sufficient inventory deliver standard M10 PA66 waterproof connectors with common pin layouts in 7–10 days. Sample and scale production orders are ready immediately since we carry over 10,000 pieces per typical item. Moderate customizations like cable lengths, wire gauges, and color coding take 2–4 weeks to complete. Tooling fabrication and initial production runs for complex private mold creation for proprietary connection designs may take 6–12 weeks. Avoid timing procurement timeframes on supplier shipment dates by including buffer times for customs clearance, domestic transit, and receipt inspection. Establishing partnerships with emergency order providers protects manufacturing lines against demand surges and supply chain interruptions.

Customization Capabilities and Technical Support

Standardized connectors work well for many applications, but custom solutions are also needed. Custom cable assembly with client-specified wire kinds, conductor counts, and gauges optimized for current and flexibility is available from OEM and ODM. Complex systems with many circuit types benefit from color-coded housings and wires for field installation and maintenance. Mixed-pin connectors with power and signal connections minimize connection points and installation complexity. Technical support separates capable suppliers from product distributors beyond physical modification. We assist clients in choosing IP ratings, current capacity, and materials depending on application needs rather than general recommendations during pre-sale engineering consulting. After sales, we provide installation, troubleshooting, and field failure analysis. This collaborative strategy turns transactional purchases into strategic collaborations that enhance product performance and save overall ownership costs across equipment lifecycles.

Conclusion

M10 PA66 Waterproof Connector IP ratings must balance environmental protection, affordability, and technical criteria to meet application goals. IP67 certifications are dependable for outdoor installations exposed to weather but not continuous submersion, while IP68 ratings are for applications at danger of floods or extended water exposure. PA66 nylon's chemical resistance, thermal stability, and dimensional precision ensure sealing integrity in severe industrial conditions. Certified vendors with verified compliance paperwork, fast technical assistance, and customization options that meet project objectives instead of forcing applications into standardized products are key to procurement success.

FAQ

Can IP67 M10 connectors be used for underwater applications?

IP67 M10 PA66 waterproof connectors are unsuitable for prolonged submersion but can withstand 1 meter of water for 30 minutes. IP68 standards enhance the durability and safety of pool equipment, underwater lights, and marine sensors over prolonged water exposure.

How does temperature affect IP rating performance?

Low temperatures harden and shrink seals, whereas high temperatures soften and distort them. Silicone sealing rings in our M10 PA66 waterproof connectors stay flexible and keep their sealing force from -40°C to 150°C, maintaining IP protection even under thermal stress.

What installation errors commonly compromise IP ratings?

Contaminated sealing surfaces, cross-threaded connections, and inadequate tightening torque cause most failures. Factory pre-assembled connections reduce field mistakes, but correct mating—cleaning threads, aligning pins, and hand-tightening coupling nuts—is still necessary for service-rated waterproof performance.

Does pin count affect IP rating reliability?

Higher pin-count connections have more complicated seal geometries around contacts, which might provide leak routes if manufactured poorly. Our one-piece overmolded structure removes the need for multi-piece assembly tolerances that can affect sealing integrity, ensuring IP67 protection for 2-pin to 6-pin configurations.

Partner with Cablein for Certified M10 PA66 Waterproof Connector Solutions

Cablein engineers M10 PA66 waterproof connector solutions with ETL, PSE, SAA, CE, and ISO9001:2015 certifications for reliable performance. Our collection offers IP67 and IP68 protection with unique pin combinations, cable specs, and housing colors. We offer quick prototyping and large-scale manufacturing without compromise, with over 10,000 items in stock and 7-10 day lead times for typical versions. We innovate complex connectivity solutions with 9 years of industry experience and 30+ utility model patents as a manufacturer. Our engineering staff evaluates your environmental circumstances and technical parameters before selling to ensure optimal product selection rather than generic advice. Contact nick@cableinco.com now to discuss how our factory-assembled, tested connectors decrease installation time and provide watertight reliability for your application. We can turn your connection issues into competitive advantages with precision engineering and responsive cooperation.
