Which companies specialize in manufacturing p16 self lock waterproof connectors?

A global marketplace full of trustworthy suppliers of waterproof circle connectors with self-locking mechanisms and a 16mm mounting width is what procurement professionals face. There are a number of companies that make P16 Self Lock waterproof connector kits. These range from large, well-known multinationals with a lot of certifications to small, flexible regional companies that can make changes quickly. As of 2017, Cablein Technology Co., Limited, based in Shenzhen, China, had a great reputation for making high-quality waterproof connectors with IP67/IP68 ratings, push-pull self-locking mechanisms, and a lot of different international certifications. Other well-known makers include European companies known for their precise engineering, North American companies that stress UL compliance, and Asian companies that offer low prices and strong OEM capabilities.

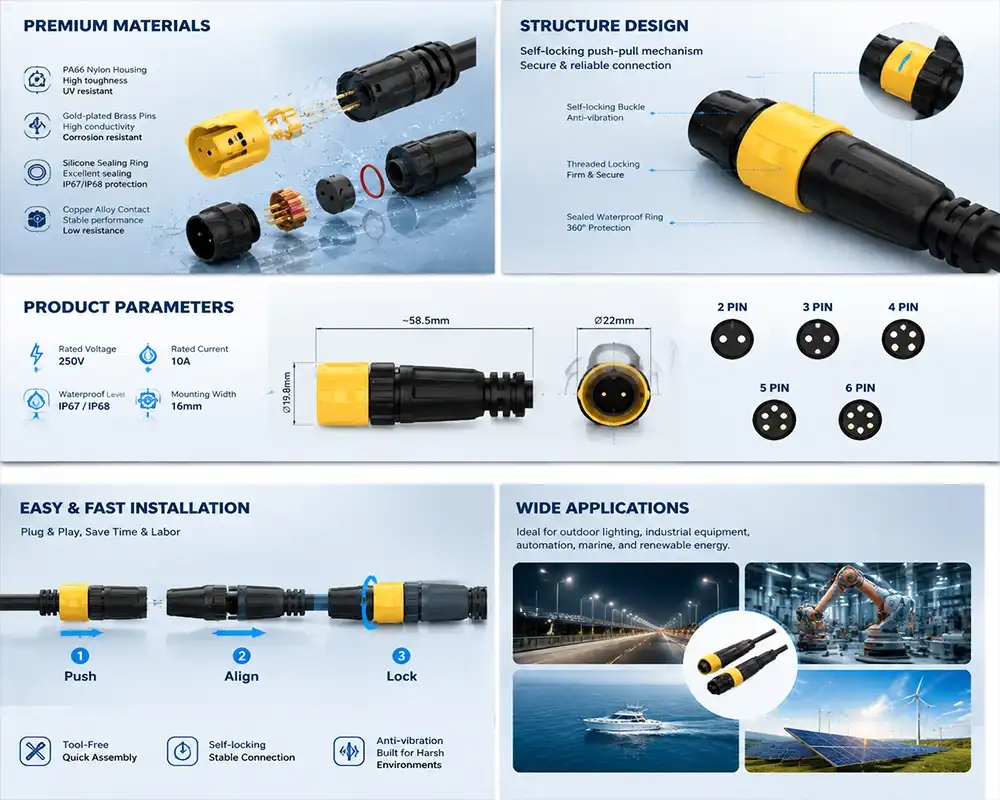

P16 Self Lock Waterproof Connector

Introduction to P16 Self Lock Waterproof Connectors

Industries have changed how they connect electrical devices in harsh settings by using waterproof links that lock themselves. The P16 Self Lock Waterproof Connectors line is a well-thought-out option that combines environmental safety with mechanical security. These connectors have a 16mm panel cutout diameter and either push-pull or bayonet-style locking mechanisms that keep them from disconnecting by accident when the cable is stressed or vibrates.

What Defines a P16 Self Lock Waterproof Connector

At its core, this type of connector meets three important needs: sealing against the environment, mechanical stability, and efficient operation. The body is usually made of UL94-V0 flame-resistant high-strength PA66 nylon, and gold-plated brass contacts are used on the inside to make sure there is low contact resistance. A silicone waterproof ring makes the seal needed to get an IP67 or IP68 grade, which means the connection can handle dust getting in and being submerged in water for a short time or for a long time.

These connections are different from threaded ones because they have a self-locking system. Users can make safe links with one hand, and when the lock engages, they can feel and sometimes hear it. Compared to traditional screw-type connectors, this design cuts installation time by a large amount. This is especially helpful in field deployments where efficiency directly affects labor costs.

Technical Specifications That Matter

When buying teams know the technical factors, they can better match connectors to the needs of each application. There are 2 to 8 contacts in a standard P16 Self Lock Waterproof Connector, and it can handle maximum voltages up to 500V DC/AC and currents up to 15A. The insulation resistance is higher than 500MΩ, and the hold voltage is usually between 1kV and 3kV.. These connectors work reliably in temperatures ranging from -40°F to 150°F, so they can be used in both cold places like the Arctic and hot places like factories. The injection molding method can handle cable sizes ranging from 5 mm to 10 mm, so it can be used for a wide range of wire gauge needs.

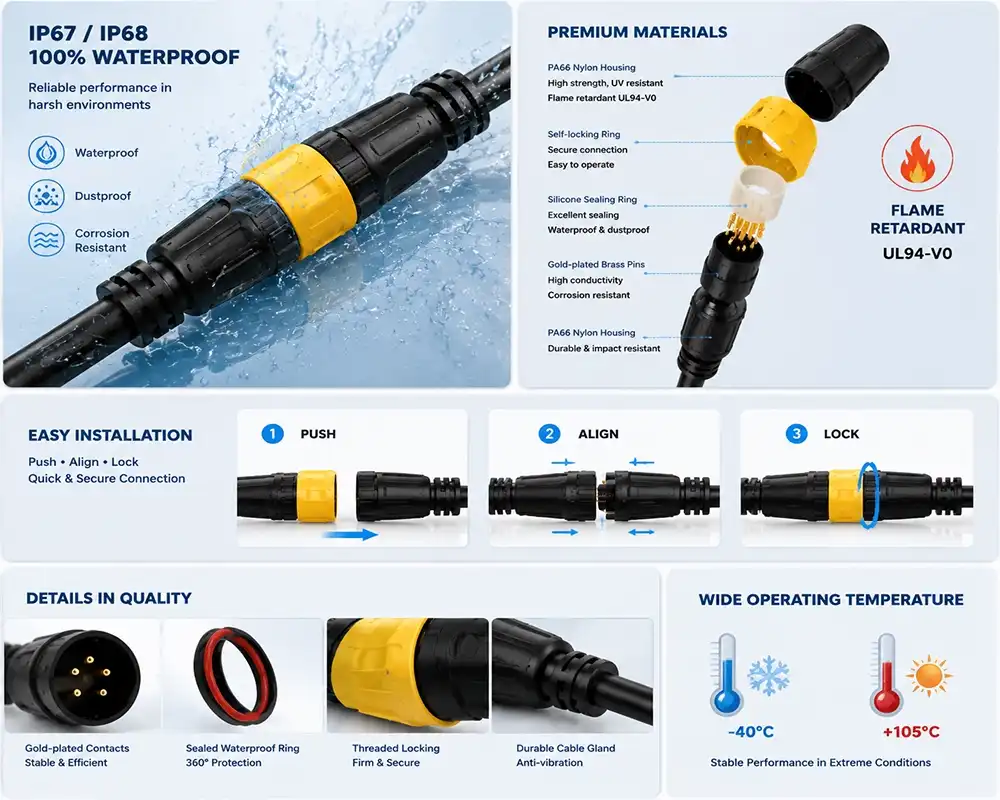

P16 Self Lock Waterproof Connector advantage

Leading Manufacturers Specializing in P16 Self Lock Waterproof Connectors

Manufacturers in the global market for P16 Self Lock Waterproof Connectors have different levels of skill when it comes to making products, getting them certified, and making a lot of them. To find the right partner, you need to know what sets industry leaders apart from commodity suppliers.

Asian Manufacturing Excellence

Cablein Technology Co., Limited is a great example of a modern Asian manufacturer that combines cutting-edge technology with helpful customer service. The company has a 6,000-square-meter building in Shenzhen's high-tech corridor where it works with over 200 skilled workers who only work on waterproof interconnection solutions. Their line of products includes overmolded cable assemblies that are already put together in the factory. This eliminates the need for field termination concerns and guarantees quality from the very first connection.

Depending on the product line, the company has a number of foreign certificates, such as ETL, PSE, SAA, CE, RoHS, REACH, and TUV compliance. Their quality control methods are in line with ISO9001:2015 standards, and they use 100% inspection protocols to make sure that the products are waterproof and will last for a long time. Cablein is always coming up with new quick-connect and solder-free waterproof technologies, as shown by its more than 30 utility model patents.

Cablein not only has high-quality products but also a stable collection of more than 10,000 pieces of each standard item. This means that stock goods can be delivered within 7 to 10 days. Customized orders have flexible schedules that are based on specific needs, and engineering support is available throughout the whole development process.

European Precision Engineering

European makers usually put a lot of emphasis on precise engineering and meeting strict regional standards. Most of the time, these businesses focus on niche markets that need custom materials or unique pin arrangements. Their specialty is making small to medium batches of products with lots of records and the ability to track them. This makes them popular with companies that make medical devices and work on spacecraft because they need to keep lots of records to meet regulations.

North American Supplier Landscape

UL certification and quick technical support that works with U.S. time zones are often top priorities for North American manufacturers and distributors. These businesses usually work with defense firms and key infrastructure projects, where buying goods made in the United States protects the supply chain. The trade-off is usually higher unit prices compared to Asian manufacturers. However, for some buyers, the lower cost of transportation and communication can make up for this.

Comparison of P16 Self Lock Waterproof Connector Manufacturers

Comparing a supplier's skills across a number of areas that have a direct effect on the total cost of ownership and business success is necessary for a good review of P16 Self Lock Waterproof Connector sources.

Product Portfolio Depth

The products that different manufacturers make are very different. Some only make stock setups and don't allow much customisation. They keep their prices low by making a lot of them. Others, like Cablein, let you make a lot of changes, like choosing the length of the wire, the direction of the exit, and the specific pin designs. This adaptability is important when standard products can't meet the specific needs of a project, like when the voltage rating or chemical resistance needs to be unusual.

One important difference is that overmolded cable assemblies are available. These factory-integrated solutions come ready to be installed, so there is no need for the quality variation and time-consuming work that comes with field termination. Products that have been tried for more than 500 mating rounds show that they are durable enough for equipment that needs to link often, like small medical devices and test equipment.

Certification Compliance and Quality Assurance

Certification profiles show how committed a company is to quality and market access. Markings like TUV and CE allow sales all over Europe, and ETL listing gives products authority in North American markets. PSE approval lets you sell in Japan, and SAA compliance makes it easier to do business in Australia. RoHS and REACH compliance deals with environmental issues that are becoming more and more important to business purchasing strategies.

Quality control steps separate sellers who are trusted from those who aren't. Water immersion tanks should be used to check the entry protection, salt spray rust tests should be done to see how long the finish will last, mechanical endurance tests should be done to make sure the self-locking mechanism works, and high-voltage insulation tests should be done to make sure the electrical safety. Extreme deployment conditions are simulated by thermal shock testing from -40°C to 105°C. This makes sure that connectors work when environmental stresses are at their highest.

Pricing Structure and Minimum Order Quantities

The way each manufacturer does business with the P16 Self Lock Waterproof Connector is reflected in their pricing models. Larger manufacturers usually have higher minimum order amounts, but their unit costs are lower, which makes them good for high-volume uses like LED lighting systems used in smart city projects. Smaller batches and higher prices per unit are acceptable to specialized makers. This is good for testing or low-volume specialized equipment.

Clear pricing should include the costs of customization, tooling fees for private mold development, and savings for buying in bulk at relevant levels. It's helpful for buyers to know the total landing cost, which includes shipping. This cost can change depending on the manufacturer's transportation partners and the amount of shipping.

Global Logistics and Lead Times

The ability to deliver directly affects the timeliness of projects and the continuity of production. Manufacturers who keep a lot of finished goods in stock can quickly fill regular orders, but manufacturers who make things to order need more time. Cablein has long-term partnerships with international shipping companies like UPS, DHL, and FedEx, which guarantees safe delivery. Depending on urgency and cost, customers can choose between air and sea freight.

Knowing if a supplier can handle emergency orders protects against sudden increases in demand or problems with the quality of goods from current sellers. Companies that give technical help 24 hours a day show that they care about their customers, which is important for building long-term relationships.

Applications and Benefits of Choosing P16 Self Lock Waterproof Connectors

These P16 Self Lock Waterproof Connectors are very important in many fields where connection efficiency can't be compromised. Knowing how the product will be used helps buyers see its value in a way that goes beyond just comparing costs.

Outdoor LED Lighting Systems

Electrical connections in arena lighting, urban landscape lighting, and farm growing systems are all open to rain, snow, temperature changes, and UV radiation. The IP67/IP68 rating stops water from getting in, which would otherwise cause short circuits and failure before their time. The push-pull self-locking mechanism speeds up installation during big deployments, which saves money on labour costs. The materials are also resistant to corrosion, so they will last for years without any upkeep.

Portable Medical Equipment

The tool-less engagement and clear tactile feedback are good for medical devices that need to connect and disconnect often. These connections send power and data to diagnostic equipment that runs on batteries, patient tracking systems, and portable imaging devices. Overmolded assemblies provide consistent quality that is valued in the medical field. They get rid of variables that are introduced during field assembly and help with regulatory validation processes.

Industrial Automation and Control

The P16 Self Lock Waterproof Connector is exposed to oil, chemicals, mechanical stress, and changes in temperature in manufacturing settings. The high-strength PA66 housing doesn't break down when exposed to chemicals, and the self-locking mechanism keeps connections safe even when machinery shakes. Sensor networks, PLC systems, and robotic cells depend on signal integrity, which gold-plated contacts keep even after being mated hundreds of times.

New Energy Infrastructure

Outdoor solar power systems, EV charging points, and energy storage sites have been used for decades. Connectors need to be able to consistently handle high currents and keep the surroundings from breaking down. These connectors are good for renewable energy uses where failure would mean expensive service calls and lost energy production because they can handle up to 15A lot of current ones have strong insulation (500MΩ resistance) and are resistant to weather.

Practical Advantages Over Alternative Designs

The self-locking design cuts installation time by 60–70% compared to threaded connectors. This is especially helpful when setting up hundreds of connection points. When compared to plugs that aren't waterproof, the weather sealing gets rid of failure modes that cause a lot of field failures in outdoor settings. The standard 16mm mounting width makes it easier to create panels and use them with different product lines.

How to Choose and Procure the Right P16 Self Lock Waterproof Connector Supplier

Finding technically legal P16 Self Lock Waterproof Connector goods is only one part of successful buying. Building relationships with sellers who support long-term business goals is also important.

Evaluation Criteria for Choosing a Supplier

Compliance with certification is the first step in making sure that products meet safety standards and requirements for entering the market. Reviewing a company's reputation by looking at case studies and industry references shows that the work is consistently good. Verifying the supplier's production ability makes sure they can keep up with rising demand. How well a supplier can change goods to new uses depends on how customizable their products are.

Throughout the lifecycle of a product, the level of technical assistance is important. Consulting with a tech before the sale helps choose the best options. Rapid prototyping and sample provision speed up development cycles during production. After the sale, support fixes problems in the field and helps make product changes based on feedback from users.

Balancing Cost and Total Value

Comparing unit prices of the P16 Self Lock Waterproof Connector can help, but the total cost of ownership gives you more information. Warranty costs and customer satisfaction are both affected by how reliable the connectors are. Labor budgets are affected by how well installations are done. The frequency of replacement depends on how long the product lasts. Suppliers who offer clear pricing, reasonable minimum order amounts, and bulk deals that are in line with how people actually buy things show that they care about their customers.

Initiating Supplier Relationships

Clear sharing of requirements, such as technical specs, certification needs, volume forecasts, and customization wants, is the first step to effective involvement. Requesting samples lets you test the product in real life before committing to large amounts for production. Site visits or virtual tours of factories give people confidence in their ability to make things and in their quality control systems.

When negotiating terms, you should talk about things like pricing, payment terms, wait times for both standard and custom goods, how to handle inventory, and how to protect custom designs' intellectual property. Setting clear channels of communication and standards for answer times helps avoid misunderstandings that put a strain on relationships.

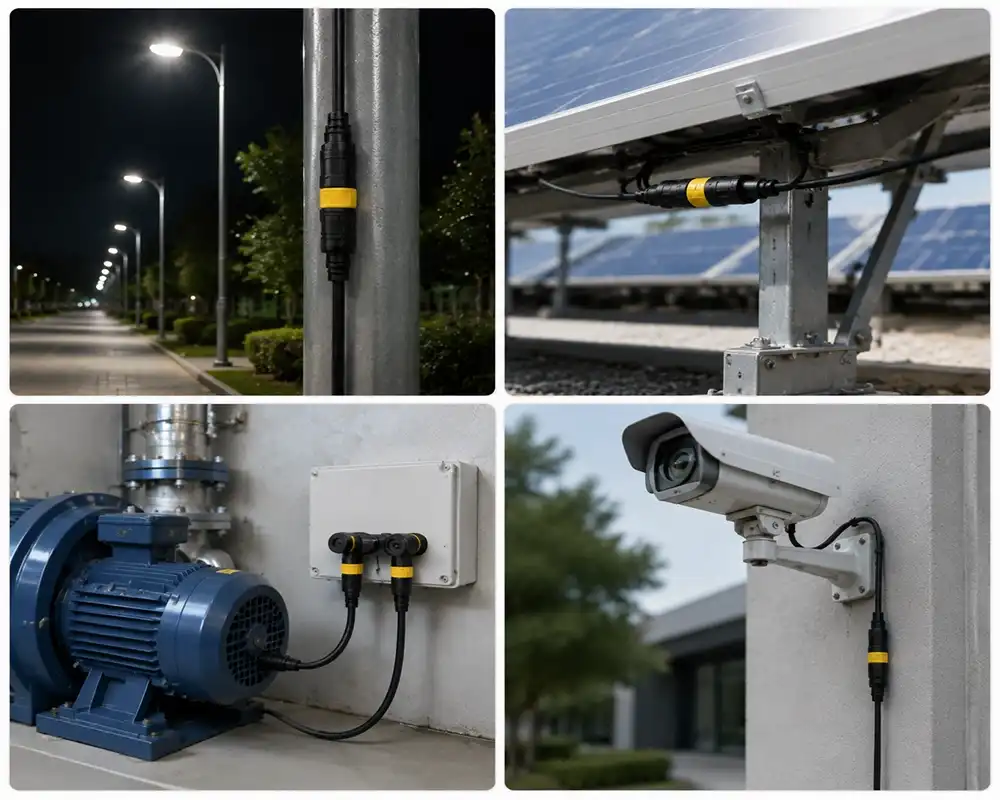

P16 Self Lock Waterproof Connector application

Conclusion

To find manufacturers that focus on P16 Self Lock Waterproof Connectors with 16 mm mounting diameters, you need to know how technical skills, certification compliance, and customer service focus work together. There are a lot of options in the global market, from flexible customization experts to high-volume standard producers. Cablein Technology Co., Limited takes a balanced approach by mixing large-scale production with responsive engineering and full approval covering. Successful procurement teams look at suppliers on a number of factors, such as product quality, shipping reliability, expert support, and overall value, in order to build relationships that help them be the best at what they do and give them a competitive edge in their markets.

FAQ

1. What distinguishes P16 connectors from other waterproof connector series?

The P16 Self Lock Waterproof Connectors designation refers to the 16 mm panel cutout width, which is a medium-sized connection good for uses that need more contacts or higher current capacity than smaller forms while still keeping small installation profiles. The self-locking system makes these different from screw-thread versions because it lets you use them with one hand and install them faster. The IP67/IP68 grade makes sure that the seal will work well in outdoor and industrial settings where dust and moisture are common.

2. How can buyers be sure of the quality of the goods they buy from new suppliers?

By asking for certification paperwork, you can be sure that you are following international standards. Performance claims are backed up by sample tests in independent labs. Checking with past customers for references shows patterns of dependability. Factory audits look at how quality control is done and how well the factory can make things. Insisting on product testing reports that cover electrical parameters, waterproof integrity, and mating cycle endurance gives you objective performance proof before you buy in bulk.

3. How long do most large sales take to get delivered?

Standard versions that are kept in stock usually ship within 7 to 10 days from manufacturers who keep set stock amounts. Custom configurations that need specific cable lengths, colors, or pin arrangements usually take two to four weeks, but this depends on how complicated the customization is and how busy production schedules are at the moment. Lead times may be longer for large orders, especially during times of high demand. Setting up framework deals and forecasts helps vendors plan output and keep delivery times short.

Partner with Cablein for Your Waterproof Connector Needs

Cablein knows that choosing the right P16 Self Lock Waterproof Connector supplier can have an effect on the success of your project and the efficiency of your business in the long term. We've been in this business for 9 years and have a lot of technical knowledge, so we can make reliable connectivity solutions for LED lights, new energy systems, industrial automation, and medical equipment. We provide the safety paperwork your projects need with a wide range of certifications, such as TUV, CE, ETL, PSE, and SAA. Our technical support is available 24 hours a day, and we can make changes to meet your specific needs. Email us at nick@cableinco.com to talk to our engineering team about your connector needs and find out why leading manufacturers trust Cablein as their waterproof connector supplier.
