Where can I find reliable suppliers for M20 waterproof cable connectors?

To find reliable suppliers for M20 waterproof cable connectors, you have to go through a lot of different methods of sourcing and look at technical specs, certifications, and seller trustworthiness. The M20 Inline waterproof connector is an important part of LED lighting, industrial automation, and new energy systems, all of which need strong environmental protection. Trustworthy providers usually have a history of making high-quality products, keep up-to-date certifications like ETL and RoHS, and offer customization services that meet the needs of particular applications. To make sure project deadlines stay on track, procurement professionals should look for these connectors from providers with clear quality control systems, stable inventory levels, and quick expert support.

Understanding M20 Inline Waterproof Connectors

M20 waterproof cable connectors are precision-engineered circular electrical connecting devices made for harsh settings where moisture, dust, and mechanical stress can damage connections. The "M20" designation means that the thread diameter is 20 mm in metric units, which makes them compatible with a wide range of industrial uses. For these connectors, threaded coupling mechanisms make internal chambers that are hermetically sealed. They usually have IP67 or IP68 ingress protection ratings, which protect against water immersion and particulate contamination.

What Defines an M20 Connector

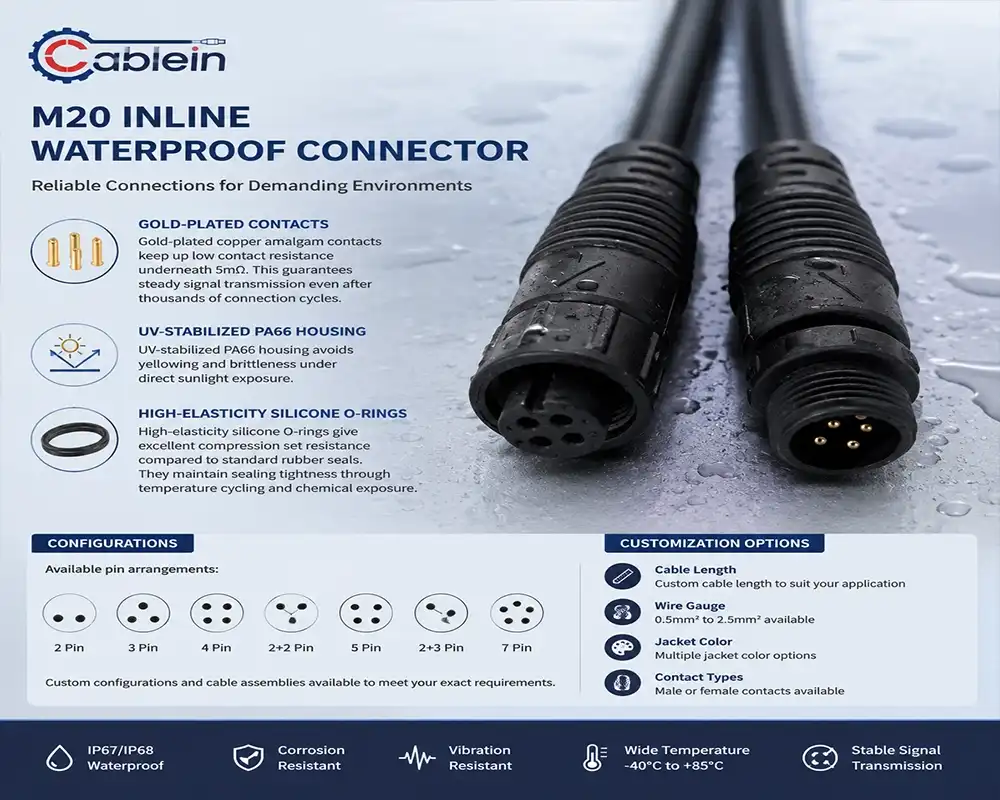

A standard M20 threaded connection has a PA66 nylon body with gold-plated brass pins and silicone rubber gaskets that seal the junction. This mix of materials is very resistant to UV light, flame (UL94-V0), and chemicals, making it perfect for use in outdoor and industrial settings. The straight overmolded design makes a strong, strain-relieved cable exit that keeps conductors safe from damage during installation and use. Contact resistance stays below 5mΩ most of the time, which makes sure that electricity flows smoothly and with little power loss across connections.

Key Technical Specifications

M20 waterproof connectors can be set up with anywhere from 2 to 7 contacts, so they can be used for a wide range of tasks. For 2-pin, 3-pin, and 4-pin layouts, standard orientations can handle maximum voltages of 500V DC/AC. For mixed power and signal uses, combination designs like 2+2 and 2+3 pin layouts can handle 300V. For heavy-duty uses, the withstand voltage can reach 3KV, and the current capacity can reach 25A for single circuits and 25A+8A for split configurations. Insulation resistance is higher than 200MΩ, so signals stay strong even when there is a lot of moisture in the air. The operating temperature ranges from -40°C to 150°C, which is wide enough to handle the extreme temperature changes that happen in industrial and outdoor settings. The injection molding process can handle cable diameters of 6mm to 13.5mm, which means it can work with a range of wire gauges used for high-current gearboxes.

Primary Application Scenarios

M20 waterproof links are very important in many different types of industries. These connections are the main links for high-power floodlights and street lighting in outdoor LED and building lighting systems that have to be reliable even when it rains or snows a lot. In marine and aquaculture applications, these parts are used a lot in submersible pump wiring and offshore sensor networks. They work well for a long time even when they are exposed to salt spray and water. M20 threaded connectors are used in solar photovoltaic systems and wet-zone robotic assembly lines. These connectors can withstand high-pressure washdowns and chemical cleaning agents and offer modular plug-and-play functionality that makes installation time and field service complexity much lower.

Key Criteria for Selecting Reliable M20 Waterproof Connector Suppliers

To be successful at procurement, you need to set up clear review models that balance technical requirements, business terms, and operational support. Well-known providers show they have the right skills by having the right certifications, manufacturing capabilities, and customer service systems that can handle complicated B2B needs.

Defining Your Procurement Requirements

Before contacting possible suppliers, procurement teams should write down specific project parameters, such as the number of orders, when they need to be delivered, and any technical customizations that are needed. Pricing and minimum order quantities are affected by volume needs, and delivery times decide whether standard inventory or custom manufacturing timelines apply. Specifications for technical items need to include things like pin setups, voltage ratings, current capacities, cord lengths, wire gauges, and levels of outdoor protection. For projects that need unique features like custom overmold colors or specific connector setups, suppliers who have their own engineering teams and can make things in a variety of ways are needed.

Essential Supplier Evaluation Metrics

Supplier evaluation for the M20 Inline Waterproof Connector starts with making sure that product quality standards are met. Manufacturers you can trust keep certificates like ETL, PSE, SAA, CE, RoHS, REACH, and TUV, which show they follow international safety and environmental rules. The ISO9001:2015 quality management system certification shows that production processes are checked for quality in a planned way. Suppliers should give thorough scientific information that includes IP grades, material makeup, measures of contact resistance, and results of outdoor testing. Modern production lines, enough space (at least 6,000 square meters), and a skilled staff of 200 or more professionals are all important for a manufacturing center to be able to consistently produce high-quality goods.

Evaluating Supplier Reputation and Transparency

Authorization status and standing in the industry can help you figure out how reliable a provider is. Established manufacturers typically possess utility model patents (30+ indicates active research and development), demonstrating innovation capacity and technical expertise. Unit prices, minimum order quantities (MOQs), volume discount structures, and payment terms should all be spelt out in clear pricing policies. Logistical capabilities including stable inventory levels (10,000+ pieces per item), fast delivery windows (7-10 days for standard goods), and established relationships with foreign carriers like UPS, DHL, and FedEx ensure supply chain continuity. Quality after-sales support is shown by expert help being available 24 hours a day, answering engineering questions, and warranty terms that cover problems caused by production flaws.

Comparing M20 Inline Waterproof Connectors and Supplier Offerings

Knowing the differences between products and the areas where a supplier excels helps you make smart purchasing choices that match the needs of a specific application with the best component specifications.

Connector Type Comparisons

M20 inline connectors are different from M16 versions mainly in their thread width and current capacity. M20 models can handle higher amperage loads, making them ideal for charging electric vehicles and heavy machinery. Panel mount designs offer different ways to install equipment enclosures by providing fixed mounting points instead of connecting cables to each other. Choosing between plastic and metal housings affects how long they last, how well they resist corrosion, and how much they cost. Nylon-based housings are cost-effective and chemically resistant for most industrial applications, while metal housings offer better electromagnetic shielding and mechanical strength for high-vibration environments like rail transit equipment.

Evaluating Manufacturer Offerings

Factory-assembled cable assemblies for the M20 Inline Waterproof Connector are very useful because they cut down on work that needs to be done in the field and get rid of the potential leak points that come with wiring things by hand. One-piece overmolded pre-assembled wires with large-gauge conductors that have been crimped or soldered at the plant are ready to be installed right away, which saves money on labor and cuts down on installation mistakes. When used with anti-vibration washers, threaded coupler designs provide strong connections that can withstand the harsh vibrations of big machinery. Different applications can be made to work with customizable setups that let you change the pin count, wire lengths, and jacket materials based on the needs of the project.

Identifying Quality Indicators

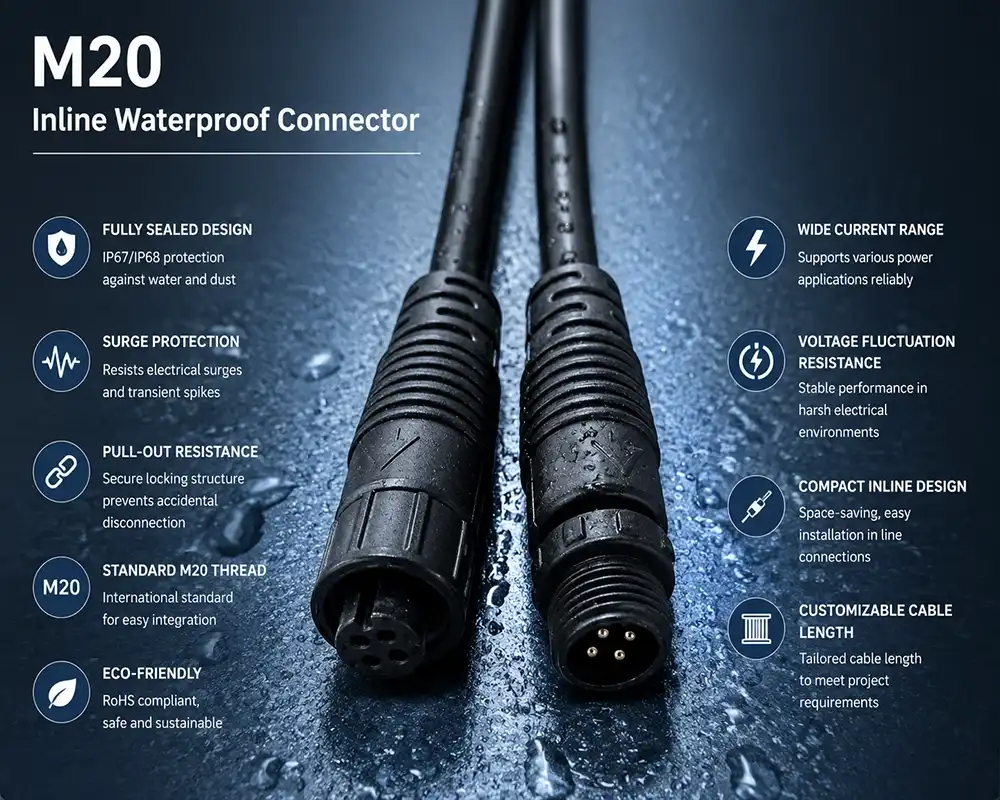

Premium M20 waterproof connectors are designed in a certain way that sets them apart from cheaper alternatives. Gold-plated contact surfaces don't rust and keep their low contact resistance over a long period of time. High-elasticity silicone O-rings offer better resistance to compression set than regular rubber seals, and they keep their waterproof integrity even after being heated and cooled many times. As part of factory testing procedures, waterproof pressure tests, voltage withstand checks, insulation resistance measurements, and mechanical durability checks should all be done. Suppliers who offer full test reports and chances to evaluate samples show that they are confident in the quality of their products and want their customers to be happy.

Where and How to Source M20 Inline Waterproof Connectors—Reliable Supplier Channels

Different strategic buying methods are used depending on the number of orders, the need for customization, and the long-term goals of the relationship. Each outlet has its own benefits that make it better for certain types of purchases.

Direct Manufacturer Partnerships

Working directly with makers like Cablein gives you the most control over quality and customization options. Direct relationships get rid of the need for markups between parties and allow engineers to work together to make sure that product specifications meet all application needs. Companies that do research and development, production, and sales all in one offer complete answers from the first idea to mass production. For OEM projects that need custom connector setups or private mold creation, this method works especially well. Direct buying also makes factory audits easier, so procurement teams can check for themselves how well the factory makes things, how they control quality, and if they have the right certifications.

Authorized Distributors and Channel Partners

Authorized distribution networks give you access to certified inventory that comes with a guarantee and a shipping system that has already been set up. Distributors keep standard configurations in stock so that they can be delivered right away, meeting urgent replacement needs and project deadlines. Trustworthy distributors make sure the products are real and store them in a way that keeps the quality of the connectors. This method works well for buying things when you need smaller amounts or a lot of different kinds of products from different makers. It lets you place one order at a time.

Online B2B Platforms and Wholesale Marketplaces

Digital selling platforms for the M20 Inline Waterproof Connector let you compare prices from different sources and make it easier to negotiate prices and look over specifications. These platforms collect information about suppliers, such as their licenses, production capacities, and customer reviews, which helps buyers decide which suppliers to choose. These channels often offer competitive prices for large purchases when you place a bulk order. Before placing large orders, buyers should do their research by checking the credentials of the supplier, asking for samples of the products, and making sure that the suppliers have the right certifications.

Practical Tips for Securing Quality M20 Waterproof Connectors and Managing Procurement Risks

Proactive quality checks and source screening lower the risks of buying things that could delay projects and make operations less reliable.

Verifying IP Ratings and Certifications

Before placing an order, buying teams should ask for thorough certification paperwork and independent test results that back up the IP scores that were given. Suppliers should give buyers copies of the foreign certifications for ETL, RoHS, CE, and any other important certifications that are specific to the models being bought. To confirm a waterproof rating, you have to look at the test technique paperwork, which lists the depth, duration, and pass/fail factors of the submersion. For important applications, asking for sample units to be tested by qualified laboratories on their own gives extra assurance. Tests for insulation resistance, voltage withstand, and measuring contact resistance should all be in line with written guidelines.

Identifying Common Procurement Pitfalls

Buying waterproof plugs comes with a number of risks that could make the process less successful. Products that aren't up to par or don't have real IP protection may look exactly like approved parts, but they won't work in real life, which can lead to system downtime and replacement costs. Problems with incompatibility happen when thread sizes, pin arrangements, or wire width requirements are different from what is expected. Suppliers who can't be trusted may say they have short lead times but don't deliver on time, which can throw off project schedules. Field service costs go up because of bad technical documentation that makes it impossible to install and fix problems correctly.

Building Sustained Supplier Relationships

When you work with trusted suppliers over a long period of time, you get benefits that go beyond individual deals. Communication that is consistent helps everyone understand what is expected in terms of quality, performance, and technical details. A responsive supplier helps with product selection with engineering support, offers rapid prototyping for custom needs, and stays in touch about production schedules and possible delays. After-sales service quality can be seen in how well insurance claims are handled, how well technical problems are fixed, and how ready the company is to deal with quality concerns in a helpful way. Suppliers who show they are dedicated to constant growth and customer happiness become useful strategic partners who can help with a number of projects over a long period of time.

Conclusion

To find trustworthy M20 waterproof cable connectors, you need to carefully look at the technical details, the supplier's skills, and the quality control methods they use. The M20 Inline Waterproof Connector is used in many businesses because it is strong, can be set up in different ways, and has been shown to protect the environment. A good procurement process strikes a balance between short-term project needs and long-term ties with suppliers based on openness, technical knowledge, and regular quality. By giving more weight to suppliers with thorough certifications, the ability to customise, and a responsive support infrastructure, you can be sure that you are choosing the best components that will keep your system reliable throughout its operational lifecycle.

FAQ

1. What are typical lead times for M20 inline waterproof connectors?

Standard versions that are already in stock usually ship 7–10 business days after the order is confirmed. Custom orders that need specific cable lengths, wire gauges, or non-standard pin configurations usually take 15 to 30 days, but this depends on how complicated the customization is and how long the production queue is. If a supplier keeps a lot of inventory on hand, they can handle rush orders by processing them faster, but this may cost more. Suppliers can confirm realistic shipping dates if project timelines are made clear during the initial inquiries.

2. Can M20 waterproof connectors be customized for OEM projects?

Most well-known manufacturers give a wide range of customization choices, such as changing the length of the cable, the gauge of the wire, the color of the overmold, and the way the connectors are set up. Private mold creation lets private designs with specific shape needs be met. When engineers work together with OEMs to improve specifications, they usually make prototypes to test and make sure they work, and once the designs are approved, they start mass production. Customization capabilities vary by supplier, making early engagement essential for complex requirements.

3. How do I verify waterproof ratings before purchase?

Ask for detailed technical information, such as IP rating test results from accredited labs. On specification sheets, you should list the test method, the depth of submersion, the length of time, and the pass/fail criteria. There are a lot of reliable sellers that offer sample units for testing by a third party. Visual signs of waterproof integrity can be found by looking at the physical construction, such as the quality of the O-rings, the properties of the housing material, and the design of the closing mechanism. Certifications from well-known groups like TUV or UL show that the protection levels claimed have been checked by a third party.

Partner with Cablein for Your M20 Waterproof Connector Requirements

Cablein Technology makes industrial waterproof connectors and custom cable assemblies. They have worked with LED lights, new energy, and industrial automation to find solutions that work in harsh settings. Our M20 Inline Waterproof Connector range includes assemblies that are rated IP67 or IP68 and have ETL and RoHS certifications. These are managed under ISO9001:2015 quality management. We keep an inventory of more than 10,000 pieces per configuration, which means that standard products can be delivered in 7–10 days, and we offer full customization services for OEM applications. We have been making things for 9 years, have more than 30 utility model patents, and have a 200-person technical team working out of our 6,000-square-meter facility. We offer a reliable supply chain partnership with technical support available 24 hours a day. Email nick@cableinco.com to talk about your M20 waterproof connector supplier needs and get personalized technical advice that will help you choose the best parts for your projects.
