Best waterproof cable connectors with QC12 straight quick clamp design
When looking for waterproof cable solutions for harsh outdoor or industrial settings, the QC12 straight quick clamp waterproof cable connector stands out as a well-designed option that balances ease of installation with long-term dependability. This connector has a PA66 nylon body, gold-plated solid brass contacts, and silicone sealing rings. It has IP67 and IP68 ratings, and techs can make safe connections with just a quarter-turn twist. Our guide talks about why procurement managers, research and development engineers, and operations leaders in the LED lighting, renewable energy, automation, and surveillance industries are choosing this connector more and more for projects where water entry, installation efficiency, and maintenance costs have a direct effect on the total cost of ownership.
Introduction
Installations in factories and outside are always being hit by rain, dust, vibrations, and changes in temperature. One broken connector can stop production lines, make city streets dark, or put safety systems at risk. Traditional screw-terminal connectors need more than one tool, careful pressure application, and skilled labor. This means that they take longer to install and have a higher rate of field errors. This guide was made to help business-to-business buyers understand how straight quick-clamp waterproof connectors solve these problems by using new materials and design ideas.
This guide explains how quick clamp systems work technically, compares their performance to other designs, talks about the best ways to buy things to keep the supply chain going, and shows why buying from certified manufacturers with strong quality management systems leads to clearly better results. If you're in charge of buying things for a company that builds solar panels, choosing parts for smart city lighting networks, or making sure that marine automation equipment works well, this article will help you understand how to compare waterproof connector options and pick ones that require less work to install and have lower failure rates over time.

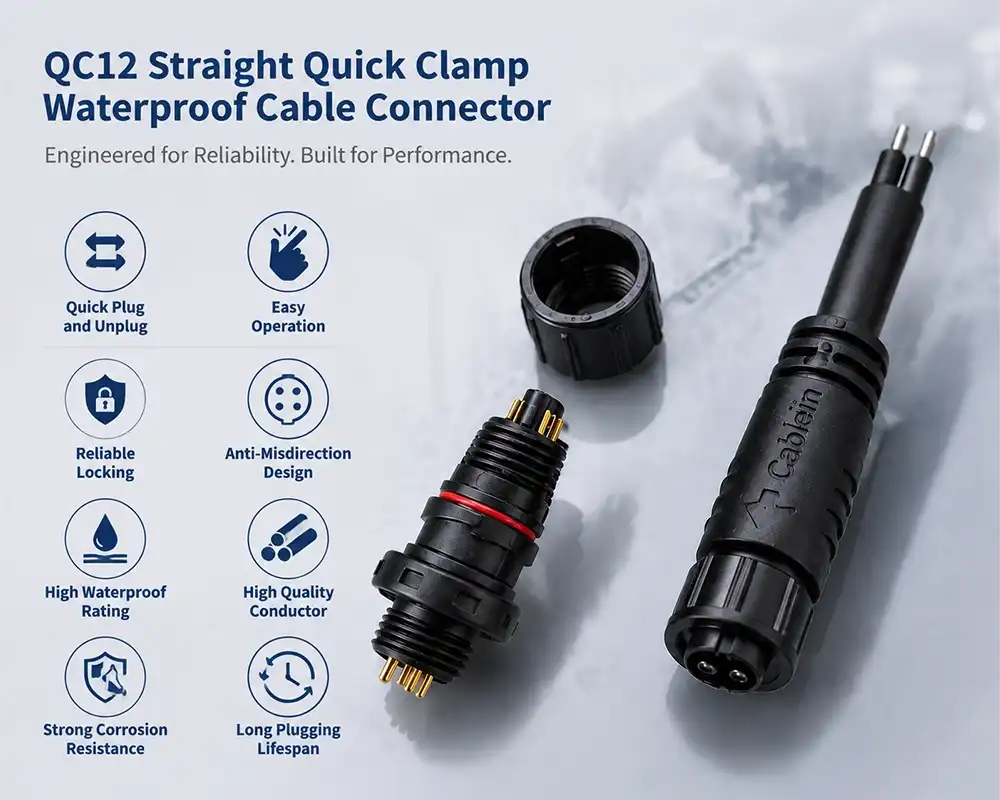

Understanding QC12 Straight Quick Clamp Waterproof Cable Connectors
Precision engineering goes into the QC12 Straight Quick Clamp Waterproof Cable Connector's quick clamp mechanism, which locks wire ends with a quarter-turn spin. Instead of multiple rotations and the right torque tools for threaded coupling nuts, this design lets field workers make safe, repeatable connections in seconds without having to learn any special skills. The straight-inline configuration makes it easier to route cables through conduits and tight equipment enclosures, which makes installation easier in places with limited space.
Material Composition and Durability
The body of the connector is made of PA66 nylon, which has a UL94-V0 flame rating and great UV resistance across a temperature range of -40°C to 105°C. This engineering thermoplastic keeps its shape even when heated and cooled many times. This keeps the housing from deforming, which happens with lower-quality materials and leads to seal failures. Gold-plated solid brass pins don't rust in salt-spray environments and keep their contact resistance below 5mΩ even after 500+ mating cycles, which makes sure that the signal integrity for power delivery and data transmission stays the same.
IP Rating and Sealing Architecture
When properly joined, the multi-tier sealing system of the QC12 Straight Quick Clamp Waterproof Cable Connector protects against IP67 water and dust by combining a precision-molded silicone cover with the cable's overmolded strain relief. IP68 versions of the QC12 Straight Quick Clamp Waterproof Cable Connector can handle being submerged in water for a long time, which makes them good for irrigation controls, underwater lights, and marine sensor networks. As part of our quality control process, we immerse samples in water for 72 hours at depths that are deeper than normal installation conditions to make sure that no water gets in under hydrostatic pressure.

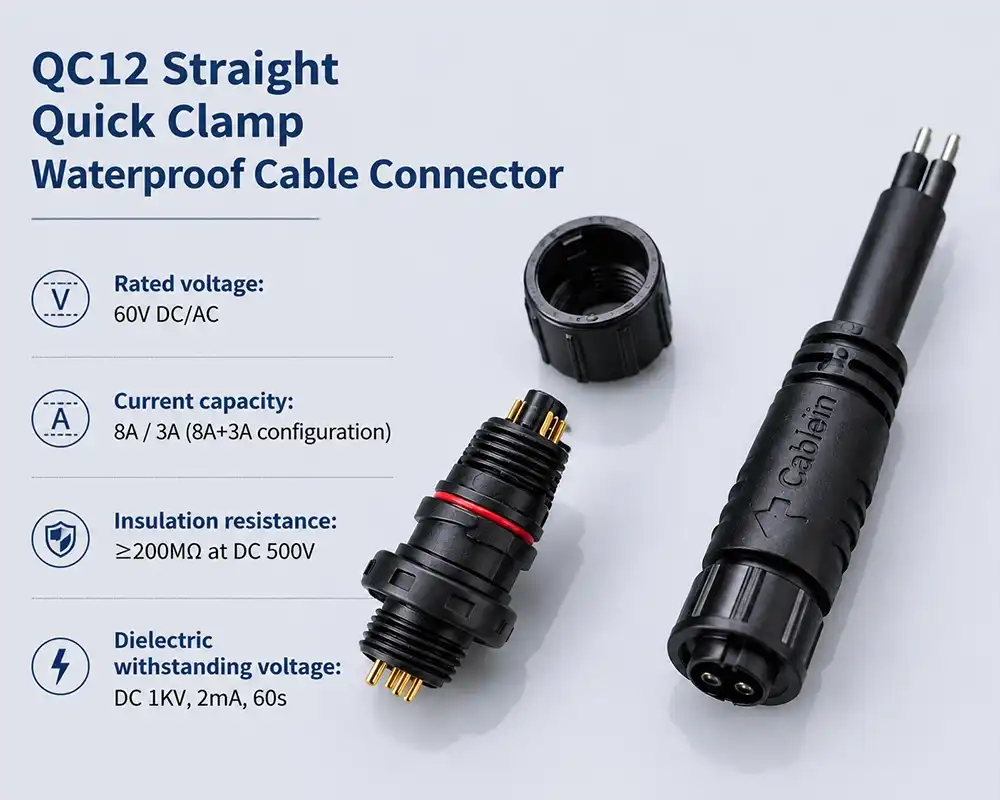

Electrical Performance Specifications
The connector can handle both power and control data in a single small package. It is rated at 60V DC/AC and can handle 8A of current on one circuit and 3A across two different circuits. The voltage that the dielectric can handle goes up to DC 1 kV for 60 seconds, and the insulation resistance goes over 200 MΩ when tested at DC 500 V. These factors make sure that systems can work safely even when voltage changes and dirt from the surroundings make it hard for regular terminal blocks to work. The injection-molded cable diameter range can fit cables with a diameter of 2mm to 9mm, so different wire gauge requirements can be met without having to use different connector families.
Comparing QC12 Straight Quick Clamp with Other Waterproof Cable Connectors
To evaluate connection technologies, you need to know how design choices affect how long it takes to install, how easy it is to do upkeep, and how long it lasts in the environment. We look at the QC12 Straight Quick Clamp Waterproof Cable Connector approach against other popular options to see what makes it better.
Quick Clamp vs. Screw Terminal Systems
Screw-type waterproof connectors need to be carefully stripped of wires, inserted to the right depth, and tightened with the right amount of force to avoid damaging the strands or making connections that are too loose. Field studies show that installing each connector takes about three to five minutes on average when the manufacturer's instructions are followed. This takes less than 30 seconds with the QC12 Straight Quick Clamp Waterproof Cable Connector's quarter-turn system, and you don't even need torque tools or hex keys. This efficiency in labor is very important for large-scale projects like replacing lights in stadiums or wiring solar farms. When hundreds of connections are made, the time saved adds up to real cost savings.
Straight vs. Angled Connector Geometries
Right-angle connectors are good for situations where the direction of the wire exit needs to change right away at the joining point. The QC12 Straight Quick Clamp Waterproof Cable Connector's straight inline form, on the other hand, is helpful when running cables through conduit systems or equipment panels with room for small cable twists. The thinner profile makes the connection point less stressed when it shakes, which increases its useful life in transportation and industrial automation settings. Also, maintenance workers can physically check straight links more easily because they don't need mirror tools or camera probes to see the seal interface.
Overmolded vs. Field-Assembly Designs
Field-assembly waterproof connectors let technicians finish wires on-site, which gives them more options but means that quality can vary depending on the technician's skill level. Most premature seal failures are caused by gaskets that aren't properly fitted or contamination during assembly. The overmolded cable construction of the QC12 Straight Quick Clamp Waterproof Cable Connector gets rid of these issues by terminating the cable in a controlled factory setting. Before it is shipped, each assembly goes through automated electrical testing and a visual inspection. This makes sure that all production batches perform the same way.
Procurement Guide: How and Where to Buy QC12 Waterproof Cable Connectors
When looking for industrial connectors, you have to balance things like technical fit, supplier reliability, and total cost. We talk about some of the most important things that procurement teams should think about when working with vendors and handling supply lines.
Identifying Qualified Suppliers
Certified producers who use ISO9001:2015 quality management systems show that they can control the production process so that the waterproofing works every time. Look for providers that put out test records that include results from thermal cycles, measuring contact resistance, and making sure the IP number is correct. For European markets, CE marking and RoHS compliance paperwork prove that the product meets the rules, while ETL or UL recognition meets the needs of North American markets. Asking for manufacturer certifications along with product datasheets is a good way to make sure the product is real and lowers the risk of fakes in global supply chains.
Evaluating Minimum Order Quantities and Lead Times
Having enough stock has a direct effect on project timelines, especially during the rollout phase, when delays in connectors can stop whole installs. Small to medium-sized orders are usually filled within 7 to 10 business days by suppliers whose stock depth is above 10,000 pieces per standard configuration. Lead times can go up to 3–4 weeks if you need custom wire lengths, jacket colors, or pin configurations. This depends on how busy the factory is. When planning your purchases, it's important to tell the difference between catalog items that can be shipped right away and engineered solutions that need to be qualified for tools or materials.
Understanding Pricing Structures
The unit price of the QC12 Straight Quick Clamp Waterproof Cable Connector is based on how much the materials cost, how hard they are to make, and how much it takes to get them certified. Quick clamp mechanisms with precision-molded housings cost more than basic screw connections, but the extra money is worth it because they require less installation work and have a lower failure rate in the field. When getting a quote, ask for different levels of price based on numbers to find the points where economies of scale can save you money. Instead of just comparing prices, figure out the total cost of ownership by adding up the time saved on installation, the coverage of the warranty, and the expected length of service.
Logistics and Technical Support
When industrial parts are shipped internationally, they need to be coordinated with freight forwarders, customs officials, and delivery drivers. Well-known companies work with DHL, FedEx, UPS, and ocean freight forwarders to give customers a range of shipping options that balance speed and price. Having access to technical support is very important when planning an installation and fixing problems. Look for companies that offer engineering advice, clear installation instructions, and quick ways to get in touch with application experts.
Why QC12 Straight Quick Clamp Connectors Are Trusted by B2B Clients
Cablein Technology Co., Limited has been specializing in waterproof industrial connectivity solutions for nine years and has served customers in over 100 countries. They have factory certifications and a track record of success. Our factory in Shenzhen follows strict quality standards that have helped it become a national high-tech company, showing that it can both produce excellent products and come up with new ideas.
Industry Credentials and Quality Assurance
We have a number of international safety certifications, such as CE, RoHS, REACH, and TUV. Some of our products are also certified to meet ETL, PSE, SAA, and CQC standards. Our 6,000-square-meter factory has separate lines for overmolding cables, putting together connectors, and testing the finished product. Before it is packaged, each QC12 Straight Quick Clamp Waterproof Cable Connector goes through automatic testing for insulation resistance, dielectric strength validation, and visual review. This promise of zero defects makes it easier for customers to check the quality of the product and cuts down on field returns.
Application Success Across Critical Industries
Our connectors are used in outdoor LED decorative lighting and street control systems in smart city infrastructure projects where servicing access is limited. With IP68 closing and 500+ cycle reliability, this product will work reliably for years without the seal wearing down too quickly. For solar photovoltaic array wiring and wind turbine sensor networks, renewable energy integrators use QC12 Straight Quick Clamp waterproof cable connectors because they are resistant to thermal cycling and salt spray, which has a direct effect on the long-term return on investment. Marine and industrial automation use this design because it can keep its electrical integrity in areas that are washed down with high-pressure water jets and chemical cleaners.
Customization and Engineering Support
We have more than 15 patents for our own research and development team that cover things like quick-connect technologies, solder-free ending methods, and high-power waterproof designs. This innovative feature lets customers choose their own cable lengths, jacket colors that match their brand, and changes to pin configurations for specific signal needs. Consulting engineers help buying teams choose the right products by guiding them through technical specs, environmental testing standards, and the best ways to use them. When flexible OEM/ODM capabilities are combined with quick expert help, agreements are formed that go beyond simple supplier relationships.
Conclusion
Selecting waterproof cable connectors requires evaluation across multiple dimensions: environmental sealing performance, installation speed, mechanical durability, electrical specs, and provider capability. The QC12 Straight Quick Clamp Waterproof Cable Connector design solves some of the most common problems that procurement managers and engineering teams face. It does this by having a quarter-turn locking system, durable overmolded construction, and approved IP67/IP68 protection. Long-lasting dependability in harsh environments and temperature ranges is ensured by materials like PA66 nylon housing and gold-plated brass contacts. When looking for these parts, give priority to suppliers that can show they follow ISO9001, keep enough inventory on hand, and offer engineering support that turns choosing parts into optimizing the whole system.
FAQ
1. What cable diameters are compatible with QC12 connectors?
The injection-molded strain relief can fit cable outside diameters from 2 mm to 9 mm. The wire sizes in this range are common ones used in LED lights, sensor wiring, and distributing low-voltage power. The rubber closing ring can be compressed to make a watertight seal across this range of diameters, so you don't need different housing sizes.
2. Can QC12 connectors be disconnected and reconnected for maintenance?
The quick clamp device can be used over and over again; it has been tested to 500+ operations without losing its contact resistance or seal integrity. Because they can be used again and again, they can be maintained without damaging them. For example, techs can disconnect circuits to fix or replace equipment without having to cut wires or put in new connectors.
3. How do I verify waterproof performance after installation?
Once the quarter-turn locking action is done, check to see that the colored seal indicator band is fully squeezed and lined up with the housing reference mark. Follow the steps in IEC 60998-2-1 to do continuity testing and high-potential testing on important systems. Submersion testing in controlled circumstances is the only way to be sure, but in the field, visual inspection and electrical proof are usually enough.
4. Does the connector meet transportation industry vibration standards?
The built-in anti-vibration locking mechanism keeps the housing from coming loose when it's under mechanical stress. The exact shock and vibration testing results depend on how the cable assembly is put together as a whole. However, the QC12 Straight Quick-Clamp Waterproof Cable Connector design philosophy meets the needs of rail transit and mobile equipment by combining a secure mechanical coupling with flexible strain relief that lets the cable move without putting stress on the electrical contacts.
Partner with a Trusted QC 12 Straight Quick Clamp Waterproof Cable Connector Manufacturer
Cablein specializes in engineered waterproof connection options made for tough industrial and outdoor uses. Our QC12 Straight Quick Clamp Waterproof Cable Connectors are designed to be easily installed and are approved to protect the environment. They come with a full quality guarantee and the ability to ship products all over the world. Our technical team can help you choose the best product for your needs, whether you need standard configurations that can be used right away or custom cable assemblies that are made to fit the needs of your specific project. We keep enough stock on hand to support both small-scale prototype testing and large-scale production orders, and we can deliver on time so that your project stays on track. Get in touch with nick@cableinco.com to talk about your waterproof connector needs with experienced application engineers who know how to help LED lighting makers, green energy integrators, automation equipment builders, and infrastructure workers with their technical problems. As a well-known company that serves the global market, we offer procurement teams the product innovation, consistent manufacturing, and customer support they need for important connectivity solutions.
