RJ45 Ethernet Waterproof Connector vs Standard RJ45 Connector: Key Differences
When choosing between an RJ45 Ethernet waterproof connector and a standard version, you're essentially deciding between robust environmental protection and basic indoor connectivity. The waterproof variant delivers IP67 or IP68-rated protection with reinforced housings, silicone seals, and corrosion-resistant materials like PA66 nylon and gold-plated contacts, making it ideal for outdoor surveillance, industrial automation, and renewable energy applications. Standard connectors, rated only IP20, work reliably indoors but fail rapidly when exposed to moisture, dust, or temperature extremes. Waterproof models support Cat5e and Cat6 transmission at up to 1000 MHz, handle POE and POE+ power delivery, and offer field-installable designs that simplify custom cable assembly on-site—capabilities that standard connectors simply cannot match in harsh environments.
Understanding RJ45 Ethernet Connectors: Standard vs Waterproof
Standard RJ45 connectors are used in places with controlled temperatures and clean environments, like office buildings, data centers, and home networks. Their plastic bodies and open contacts work fine indoors, but humidity, particle pollution, and shaking quickly damage the signal integrity and mechanical stability. Because these connectors don't have any ways to close them, pins inside can oxidize and cause short circuits if water gets into the interface.
For tough uses, RJ45 Ethernet waterproof connectors change Ethernet connection. They have toughened shells, threaded locking rings, and O-ring gaskets that keep water out even when they are submerged for a short time. The PA66 nylon housing doesn't break down when exposed to UV light for years at a time, and the gold-plated phosphor bronze contacts keep their low contact resistance below 20mΩ for more than 750 joining cycles. Operating temperatures between -40℃ and 150℃ make them suitable for use in both cold tracking stations and solar farms in the desert. This engineering makes it possible for procurement managers to choose a single connection platform that can be used in a wide range of climates and geographical areas. This simplifies inventory management and saves time.
Why Environmental Sealing Matters
Standard RJ45 connectors can't handle the dirt and grime that come with working in an industrial setting. Oil mist and coolant spray from factory floors get into interfaces that aren't sealed, stopping production lines every once in a while. When installed outside, they have to deal with rain, snow, salt spray near the coast, and dust storms in dry places. A waterproof design keeps these things from getting into the electrical path, which keeps the network up and running and stops expensive service calls for replacing connectors. The silicone sealing ring presses against the cable jacket, making a barrier that meets IP68 standards for continuous submersion. This standard was confirmed by strict vacuum and water immersion tests done during quality control during manufacturing.
Application-Driven Design Philosophy
Field-installable construction solves a problem that system integrators and operations managers have had for a long time. When buying pre-terminated cables, you have to guess the exact length, which can cause you to have too much stock of common lengths and cause delays when you need custom dimensions. With RJ45 Ethernet waterproof connectors that terminate with solder, technicians can cut cable to the exact length needed on-site, safely attach conductors to gold-plated pins, and get Cat6-compliant transmission performance without having to use special crimping tools. This adaptability speeds up project timelines and cuts down on waste, which has a direct effect on the total cost of ownership that purchasing managers look at when choosing a supplier.
Key Differences Between RJ45 Ethernet Waterproof and Standard Connectors

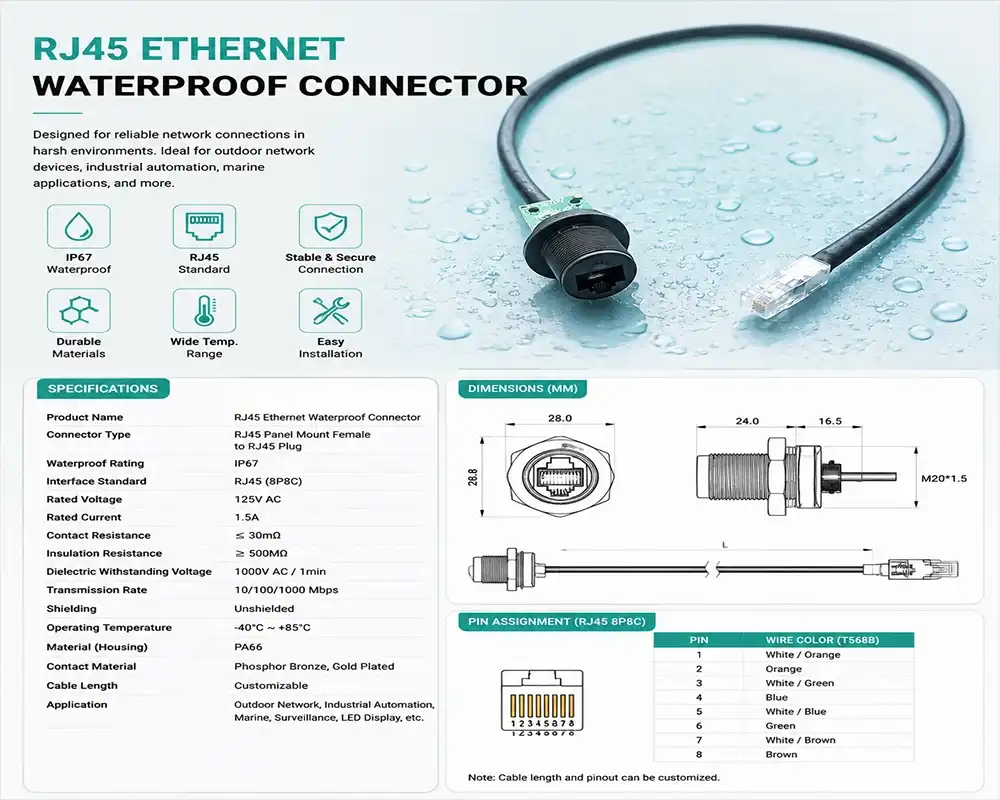

At a basic level, material makeup sets these connector groups apart. Standard models use commodity-grade plastics and tin-plated contacts that work fine indoors but quickly rust when used outside. For RJ45 Ethernet waterproof connectors, engineering polymers like PA66 nylon are used because they are strong, don't catch fire easily (meeting UL94-V0 standards), and don't react badly with chemicals. Gold plating on phosphor bronze pins stops oxidation even in salty environments, which is very important for marine communication networks and offshore wind turbine tracking systems because salt spray speeds up corrosion.
IP Rating Comparison
The IP (Ingress Protection) number measures how well a seal keeps out outside elements. Most standard RJ45 connectors only get an IP20 rating, which means they can't protect against objects bigger than 12.5 mm and don't resist water. For this reason, they are not suitable for use outside. IP67-certified RJ45 Ethernet waterproof connectors can handle being submerged in water up to one meter deep for 30 minutes. They can also handle dust getting in. IP68-rated versions offer better protection against deeper submersion and longer periods of time. Manufacturers set these standards based on the needs of the application. For marine and coastal systems, corrosion protection is proven by salt spray testing according to ASTM B117, which is done for 48 to 96 hours.
Electrical Performance Characteristics
Both types of connectors work with standard Ethernet protocols, but RJ45 Ethernet waterproof connectors have extra features that are needed for current operations. Rated current of 20A supports both POE+ (IEEE 802.3at) and POE++ (IEEE 802.3bt) power delivery, so IP cameras, WiFi access points, and LED lighting controls don't need their own power cables. Cat6 transmission speeds are kept up by bandwidth support up to 1000 MHz, which is needed for surveillance systems that stream HD video and industrial automation networks that handle real-time sensor data. Insulation resistance greater than 500MΩ ensures stable operation even when humidity levels change. This stops signal degradation and packet loss that happen when moisture gets into standard connections.
Installation and Maintenance Considerations
For RJ45 Ethernet waterproof connectors, you need to be more careful when installing them than when simply plugging a plug into a jack. To put the parts together correctly, you need to run the cable through the connection body, remove the insulation to exact measurements, connect the conductors to the terminal block, and tighten the locking ring to the pressure values given by the manufacturer. Aligning the gasket is very important; if it's not in the right place, the water seal breaks and the IP rating isn't valid. But this extra work pays off because the service life is longer and upkeep costs are lower. Technicians can check the state of the gaskets and fix the connections again every six months. This keeps standard RJ45 connectors from breaking down too quickly in outdoor settings. Certified manufacturers like Cablein test every unit's waterproof performance before shipping as part of their quality assurance procedures. This makes sure that the level of consistency that QA/QC managers need.
How to Choose the Right RJ45 Ethernet Waterproof Connector for Your Business?
Assessing the environment is the first step in choosing RJ45 Ethernet waterproof connectors. Procurement professionals should keep track of exposure factors like temperature range, humidity levels, rainfall intensity, dust concentration, chemical exposure, and vibration magnitude. Applications in climate-controlled industrial automation enclosures may be able to handle IP67 protection, but underwater robots and tracking submersible pumps need IP68 approval. Outdoor stadium lighting and transportation infrastructure that is exposed to direct sunlight for decades need to be very resistant to UV rays.
Material Selection Strategy
For most uses, PA66 nylon housings are a good mix of price, weight, and function. This engineering polymer doesn't break down when exposed to UV light and keeps its shape even when the temperature changes a lot. Metal covers, usually made of a zinc alloy with nickel plating, block electromagnetic interference better than other materials. This is important for sites near radio stations or high-power equipment. In places with a lot of vibration, like train transit systems and industrial machinery, they also offer better mechanical power. The higher cost of metal construction—usually 30 to 50 percent more than plastic alternatives—is justified by longer service life and less EMI troubleshooting in places with noisy electricity.
Power-Over-Ethernet Compatibility
PoE technology makes installations easier by sending power and data over a single cable, so there is no need for electrical outlets in remote areas. When R&D engineers describe connectors, they need to make sure that the current capacity fits the amount of power that the connected devices need. IEEE 802.3af standard PoE sends 15.4W, IEEE 802.3at standard PoE sends 25.5W, and IEEE 802. 3.5 BT standard PoE can send up to 90 W for high-power uses. Connectors designed for 20A can handle this much power without getting too hot, which was proven by thermal tests done during product approval. To avoid field failures caused by not enough current capacity, supply chain managers should make it a priority for suppliers to show proof of PoE compliance testing.
Certification and Compliance Requirements
To sell a product in another country, it needs to have a license that is recognized in that country. CE marking means that the product meets the safety and environmental standards of the European Union, while ETL certification means that the product meets the safety standards of North America. RoHS and REACH compliance make sure that there are no harmful substances, which is in line with environmental rules that are being required more and more by government contracts. Quality management teams need manufacturers who use ISO9001:2015 quality management systems to make sure that everything is consistent and can be tracked. Before agreeing to large orders, production managers who are looking at providers should ask for proof of certification and audit reports to make sure what they say is true.
Comparing Popular RJ45 Waterproof Connector Types and Market Options
The RJ45 Ethernet waterproof connector market is split into two groups: those with metal bodies and those with plastic bodies. Each group is best for a certain type of placement scenario. Metal connections are most often used in situations where reliability and EMI shielding are important. Metal enclosures help keep electromagnetic noise out of industrial automation installations that are close to motor drives, welding equipment, and variable frequency drives. When signal quality directly affects production output, the extra weight and cost are trade-offs that can be made.
The bigger market is served by plastic connectors made of PA66 nylon or similar engineering polymers. They offer security against IP67 or IP68 threats while being lighter and less expensive. This makes them perfect for outdoor LED lights, surveillance cameras, and farming automation where cost is a factor. UV-stabilized formulas make things last longer than ten years in direct sunlight, which is about the same amount of time that operations managers plan to replace things when they need to update infrastructure.
Field-Installable vs Pre-Terminated Options
Field-installable connectors help purchasing managers with the problems they have with managing their inventory. Keeping dozens of pre-terminated cable lengths takes up more warehouse room than keeping cable by the spool and plugs separately. Technicians cut the cable to exact measurements during installation, so there is no waste from extra length. Solder-type termination makes gas-tight links between wires and gold-plated pins, which is needed for Cat6 compliance because of the low contact resistance. This method works especially well for system integrators working on custom projects where the cable routing lines aren't clear until the field studies are done.
Pre-terminated parts are good for large operations with standard sizes. In manufacturing settings, testing and termination are done automatically, which allows for better quality control than is possible in field assembly. Pre-terminated wires speed up installation times for large-scale smart city rollouts and industrial campus networks. The trade-off is less flexibility and higher costs for keeping inventory, which supply chain managers have to weigh against the savings in labour for installation. Cablein has both field-installable connectors and unique pre-terminated assemblies, so buying teams can choose the best mix of solutions for each project.
Installation Best Practices for RJ45 Ethernet Waterproof Connectors
Preparing the cables correctly is the first step to a successful operation with RJ45 Ethernet waterproof connectors. Technicians should use a good cable stripper that doesn't damage the wire insulation to cut the outer jacket to the length stated in the manufacturer's datasheet. This is usually 25 to 35 mm. Keeping the twist rate the same in Cat5e and Cat6 cables keeps the balanced transmission characteristics that are needed for fast data transfer. Crosstalk gets worse when pairs are untwisted more than what is needed. This affects readings of Return Loss and NEXT (Near-End Crosstalk) that Fluke network testers check during setup.
Gasket Installation and Torque Specifications
The closing gasket needs to be flat against the cable jacket, with no gaps or bends. Put the gasket against the jacket and the cable in the connection body. Then, slide the closing ring over both of them. Tighten the ring by hand until the resistance goes up. Then, use a torque wrench to get it to the value recommended by the manufacturer, which is usually between 0.5 and 0.8 N·m. When you tighten the bolts too much, the seal gets pushed out, which could damage the cable jacket. Under-tightening makes holes in the seal that let water in. To make sure that all deployment teams get the same waterproof performance, production managers should add torque verification to installation checklists.
Testing and Verification Procedures
Before it can be used, every severed link has to be tested. Network cable testers check for pin-to-pin connectivity, make sure the wiremap is right, and find out how long the cable is. Advanced testers, such as Fluke DTX models, measure Return Loss, NEXT, and other TIA/EIA-568 parameters to make sure that Cat5e or Cat6 standards are followed. For important uses, submersion testing is used, where connectors are submerged in water for the time allowed by the IP rating while leaks are watched for. Visual inspection of gasket seating is also part of waterproof integrity testing. For warranty claims and compliance checks, quality management teams should write down test results. This is especially important for projects that need TUV or third-party approval.
Conclusion
The main differences between RJ45 Ethernet waterproof connectors and regular RJ45 plugs are how they work in different environments and how long they last. Standard forms work fine in controlled indoor environments, but they break down quickly when they come in contact with dust, moisture, or changes in temperature. Outdoor surveillance, industrial automation, renewable energy, and marine applications can all rely on RJ45 Ethernet waterproof connectors with IP67/IP68 protection, PA66 nylon housings, gold-plated contacts, and silicone gaskets. The design that can be installed in the field makes inventory simpler and allows for custom cable lengths to be made on-site, which helps the procurement and operations teams with some of their biggest problems. Certification to CE, RoHS, and ISO9001 standards makes sure that products can be sold all over the world and that the quality is always the same, which is what quality management experts need.
FAQ
What IP rating should I specify for outdoor Ethernet connections?
IP67 protects against rain, snow, and short-term water contact up to 1 meter for 30 minutes, which is enough for most outdoor setups. For uses that go deeper into the water or are constantly in contact with it, like underwater robots, fountain lighting controls, and marine navigation systems, IP68 approval is needed. When figuring out the right rating, operations managers should think about the worst possible environmental conditions that the equipment will be in over its lifetime.
Can waterproof connectors support Power over Ethernet applications?
PoE, PoE+, and PoE++ power transfer standards can all be fully met by high-quality RJ45 Ethernet waterproof connectors that can handle 20A of current. Gold-plated phosphor bronze contacts keep connections with low resistance, which stops voltage drop and heating while power is being sent. R&D engineers should check the current ratings in the manufacturer's datasheets and ask for thermal testing records to make sure the product is right for the power budget that is being used, especially for PoE++ applications that deliver up to 90W.
Do waterproof connectors affect network transmission speed or signal quality?
When placed correctly, RJ45 Ethernet waterproof connectors that are properly made don't affect the transfer of data in any way. They keep the impedance and twist rate needed for Cat5e and Cat6 compliance, and they can handle speeds of up to 1000 MHz and gigabit Ethernet. The sealing parts keep electrical contacts from getting dirty from the environment, which would damage the signal integrity otherwise. This makes the network more reliable over time compared to regular connectors in tough environments.
Partner With a Reliable Waterproof Connector Manufacturer
Cablein Technology offers RJ45 Ethernet waterproof connectors that have been tested in the field and are designed to work well in harsh industrial and outdoor environments. The connectors we sell are made from PA66 nylon and have gold-plated phosphor bronze contacts and silicone gaskets that keep the seals tight from -40°C to 150°C. They are also easy to install in the field. Under ISO9001:2015 quality systems, every connector is tested to make sure it works perfectly even when it's wet. This is backed up by CE, RoHS, and other foreign certifications that meet global compliance standards. We keep more than 10,000 pieces of each SKU in stock so that we can deliver quickly, usually within 7 to 10 days. Additionally, our engineering team can customize the cable length, pin configuration, and connector orientation to fit your project needs. Our procurement experts can be reached at nick@cableinco.com to talk about your waterproof connector needs, get technical datasheets, or get bulk prices. We are a qualified industrial connector seller that cares about your business's success.
References
1. Institute of Electrical and Electronics Engineers, "IEEE 802.3 Ethernet Standards for Power over Ethernet and Data Transmission," IEEE Standards Association, 2018.
2. International Electrotechnical Commission, "IEC 60529: Degrees of Protection Provided by Enclosures (IP Code)," IEC Publications, 2020.
3. Telecommunications Industry Association, "TIA/EIA-568 Commercial Building Telecommunications Cabling Standards," TIA Standards and Technology Department, 2019.
4. American Society for Testing and Materials, "ASTM B117 Standard Practice for Operating Salt Spray (Fog) Apparatus," ASTM International, 2021.
5. Underwriters Laboratories, "UL 94 Standard for Safety of Flammability of Plastic Materials for Parts in Devices and Appliances," UL Standards, 2020.
6. International Organization for Standardization, "ISO 9001:2015 Quality Management Systems — Requirements," ISO Central Secretariat, 2015.
