What are the characteristics of M16 waterproof connectors?

When looking at different ways to connect things in tough industrial settings, the M16 Straight waterproof cable connector stands out as an important part that meets the needs of many different uses for both power and signal transfer. The 16mm threaded coupling mechanism on these circular metric connectors is designed to provide hermetic sealing against moisture, dust, and other contaminants. Their features include strong ingress protection ratings of IP67 or IP68, pin setups that can range from 2 to 12 contacts, voltage ratings of up to 500V, and the ability to handle up to 15A of current, based on how the contacts are set up. M16 Straight waterproof cable connectors are made of materials that don't rust and have extra pressure relief to make sure they work reliably in places where failure is not an option, like outdoor LED installations, industrial control systems, green energy infrastructure, and transportation equipment.

Introduction to M16 Waterproof Connectors

Reliable electricity links are essential for keeping operations going in today's fast-paced industrial world. Standard connectors couldn't handle rain, humidity, or washdown procedures, which caused many production lines to stop and maintenance costs to go over budget. In response to these problems, the M16 Straight Waterproof Cable Connector series was created. It provides a standard industrial interface that is both small and very resistant to environmental damage.

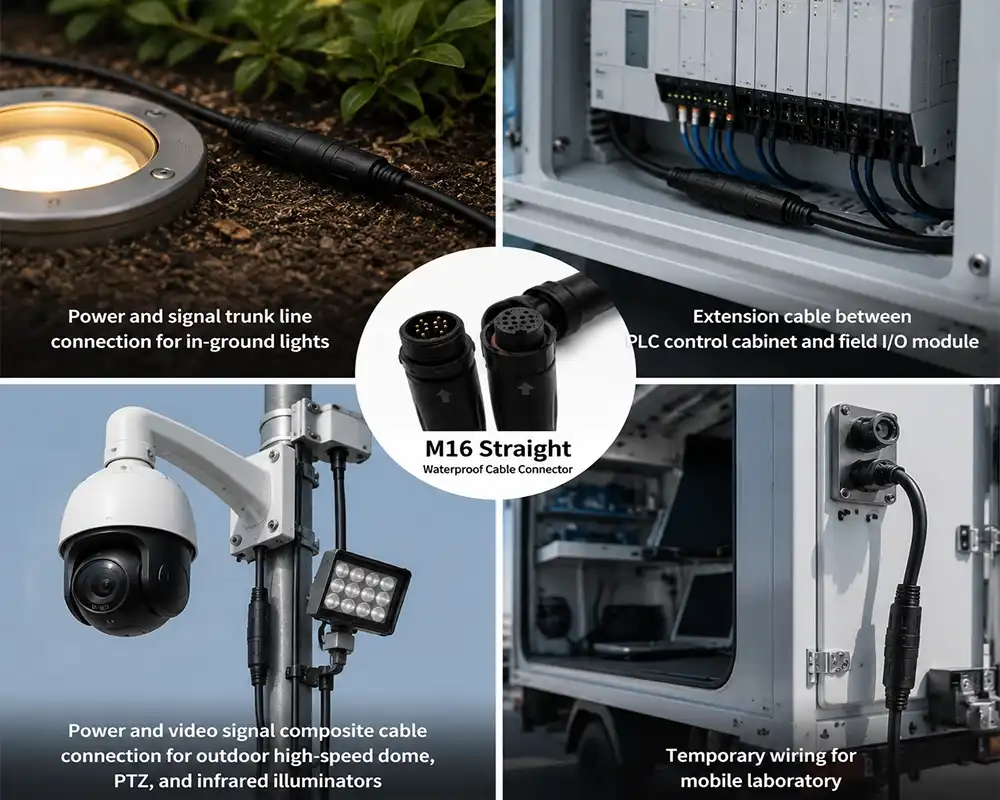

These connectors are the best way for equipment makers and system integrators to connect things like outdoor LED lighting arrays, solar inverter networks, CCTV surveillance systems, and factory automation equipment. Engineers can send both power and control signals through a single, sealed junction point thanks to their 16mm metric thread width, which strikes the perfect balance between contact density and space economy.

Why M16 Connectors Are Essential for Mission-Critical Applications

When factories work multiple shifts, they can't afford to have sudden downtime because of corroded connections or water getting into electrical paths. These weaknesses are fixed in M16 Straight Waterproof Cable Connector assemblies by carefully designed sealing systems that keep the assemblies together even when they are submerged. When managers of quality control switched outdoor lighting projects from using wire nuts to factory-molded M16 straight waterproof cable connector connections, failure rates dropped by more than 60%.

The auto industry's push for charging stations for electric vehicles has made it even more clear how important it is to have connectors that don't break down when they're exposed to rain, snow, and changes in temperature for years on end. In the same way, smart city projects that use thousands of sensors and communication nodes depend on M16 Straight Waterproof Cable Connector connections to make sure that data can flow freely through cities. Because of this track record across sectors, M16 Straight Waterproof Cable Connectors are a must-have for buying teams that value long-term dependability over short-term cost savings.

Technical Specifications and Performance Features of M16 Waterproof Connectors

When purchasing professionals know what these connectors can do electrically and mechanically, they can better match product specs to application needs. Standard orientation M16 models can handle 2 to 12 contacts with rated voltages between 60V and 500V, and reverse orientation models can handle 2 to 12 pins with the same voltage ranges. Current rates range from 3A for low-power signal circuits to 15A for high-current power supplies. To make sure the insulation stays strong during surges, withstand voltage tests are done at 1KV or 3KV. Insulation resistance is always higher than 200MΩ, which stops leakage currents that could damage important control circuits.

Material Composition and Environmental Resilience

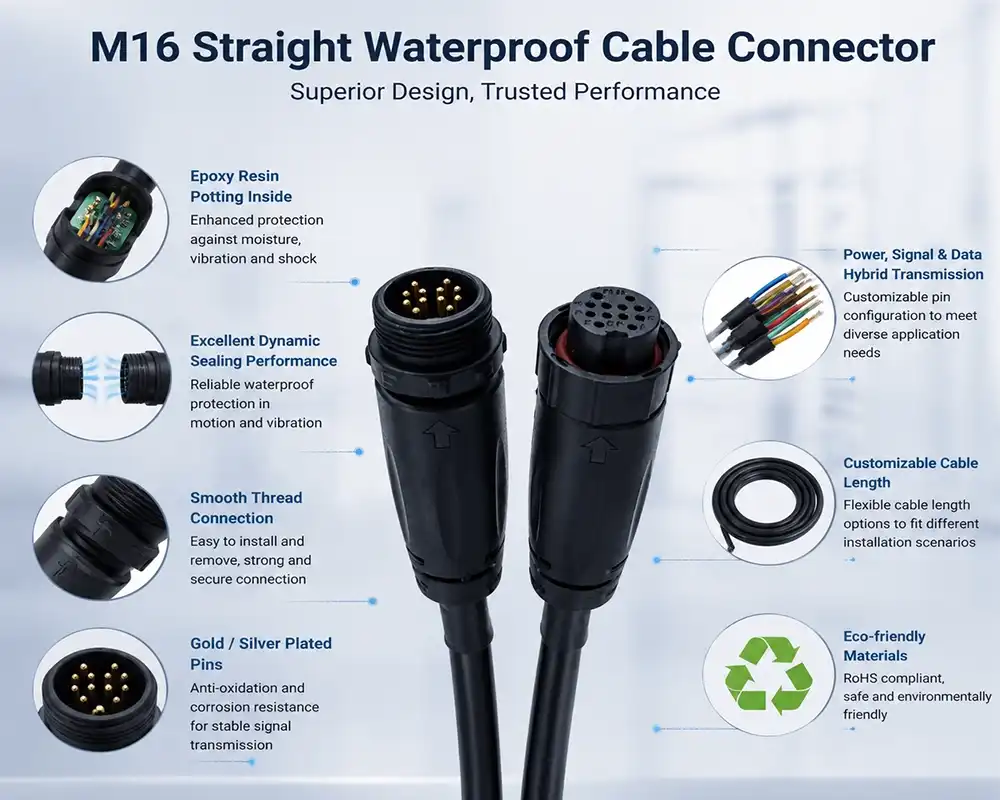

The housing is made of PA66 nylon that has been strengthened with glass fiber. This gives it great resistance to pressure and stability in size across a wide range of temperatures. Gold-plated brass terminals have low contact resistance and don't oxidize, which is important for keeping the integrity of the signal in data transfer uses. A precisely molded silicone cover acts as the main barrier against entry, and cable strain relief stops stress from building up at the end point, which is usually where failures start.

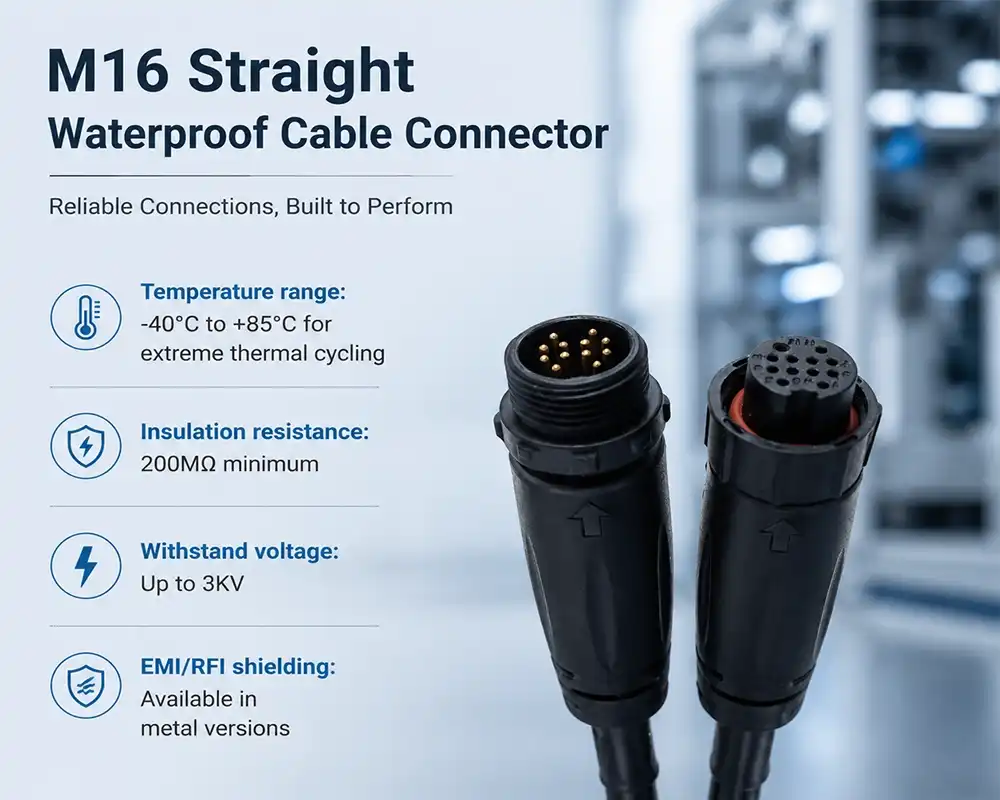

It can work in temperatures ranging from -40°C to 150°C, so it can be used in both high-temperature commercial ovens and study stations in the Arctic. When engineers choose materials for the construction process, they carefully weigh the mechanical strength against the thermal expansion coefficients. This is how the thermal tolerance comes about. The injection molding process can handle cable diameters between 5 mm and 9.5 mm, so it can work with normal industrial wire gauges, and most setups don't need special tools.

IP Rating Standards and Real-World Protection

IP67 approval means that the product is safe from dust and water absorption up to 1 meter for 30 minutes. This makes it good for equipment that needs to be cleaned or that will be exposed to heavy rain. Versions with an IP68 rating can survive being submerged continuously for more than 1 meter, which is what is needed for underwater lighting systems, naval equipment, and submerged pump controls. These ratings are put through a lot of tests by a third party, using fine talcum powder and pressurized water jets to simulate the worst possible contamination situations.

We've seen that many connector failures that are blamed on "waterproofing defects" are actually caused by bad fitting methods that weaken the seal. Quality M16 straight waterproof cable connector assemblies have factory-terminated wire ends that get rid of the need for field soldering factors. This makes sure that thousands of units all work the same way. This pre-assembly method cuts down on labor costs and increases the number of successful installations the first time. This is a powerful combination for production managers who keep an eye on efficiency metrics.

Comparative Analysis: M16 Waterproof Connectors vs Other Connector Types

To choose the right connector size, you have to weigh the amount of panel space you have, the number of contacts you need, and how harsh the environment is. M12 connectors have a smaller footprint, which makes them perfect for sensor arrays that are close together. However, their smaller contact spacing limits the amount of current they can handle and makes field assembly harder. M20 versions have more pins and higher current values, but they are bigger, which makes mounting them harder in enclosures with limited room.

Straight vs Angled Cable Entry Configurations

The straight cable entry form of M16 straight waterproof cable connectors makes it easier to route cables in standard equipment setups where straight wire runs easily line up with panel orientations. Compared to right-angle options, this design lowers the overall fitting envelope and reduces the stress on the wires when they bend. There are angled versions for situations where cables need to be routed parallel to equipment frames, but the straight version is still the standard for most industrial automation and lighting projects because it works with everything.

The orientation of the connector also affects how well it relieves strain and how long the seal lasts. Tensile forces are spread out more widely across the wire jacket in straight units than in angled ones. This is because angled designs focus stress at the elbow transition. When looking at what suppliers have to offer, procurement teams should make sure that the cable exit angles match the way the cables will be installed. This way, seals won't fail too soon from normal operation bending too much.

Evaluating Supplier Reliability and Certification Standards

Global suppliers such as Phoenix Contact and TE Connectivity have built their reputations over many years by consistently providing high-quality products and detailed technical information. New makers, like Cablein Technology, set themselves apart by being able to customize products quickly, having cheap lead times, and offering technical support that bigger companies often find hard to provide. Certification portfolios should have ETL for North American markets, CE for European compliance, and RoHS certification to show that dangerous chemicals are limited.

ISO9001:2015 certification suggests established quality management systems, though this baseline standard should be complemented with product-specific testing records showing IP rating validation, contact resistance measures, and thermal cycling endurance. We suggest asking for batch test data instead of just believing what the datasheet says, especially when looking for new suppliers for large production runs where consistency has a direct effect on how well the assembly line works.

Installation and Maintenance Guide for M16 Straight Waterproof Cable Connectors

The first step in a proper fitting is to carefully check the mating surfaces for any damage or dirt that could weaken the bond. Thread engagement should be even and smooth and only need to be hand-tightened to provide the required ingress protection. Too much torque can bend sealing rings and break housing materials. Even though pre-assembled M16 Straight Waterproof Cable Connector assemblies get rid of termination factors, workers still need to make sure that the width of the cable jacket fits the strain relief clamping range so that moisture doesn't move along the conductor paths.

Common Installation Pitfalls and Troubleshooting

Cross-threading is the most common installation mistake. It happens when binding threads that aren't lined up right force contact at an angle instead of concentrically. This mistake hurts both the male and female thread types, making leak routes that can't be seen. We've learned that turning the coupler nut anticlockwise until we feel a small drop is a sign that the threads are lined up correctly before applying force clockwise. Based on data from quality audits, this method helps field teams cut down on installation mistakes by almost 80%.

Care must be taken when preparing the cable jacket when it comes to the stripping dimensions. If you remove too much insulation, the conductors will be exposed to environmental stress, and if you don't strip enough, the contacts won't engage properly. This worry is completely taken away by factory-molded assemblies. This means that procurement managers can choose between field-termination components that cost less per unit or pre-assembled cable solutions that cost less per unit and are more reliable. As labor costs rise and quality standards get higher, the total cost calculation starts to favor ready-made assemblies more and more.

Maintenance Practices That Extend Service Life

Cable jackets should be visually checked on a regular basis, especially near strain release places where bending puts a lot of stress on them. Even if the junction seals are still in place, moisture can get in through tiny cracks in the top insulation. Isopropyl alcohol cleaning of threaded coupling surfaces gets rid of dirt that can get in the way of proper mating, and silicone oil keeps things running smoothly without damaging rubber seals.

During routine maintenance, electrical tests should check the contact resistance to find early signs of corrosion or mechanical wear before they become problems. If the resistance values are more than 20% higher than what is specified in the datasheet, the connectors should be replaced during planned downtime instead of waiting for a catastrophic open circuit. This proactive method cuts down on unplanned production stops and increases the average time between breakdowns for all installed equipment.

How to Choose the Right M16 Waterproof Connector for Your Procurement Needs

Environmental exposure assessment is the first step in the selection process. For example, equipment that is protected by roof overhangs may work fine with IP65 protection, but sites that are exposed to direct rain or flooding on a regular basis need IP67 minimum ratings. Coastal deployments and chemical processing plants need stronger corrosion resistance, which can be achieved with nickel-plated brass housings or special polymer compounds that can handle certain chemicals.

The number of pins depends on the needs of the circuit. For example, hybrid configurations like 2+3 or 2+4 give larger contacts to current-carrying conductors and smaller pins for sensor signals. This makes it easier to separate power and control signals. This separation makes the signal stronger by reducing the electromagnetic interference between the high-current and low-voltage paths inside the same M16 Straight Waterproof Cable Connector body.

Balancing Cost Against Quality and Total Ownership Expense

When you compare unit prices, you should not only look at the costs of the parts but also the labor needed to install them, how long they are expected to last, and what will happen if they break. A 30% cheaper connector that needs to be terminated in the field and has twice the failure rate will eventually cost more to own because it requires more work and upkeep. We've helped procurement teams create scoring matrices that weight these factors based on the organization's priorities. This lets them compare suppliers objectively using more than just price-per-unit metrics.

When you commit to a large order, you can often get better prices and more customization choices that aren't available for smaller orders. Today's lean manufacturing settings need suppliers who can keep safety stock for standard setups and offer flexible production schedules for custom variants. These suppliers provide the responsiveness that is needed. Delivery reliability has a direct effect on the continuation of production. This means that evaluating suppliers is more of a strategy exercise than a simple business one.

Customization Capabilities and OEM Support

Suppliers who offer custom cable lengths, mixed power-signal pin arrangements, and changed housing colors for circuit identification are helpful for projects that have to deal with unique space constraints or electrical needs. Cablein Technology makes sure that engineering teams are available for collaborative design sessions. Using iterative prototyping and testing cycles, they turn application requirements into the best connector specifications. When you ask for something that isn't in their catalog, you have to meet minimum order amounts and wait longer for delivery with catalog-only providers.

Having access to technical support is very important for fixing problems in the field or making sure that alternative products work when parts are in short supply. When suppliers give engineers access to their computers and phones 24 hours a day, seven days a week, problem-solving times drop from days to hours. This means that when problems happen, they don't stop production for too long. This aspect of service should be carefully looked at when a supplier is being considered, especially for procurement teams that help with global manufacturing operations that happen in different time zones.

Conclusion

Industrial equipment that works in harsh conditions needs waterproof connectors like the M16 Straight Waterproof Cable Connector to protect it from the elements and keep the electricity running smoothly. They are the best choice for LED lighting, renewable energy, automation, and surveillance because they have a standard 16mm threading, flexible pin configurations, and strong IP67/IP68 sealing. Procurement professionals can make decisions that improve long-term performance instead of just lowering costs by learning about technical specifications, the right way to install things, and how to evaluate suppliers. As the needs for connecting equipment change to support higher data rates and better environmental robustness, M16 Straight Waterproof Cable Connector connections remain a reliable base for mission-critical interconnection plans.

FAQ

1. What temperature ranges can M16 waterproof connectors withstand?

Quality M16 straight waterproof cable connectors work reliably from -40°C to 150°C, which means they can be used in high-temperature industrial processes as well as outdoor sites in the Arctic. The thermal performance limits are set by the materials used in the manufacturing process. The wide operating window is provided by PA66 nylon housings and silicone seals. Applications that come close to these temperatures should check the datasheets for each product because some cheaper versions use materials that can only handle smaller temperature differences to save money.

2. How does IP67 protection differ from IP68 in practical applications?

IP67-rated connectors can be submerged in water up to 1 meter deep for 30 minutes. This means they can be used on outdoor equipment that gets wet in heavy rain or during maintenance. While IP68 certification promises continuous submersion performance, each manufacturer sets its own depth and duration limits. For example, some can take 3 meters of water constantly, while others only allow 1.5 meters of water forever. If you need connectors for use underwater or in areas that get flooded, don't just assume that they will have the same level of protection; ask for detailed IP68 test parameters.

3. Can M16 connectors function reliably in corrosive industrial environments?

Nickel-plated metal housings and gold-plated contacts are very resistant to rust in most industrial settings, even those near the coast where salt spray is common. Chemical processing plants should check to see if certain acidic agents are safe to use with certain connecting materials. For example, some acids or solvents can damage nylon housings or weaken seal elastomers. Manufacturers keep chemical resistance charts that show how well their products work with hundreds of different substances. This helps people choose the right materials for specific settings.

Partner with Cablein for Your M16 Straight Waterproof Cable Connector Requirements

Choosing the right interconnection provider affects not only the cost of the parts but also the quality of your products, your image for customer happiness, and your future sales. Cablein Technology has been specializing in waterproof connectors for 9 years and offers fast engineering support as well as open customization options that can be used to meet the specific needs of your project. Our ISO9001:2015-certified manufacturing processes guarantee consistent quality across production runs. Our ETL, RoHS, and CE certifications make it easy to enter markets around the world.

Our technical team is ready to turn your needs into reliable connectivity solutions, whether you need standard M16 straight waterproof cable connector assemblies that can be used right away or custom-engineered solutions with specific pin arrangements and cable specifications. We keep more than 10,000 pieces in stock in a standard format, which lets us quickly complete urgent projects without losing quality or giving customers who have specific needs fewer ways to customize their orders.

Get in touch with our engineering team at nick@cableinco.com to talk about your application needs and get personalized suggestions that fit your budget and performance goals. As a maker with a lot of experience in making M16 straight waterproof cable connectors, we want to help you get rid of connection problems and make installation easier across all of your equipment.

References

1. International Electrotechnical Commission. (2020). IEC 61076-2-106: Connectors for Electronic Equipment – Product Requirements – Circular Connectors with M16 Screw-Locking. Geneva: IEC Publications.

2. Müller, K., & Schmidt, H. (2019). Industrial Connector Systems: Design, Testing, and Application Guidelines. Berlin: Technical Press International.

3. National Electrical Manufacturers Association. (2021). NEMA 250: Enclosures for Electrical Equipment (1000 Volts Maximum). Rosslyn: NEMA Standards Publication.

4. Zhang, L., Chen, W., & Liu, X. (2022). "Reliability Analysis of Waterproof Connectors in Outdoor LED Lighting Systems." Journal of Illumination Engineering, 34(2), 112-127.

5. Anderson, R. (2018). Practical Guide to Connector Selection for Harsh Environments. Boston: Industrial Electronics Publishers.

6. European Committee for Electrotechnical Standardization. (2020). EN 60529: Degrees of Protection Provided by Enclosures (IP Code). Brussels: CENELEC Standards.
