What are the advantages of quick clamp cable connectors?
Quick-clamp cable connectors solve three important problems that procurement teams have to deal with: how fast to install, how efficiently to use labor, and how reliably to be in harsh environments for a long time. The QC12 straight quick clamp waterproof cable connector is unique because it has a locking device that can be turned a quarter of the way around. This makes connections safe in seconds without the need for special tools. Compared to traditional screw connections, this new invention cuts installation time in the field by up to 70%. Its IP67/IP68-rated silicone closing keeps out dust and moisture. When operations managers have to balance tight project schedules with limited budgets, these connectors save them money because they require less installation labor and less maintenance over the course of their useful life.
Understanding Quick Clamp Cable Connectors
The way cables are connected has changed a lot since the days when every joint had to be made with soldering irons, wire strippers, and careful control of the torque. Quick clamp technology came about because workers had a hard time installing things in the field because of bad weather, limited room, and the risk that bad connections would break the system.
How Quick Clamp Mechanisms Work
The quick clamp has an internal mechanism with a spring that grabs the cable jacket when it is turned into the locked position. Unlike screw-type connections that need to be rotated several times and torqued precisely, this system only needs to be turned a quarter of the way to secure it. The QC12 Straight Quick Clamp Waterproof Cable Connector has a straight-through design that keeps the contact pressure constant across gold-plated brass pins. This keeps the electrical conductivity fixed even after more than 500 mating rounds.
Advantages Over Traditional Connection Methods
To use traditional connectors correctly, you have to carefully prepare them by cutting the insulation to the right lengths, making sure not to damage the strands, using the right terminal crimps, and checking the torque specifications. Each step adds a chance for human error. With quick clamp connectors, these issues are taken care of. Installers just put the ready-made cable in until it hits the internal stop and then turn the locking collar until it clicks into place. This repeated process keeps the quality of the link the same no matter how skilled the technicians are, which is a big problem for quality management teams that are looking at how consistent suppliers are.

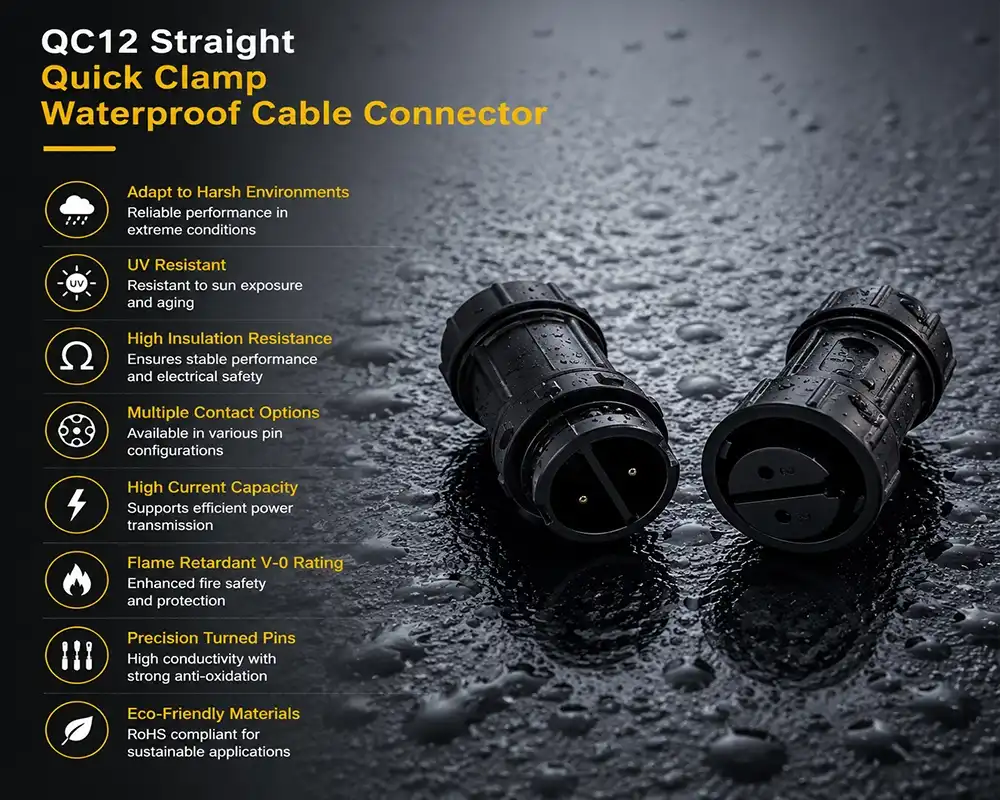

Design Features That Matter
When there isn't much room in an installation, the straight shape of waterproof quick clamp connections is helpful. The inline design lets connections sit flush against mounting surfaces when running cables through conduit systems or equipment panels that don't have a lot of room for them to move. The QC12 Straight Quick Clamp Waterproof Cable Connector's small body profile, which is best for cable diameters between 2 and 9 mm, lets it fit into tight spaces where bigger connector housings would need to be redesigned or extra mounting hardware would need to be bought.
Key Advantages of Quick Clamp Cable Connectors
Connection solutions that work consistently in industrial settings are needed to help reach operational efficiency goals. Quick clamp technology makes performance better in a number of different ways that can be measured.
Dramatic Installation Time Reduction
Comparing installation times for LED lighting projects and industrial automation projects in the field changes how projects are planned. It takes about three to five minutes to connect a standard screw terminal connector, which includes getting the wire ready, inserting the terminal, tightening the screw, and trying to make sure the connection works. This takes less than 60 seconds thanks to the quarter-turn mechanism. When working on projects with hundreds of connection spots, this speed saves days of labor time and helps the project finish faster. Because the QC12 Straight Quick Clamp Waterproof Cable Connector doesn't need any tools to work, technicians don't have to carry as many things to job sites and can work safely at heights or in small spaces without having to worry about power tools. This streamlined process cuts down on the time needed to train new team members and lowers the chance that dropped tools will damage sensitive equipment.
Superior Environmental Protection
In open uses, moisture still gets into connectors and makes them fail. For weatherproofing, traditional joining methods use heat shrink tube or electrical tape, but these materials break down when exposed to UV light and changes in temperature. A multi-layer sealing system built into the QC12 Straight Quick Clamp Waterproof Cable Connector protects the environment from the inside out. When the clamp is tightened, the silicone sealing ring presses against both the wire jacket and the connection housing. This makes a barrier that meets IP67 and IP68 standards. Protocols for testing this protection include long-term immersion tests and exposure to high-pressure water washing. The PA66 nylon housing material doesn't break down when exposed to UV light, and it stays structurally sound from -40°C to 105°C, which is the full working temperature range. These environmental features have a direct effect on the total cost of ownership by preventing premature replacement cycles. For example, solar energy system installations in the desert or EV charging stations in the north have to deal with harsh winters.
Enhanced Mechanical Stability
Over time, vibration and mechanical stress can make traditional connectors loosen. This is especially true in rail transit and industrial automation settings. The QC12 Straight Quick Clamp Waterproof Cable Connector's internal spring system keeps the contact pressure constant even when the equipment expands and contracts due to temperature changes, vibrations, and accidental hits. This feature that stops vibrations works well for long-lasting motion control systems and robotics uses, where broken connectors can stop whole production lines. The gold-plated contact surfaces don't rust and keep their low contact resistance below 5mΩ for the life of the connection. In sensor systems and control circuits, where signal integrity affects how well measurements are made and how quickly the system responds, this steadiness is important.
Versatile Application Compatibility
Rather than needing different parts for each application, procurement teams like options that can be used for a variety of projects. Because their basic design meets universal needs for reliable power delivery, environmental protection, and easy installation, quick clamp waterproof connectors are used in many fields. Manufacturers of LED displays build these connectors into modular panels. The size of the installation crew and the length of the project depend on how quickly the panels can be put together in the field. When installing cameras outside, where they will be exposed to rain and extreme temperatures, security system operators rely on the waterproof grade. Agricultural lighting projects gain from the resistance to rust when used in greenhouses with a lot of moisture and fertilizer.
QC12 Straight Quick Clamp Waterproof Cable Connector—A Closer Look
The choice of materials and the accuracy with which they are made are what separate reliable connectors from those that fail in the field or cause warranty claims.
Material Engineering and Construction Quality
The QC12 Straight Quick Clamp Waterproof Cable Connector is made of specialized plastics and metal alloys that were picked for their performance in harsh environments. The body of the connection is made of PA66 nylon, a thermoplastic that is known for being very strong and resistant to chemicals. This material stays the same size over a wide range of temperatures and doesn't break down when exposed to oils, solvents, and cleaning chemicals that are common in industrial settings. The UL94-V0 flame retardant rating makes sure that the material goes out on its own if it comes into contact with a source of ignition. This meets safety standards for installations of enclosed equipment. Gold plating is applied to brass contact pins to improve their conductivity and stop them from rusting. Tin or nickel finishing are cheaper options, but gold works better in situations where connections need to be made and disconnected often or where it will be exposed to corrosive atmospheres. The rated current capacity of 8A for power circuits and 3A for secondary circuits can handle the power needs of most LED driver outputs and sensors.

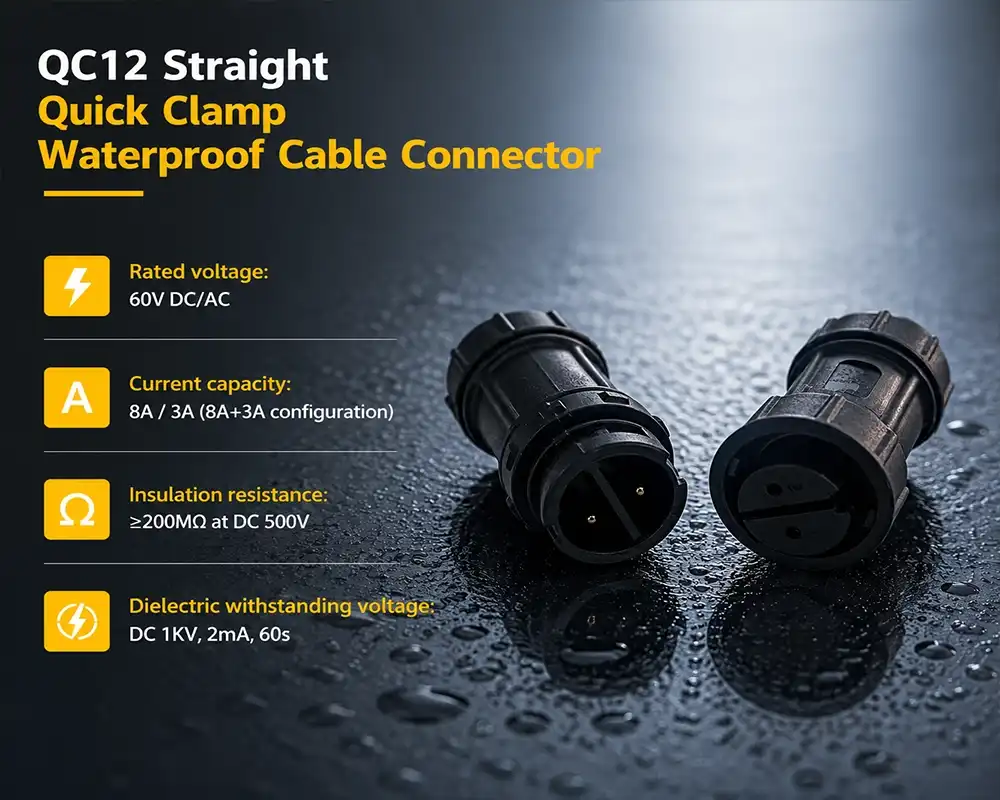

Technical Specifications and Performance Parameters
With a maximum voltage of 60V DC/AC, the QC12 Straight Quick Clamp Waterproof Cable Connector is perfect for low-voltage uses like LED lights, security systems, and industrial controls. The dielectric that can withstand a voltage of 1KV DC has strong insulation that keeps it from breaking down during voltage changes or surges. Insulation resistance greater than 200MΩ at 500V test voltage proves that the connector keeps the electricity from flowing, even when it's wet and surface contamination could make leakage paths. Standardized methods are used in testing procedures to make sure that these requirements are met. Exposure to salt spray mimics corrosion in a coastal environment over shorter periods of time. Thermal cycling between very high and very low temperatures shows whether a material or seal is wearing out or breaking down. Mating cycle testing with 500 or more operations makes sure that the quick clamp device keeps its holding power and electrical connection for as long as the product is supposed to last.
Customization Options for Project-Specific Requirements
Standard catalogue items can be used for many things, but custom solutions are often needed for unique projects. The QC12 Straight Quick Clamp Waterproof Cable Connector platform lets you make changes in a lot of different ways. The lengths of cables range from small 300 mm units for wiring inside equipment to long 10 meter runs for outdoor installations that go across building surfaces or connect solar panels. Pin configuration flexibility lets you meet needs for both power and signal. In a normal setup, there might be more than one power pin for extra current paths, as well as signal pins for controlling or monitoring tasks. Custom wire colors make it easier to check the installation and fix problems during upkeep by letting you use color-coding that fits project paperwork or building wiring standards. Manufacturing with ISO9001:2015 quality management gives you the control over the process you need for consistent custom production. CE and RoHS licenses show that a product meets international safety standards and limits on materials. This helps companies that want to sell or projects that need to get approval from regional regulators.
Installation and Maintenance of QC12 Quick Clamp Connectors
When you install a connector correctly, it works better and lasts longer. While the quick clamp design makes connecting easier, making sure you pay attention to the little things before you connect will ensure the best results.
Step-by-Step Installation Guidelines
To prepare a cable, you should first make a clean cut with the right cable shears instead of a knife blade, which could damage the conductor strands. The overmolded cable design of pre-assembled QC12 Straight Quick Clamp waterproof cable connectors completely removes field termination. However, when fitting connectors onto existing cables, it is important to stay within the manufacturer's recommended cable diameter range to ensure proper seal compression. Put the wire into the body of the connector until it hits the internal stop. This seating depth makes sure that the wires fully connect with the contact pins and places the cable jacket in the compression zone of the closing ring. The locking collar should be turned in the direction shown by the molded arrows, which is usually a quarter turn clockwise. A clear click and an alignment mark on the screen show that the position is locked. The mechanical and electrical link is finished with this two-step process: enter and twist.
Routine Inspection and Long-Term Maintenance
Even though the QC12 Straight Quick Clamp Waterproof Cable Connector is built to last, it needs to be inspected on a regular basis to make sure it stays reliable in critical situations. Visual checks should be done at regular maintenance times to make sure the locking collar stays in place and there is no damage to the connector housing that can be seen. When working in places with a lot of dust, using compressed air or soft brushes to clean gently gets rid of buildup that could damage the seal interface over time. For uses that will be submerged in water or buried directly, you may want to take extra precautions in addition to the connector's IP68 grade. Putting the connection point in a junction box or adding more sealing protects it from long-term submersion forces or acidic soil. In the toughest setups, these extra protections make service intervals longer and replacement rounds less often.
Procurement Insights for QC12 Quick Clamp Cable Connectors
Decisions in the supply chain aren't just about unit price; they also affect delivery reliability, the quality of technical support, and the value of a long-term partnership. When judging potential suppliers, you need to look at more than one aspect of their ability and commitment.
Sourcing Channels and Supplier Selection
If you need to manage a lot of connectors or need help with customization, buying directly from the manufacturer has a lot of benefits. Working directly with the source of production gives you access to technical tools that can help you with application advice and the creation of custom designs. When there are fewer middlemen in the delivery chain, lead times are often shorter for big orders. It's easier to plan for inventory access when you buy from makers who keep standard product lines in stock. Authorized distributors help buyers who want to access local inventory and buy more than one type of component at once. Most of the time, distribution partners keep common configurations in stock so that they can deliver the same day or the next, meeting urgent project needs or replacing items that have broken down.
Evaluation Criteria for Confident Purchasing
Verification of certification documents for the QC12 Straight Quick Clamp Waterproof Cable Connector should happen before a purchase is made. Ask for copies of the CE, RoHS, and ETL certificates that are needed for the markets you want to reach. Check to see if the testing lab is licensed, and make sure the certificate covers the exact type and setup of the product being bought. Certification of a quality management system to ISO9001 means that process controls have been set up to ensure regular output quality. The details of a warranty show how confident a supplier is in the quality of their goods. Industrial connectors usually come with warranties that last between 12 and 24 months. Longer warranties or performance promises are a sign of better manufacturing quality and choice of materials. How quickly after-sales support responds is important for answering technical questions that come up during installation or when fixing problems that come up out of the blue in the field.
Total Cost Analysis Beyond Purchase Price
The unit price is only one part of the real cost of acquisition. For large projects, the cost of installation labor often goes over the cost of the parts. A more expensive connection that cuts installation time in half is better for the overall cost of the job than a cheaper option that needs to be put together the old-fashioned way. Long-term costs are affected by reliability through the number of replacements and unexpected repair tasks. It has been tried over 500 mating rounds and has been shown to be resistant to environmental damage. This makes it less likely that the QC12 Straight Quick Clamp Waterproof Cable Connector will fail in the field, needing a technician to be sent out and causing the system to go down. This reliability value makes it worth buying tried-and-true parts over ones that haven't been tested in important infrastructure situations where a connection failure could threaten safety or processes that make money.
Conclusion
Industrial connectivity solutions have come a long way thanks to quick-clamp waterproof cable connectors. Quick installation, strong environmental protection, and mechanical dependability are all important factors that are taken into account in projects related to LED lights, green energy, industrial automation, and security infrastructure. The QC12 Straight Quick Clamp Waterproof Cable Connector is a great example of these benefits because it is made of engineered materials, has performance specs that have been proven, and can be customized to fit the needs of each project. When procurement workers are looking at connection options, they shouldn't just look at the prices of the parts. They should also look at the total ownership costs, which include installation labor, maintenance frequency, and system reliability. Looking at things from every angle shows how valuable good quick clamp connectors are over the course of their useful life.
FAQ
1. What makes quick clamp connectors faster than traditional types?
You don't need screwdrivers, torque wrenches, or crimping tools because of the quarter-turn closing device. Installers only need to put the cable in and rotate the collar to make a secure, waterproof connection. This takes less than a minute, while screw terminals or solder joints take several minutes.
2. Can the QC12 handle extreme temperature conditions?
The temperature range of -40°C to 105°C is wide enough to cover most indoor and outdoor uses. The PA66 nylon housing and silicone sealing materials keep their mechanical features and sealing efficiency throughout this temperature range. This means that the QC12 Straight Quick Clamp Waterproof Cable Connector can be used in both cold places like the Arctic and hot engine areas.
3. How does an IP67 rating compare to an IP68 for waterproofing?
If something is certified IP67, it means it can be submerged in water for 30 minutes at a depth of 1 meter. IP68 makes this safety last longer when submerged in water for longer periods of time. Both ratings make sure that no dust can get in at all. Because the QC12 Straight Quick Clamp Waterproof Cable Connector comes in two grades, it can be chosen based on the exposure conditions of a specific application.
4. Is the quick clamp connection reliable in high-vibration environments?
Even when there is vibration and mechanical shock, the internal spring mechanism keeps the contact pressure constant. Tests show that the electrical performance is stable in train transit and industrial automation settings, where constant vibration would normally make connections loosen over time.
Experience Reliable Connectivity with Cablein
Cablein Technology offers waterproof interconnection options that have been tried and tested, backed by nine years of production experience and full certification compliance. With ISO9001:2015 quality management and CE, RoHS, and TUV certifications, our QC12 Straight Quick Clamp Waterproof Cable Connector makes installation quick and safe for the environment—just what your projects need. We make sure that your project schedules stay on track by keeping an inventory of more than 10,000 pieces per configuration and delivering them within 7–10 days. Our engineering team is available 24 hours a day to help with application questions and creating custom configurations that meet specific installation needs and performance standards. You can email our experts at nick@cableinco.com to talk about your volume needs, get technical information, or ask for samples to test and evaluate. As a well-known company that makes QC12 Straight Quick Clamp Waterproof Cable Connectors, we help business-to-business buyers by offering flexible customization, quick contact, and competitive prices to build long-term relationships.
