Can LP16 USB Type-C Waterproof Connectors Support Fast Charging?

The short answer is yes. The LP16 USB Type-C waterproof connector is engineered to handle USB Power Delivery at up to 20V/3A (DC), making it fully compatible with modern fast charging protocols. Its gold-plated copper alloy contacts maintain contact resistance below 30mΩ, which preserves the electrical efficiency that fast charging demands. Unlike standard consumer USB-C ports, this industrial-grade panel-mount connector achieves IP67/IP68 sealing without sacrificing power throughput — a critical advantage for procurement teams sourcing connectivity solutions for outdoor, mobile, or high-humidity environments.

Understanding LP16 USB Type-C Waterproof Connectors and Fast Charging Fundamentals

What Sets the LP16 Apart from Standard USB-C Connectors?

Standard USB-C ports were designed for controlled indoor environments. The LP16 USB Type-C waterproof connector brings that same interface into industrial reality. Its panel-mount feed-through design creates a fixed, watertight pass-through point within equipment enclosures, allowing cable connections from both sides of the panel through a female-to-female configuration. The snap-lock bayonet coupling holds the mating secure under vibration — something a standard friction-fit USB-C port simply cannot guarantee.

How Fast Charging Works Through a Waterproof Interface

Fast charging protocols like USB Power Delivery (PD), Programmable Power Supply (PPS), and Qualcomm Quick Charge (QC) depend on stable, low-resistance electrical pathways to negotiate and sustain elevated voltage and current levels. Any degradation in contact quality — caused by corrosion, moisture ingress, or mechanical wear — can interrupt the power negotiation handshake and throttle charging speed. The LP16 addresses this directly. Its gold-plated contacts resist oxidation, and its IP67/IP68-rated sealing keeps moisture entirely outside the enclosure. The result is a connector that maintains the electrical integrity required for consistent fast charging in demanding field conditions USB Implementers Forum, 2023].

Performance and Durability of LP16 Waterproof Connectors in Fast Charging

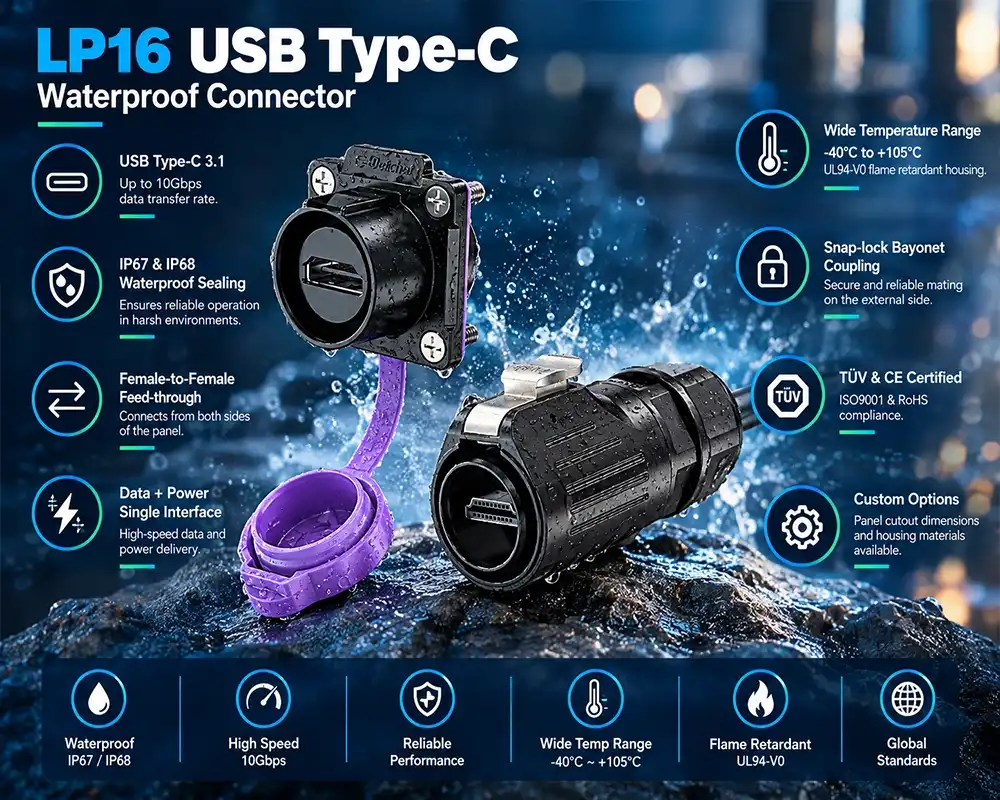

Technical Specifications That Matter to Engineers

Here are the core electrical and mechanical parameters procurement engineers should evaluate for the LP16 USB Type-C waterproof connector:

• Rated current: 3A at DC 20V, supporting USB PD up to 100W when paired with appropriate cable assemblies
• Contact resistance: ≤30mΩ, ensuring minimal energy loss during high-power transmission
• Data transfer speed: Up to 10Gbps (USB 3.1 Gen 2), supporting simultaneous power and data over a single interface
• Operating temperature: -40℃ to +105℃, validated for both arctic-rated outdoor equipment and high-heat industrial enclosures
• Mating cycle durability: 1,700+ cycles, significantly exceeding typical commercial USB-C specifications
• Housing: UL94-V0 flame-retardant PBT plastic with zinc alloy shell and pearl hard chrome plating

These specifications collectively confirm that the LP16 does not compromise electrical performance to achieve waterproofing — both coexist by design. Connectors deployed in EV charging stations and solar energy monitoring systems face continuous thermal cycling alongside moisture exposure. The LP16's -40℃ to +105℃ range directly addresses those conditions, while its EMI/EMC shielding maintains signal integrity in electrically noisy environments such as inverter enclosures or motor control cabinets.

Durability Validated Through Industry-Standard Testing

Quality assurance for the LP16 follows a rigorous multi-stage process. IP67/IP68 immersion tests verify seal integrity under pressure. Salt spray corrosion testing — conducted at standard 48-hour or extended 96-hour cycles — confirms the longevity of metallic components in coastal and marine deployments. Vibration and shock resistance testing per IEC 60068-2-6 simulates industrial machinery stress. Dielectric withstanding voltage and insulation resistance tests validate electrical safety margins. Every batch undergoes 100% waterproof performance inspection before shipment, which directly addresses the quality consistency concerns most QA managers raise during supplier evaluation.

Comparing LP16 USB Type-C Waterproof Connectors with Other Solutions

LP16 vs. Standard USB-C vs. LP20: A Practical Assessment

Purchasing departments often want to know how the LP16 USB Type-C waterproof connectors stack up against other USB-C options with a standard panel mount or bigger options like the LP20 series. The difference is not academic, but rather real. Most standard panel-mount USB-C ports from consumer-grade brands only offer IP54 or IP55 protection. Since they don't have bayonet locking, vibrations that happen a lot in places like rail transit, industrial automation, and outdoor infrastructure can really cause them to disconnect. The LP16 is protected by IP67/IP68 standards and has a mechanical closing system that lets you know when it's properly connected with a click.

The LP20 line is good for uses that need more pins or thicker wire gauges. On the other hand, the LP16 is designed to work best with the USB-C form factor. It keeps the full high-density pin configuration of the USB Type-C standard while adding protection that is strong enough for industrial use. When USB-C protocol compatibility is a must, like in EV charging interfaces, smart city sensor nodes, or stadium display controllers, the LP16 is the perfect combination of small size, protection, and power [IPC/WHMA-A-620, 2022]. Customization choices for OEMs, such as different housing materials and panel cutout sizes, make the LP16 more useful for unique projects where standard specs don't work with current enclosure designs.

Procurement Insights: How to Source LP16 Connectors for Fast Charging Projects?

What B2B Buyers Should Verify Before Placing an Order

If you don't check the certification and supply chain security before buying industrial connectors for fast charging uses, you could end up with a bad purchase. The LP16 carries TUV and CE certifications for ISO9001 and RoHS compliance, which means it meets the requirements for most US and European market entries. For buyers who want to sell, RoHS and REACH compliance is already built into the standard. Cablein keeps a steady stock of 10,000 or more of each item and delivers normally in 7–10 days. Custom orders, such as private mold development for unique panel cuts, can be planned in a way that fits the needs of the project. The total cost of ownership for procurement teams in charge of large-scale deployments is lower when they can buy in bulk, get OEM/ODM support, and make prototypes quickly. To get detailed datasheets and quotes, buyers can email the research team at nick@cableinco.com or go to connectorswaterproof.com.

Installation and Maintenance Tips for Maximizing Fast Charging Performance

Correct Installation Prevents Most Field Failures

Most field failures can be avoided with proper installation. Lots of connector field failures happen because the parts weren't installed correctly, even when the parts are good. The LP16's bayonet coupling method lets you operate it with one hand and no tools, which makes installation easier in tight areas. Before closing the enclosure, technicians should make sure that the bayonet click is fully engaged. To keep the IP security on both sides, the female-to-female feed-through must be lined up flush with the panel surface to maintain IP integrity.

Routine maintenance should include quarterly visual inspection of the sealing ring for deformation or cracking, especially in high-UV outdoor deployments. The PBT housing resists chemical degradation from industrial fluids, but contact surfaces benefit from periodic cleaning with isopropyl alcohol to prevent oxidation buildup. If fast charging speed drops suddenly in the field, the first diagnostic step is measuring contact resistance. Any reading above 30mΩ indicates that the seal has been compromised or the contacts have worn down, which means that the connector needs to be replaced USB Implementers Forum, 2023].

Conclusion

The LP16 USB Type-C waterproof connector really supports fast charging without giving up the environmental protection that industrial uses need. Because it can handle 3A/20V of electricity, has a contact resistance of less than 30mΩ, and is sealed to IP67/IP68 standards, it is a good choice for EV charging ports, outdoor LED systems, solar monitoring equipment, and industrial automation enclosures. Certifications like TUV, CE, ISO9001, and RoHS make it easier to meet safety standards for use in the US and other countries. The LP16 is a well-tested option that procurement teams should consider when they need to balance technical performance, supply stability, and total cost of ownership.

FAQ

Does the LP16 support USB Power Delivery (PD) fast charging?

Yes. The connector is rated at 3A/DC 20V, supporting USB PD protocols. When paired with a compliant cable and host device, it sustains the power negotiation required for fast charging without voltage drop caused by contact resistance.

What is the difference between the IP67 and IP68 versions?

The IP67 version protects against temporary immersion up to 1 meter for 30 minutes. The IP68 version is customized for continuous underwater operation at specified depths, suited for marine sensors and submerged equipment enclosures.

Can a standard USB-C cable work with the LP16 socket?

The internal interface is standard USB-C. However, achieving the full IP67/IP68 waterproof rating requires the matching LP16 series plug, as the sealing mechanism is integral to the mating pair.

How does the bayonet lock perform under vibration?

The bayonet system provides a physical click-lock that resists loosening under mechanical vibration, unlike standard friction-fit USB-C ports. This is validated through IEC 60068-2-6 vibration and shock resistance testing.

Is the LP16 suitable for outdoor UV exposure?

Yes. The PBT plastic housing is UV-stabilized for long-term outdoor exposure, preventing the brittleness and cracking that degrade unprotected connector housings over time.

Partner With Cablein for Your LP16 USB Type-C Waterproof Connector Supply

Cablein brings 9 years of industrial connector engineering to every project. As a verified LP16 USB Type-C waterproof connector manufacturer, we offer TUV/CE-certified products, OEM customization, stable inventory, and 7–10 day standard delivery. Our engineering team responds within 24 hours to technical inquiries. contact us at nick@cableinco.com or explore product datasheets at connectorswaterproof.com to advance your procurement project today.

References

1. USB Implementers Forum. USB Power Delivery Specification Revision 3.1 (2023). USB-IF.

2. IEC. IEC 60068-2-6: Environmental Testing – Vibration (Sinusoidal) (2007). International Electrotechnical Commission.

3. IEC. IEC 61984: Connectors – Safety Requirements and Tests (2021). International Electrotechnical Commission.

4. IPC/WHMA. IPC/WHMA-A-620D: Requirements and Acceptance for Cable and Wire Harness Assemblies (2022). IPC.

5. USB Implementers Forum. USB Type-C Cable and Connector Specification Release 2.1 (2023). USB-IF.

6. RoHS Directive. Directive 2011/65/EU on the Restriction of Hazardous Substances in Electrical and Electronic Equipment. European Parliament (2011, amended 2015).
