What are the common applications for M12 waterproof connectors?

M12 waterproof connectors are small, round interconnect solutions that are known all over the world for keeping links strong and protected in places where dust, water, and physical stress can affect how well equipment works. These connections are used in a lot of different areas, such as security tracking networks, outdoor LED lighting installations, transportation infrastructure, and industrial automation. Their IP67 and IP68 ratings for ingress protection make sure they work reliably even when they are hit with water jets, submerged for a short time, or in harsh weather. This makes them essential for modern B2B applications that need stable connectivity without downtime or expensive maintenance.

Understanding M12 Waterproof Connectors

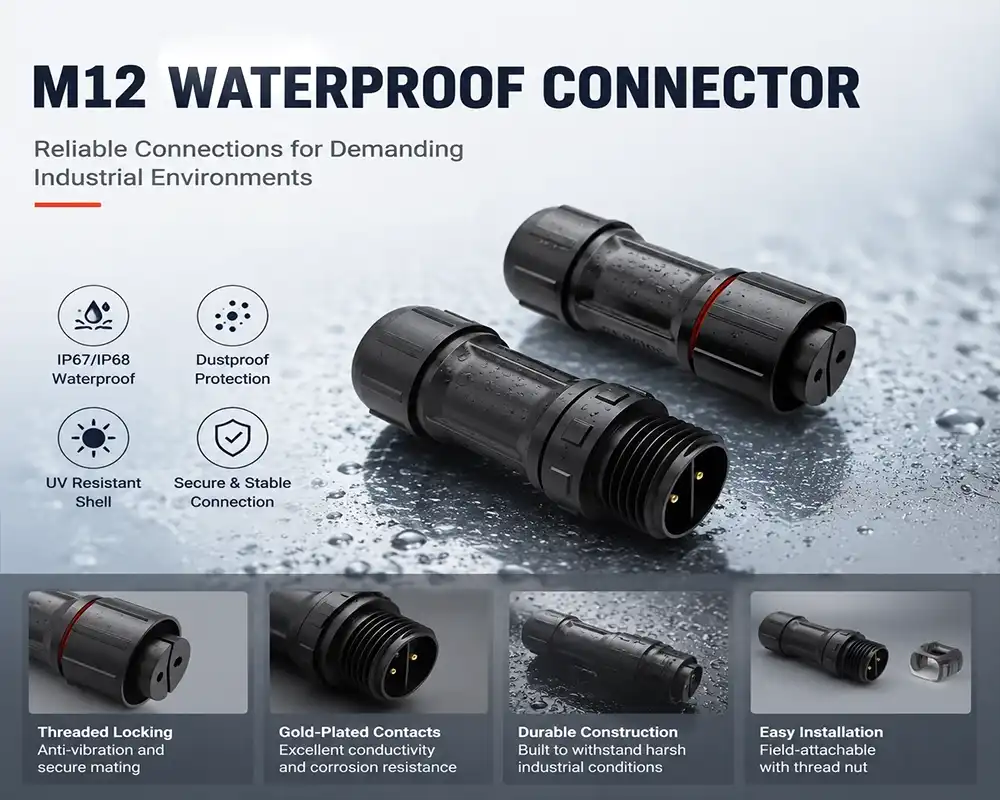

M12 waterproof connectors are a standard circular interconnect system that can be identified by their 12mm metric locking thread. They are made to work consistently when other connectors don't. In contrast to simple electrical connections, these specialized parts have highly designed sealing systems and long-lasting materials that don't break down in harsh environments.

What Defines an M12 Waterproof Connector

What makes a connection unique is its ability to keep its electrical purity and environmental sealing while under constant stress. Our M12 Waterproof Connectors are put together in the field. The bodies are made of PA66 nylon, which is resistant to chemicals. The contacts are made of gold-plated brass, which ensures stable signal transmission over 500+ mating cycles. When used with anti-vibration washers, the threaded coupler design keeps links safe even when installing equipment that is likely to shake a lot. These connectors come in two waterproof ratings, IP67 and IP68. They allow for flexible wiring on-site without the need for special tools for assembly. This meets the important need for quick installation and lower labor costs that procurement managers always put first.

Key Technical Specifications That Matter

When looking at M12 Waterproof Connectors for your use, knowing the core specifications helps make sure that they will work with your system. Different data and power needs can be met by these connectors' pin arrangements, which include 2, 3, 4, 5, 6, and 8-pin sets in both normal and reverse orientations. Based on the number of pins, the rated voltages range from 60V to 100V, and the standard configurations can handle up to 10A of current. Screw terminations can fit cable diameters between 3.5 mm and 8 mm, so they can be used with different wire gauges when they are being put together in the field. Operating temperatures range from -40°C to 150°C, and the insulation resistance stays at 200MΩ. It can also handle voltages of up to 3KV, making it reliable in harsh industrial settings where temperature changes and electrical stress are common problems.

Common Industrial Applications of M12 Waterproof Connectors

M12 Waterproof Connectors are flexible because they can solve specific connecting problems in a number of different businesses. Knowing these uses helps people who work in buying figure out where these parts provide the most practical value.

Industrial Automation and Factory Systems

M12 Waterproof Connectors are the building blocks of sensor networks, actuator controls, and PLC communication systems in industrial automation settings. These connectors are used by factories to connect proximity sensors that find where products are placed, photoelectric sensors that watch over assembly lines, and pressure sensors that keep an eye on hydraulic systems. The vibration-resistant threaded coupling on the connectors keeps them from coming loose during continuous machine operation. Their IP67 rating also keeps coolant spray and metal particles that are common in machining centers from getting in. For robotic installations, the quick-connect feature cuts down on equipment downtime during repair cycles. This directly addresses the worries of production managers about maintaining operations and making the best use of workers' time.

LED Lighting Infrastructure

One of the most rapidly expanding areas for M12 waterproof connectors is outdoor LED lights. Landscape lighting systems, arena lighting grids, and building accent lighting all need links that can handle UV light, changing temperatures, and water for years without losing their signal. Our connectors have housings that are resistant to UV light and contacts that are resistant to corrosion. This means that they can keep sending stable power to LED drivers even in coastal installations where salt spray speeds up the breakdown of materials. Installers of lighting can finish big jobs quickly with the push-lock connectivity option, which cuts installation time by up to 40% compared to traditional wiring methods. For city lighting projects, this means lower overall project costs and shorter times to start using the lights, which is important to both contractors and city planning departments.

New Energy and Renewable Systems

Installing solar panels, setting up charging stations for electric vehicles, and storing energy all need connections that can handle high currents and work reliably over time. M12 waterproof connectors made for power applications can handle continuous current flow and stay waterproof even in wet conditions like rain, snow, and humidity. These connectors are used to connect strings of solar panels in solar array junction boxes. The IP68 rating protects against water pooling during heavy rain. The plugs' ability to keep their electrical performance fixed over thousands of charge cycles and changing temperatures in the environment is good for EV charging equipment. The CE and TUV approvals make sure that the parts meet the international safety standards that quality management teams look for before giving the go-ahead for use in green energy infrastructure projects.

Transportation and Rail Transit

Connectors for transportation systems need to be able to handle steady vibration, high temperatures, and chemicals from the road or the track. M12 Waterproof Connectors are needed to keep communication lines open for smart transportation sensors, traffic monitoring cameras, and railway signal systems. The anti-vibration washer design keeps the parts from coming loose from constant mechanical stress, and the wide temperature range (-40℃ to 150℃) makes sure they work in everything from the coldest winters to the hottest summers in the desert. Rail transport equipment makers can rely on the connectors' proven durability through more than 500 mating cycles to meet long service life standards. This lowers repair costs and increases system uptime over multi-year deployment cycles.

Security and Surveillance Networks

Outdoor-rated links that send data reliably no matter the weather are needed for CCTV systems, access control installations, and outer security networks. The M12 Waterproof Connectors keep water out of the camera power and Ethernet data lines, which could otherwise lead to intermittent failures or system outages. Even after years of use, the gold-plated contacts still have low contact resistance. This keeps the signal quality from dropping, which would otherwise affect the clarity of the video. For smart city projects that put hundreds of cameras all over cities, the field-assemblable design lets technicians make custom cable lengths on-site. This gets rid of the need for complicated inventory and long lead times that come with pre-molded cable assemblies that never quite fit the actual installation distances.

Choosing the Right M12 Waterproof Connector for Your Application

To choose the best connector setup, you need to look at a number of technical and practical factors that are relevant to your application needs and purchasing goals.

IP67 vs IP68: Understanding Protection Ratings

The difference between IP67 and IP68 grades has a direct effect on where M12 waterproof connectors can work effectively. IP67-rated plugs can be submerged in water up to 1 meter deep for 30 minutes. This makes them ideal for uses that might be occasionally exposed to water, like outdoor equipment that gets wet in the rain or during cleaning. IP68-rated versions offer continuous submersion protection, which is important for underwater sensors or equipment installed in places where standing water causes long-term moisture exposure. IP67 is usually enough when choosing connections for outdoor LED setups or farm equipment because it saves money. But marine uses, fountain lighting, or monitoring of utilities below ground need IP68 protection to stop long-term water damage that leads to corrosion and electrical failure.

Pin Configuration and Current Requirements

By matching the number of pins to the signal and power needs of your application, you can avoid over-specification costs and make sure there is enough space. Simple DC power applications use two-pin configurations. Three-pin configurations handle power plus ground with a control signal. Four- or five-pin configurations handle more complex sensor outputs or actuator controls. Our M12 Waterproof Connectors can be set up with up to eight pins, which makes them useful for uses that need more than one signal channel or need to send both power and data at the same time. For sensor networks that need both 24V power and analog output signals, a four-pin setup rated at 10A gives them enough power with enough safety limits. If you know how much current your system needs and what signals it needs, you can avoid making the common mistake of buying connectors that don't have enough capacity or have extra pins that you won't use, which raises the cost per unit without adding any functionality.

Material Selection for Environmental Durability

The long-term dependability of an M12 waterproof connector depends on its cover and the materials used for its contacts. The bodies made of PA66 nylon are very strong and don't react badly with chemicals, so they can be used in a wide range of industrial settings. They also stay structurally sound at all temperatures. The UL94-V0 flame grade makes sure that electrical enclosures and control boxes meet fire safety standards. Gold-plated brass contacts are more resistant to corrosion than tin or nickel plating. This is especially useful in places with a lot of humidity or where salt air is present. Checking the compatibility of materials is important for food processing or pharmaceutical uses that use harsh cleaning agents. If the connectors fail too soon, it can mess up production plans and cost more to fix than the lower-grade alternatives they were bought for.

Cablein's M12 Waterproof Connector Solutions

At Cablein Technology, we know that standard catalog products aren't enough to make industrial connectivity reliable. Our field-assembled M12 Waterproof Connectors are made with precision and a design that has been used before. They solve real practical problems that our clients face every day. Our connectors go through strict quality control that is backed up by ISO9001:2015 certification. Before they are shipped, each one is tested for its ability to withstand water, electricity, and wear and tear. We keep a stable inventory of more than 10,000 pieces per setup, which means that normal orders can be delivered within 7–10 days. This is a huge benefit when project deadlines don’t allow for supply delays. Our engineering team offers OEM/ODM support for uses that need unique pin arrangements or wire setups. They are backed by more than 30 utility model patents in waterproof connection technology. This customization feature solves the common problem where standard goods don't meet the specific needs of a project, so you don't have to make compromises in system design to fit available parts.

Purchasing and Procurement Considerations

When buying M12 waterproof connectors, it's important to weigh the immediate unit cost against the total cost of ownership, the reliability of the supplier, and the quality of the technical support, all of which have an effect on the long-term success of operations.

Evaluating Supplier Capabilities

When looking at possible M12 waterproof connector providers, purchasing managers should look into more than just the listed specs for things like production capacity, quality systems, and service timeliness. Suppliers with ISO9001 certification follow well-known quality management procedures that lower differences between batches, which is important for keeping production going. Inventory depth shows if a seller can handle urgent orders or increased production without having to extend wait times, which would push back project deadlines. Technical help during the specification phase keeps design changes from being too expensive later on, and clear communication lines cut down on the problems that make buying processes take longer. We've been in this business for nine years and have learned that competitive pricing on purchase orders isn't enough to make a business-to-business relationship work. Consistent delivery performance and proactive problem-solving are also important.

Certification and Compliance Requirements

Product certifications have a direct effect on how easy it is to get into markets and how long it takes for projects to get approved. This is especially true for companies that export or for installations that are regulated. For European markets, CE marking makes sure that the product is safe and compatible with electromagnetic fields, while ETL or UL certification makes sure that the product is electrically safe for North American installs. For public infrastructure or rail transit projects, extra certifications may be needed before equipment can be approved. Early on in the procurement process, purchasing managers should make sure that connector certifications match the needs of the final application. Getting certifications after production has begun can cause delays and possibly high re-engineering costs. We give clear certification paperwork for every product line, which lets quality management teams do compliance checks quickly and without having to ask the same questions over and over again, which wastes time for everyone.

Total Cost of Ownership Analysis

Comparing unit prices is what most procurement professionals do to choose their first provider, but they also know that the reliability of M12 waterproof connectors has a direct effect on the costs of system upkeep and downtime. If low-quality connectors cause water leaks, connections that don't work all the time, or failure before they're supposed to, the costs of troubleshooting, replacement parts, and lost productivity are much higher than the initial purchase savings. Our connectors have been tested to mate more than 500 times, which means they last longer and don't need to be replaced as often. Also, the screw termination design means that when a cable breaks, it can be fixed in the field instead of having the whole assembly replaced. When purchasing managers are trying to find a balance between keeping costs low and making sure operations run smoothly, choosing connectors that are made to last instead of those that are the cheapest is a smart move that protects bottom-line performance over the long life of the equipment.

Conclusion

M12 Waterproof Connectors are important parts of infrastructure in areas like security, transportation, industrial automation, LED lighting, and green energy, where protecting the environment and ensuring stable connectivity are key to system success. Engineers and purchasing professionals can choose connectors that meet performance needs and minimize total ownership costs by understanding technical specifications, application requirements, and procurement considerations. M12 Waterproof Connectors are flexible answers for a wide range of industrial problems because they have standard connections, strong environmental protection, and the ability to be assembled in the field. When you work with providers who offer tested quality systems, quick expert support, and reliable delivery, you can be sure that your connectivity infrastructure will support your operational goals without any problems.

FAQ

1. What is the practical difference between IP67 and IP68 ratings for M12 connectors?

IP67-rated M12 waterproof connectors can handle being submerged in water up to 1 meter deep for 30 minutes. This means they can be used on outdoor equipment that gets wet or washed every so often. IP68-rated models offer continuous submersion protection at greater depths, which is needed for sites that are submerged or places where water pools all the time. IP67 protection is enough for most outdoor industrial uses, such as LED lights and automation sensors. If your product will be in direct contact with water for a long time, you should only choose IP68. In normal outdoor settings, the better sealing usually adds cost without benefit.

2. How do I determine the correct pin count for my application?

The number of pins you choose depends on how much power and signal you need. Two-pin configurations handle simple DC power, three-pin adds a control or ground line, four-pin allows power and two-way communication, and higher pin counts can handle complex sensor arrays or systems that mix power and data. Figure out how much current you need per circuit and how many signal channels you need. Then, choose the connector configuration that gives you enough space for safety. Our technical team can look at the needs of your application and suggest the best configurations.

3. Can M12 connectors handle high-vibration environments?

When used in high-vibration environments, like transportation equipment, industrial machinery, and robots, M12 waterproof connectors with threaded coupling and anti-vibration washers keep links strong. The mechanical locking keeps the connections from coming loose from the constant vibrations that happen with connections that don't lock. Make sure that the connector you choose can withstand vibrations. Push-lock versions may not offer the same level of security in environments with a lot of vibration.

Partner with Cablein for Reliable Industrial Connectivity

Cablein Technology offers M12 waterproof connector solutions that have been tested in the field and are made to work in the tough conditions your equipment is exposed to every day. Our approved connectors have gold-plated contacts, vibration-resistant connections, and IP67/IP68 environmental protection. This means that they will keep working well even after years of being outside and being stressed mechanically. We help you reach your procurement goals by keeping a steady stock, offering standard shipping in 7–10 days, and being able to adapt our goods to meet unique needs that standard catalog items can't. Whether you're looking for connectors for a new LED lighting project, improving automation sensor networks, or creating the next generation of renewable energy systems, our engineering team can help you quickly and effectively. contact us at nick@cableinco.com to talk about your connectivity needs with an experienced supplier that cares about the success of your business. Today, ask for examples of the products or unique quotes, and you'll see how the quality and service that builds long-lasting B2B partnerships work.
