How Do Self-Locking Connectors Achieve An Efficient Era For Outdoor Operations

Self-locking connectors have changed the way engineers and procurement teams think about outdoor electrical reliability. In demanding field conditions—rain, dust, vibration, extreme temperatures—a connector that can work loose or let moisture inside is a serious liability. The P16 self lock waterproof connector addresses these risks directly. With a push-pull locking mechanism, IP67/IP68 sealing, and a PA66 housing rated from -40℃ to 150℃, it delivers the kind of consistent, maintenance-light performance that outdoor installations genuinely require.

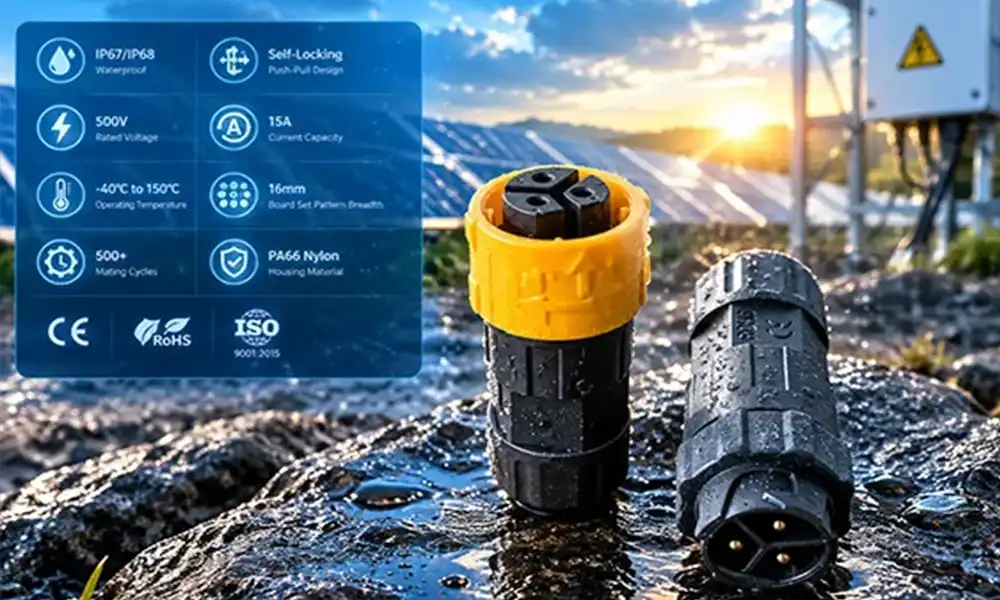

P16 self lock waterproof connector

Why Outdoor Operations Demand Better Connector Design

Threaded or friction-fit connections from the past were not made to handle the speed and rough conditions of current outdoor deployment. Crews working in the field on things like stadium lighting, solar panels, or roadside surveillance systems need connections that lock quickly, stay locked, and keep water out without a toolkit.

The Real Cost of Connector Failure

An outdoor LED installation or EV charging station with a loose or corroded connector does more than just stop working. It also puts people at risk and makes maintenance more difficult. Electrical repair studies in factories have shown that a lot of unexpected downtime is caused by connections that aren't properly sealed.

How Water and Vibration Compromise Standard Connectors

Standard links stay together with thread contact or just friction. That grip slowly slips away when there is constant vibration, which is common in train transit equipment and industrial machinery. If the seal moves even a little, water will get in and cause rust. This cycle lowers the life of the service and makes it more expensive to run.

What a Self-Locking Mechanism Actually Changes

A push-pull self-locking interface snaps into place with feedback that can be heard and felt. If the connection is fully connected, there is no doubt about it. Because this design keeps the connections from coming apart by accident when the cable is strained or vibrates, it is commonly used in medical equipment, portable instruments, and outdoor industrial controls.

Technical Deep Dive: The P16 Self-Lock Waterproof Connector

The P16 line of circular connectors was made to work in places where regular goods don't work well. It has a precision-machined body, an overmold that is sealed at the factory, and contacts that are gold-plated, all in one piece that is ready to install as soon as it gets there.

Materials and Build Quality

The body is made of UL94-V0-rated high-strength PA66 engineering plastic, which is resistant to chemical contact and physical impact. The P16 self lock waterproof connector is rated to last 500+ mating cycles, and the gold-plated brass contacts keep the contact resistance low. The main seal is a silicone waterproof ring, and the overmolded wire design gets rid of any weak spots at the field termination.

Electrical Specifications You Can Count On

The P16 series has 2, 3, 4, or 8 contacts and can handle up to 15A of current and 500V of voltage. It can handle up to 3KV of voltage and 500MΩ of insulation resistance. The IP67 grade for ingress protection is the standard, and IP68 ratings are offered for ongoing immersion. The diameter of the holes for cables can be anywhere from 5mm to 10mm. Because of these numbers, the connection can send both signals and reasonable amounts of power outside.

Installation and Maintenance Guidance

There is no need for on-site termination work because the assembly comes pre-built and overmolded. Technicians only need to push the connector to make it work—a clear click confirms that it is fully seated—and they can do this with one hand. For upkeep, looking at the silicone seal and touch surface every so often is enough. Because the overmold is made in a workshop, there are no field joints that need to be checked or re-sealed over time.

Comparing the P16 With Other Market Options

Choosing the right circular waterproof connector means matching the form factor and locking system to the application. The P16 occupies a practical middle ground in the product family.

P16 vs. Standard Waterproof Connectors Without Locking

Standard waterproof connectors provide IP protection but rely on thread tightening or friction fit. In vibration-heavy applications—robotics, rail transit, outdoor automation panels—these connectors need periodic re-tightening. The P16's push-pull locking action removes that maintenance step and reduces the probability of accidental unmating to near zero.

P16 vs. P12 and P20 Models

The P12 connector is a compact option suited for low-current signal lines in confined spaces, while the P20 handles higher power density in large outdoor junction boxes. The P16 sits between these two, offering up to 15A current capacity in a form factor that works across LED drivers, battery charger interfaces, and outdoor sensor nodes. For most mid-range industrial and outdoor lighting projects, the P16 hits the right balance of size, current capacity, and pin count.

Where the P16 Clearly Outperforms Alternatives

The factory overmolded construction is a specific differentiator. Many competing connectors require field assembly, which introduces variability. Pre-assembled, tested, and TUV/CE-certified at the factory, the P16 arrives with documented quality assurance built in. This matters directly to QA managers who need connector failure rates controlled before product ships to the field.

Procurement Insights: Sourcing the Right P16 Connectors

The connection choice isn't just a technical one for buying managers and supply chain teams. Project profitability is affected by lead times, certification paperwork, and the ability to make changes.

Certifications That Protect Market Access

The P16 series comes with both TUV and CE certifications. The quality of the manufacturing is controlled by ISO9001:2015. RoHS and REACH compliance paperwork is available for users who want to sell their products in Europe, Australia, or Japan. You have to get these certifications—parts that don't comply can stop a product from being approved at customs or fail project audits.

Customization Options for Specific Applications

Most needs can be met by standard catalog items, but for many outdoor and industrial projects, specific cable lengths, color coding, or pin configurations are needed. Private mold creation and custom exit angles are both possible. Here are the main factors that can be changed for customization:

Pin count: 2, 3, 4, or 8 contacts
Cable length and jacket color: specified per order
Exit orientation: straight or angled overmold
IP rating: IP67 standard, IP68 on request

With these choices, purchasing teams can order P16 self lock waterproof connectors that are a perfect fit for their product design, instead of having to change the design to fit a catalog item. One less step is needed to put it together, and the end product is more consistent.

Lead Times and Bulk Order Support

Standard items are kept in stock at 10,000 or more of each SKU and ship within 7–10 days. Schedules for custom orders are made based on the needs of the project and an engineering review. For quick purchases, sample requests can be handled quickly to help test the product before committing to a large order.

Real-World Applications: Where the P16 Performs

The P16 connector's performance record spans several demanding application categories.

Outdoor LED and Solar Energy Systems

In solar farm installations, connectors face years of UV exposure, temperature cycling, and occasional water submersion during flooding events. The PA66 housing and silicone seal on P16 assemblies address all three conditions. Outdoor LED fixture manufacturers report that pre-assembled overmolded connectors cut installation labor per fixture significantly compared to field-terminated alternatives.

Industrial Automation and Security Infrastructure

In PLC control systems and CCTV mounting enclosures, the push-pull locking action prevents the accidental disconnection that vibration or cable pull events can cause with standard connectors. Smart city integrators deploying outdoor surveillance networks have cited connector reliability as a top factor in reducing field service calls after initial installation.

Portable Medical and Test Equipment

The P16's 500+ mating cycle rating and consistent sealing performance make it a practical choice for portable medical monitors and battery-powered test instruments that require frequent connection and disconnection. The one-handed operation is especially useful in environments where the operator's other hand is occupied.

Conclusion

It used to be that self-locking waterproof joints were just a specialty. Now, they are needed everywhere outdoors in industrial settings. For LED lighting, new energy, automation, and surveillance projects, the P16 self lock waterproof connector meets the specific technical and operational needs of those projects. With factory-certified construction, easy installation, and the ability to make changes, it lowers both the cost of labor at the start and the risk of long-term maintenance. When purchasing teams look at connector sources, it's easy to make a choice when the suppliers have clear certifications, steady stock, and helpful expert support.

FAQ

1. What does IP67 mean for a waterproof connector?

IP67 means the connector is fully protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. IP68 extends that to continuous immersion, typically rated to 1.5–3 meters depending on the specific product configuration.

2. Can the P16 connector handle both signal and power in the same assembly?

Yes. Depending on pin count and configuration, the P16 supports both low-voltage signal lines and power circuits up to 15A at 500V. Multi-pin versions allow mixed signal and power in one connector body.

3. What is the typical lead time for a custom P16 order?

Standard stock items ship within 7–10 business days. Custom configurations—including special cable lengths, pin arrangements, or exit orientations—are scheduled based on the engineering review and order volume.

4. Does the overmolded construction affect repairability?

The overmold is a factory-sealed, tested assembly. It is not field-repairable, but that is by design—eliminating field termination removes the most common source of connector failure. Replacement units ship quickly from maintained inventory.

5. Are P16 connectors RoHS compliant?

Yes. All P16 series connectors from Cablein are manufactured with lead-free, RoHS- and REACH-compliant materials, supporting global market access requirements.
