LP16 Inline Cable Connector Guide: Specifications, Applications, and Buying Tips

The LP16 inline cable connector is a compact, industrial-grade circular connector engineered for demanding wire-to-wire applications where waterproof integrity and mechanical resilience are non-negotiable. With a 16mm diameter housing, IP67/IP68 ratings, and a snap-lock bayonet coupling, it bridges cable runs across outdoor LED systems, renewable energy installations, automation equipment, and security infrastructure. This guide covers technical specifications, real-world applications, comparison with alternatives, and procurement best practices—giving engineers and sourcing teams the clarity they need before placing an order.

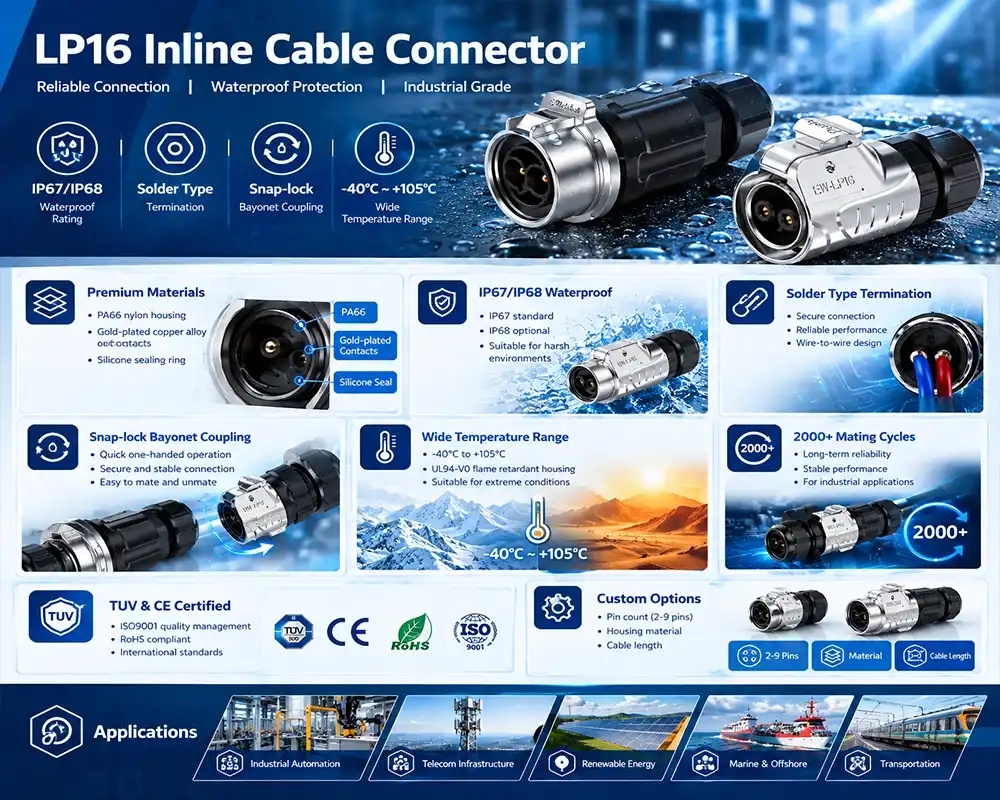

LP16 Inline Cable Connector: Specifications and Technical Overview

Core Electrical and Mechanical Parameters

The LP16 inline cable connector from Cablein has a PA66 nylon housing that is strengthened with UL94-V0 flame retardancy. This means it can be used in places where fire safety is important. Gold-plated copper alloy contacts keep the resistance of the contacts below 5mΩ and the resistance of the insulation above 500MΩ. This is important for stable signal transmission in systems with a lot of sensors. The connector works with wire outer diameters from 4mm to 9mm and can handle up to 10A power and 500V. It also allows 2–9 pin setups. Thermal shock cycling has shown that the operating temperature ranges from -40°F to +105°F.

IEC 60529 standards say that to get IP67 approval, something has to be dust-tight and be able to withstand being submerged in water for 30 minutes at a depth of 1 meter. IP68 adds continuous submersion at certain depths, which makes the LP16 a real option for use outside and below ground.

Waterproof Architecture and Sealing Technology

The silicone sealing ring makes two barriers against water getting in: one at the wire entry point and one at the mating contact. This connection passes the 96-hour salt spray test (ASTM B117), showing that it is corrosion-resistant in coastal and marine settings. This is not a single O-ring solution. At Cablein's facility, each unit is tested for 100% waterproof performance before it is sent out.

Installation and Wiring Guide

The solder-type method of termination makes wire joints that are safe and have low resistance for LP16 inline cable connector applications. To install, cut the end of the cable to 5–7 mm, solder each wire to its matching pin, thread the cable nut, and then put the whole thing into the case until you hear the snap-lock engage. There is no need for any special tools. The snap-lock bayonet connection lets you connect two pieces with just one hand, which saves technicians a lot of time on large-scale operations.

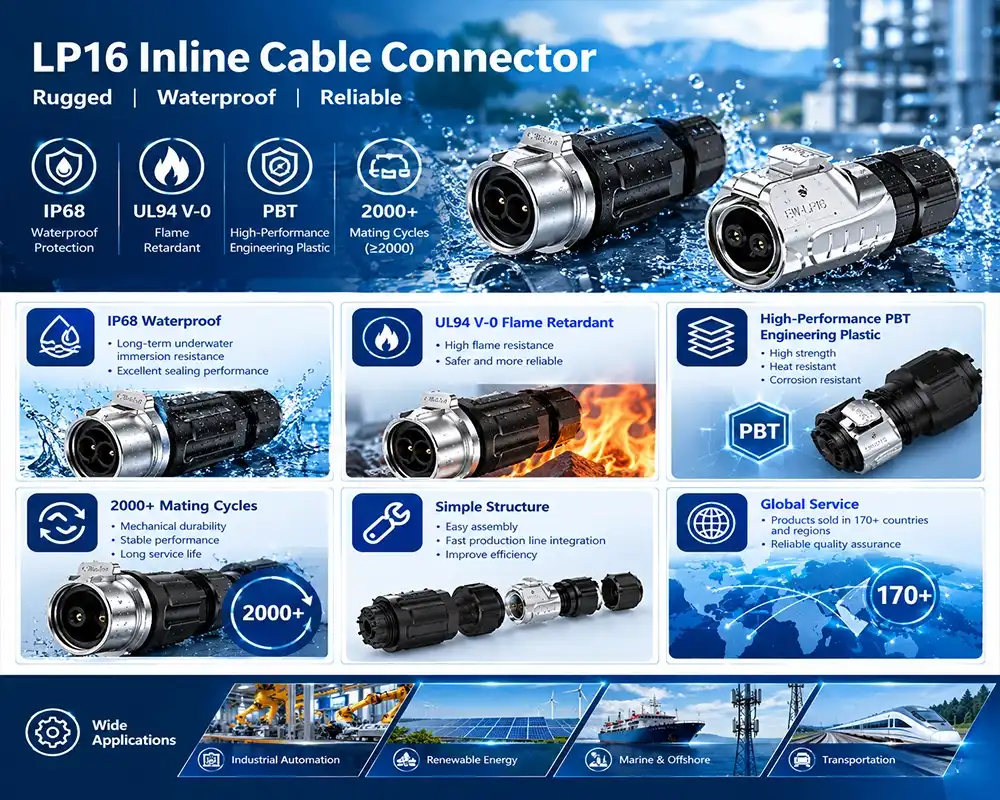

Comparing LP16 Inline Cable Connectors with Alternatives

LP16 vs. LP14 and Standard Circular Connectors

It's important to pick the right connector format. Here's how the LP16 inline cable connectors stack up against other options:

• LP14 Connector: The LP14 is in the same product family as the LP12, but its housing has a 14mm diameter, which means it can only support 2–7 pin configurations and lower current thresholds. LP16 has more space inside a smaller package, making it better for uses that need more pins or circuits that can handle 10A.
• M12 Circular Connector: The M12 circular connector is used a lot in industrial automation, but it requires two hands to use and takes longer to engage. This is because it uses threaded coupling. The snap-lock feature on the LP16 cuts down on installation time in the field, where speed is important.
• Standard Solder Splice vs. Inline Connector: A straight solder splice doesn't allow for quick disconnect and adds a single point of failure during repair. The LP16's modular inline design lets you quickly change parts in the field without having to cut and re-terminate the whole wire run.

When handling big installations, these differences in structure become important from a business point of view. When techs can connect and disconnect wires in seconds instead of minutes, labor costs go down. The real choice about what to buy is based on the total cost of ownership, not just the unit price.

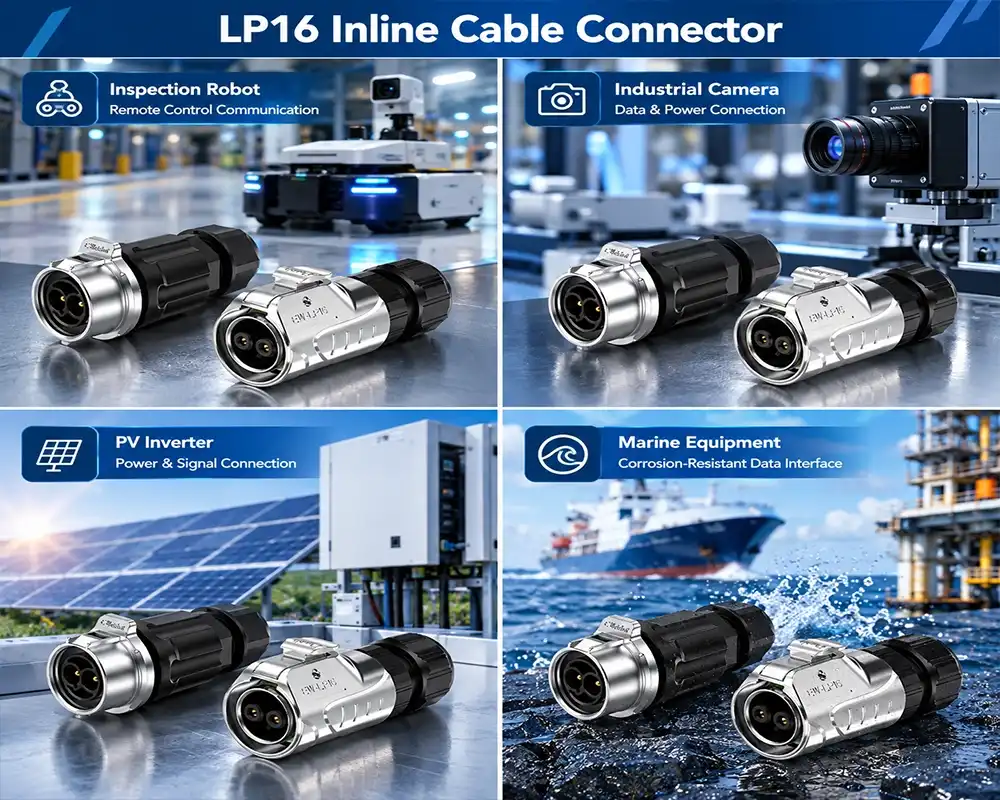

Practical Applications and Problem-Solving with LP16 Connectors

Where This Connector Performs Best

The LP16 inline cable connector works very well in places where vibration, moisture, and changing temperatures all come together. Here are the most common deployment situations:

• Industrial Automation and Robotics: Robotic arms with multiple axs put constant mechanical stress on wire joints. The anti-vibration spring-loaded lock on the LP16 keeps it from decoupling by chance while it's working, so power and signal flow in PLC-controlled cells stay continuous.
• Outdoor LED Lighting Systems: Lighting rigs for stadiums, urban landscapes, and greenhouse grow lights all have to deal with UV light, changes in humidity, and temperature changes. The UV-resistant PA66 housing keeps its shape through all four seasons, so long wire runs don't have any failure places caused by connectors.
• Infrastructure for renewable energy: Solar PV tracking strings and wind turbine sensor bands work in harsh, faraway places. Gold-plated contacts don't rust over long periods of use, and CE/RoHS certification helps them get approved by regulators in North America and Europe.

These applications share a common thread: unplanned downtime costs money. When a connection fails in a solar array or arena lighting rig, it costs a lot more to fix than it does to make money.

Diagnosing Common Field Issues

There are three main reasons why connections in inline connectors don't work: bad soldering, locking that doesn't fully engage, or seal compression failure from repeated cable bending. The second problem is immediately fixed by the LP16's tactile snap input. Check the silicone ring for deformation after high-cycle use to make sure the seal is still good. Cablein suggests doing this visually every 500 mating cycles in high-frequency disconnect applications.

Buying Guide and Procurement Tips for LP16 Inline Cable Connectors

Evaluating Supplier Credentials and Total Cost

When looking for industrial plugs, there's more to it than just comparing prices. When choosing an LP16 inline cable connector provider, make sure they do the following things first:

• Check real copies of the CE and RoHS certification papers, not just promises.
• Ask for salt spray test reports and IP rating test certificates that have been checked by a third-party lab.
• Check the mating cycle test results—IEC 61984 says that industrial-grade interfaces should be able to handle 2000 rounds or more.
• Validate the ISO9001:2015 quality management certification, which controls the uniformity of output and the ability to track inspections.

Cablein keeps more than 10,000 pieces of each SKU in stock and sends regular orders within 7–10 business days. With flexible lead times, you can get custom configurations like private mold development, non-standard pin arrangements, and longer cable assemblies.

Bulk Purchasing and Logistics Considerations

For procurement teams in charge of deployments at multiple sites across the US, consolidated ordering lowers the cost per unit and makes logistics easier. Cablein works with UPS, DHL, and FedEx to ship goods by air and sea. This makes it easy to track packages from Shenzhen to their end location. For projects with important deadlines, emergency order support is available.

Engineers can choose the housing material, pin assignments, and connection lengths with custom OEM and ODM choices, and there are no minimum order number limits on trial runs. This freedom helps R&D teams test the designs of new machines before they are made on a larger scale.

Conclusion

The LP16 inline cable connector is a good compromise between cheap connectors and options that are too complicated. It is a good choice for outdoor LED, energy, automation, and transport uses because it is sealed to IP67/IP68 standards, has a wide temperature range, and is certified by multiple industries. The specs in this guide give you a good starting point when choosing a connector for a tough setting. Cablein's LP16 meets those requirements and has test data that can be checked and production records that can be found. For full product information, go to connectorswaterproof.com.

FAQ

What is the maximum operating temperature for the LP16 connector?

Thermal shock cycling methods have shown that the LP16 connector works consistently between -40°F and +105°F. Because the PA66 nylon shell is UL94-V0 flame retardant, it can be used in places with a lot of heat or a risk of fire.

Can the LP16 handle both power and signal in one connector?

Yes. Mixed power and signal arrangements are possible with 2–9 pin configurations. Pins can handle up to 10A per circuit at 500V, so they can be used for both sending industrial power and low-voltage sensor data.

What is the difference between IP67 and IP68 ratings?

IP67 means that the protection is dust-tight and that the device can be submerged in water up to 1 meter deep for 30 minutes. IP68 adds more protection for ongoing submersion at deeper depths set by the maker. This makes it good for cable runs that are permanently submerged or partially submerged.

Is customization available for specific project requirements?

Cablein lets OEMs and ODMs change the number of pins, the material of the housing (PA66 or zinc alloy), the thickness of the cable, and the length of the unit. For large projects that need unique form factors, private mold development is available.

How do I verify connector quality before bulk ordering?

Ask for pre-shipment inspection records that include tests for salt spray, dielectric withstanding voltage (1500V–2500V), and IP rating confirmation. Cablein tests each unit's waterproof ability before sending it out.

Request a Sample or Bulk Quote — Cablein Technology

Cablein Technology has been making certified LP16 inline cable connectors for 9 years and has more than 30 utility model patents and ISO9001:2015 quality management. Our engineering team gets back to you within 24 hours, whether you need normal stock or a fully personalized cable assembly. You can email our team at nick@cableinco.com or visit connectorswaterproof.com to see all of our products. Cablein is a reliable long-term LP16 inline cable connector maker for corporate procurement teams because they keep their inventory stable, ship products quickly around the world, and offer OEM support.

References

1. International Electrotechnical Commission. IEC 60529: Degrees of Protection Provided by Enclosures (IP Code). IEC, 2013. Used in the waterproof rating section.

2. ASTM International. ASTM B117: Standard Practice for Operating Salt Spray (Fog) Apparatus. ASTM, 2019. Referenced in the corrosion resistance discussion.

3. European Commission. RoHS Directive 2011/65/EU: Restriction of Hazardous Substances in Electrical Equipment. EU, 2011. Cited in the renewable energy compliance section.

4. International Electrotechnical Commission. IEC 61984: Connectors — Safety Requirements and Tests. IEC, 2008. Referenced in the mating cycle evaluation section.

5. UL Standards & Engagement. UL 94: Standard for Tests for Flammability of Plastic Materials for Parts in Devices and Appliances. UL, 2013. Cited in the flame retardancy section.

6. IPC — Association Connecting Electronics Industries. IPC-A-620: Requirements and Acceptance for Cable and Wire Harness Assemblies. IPC, 2017.
