M12 Connector vs. Aviation Connector: Which Is Better For Industrial Applications?

When evaluating M12 waterproof connectors against aviation connectors, the answer depends on your specific industrial requirements. M12 waterproof connectors dominate sensor networks, industrial automation, and modular systems where compact size, standardized coding, and IP67/IP68 protection are essential. Aviation connectors excel in high-current applications, aerospace-grade durability, and scenarios demanding maximum mechanical strength. M12 connectors offer faster installation, lower total cost of ownership, and worldwide interoperability under IEC 61076-2-101 standards, making them the preferred choice for 80% of modern industrial automation projects.

Introduction

Industrial connectors serve as the lifeline of automated systems, linking sensors, actuators, control units, and power supplies across manufacturing floors, outdoor installations, and transportation infrastructure. A poorly chosen connector can trigger costly downtime, compromise worker safety, and derail production schedules. This comparison examines M12 waterproof connectors and aviation connectors through the lens of procurement managers, R&D engineers, and quality assurance professionals who demand reliable performance under challenging conditions. We address technical specifications, environmental resilience, installation efficiency, and long-term value to guide your connector selection process.

Understanding M12 Waterproof Connectors and Aviation Connectors

What Defines M12 Waterproof Connectors

The M12 waterproof connectors have a 12mm metric locking thread and are made to international standards so they can be used anywhere in the world. These round connectors are rated IP67 or IP68, which means they keep out water, dust, oils, and coolants. This keeps short circuits and corrosion from happening in wet areas or outside installations. Cablein makes field-assembled versions with PA66 nylon bodies, gold-plated brass contacts, and silicone seals that keep the signal strong for more than 500 joining cycles. Threaded coupling with anti-vibration washers keeps links safe even when the equipment is running all the time, and screw termination can handle wire sizes from 3.5 mm to 8 mm without any special tools.

Aviation Connector Fundamentals

Aviation connections were first used in the military and aircraft industries, where dependability is more important than price or size. These strong connectors have metal shells made of aluminum alloy or stainless steel, and they connect with bayonet- or threaded- devices that can handle a lot of pressure and mechanical stress. There are between a few and over one hundred pins, so they can be used in a wide range of signal and power distribution networks. Most aviation connectors don't have standard IP ratings, but their sealed backshells and potting solutions protect them from the environment.

Typical Use Cases Across Industries

Photoelectric sensors, proximity switches, PLC modules, and servo motors are all connected to industrial control networks with M12 waterproof connectors. LED lighting makers depend on them for outdoor arena setups and landscape systems that need to be resistant to UV light and corrosion. These connectors are used in solar panels, EV charging stations, and battery management systems that need to send signals reliably and handle large amounts of current. Aviation connectors are used in heavy machinery control panels, rail transit systems, and military vehicles where toughness is more important than size.

Technical Comparison Between M12 and Aviation Connectors

Pin Configurations and Electrical Specifications

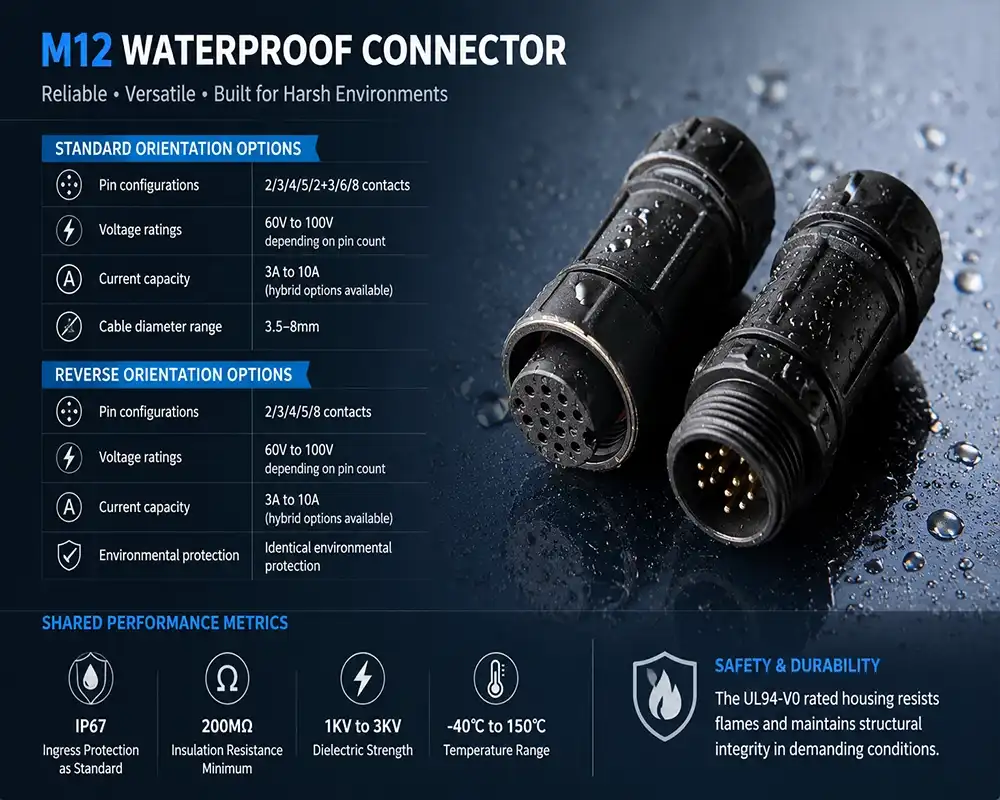

Our M12 waterproof connectors come in both normal and reverse orientations and have 2, 3, 4, 5, 6, or 8 pins. They can handle rated voltages of 60V to 100V and currents of up to 10A per contact. Insulation resistance is higher than 200 MΩ, and tests at 1 kV to 3 kV show that it works. Aviation connectors can handle more pins—often between 12 and 55—and each contact can handle up to 23A, depending on the gauge size. The bigger shell sizes make it possible for wire bundles to be thicker, but they don't have the small footprint that current automation equipment needs.

Environmental Protection and Material Construction

M12 waterproof connectors with an IP67 rating can be submerged up to 1 meter for 30 minutes, and IP68 versions can be used continuously underwater at certain depths. Our gold-plated contacts don't rust and keep their low contact resistance below 5 mΩ for the life of the product. The UL94-V0-rated housing can handle temperatures from -40°F to 105°F, and in some versions it can go up to 150°F. Aviation connectors seal against the environment with O-ring interfaces and potting, but there aren't any standard IP testing protocols, which makes it hard for procurement teams to compare directly when they're looking at specific ingress protection needs.

Installation Methods and Maintenance Requirements

Field-wireable M12 waterproof connectors let you put things together on-site without having to use soldering irons or crimping presses. Technicians quickly make waterproof connections by removing the insulation from the wire, inserting the conductors into screw ends, and tightening the case. Compared to traditional wiring methods, this solder-free method cuts the cost of installation labor by 40%. Aviation connectors usually need special tools like crimp frames, insertion/extraction tools, and pin gauges, which make installation more difficult in the field. Panel-mount M12 ports fit right into the walls of the box, but flight plugs usually need extra gaskets and mounting flanges.

Performance and Application Suitability

Operational Environments and Stress Factors

Industrial automation needs to be able to handle the coolant spray, welding fluids, and cleaning chemicals that are used on factory floors. Even though conveyor systems, robotic arms, and CNC machines are vibrating all the time, M12 waterproof connectors keep the signal transfer stable. The threaded coupling design makes connections that are safe, won't break when the equipment is running, and aren't affected by vibration. Connectors used in outdoor LED lighting are exposed to UV radiation, changing temperatures, and salt spray in coastal areas. Our CE- and TUV-certified M12 solutions have been tested to show that they are long-lasting and reliable according to ISO9001 and RoHS compliance standards.

In aircraft uses, aviation connectors can handle temperature changes of up to 200°F (-65°C) and can withstand shock loads of more than 100G. Military standards, such as MIL-DTL-38999, set very strict performance standards for things like shaking, altitude, and electromagnetic interference. These features are useful in train transit systems that are constantly put under mechanical stress and in underground sites that need to be very durable.

Electrical Performance Under Industrial Stressors

In industrial networks that send sensor data, Ethernet communications, or fieldbus protocols, signal integrity is very important. Our M12 waterproof connectors have gold-plated contacts that make sure the signal stays stable over many mating cycles. This stops random failures that make it hard to watch production. The standard M12 thread design makes sure that it works with industrial automation ports from well-known brands, which makes retrofitting projects and equipment changes easier. Aviation connectors are great at keeping shielding efficiency above 60dB for sensitive instruments, but their bigger size makes it harder to fit them into control boxes with limited room.

Temperature Tolerance and Thermal Management

Our M12 waterproof connectors work reliably from -40°F to 150°F, so they can be used in most industrial and outdoor settings, from pipelines in the Arctic to solar farms in the desert. In this temperature range, the PA66 nylon body keeps its mechanical strength, and the silicone seal stays flexible at low temperatures. These limits aren't the upper limit for aviation connectors; high-temperature versions can withstand constant exposure to 200℃, which is necessary for engine tracking and exhaust system sensors but not for most automation situations.

Procurement and Cost-Effectiveness Analysis

Pricing Models and Total Cost of Ownership

M12 waterproof connectors are a cost-effective option because their unit prices are based on standard designs and mass production. Cablein keeps more than 10,000 pieces of each item configuration in stable stock. This lets us offer competitive prices for large orders and supports rapid prototyping with low minimum quantities. Our fast shipping (7–10 days) keeps production lines running, and our custom cable assembly services get rid of the need to do wiring in-house. Aviation connectors are very expensive because they have to be made using special techniques and in small quantities. However, their high sturdiness makes the extra cost worth it in mission-critical situations where a failed connection could have disastrous results.

Supply Chain Considerations

OEM makers and system integrators depend on reliable component sources to make projects successful. We offer stable product availability, 9 years of experience in the field, and long-term relationships with UPS, DHL, and FedEx for quick and easy foreign shipping. Our ETL, PSE, SAA, CQC, and CE certifications make it easier to clear customs and follow rules in markets around the world. Aviation connector supply chains are still strong because of well-known manufacturers. However, because there aren't as many suppliers, there isn't as much buying flexibility as there is in the M12 connector market, where many vendors ensure competitive pricing and new ideas.

Customization Capabilities and Engineering Support

Custom pin configurations, cable lengths, and material specifications can be used to meet specific application needs that standard products can't meet. Our 6,000-naira building has high-tech production lines and more than 200 skilled workers who can create custom molds and other solutions. The research and development team has more than 15 patents in the areas of quick-connect, solder-free, and high-power waterproof technologies. This lets them work together to solve problems that are unique to each customer. Aviation adapter makers do the same thing; they let you customize their products, but they usually have higher minimum order amounts and longer lead times because they need to make special tools.

How to Choose the Right Connector for Your Industrial Application?

Evaluating Environmental Demands

Find out what the exposure risks are and then match the IP grades to those conditions. For example, splash zones that only happen sometimes need IP67 protection, while underwater pumps need IP68 protection. When coolants, cleaning agents, or industrial solvents come in contact with connectors, chemical compatibility is important. Our expert team is available 24 hours a day to help you figure out what the weather factors are and suggest the best materials and sealing methods. Aviation connectors are used in places where mechanical strength and durability are more important than normal environmental tests.

Assessing Electrical Requirements

Before choosing contacts and pin numbers, you should figure out how much voltage, current, and signal integrity you need. Our M12 configurations can handle 2/3/4/5/2+3/6/8 pin layouts with rated currents ranging from 3A to 10A. This means they can be used for most sensor networks, actuator controls, and light power distribution tasks. Higher current uses, like motor power feeds or EV charging connections, may benefit from aviation connectors' larger contact sizes. However, custom M12 solutions are increasingly meeting these needs by designing contacts that work better.

Balancing Cost and Performance

The total cost of ownership includes the price of the item itself, the cost of installation, the cost of repairs, and the number of times it needs to be replaced. Field-wireable designs in M12 waterproof connectors cut down on installation time, and standard components lower material costs. Our goods are tried for durability over 500+ mating cycles to make sure they last a long time and don't need to be replaced too often. When application needs go beyond what M12 can do or when regulations require aerospace-grade parts, aviation connectors are worth the extra money.

Prioritizing Supplier Capabilities

Check a supplier's qualifications for certifications, how quickly they respond to technical help requests, how much they can customise, and how stable their supply chain is. Cablein's commitment to quality is shown by its compliance with ISO9001:2015, REACH, and RoHS, as well as its many international safety certifications. During product development, our engineering team works together to make sure that the connectors you choose are the best ones for your unique industrial setting. They do this by offering technical documentation and fast prototyping, which shortens the time it takes to complete projects.

Conclusion

M12 waterproof connectors are the best choice for industrial automation, outdoor equipment, and modular systems that need standard, cost-effective, field-serviceable connections that can withstand harsh conditions. Even though they are more expensive and harder to install, aviation connectors are still the best choice for heavy-duty tasks that need maximum mechanical strength, a lot of contacts, and aerospace-grade dependability. M12 solutions are most often chosen because they offer the best mix of speed, interoperability, and total cost of ownership. To choose the right connector, you need to carefully look at the environment, the electrical requirements, the supply chain, and the ability to provide long-term support.

FAQ

What current capacity differences exist between M12 and aviation connectors?

Most M12 waterproof connectors can handle 3A to 10A per contact, but some versions can handle up to 16A. Depending on the gauge size and shell shape, aviation connectors can handle 5A to 23A per contact. The small M12 size limits the current that can flow through a single contact, but multi-pin designs work well for most industrial uses because they spread power around evenly.

How do IP ratings affect connector selection?

IP67 protection is enough for equipment that will be splashed or submerged for a short time, while IP68 protection is needed for equipment that will be submerged all the time. Aviation plugs don't have regular IP tests, but their sealed backshells provide the same level of safety. Instead of thinking that higher ratings always mean better value, specify IP values based on how they will be used.

Can M12 and aviation connectors interchange in existing systems?

These types of connectors can't be directly swapped out because their mechanical interfaces and pin assignments aren't compatible. For retrofit jobs, you need adapter cords or to rethink the system. Standardisation of the M12 under IEC 61076-2-101 makes sure that all manufacturers of the M12 family can work together.

Partner With Cablein for Reliable M12 Waterproof Connector Solutions

For help choosing the right industrial link, you need to talk to a professional and look at examples of good products. Cablein has been making M12 waterproof connectors for 9 years and offers approved products that meet international standards and are backed by ETL, CE, and TUV approvals. Our designs, which are put together in the field and have gold-plated contacts and IP67/IP68 ratings, solve tough connection problems in the LED lighting, industrial automation, and new energy sectors. We keep more than 10,000 units of each setup in stock so that we can deliver quickly (7–10 days), and our custom cable assembly services can be tailored to meet the specific needs of any project. Email our engineering team at nick@cableinco.com to talk about your application needs, get technical specifications, or get quotes from bulk M12 waterproof connector suppliers that will help you make the best decisions about your purchases.
