LP16 Type-C Waterproof Connector: The Ideal USB-C Solution for Harsh Industrial and Outdoor Environments

Industrial equipment demands connectivity that doesn't fail when conditions turn hostile. The LP16 USB Type-C waterproof connector addresses this requirement by delivering full Type-C functionality wrapped in a panel-mount design engineered specifically for environments where standard USB ports simply cannot survive. This industrial-grade solution integrates IP67 and IP68 sealing with a snap-lock bayonet coupling mechanism, enabling reliable data and power transmission through equipment enclosures exposed to moisture, dust, vibration, and extreme temperatures. With TUV and CE certification backing its performance credentials, this connector solves critical challenges faced by procurement managers and engineers across LED lighting, renewable energy, industrial automation, security surveillance, and marine applications where connectivity failures translate directly into project delays and operational losses.

Understanding Industrial-Grade Type-C Connector Specifications

Panel-Mount Architecture and Interface Design

The LP16 has a Type-C female-to-female feed-through for cable connections from either side of your equipment panel. Whereas normal USB ports need to be mounted on the internal circuit board, this design provides a sealed pass-through point in the wall of your enclosure. Your specialists have complete access to high-speed data transmission up to 10 Gbps, while critical equipment are safeguarded inside the casing. The Type-C port is a single connecting point that incorporates both data transfer protocols and power supply to avoid numerous cable penetrations that might undermine waterproof integrity.

Waterproof Protection and Temperature Performance

We don't mean marketing when we talk about IP67 and IP68 grades. IP67 protection indicates that the connection is protected against immersion up to one metre for 30 minutes. IP68 configurations are intended for continuous underwater use at depths required by your application. The operational temperature range is -40℃ to +105℃, from Arctic installations to desert solar arrays. The thermal performance is a result of the UL94-V0 flame retardant housing material that retains structural integrity and sealing efficacy over a broad temperature range without becoming brittle or deteriorating.

Electrical Characteristics and Durability Metrics

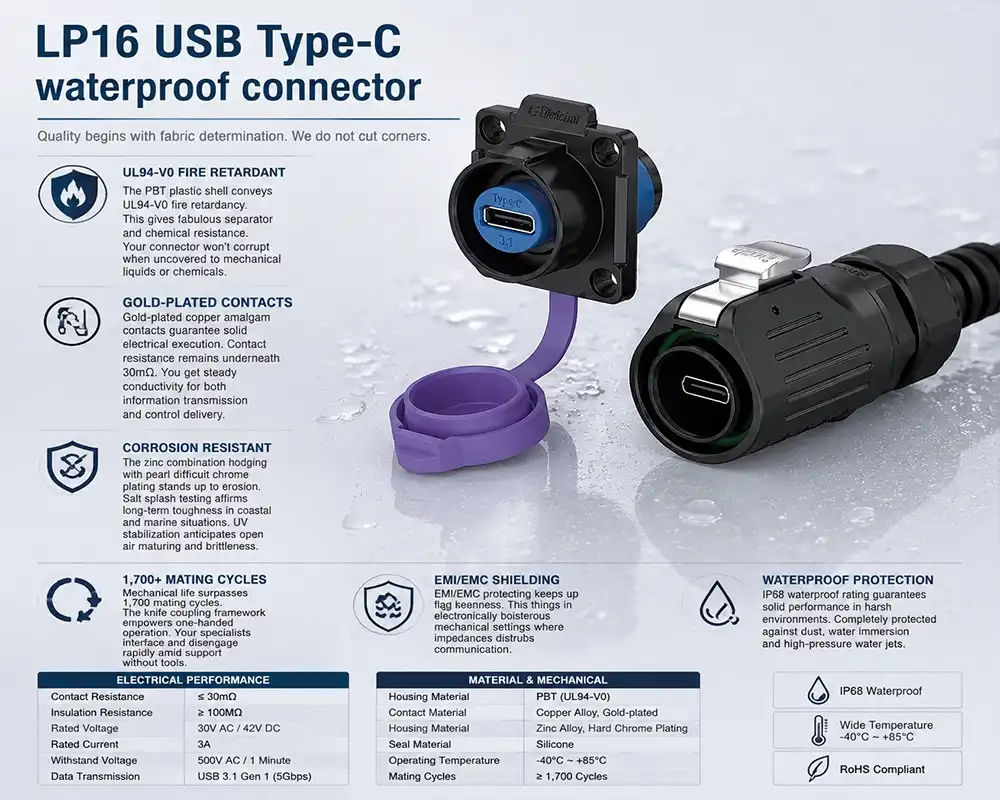

Gold-plated copper alloy contacts deliver contact resistance below 30mΩ, ensuring stable conductivity whether you're transmitting sensor data or delivering power with LP16 USB Type-C waterproof connector. The connector handles 3A rated current at DC 20V reliably, supporting power delivery requirements for charging applications and powered peripherals. Mechanical durability exceeds 1,700 mating cycles—a specification that matters when your maintenance teams connect and disconnect equipment regularly during service intervals. The bayonet coupling system enables one-handed operation without tools, reducing installation time and labor costs while maintaining secure connections that resist accidental disconnection under vibration.

Comparing Waterproof USB-C Solutions for Industrial Use

Standard USB Type-C connections work well for consumer gadgets, but industrial applications need more environmental protection. The LP16’s nickel-chrome plated zinc alloy casing is corrosion resistant, unlike ordinary connections. Salt spray testing guaranties long-term durability in coastal and marine conditions where unprotected connections fail within months. UV stabilisation . This helps avoid a typical failure when the plastic housing is left out in the sun for long periods of time, becomes brittle and cracks.

Other waterproof connection types ( such as the M12 circular connector ) do provide environmental protection but they need proprietary cables and are not natively compatible with USB-C. You lose the worldwide availability and cost benefits of conventional USB-C cables. Other IP-rated USB solutions usually have fewer mating cycles, or lack the robust locking mechanism needed for mobile equipment and high-vibration settings. The LP16 blends performance with cost-effectiveness, keeping the normal Type-C electrical compatibility while providing the mechanical ruggedness and environmental sealing required for industrial applications.

Budget issues extend well beyond unit price. The efficiency of installation has a major impact on overall project costs. Traditional weatherproofing techniques, such as encapsulating standard connections in boots or enclosures, increase bulk, complicate maintenance and sometimes do not fulfil certification criteria. The LP16’s integrated design simplifies installation, minimises assembly time and offers certified protection without the need for extra accessories. That means cheaper labour costs and quicker project completion – both of which are big considerations for procurement managers when assessing long-term value.

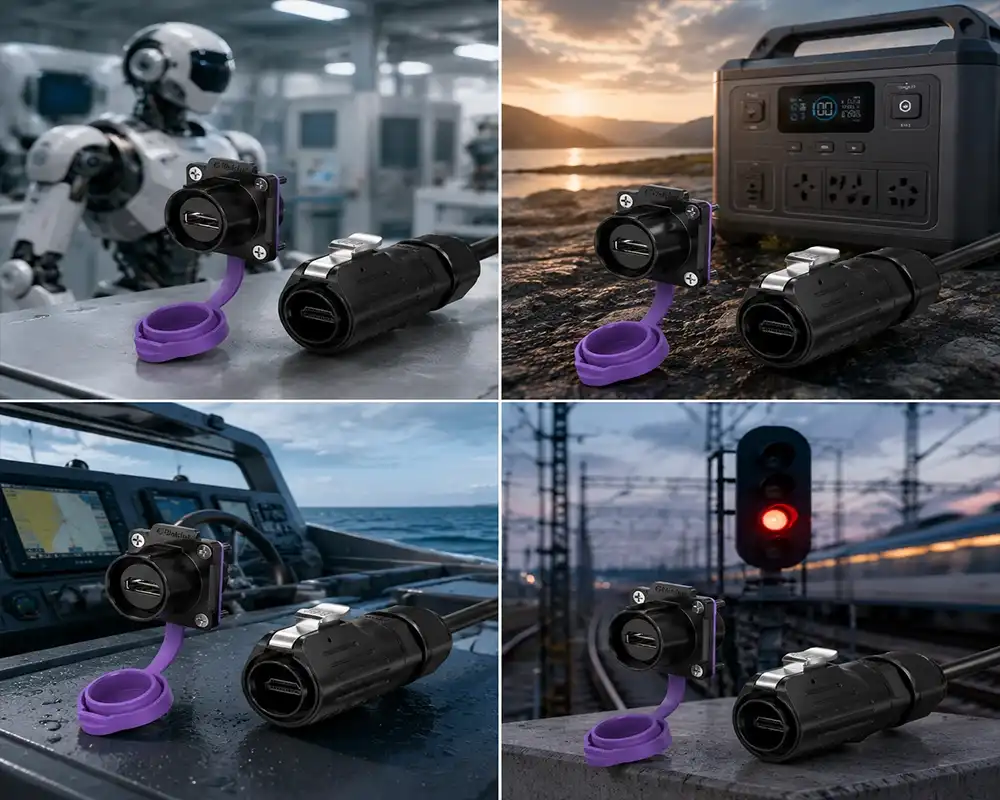

Real-World Applications Across Demanding Industries

LED Lighting and Display Systems

Outdoor LED systems are constantly subjected to rain, humidity and temperature cycling. Stadium displays need fast data updates for content changes and are not affected by weather. Landscape lighting systems require secure connections that can withstand seasonal freeze-thaw cycles. The LP16 provides consistent communication between the controllers and fixtures, and allows rapid access to the connectors for programming and troubleshooting. The chemical resistance is also an advantage for agricultural lighting makers when installations are subject to fertiliser exposure and washdown operations.

Renewable Energy and EV Infrastructure

Solar monitoring systems depend on the constant gathering of data from distant arrays, and a connection failure might imply lost performance data and delayed repair action. EV charging equipment needs shielded communication connections for payment systems and vehicle data transmission. Outdoor battery management systems require reliable connectivity for energy storage systems. The connector’s power supply capabilities provides for both data and auxiliary power needs via one interface, lowering the number of cables, simplifying cable management, and decreasing the number of penetrations into the enclosure that impair waterproofing.

Industrial Automation and Robotics

CNC machines and robotic arms need safe programming ports on equipment exteriors without exposing internal electronics to coolant mist and metal debris. The bayonet lock prevents separation of the cable during vibration and movement of the machine. “Quick-connect capabilities benefit sensor networks of industrial plants, as downtime for sensor replacement or reconfiguration is reduced. PLC system integrators like the standardised interface that is compatible with normal programming connections, yet with industrial grade protection.

Security and Transportation Systems

Smart city CCTV deployments need waterproof connections for camera installation and software upgrades. Traffic monitoring systems work in storms, high temperatures and cold weather year-round. Rail transportation equipment is always subject to vibration, and has to be connected tightly under mechanical stress. The secure locking mechanism and vibration resistance are answers to failure modes that conventional connections have problems with in mobile and exposed installations.

Procurement Considerations and Supply Chain Integration

Sourcing industrial LP16 USB Type-C waterproof connector connectors requires attention to supplier credentials and product authenticity. Cablein Technology, established in 2017 and operating from our 6,000 square meter facility in Shenzhen, provides direct manufacturer access with certifications including TUV, CE, RoHS, and REACH compliance. Our ISO9001:2015 certified production processes ensure consistent quality across production runs—a critical factor when your projects require connector performance uniformity.

Project timetables are directly impacted by inventory availability and lead times. We have a steady supply of over 10,000 components for each basic configuration, allowing us to provide common variations within 7-10 days. Custom needs such as specified wire lengths, changed pin configurations or private mould development according to your time line. Our engineering team offers fast prototyping help to try out your particular design prior to entering into a production.

UPS, DHL, Fedex and professional freight forwarders to transport your purchase to wherever you are in the world. Whether you need to ship by air for urgent orders or by sea for huge numbers to save on freight, our international shipping relationships guarantee your item is delivered reliably. Minimum order numbers provide a compromise between the accessibility of prototype development and the economies of scale of production deployments. Technical documents such as complete datasheets, CAD models for panel cutout parameters, and installation guides assist your engineering and procurement teams through the whole integration process.

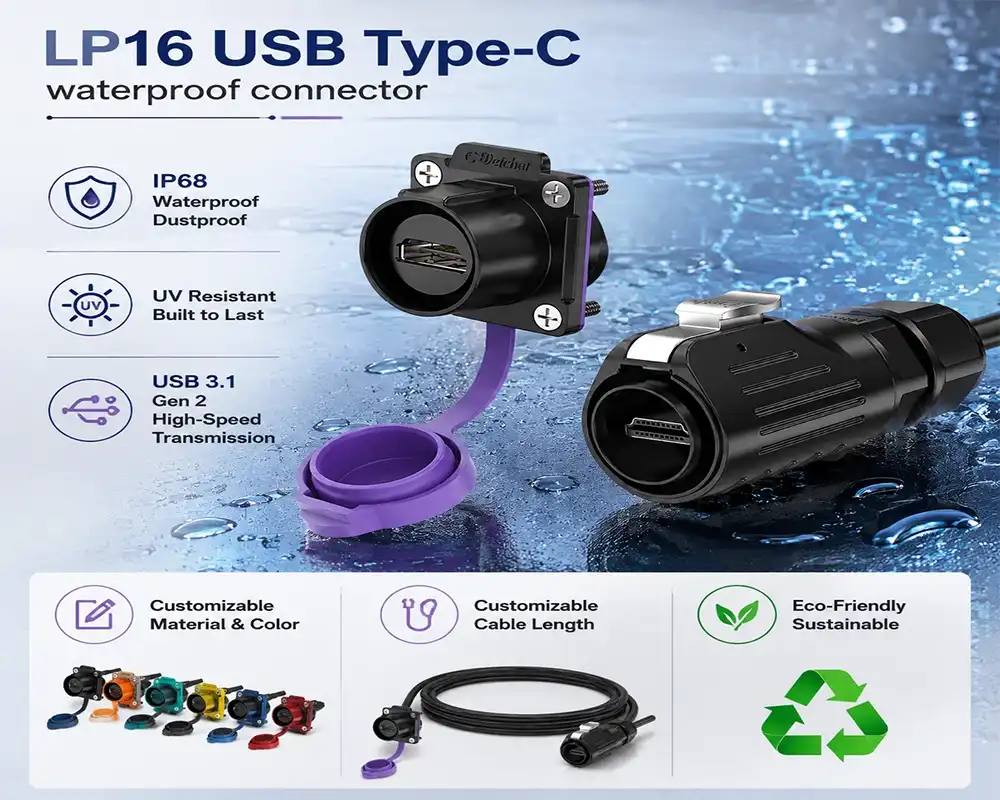

Equipment manufacturers need to include connections into their manufacturing processes and we may take OEM and bulk orders. Customisation services include housing materials, panel mounting arrangements, and cable assembly integration. You have the ability to choose connections that fit your equipment design needs without sacrificing environmental protection or electrical performance.

Why Engineers and Procurement Teams Choose LP16

The panel-mount architecture addresses a core problem in equipment design: how to enable external connection without sacrificing enclosure integrity. Traditional methods include complicated gland fittings or a compromise on the waterproof rating. The integrated seal at the panel interface of the LP16 simplifies the mechanical design and retains environmental protection. Your enclosures are water ingress tested without complicated sealing methods or maintenance for replacement of damaged gaskets.

The selection of materials strongly effects lifespan costs and dependability. The housing, made from PBT plastic, protects against chemicals in industrial fluids, cleaning agents and environmental toxins that break down other materials. EMI / EMC Shielding Maintains Signal Integrity in Electrically Noisy Industrial Environments where Electromagnetic Interference Interferes with Unshielded Connections. These design features decrease field failures and warranty claims that hurt your reputation and raise support expenses.

When the prototype of today becomes the production deployment of tomorrow, scalability issues are important. The LP16 works with common USB-C connections and accessories, so you’re not trapped into proprietary ecosystems with restricted sourcing possibilities. As your project expands, connection availability and consistent performance are crucial. We have the manufacturing capabilities and quality control systems to handle volume needs, from first installations to big scale deployments.

You need connections that keep pace with changing technological standards so your designs are future-proof. The USB-C standard is used in many businesses, so cables will be available for years and work with new gadgets. With the evolution of equipment capabilities, the connector’s power supply support scales with rising power needs. You dodge obsolescence hazards that afflict proprietary connection systems when the producer discontinues a product line or exits the market.

Conclusion

Industrial and outdoor equipment connectivity demands more than consumer-grade solutions can deliver. The LP16 USB Type-C waterproof connector provides the environmental protection, mechanical durability, and electrical performance that R&D engineers specify, quality managers verify, and operations teams depend on. Its panel-mount design with IP67/IP68 sealing addresses critical failure modes while maintaining cost-effectiveness that procurement managers require. From LED lighting systems to renewable energy infrastructure, the connector's proven reliability across demanding applications confirms its value. Choosing components with proper certifications, supplier stability, and technical support capabilities protects your projects from delays and field failures that undermine project success.

FAQ

1.Can the LP16 support full USB Power Delivery specifications?

The connector design accommodates power delivery up to 20V/5A through its high-current contact configuration. This capability supports charging applications and powered peripherals requiring more than standard USB power levels. The gold-plated contacts maintain low resistance necessary for efficient power transmission without excessive heating during sustained current delivery.

2.What distinguishes IP67 from IP68 versions for my application?

IP67 certification confirms protection against temporary immersion—suitable for equipment experiencing rain, spray, or occasional flooding. IP68 configurations handle continuous underwater deployment where equipment operates submerged for extended periods. Your application environment determines which rating your project requires. Installations experiencing only weather exposure typically specify IP67, while marine sensors and underwater equipment need IP68 protection.

3.How does the bayonet lock perform under continuous vibration?

The mechanical coupling system provides a physical locking action that prevents loosening under vibration and mechanical shock. Unlike friction-fit connections that gradually work loose, the bayonet mechanism maintains secure contact through its positive locking design. Testing confirms reliable connection retention in transportation and industrial machinery applications where vibration causes standard connectors to fail.

Partner with a Trusted LP16 USB Type-C Waterproof Connector Manufacturer

Cablein Technology delivers industrial connectivity solutions engineered for reliability when standard components fail. Our LP16 USB Type-C waterproof connector line provides the environmental protection and durability your projects demand, backed by international certifications and consistent manufacturing quality. With over nine years of industry experience, our engineering team supports your requirements from initial specification through volume production. We maintain ready inventory of standard configurations for quick delivery while offering comprehensive OEM customization services including private mold development and custom cable assemblies. Contact our technical team at nick@cableinco.com to discuss your specific application requirements, request detailed datasheets, or obtain quotations for LP16 USB Type-C waterproof connector supplier partnerships. Our 24-hour support ensures your questions receive prompt attention, and our stable supply chain supports your project timelines without delays that compromise deployment schedules.
