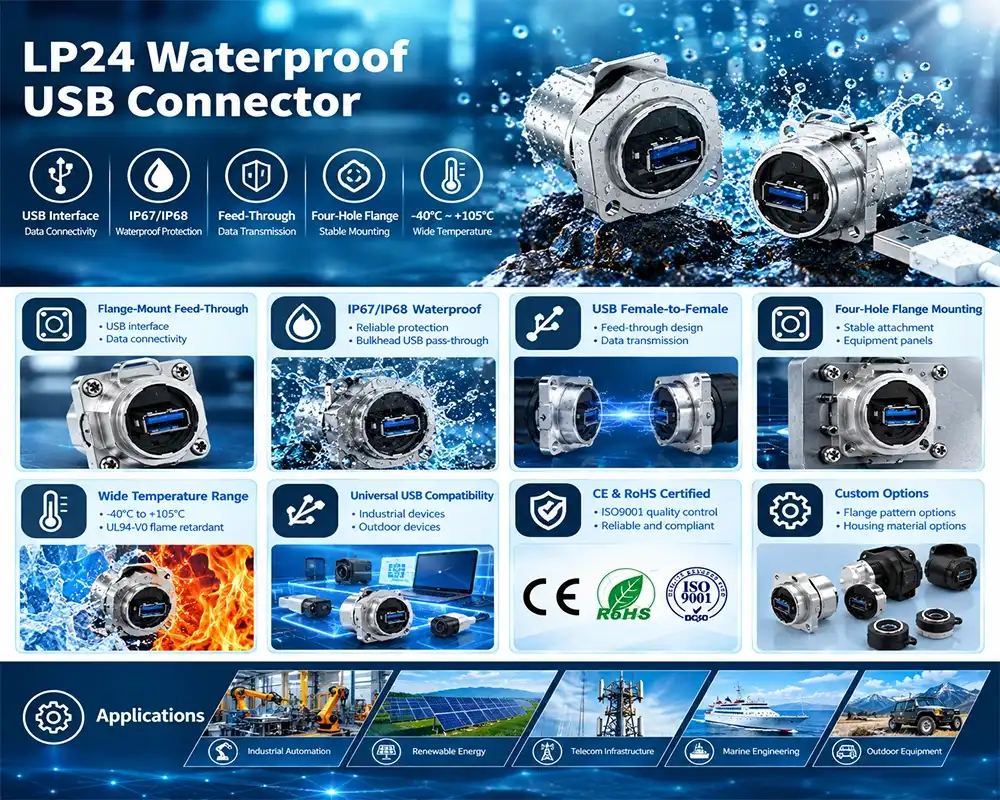

LP24 Cleanroom-Compatible Waterproof USB Connector for Pharmaceutical Applications

Pharmaceutical manufacturing demands more than standard components. When a data port fails inside a sterile filling line or a cleanroom HMI, the consequences reach far beyond a simple repair call. The LP24 waterproof USB connector addresses this gap directly. Engineered with IP67/IP68 ingress protection, a four-hole flange mount, and USB 3.0 speeds up to 5.0 Gb/s, this industrial-grade bulkhead connector delivers sealed, high-speed data access through equipment panels — without compromising hygienic integrity. This guide helps hardware engineers, procurement managers, and OEM integrators evaluate whether the LP24 is the right fit for their next pharmaceutical or controlled-environment deployment.

Understanding the LP24 Waterproof USB Connector and Its Role in Pharmaceutical Environments

What Makes It Suitable for Controlled Environments

Pharmaceutical sites have to follow strict rules for keeping things from getting contaminated. Chemical cleaning processes, high-pressure washdowns, and changes in temperature must be able to damage every surface, port, and material. When these things happen, standard USB ports that are open, not sealed, and framed in plastic break down very quickly. The LP24 waterproof USB connector counters this with a built-in gasket seal, a flame-resistant UL94-V0 case rated from -40°C to +105°C, and gold-plated contacts that don't oxidize even in cleanrooms with a lot of dampness.

The USB female-to-female feed-through design lets data flow straight through the enclosure walls without going outside the cabinet's protected perimeter. This is very important in places where any opening around a panel can hurt both the IP rating and the cleanliness classification. When hardware engineers add the LP24 waterproof USB connector to pharmaceutical HMIs, automated dispensing equipment, or process monitoring terminals, they get a data port that is easy to maintain and doesn't pose a risk of contamination.

According to IEC 60529, connectors with an IP68 rating must be able to withstand being submerged in water for more than one meter at a time. The LP24 waterproof USB connector meets this standard in its optional IP68 configuration (1m/2h). This is not a nice-to-have feature for medicine washdown zones. As a minimum, it must be done.

Comparing LP24 to Other Waterproof USB Connectors: Why It Stands Out

Performance Metrics That Matter in B2B Procurement

When purchasing teams look at sealed USB connectors, they usually compare them based on three factors: how well they keep out water and other contaminants, how stable they are mechanically when they are vibrated, and how much they cost to own over a number of years.

Most waterproof USB covers for consumers are made with simple rubber plugs or overmolded boots. These methods sometimes protect, but they break down after being exposed to cleaning agents over and over again. Other industrial panel-mount options usually use a single-hole nut mounting, which comes loose over time when the equipment moves. This is a known problem that happens a lot in pharmacy machinery and outdoor kiosks.

Here are the core advantages that differentiate the LP24 from alternative sealed USB connectors:

• Four-hole flange mounting spreads the mechanical load across the panel face, which stops the panel face from coming loose due to cable tension or equipment vibration. Single-nut systems can't keep up with this level of security over long periods of time.
• IP67 standard with optional IP68 covers both splash-zone and full-immersion washdown scenarios. This means that procurement engineers can use a single SKU for multiple installation situations without having to rethink the container.
• USB 3.0 SuperSpeed at 5.0 Gb/s can handle software flashing, diagnostic data pulls, and content changes at speeds that USB 2.0 panel plugs can't, as the need for pharmaceutical equipment to log and track data grows.
• CE and RoHS certification under ISO9001:2015 ensures the connector meets the standards of the European market. Buyers in North America can also check to see if their electrical safety submissions are suitable for the UL listing.
• Custom flange patterns and housing materials allow structural engineers to fit current panel hole plans without having to rework the tools, which saves time on purchase and speeds up the introduction of new models.

These characteristics make the LP24 waterproof USB connector a sound investment, not just because it's cheap per unit, but also because it will save you money over time on repair, warranty claims, and field service calls that come from joints that aren't sealed well.

Installation and Maintenance of LP24 Waterproof USB Connectors in Cleanroom Settings

Practical Guidance for Engineering and Maintenance Teams

Installing a bulkhead USB connection in a cleanroom requires attention to both mechanical and hygienic protocol. The LP24 waterproof USB connector's front-mount flange design lets engineers attach the plug before putting in the internal electronics, which makes the assembly process simpler. A standard 24mm panel punch creates the mounting hole; the four-hole flange then fits flush against the panel face and is sealed by the built-in gasket, so there are no extra sealant compounds that could leak or collect dust.

It works with cables with diameters from Ø5.0mm to Ø7.0mm, so it can fit most standard USB 3.0 cable assemblies used in industrial settings. The 0.9A current limit at 5V is enough to safely run both data and low-power USB peripherals.

For maintenance, the modular feed-through design of the connector lets a technician separate, check, and change the unit from the front face, without having to get to the wires inside. This front-serviceable design saves a lot of time and cuts down on contamination exposure events in sterile factory areas where entering needs a gowning procedure. Along with standard equipment qualification cycles, the gasket seal and contact surfaces should be inspected on a regular basis to make sure that the IP continues to work well.

Procurement and Sourcing Guide for the LP24 Waterproof USB Connector

What to Confirm Before Placing an Order

Global B2B buyers sourcing sealed panel connectors face a recurring challenge: verifying that the product they receive matches the specification they validated. Cablein keeps more than 10,000 of each item in stock for common setups, and it takes 7–10 business days to ship them. Custom flange designs and different types of housing materials follow flexible scheduling aligned to project timelines.

For normal LP24 waterproof USB connector setups, the minimum order quantities support the sample validation quantities that hardware engineers usually need when introducing a new model. This is an important consideration for teams with NPI cycles of two to four weeks. Certification documentation, including CE declaration of conformity and RoHS compliance certificates under ISO9001:2015, is available with shipment to support incoming inspection and regulatory submission workflows.

Procurement managers evaluating an LP24 waterproof USB connector supplier should confirm available certifications, in-stock inventory depth, and technical support responsiveness before committing to volume orders. Cablein's technical team is available 24 hours a day to answer questions about integration and custom configuration requests. Inquiries can be directed to nick@cableinco.com or through the product pages at connectorswaterproof.com.

Case Studies and Future Prospects: LP24 in Action

Real Deployments and the Direction of Sealed Connector Technology

Pharmaceutical automation integrators that use the LP24 waterproof USB connector have reported fewer warranty issues on panel USB ports compared to older nut-mount configurations. This is mostly because the four-hole flange is less likely to loosen cables when pulled, and the gasket seal lasts longer through IPA-based cleaning cycles.

Beyond current deployments, the sealed connector market is shifting toward higher ingress ratings, broader chemical resistance profiles, and USB-C integration within existing flange footprints. The LP24 waterproof USB connector's architecture — with its customizable housing material options and adaptable flange patterns — positions it to accommodate USB-C variants within the same panel cutout standard, protecting the engineering investment made in current enclosure designs.

Regulatory pressure from FDA 21 CFR Part 11 and EU Annex 11, which govern electronic records and electronic signatures in pharmaceutical manufacturing, is also increasing the data logging demands on equipment. High-speed sealed data ports are no longer peripheral to compliance — they are integral to audit trail infrastructure.

Conclusion

The LP24 waterproof USB connector is a purpose-built solution for environments where data access and ingress protection must coexist without compromise. Its four-hole flange mount, IP67/IP68 sealing, USB 3.0 throughput, and certification credentials address the specific pain points that hardware engineers and procurement managers face when specifying panel USB ports for pharmaceutical, cleanroom, and demanding outdoor applications. For teams seeking a sealed USB panel connector that supports reliable operation across long product lifecycles, the LP24 waterproof USB connector deserves a straight technical review.

FAQ

What IP rating does the LP24 carry, and which should I specify?

The LP24 waterproof USB connector comes with an IP67 grade, which means it can withstand being submerged in water for 30 minutes at a depth of 1 meter. The optional IP68 configuration extends protection to continuous immersion at 1 meter for 2 hours. For pharmaceutical washdown zones, IP68 is generally the recommended specification.

Can the LP24 withstand IPA and disinfectant cleaning agents common in pharmaceutical environments?

The UL94-V0 rated housing and integrated gasket materials are selected for chemical durability in industrial cleaning environments. Buyers should confirm specific chemical compatibility for aggressive solvent formulations with Cablein's engineering team prior to deployment.

What is the minimum order quantity for sample evaluation?

Standard configurations support low-MOQ sample orders suitable for NPI validation cycles, typically 100–200 pieces. Contact nick@cableinco.com to confirm current availability and lead time for your specific configuration.

Does the LP24 support USB 3.0 speeds?

Yes. As long as the cord assembly and host interface also support USB 3.0, the LP24 waterproof USB connector can send data at speeds of up to 5 Gb/s, which is the same as USB 3.0 SuperSpeed.

Are custom flange hole patterns available?

Custom flange patterns and housing material options are available for OEM applications. Cablein's engineering team can assist with dimensional alignment to existing panel tooling.

Partner with Cablein for Your LP24 Waterproof USB Connector Supply

Cablein Technology has manufactured industrial waterproof connectors since 2017, with ISO9001:2015 certification, 10,000+ pieces in standard stock, and 24-hour technical support. Whether you need sample quantities for NPI validation or volume supply as an LP24 waterproof USB connector manufacturer partner, our team is ready to support your project. Reach out at nick@cableinco.com or visit connectorswaterproof.com to request a datasheet or bulk procurement quote.
