Why Choose an RJ45 Ethernet Waterproof Connector for Industrial Applications?

Industrial operations depend on networks that deliver uninterrupted data flow in demanding conditions. When outdoor cameras freeze, factory sensors corrode, or charging stations fail due to moisture ingress, standard office-grade connectors simply cannot hold up. An RJ45 Ethernet waterproof connector bridges this gap by combining familiar networking standards with industrial-grade sealing technology. Engineered with IP67 or IP68 ingress protection, these ruggedized interfaces shield data links from rain, dust, chemical splashes, and mechanical stress, ensuring continuous operation across smart cities, manufacturing floors, renewable energy sites, and transportation networks where reliability is non-negotiable.

Understanding RJ45 Ethernet Waterproof Connectors

What Makes Them Different from Standard Connectors?

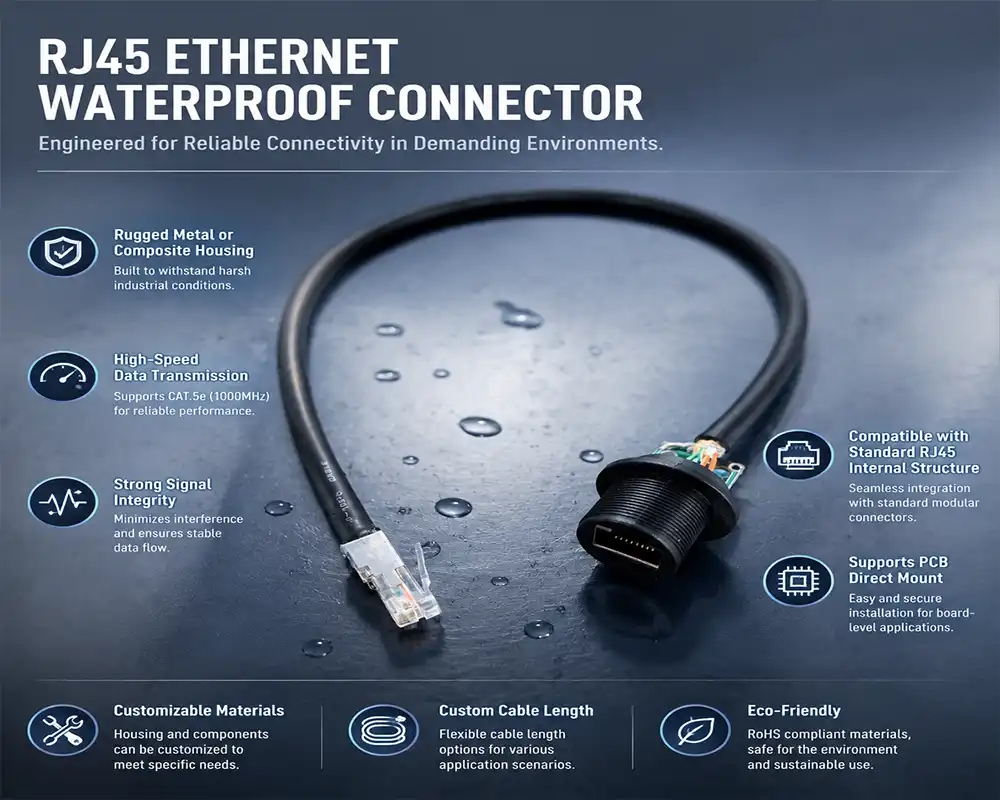

Traditional modular plugs work well in computer rooms with controlled temperatures, but they break down quickly when they are outside. RJ45 Ethernet waterproof connectors have extra layers of security that regular ones don't have. A typical unit has a PA66 nylon housing that doesn't break down when exposed to UV light or being hit, gold-plated phosphor bronze contacts that keep the resistance low below 20mΩ, and precision-molded silicone sealing rings that keep water out. Threaded locking mechanisms or bayonet-style housings offer mechanical stability that can handle vibrations and accidental pulls, while still working with Cat5e and Cat6 standards.

How IP Ratings Translate to Real-World Protection

The IP rating system tells you exactly what kinds of environmental threats a connector can handle. IP67-certified units can be submerged temporarily up to one meter for thirty minutes. This means they can be used in outdoor installations that get wet in heavy rain or floods from time to time. IP68 RJ45 Ethernet waterproof connectors can handle longer amounts of time in deeper water, often two meters for several hours. This makes them suitable for marine uses, underground pipelines, and coastal areas where salt spray speeds up corrosion. When these certificates are given, the equipment goes through strict tests in a lab setting. This gives purchasing managers a way to measure their confidence that the equipment will work when the weather gets bad.

Core Material and Design Advantages

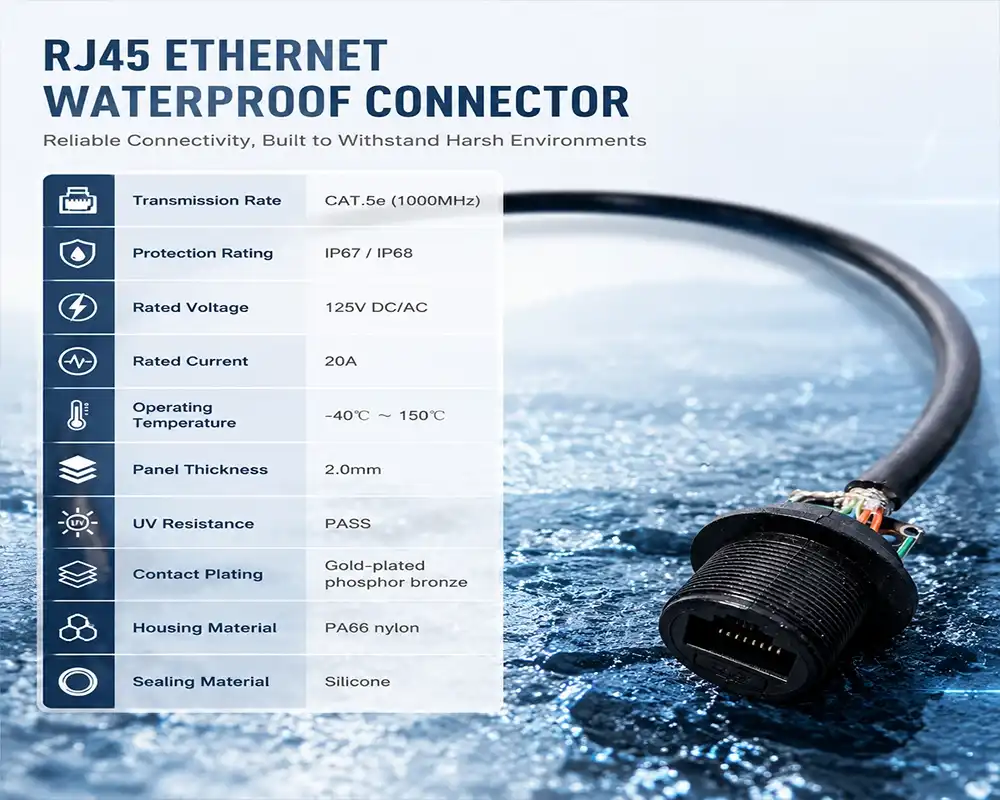

The choice of material has a direct effect on how long an RJ45 Ethernet waterproof connector lasts. The strength-to-weight ratio of PA66 nylon is very high, and it stays the same size at temperatures ranging from -40°C to 150°C. When contact pins are gold-plated, oxidation doesn't happen, which would raise resistance and lower signal quality over time. Cheaper rubber compounds harden and crack after thousands of mating cycles, but silicone gaskets stay flexible. This mixture provides insulation resistance greater than 500 MΩ and contact longevity greater than 750 mating cycles. This lowers the frequency of upkeep and increases system uptime in mission-critical settings.

Why Are Waterproof Connectors Critical for Industrial Environments?

Environmental Threats That Compromise Standard Connections

Network equipment in factories is vulnerable to oil mist, coolant splashes, and metal bits in the air that get into connections that aren't sealed. Temperature changes, UV rays, and wetness can damage metal links that are left out in the elements for weeks. Vehicles and transportation systems are always vibrating, which damages seals and loosens mechanical connections. Vapors from chemical processing plants are corrosive and can damage plastic housings and insulation. Each of these risks makes it possible for signals to weaken, connections to drop, or links to completely stop working. This can stop production lines, stop surveillance systems, and stop important messages.

Real-World Applications Across Industries

Power over Ethernet is used by smart city outdoor surveillance networks to send both data and electricity to cameras on poles, bridges, and building facades. When RJ45 Ethernet waterproof connector seals fail, water causes short circuits that stop cameras from working and mess up recorded video. Industrial automation systems link programmable logic computers to sensors spread out on plant floors, where cleaning and lubricant spraying are common tasks. Marine renewable energy sites keep an eye on wind turbines and offshore platforms in salty environments that speed up rust ten times faster than places in the middle of the country.

Network control is built into the stadium and cityscape LED lighting infrastructure to allow dimming, color changes, and scheduling. In places with a lot of humidity, agricultural automation systems control the watering, temperature monitors, and grow light panels in greenhouses. Trackside cameras, wayside monitoring equipment, and station communication systems that are open to extreme weather and mechanical shock are all connected by rail transit networks. Along highways and through cities, traffic management controllers, vehicle detection systems, and variable message signs are all connected by transportation infrastructure. In each case, you need RJ45 Ethernet waterproof connectors that keep the integrity of the signal even when the environment is constantly stressing them.

Comparing RJ45 Waterproof Connectors with Standard RJ45 Connectors

Performance Differences That Matter

Standard office-grade plugs don't close against the environment and usually have an IP20 rating, which means they can only be used in dry, indoor areas. They don't have threaded locking systems, so links can come loose by chance in places with a lot of foot traffic or a lot of shaking. Cost is more important than durability when choosing materials, so simple plastics that break when exposed to UV light and metals that rust when wet are used. Industrial RJ45 Ethernet waterproof connectors have engineered seals, materials that don't rust, and mechanical locking that work together to provide IP67 or IP68 protection. When used in harsh settings, this engineering means that working lifespans are measured in years instead of months.

Total Cost of Ownership Analysis

The single buy price is often what procurement teams look at, but it doesn't take into account the costs of maintenance and downtime, which are the most important factors in lifecycle economics. In outdoor settings, standard connectors that cost a few dollars may need to be replaced every six to twelve months. This means that troubleshooting, ordering parts, and making repairs in the field will cost money. RJ45 Ethernet waterproof connectors cost more at first, but they usually work for five to ten years without any maintenance. When downtime costs hundreds or thousands of dollars an hour in public safety or manufacturing, the extra cost for reliable connectivity is almost nothing. Lower failure rates also make inventory management easier by getting rid of the need to keep emergency extra parts on hand and limiting the number of replacement parts that repair teams need to carry.

Selection Criteria for Procurement Decisions

To pick the right RJ45 Ethernet waterproof connector, you have to make sure that the specifications match the performance needs and the environment. The IP grade must match or go beyond the worst-case exposure situation. For example, IP67 is needed for temporary rain exposure, while IP68 is needed for submersion or washdown settings. The temperature range for operation should include all of the changes in the ambient temperature as well as any warmth caused by electricity loads. When chemicals are present, material compatibility is important. Some solvents break down common plastics but don't affect others. The necessary data rate must be supported by the electrical standards. For example, Cat5e is enough for 1Gbps links, while Cat6 allows 10Gbps over shorter distances. Power-over-Ethernet (PoE) uses RJ45 Ethernet waterproof connectors that can handle the necessary power, which is usually 20A for POE++ setups.

How to Install and Maintain RJ45 Ethernet Waterproof Connectors?

Field Assembly Best Practices

A clean cable is the first step in a proper installation. Strip the outer jackets to the required length, which is usually 25 to 30 mm. Be careful not to cut the insulation around the conductors. Untwist pairs only as much as you need to in order to put conductors in the right pin sequence. Untwisting pairs too much hurts high-frequency performance. Before ending contacts, thread the wire through any necessary backshells or strain reliefs. Once soldering is done, retrofit assembly is no longer possible. Solder-type RJ45 Ethernet waterproof connectors need clean, shiny joints with full wire-to-pin contact. Cold solder joints make connections that fail sometimes and sometimes not at all.

Proper gasket placement and tightening pressure are important for the stability of the seal. Clean the surfaces that touch to get rid of any dust, oils, or other things that could make the seal less effective. Apply the connector manufacturer's recommended oil to O-rings minimally. Too much lubricant attracts dirt, and not enough application causes binding when joining. Tighten threaded couplings to the required torque levels using properly calibrated tools. If you don't tighten them enough, gaps form that let water in, and if you tighten them too much, gaskets get crushed and housings crack. Before putting connections through environmental stress, make sure they are continuity and resistance checked. Once deployed, it's much harder to fix problems with sealed assemblies.

Preventive Maintenance and Troubleshooting

As part of regular inspections, the condition of the home should be looked at visually to look for cracks, discolouration, or signs of UV damage. Check to see if the locking mechanisms are still in place and that the gaskets haven't come loose or worn down. Clean the outside of things to get rid of dirt and other things that could finally get through seals. Network monitoring tools can be used to check electrical continuity on a regular basis and find early signs of contact rust or water getting in. If RJ45 Ethernet waterproof connectors stop working sometimes, take them apart in a safe place, check the state of the internal seals, and replace the gaskets if they are clearly cracked or compressed. Write down patterns of failure to find recurring problems like not enough torque during installation or materials that don't work with chemicals used at the site.

Procurement Considerations for RJ45 Ethernet Waterproof Connectors

Evaluating Supplier Capabilities and Quality Assurance

The quality of manufacturing varies a lot between suppliers, so evaluating vendors is very important to the success of a project. ISO9001:2015 certification shows that companies have written quality management systems that can be tracked and have methods for ongoing growth. Certifications like CE, RoHS, REACH, and TUV show that an RJ45 Ethernet waterproof connector meets foreign safety and environmental standards. This is important for businesses that need to follow the rules, like export markets. Check the published specs by asking for test results that show IP rating validation, salt-spray protection according to ASTM B117, and insertion/extraction cycle testing.

When projects need a lot of items or need them quickly, production capacity is important. Standard setups can be shipped within days if a manufacturer keeps more than 10,000 units of each product line in stock. Custom kits, on the other hand, may take weeks for tooling and production runs. Check to see if the providers offer designs that can be installed in the field. These designs make inventory simpler by letting you change the length of the cables on-site, so you don't have to keep dozens of pre-terminated cable lengths on hand. Customization options, such as choosing the type of cable, pin configuration, and connector orientation, meet specific application needs that standard catalogue products can't meet.

Balancing Cost, Lead Time, and Technical Support

Strategies for buying things have to balance a lot of different objectives. Authorised wholesalers have local stock and fast shipping, but their prices are usually higher than when you buy directly from the maker. Original equipment manufacturers may have longer lead times and minimum order quantities, but they offer the lowest unit costs for large orders. Instead of just looking at the unit price, you should think about the total landed cost, which includes freight, customs fees, and the cost of keeping the goods. Build relationships with RJ45 Ethernet waterproof connector makers that have helpful technical support teams that can answer questions about installation, compatibility, and designing custom solutions. When suppliers give technical support 24 hours a day, seven days a week, and full engineering contact, they stop being just transactional vendors and become useful partners.

Terms of payment, warranty coverage, and return policies all have an effect on operational flexibility and financial risk. Longer payment terms help with cash flow for big projects, and full warranties cover any problems with the workmanship that are found during installation or early use. Make sure that providers have the right amount of product liability insurance and can give you the paperwork that project quality assurance programs need. Instead of looking at prices for a single transaction, you should judge suppliers based on how likely they are to become long-term partners. This is because consistent quality and reliable delivery create more value than small cost savings.

Conclusion

Environmental problems affect industrial networks in ways that destroy normal ways of connecting within months. RJ45 Ethernet waterproof connectors with IP67/IP68 sealing, materials that don't rust, and mechanical locking mechanisms give outdoor installations, factory floors, and other harsh environments the dependability they need. Choosing an industrial-grade connection is an investment in uptime, lower upkeep costs, and the ability to keep running. When purchasing managers look at the total cost of ownership instead of just the purchase price, RJ45 Ethernet waterproof connectors work out to be more cost-effective over multiple years. Network infrastructure should support industrial operations, not hinder them. This can be made sure by choosing the right specifications, installing them correctly, and working with qualified suppliers.

FAQ

What IP rating do I need for my application?

Most outdoor installations that are exposed to rain, dust and short-term water contact up to one metre depth are protected by IP67. This grade is good for equipment on rooftops, outdoor cams, and infrastructure that is above ground. For uses that involve submersion, underground vaults, marine environments, or equipment that will be washed with high-pressure water, IP68 certification is needed. The exact depth and length of time depend on the maker, so make sure that the IP68 performance matches your worst-case scenarios.

Can I add waterproofing to standard connectors after the fact?

Aftermarket boots and covers can protect against splashes to a certain extent, but they can't really meet IP67/IP68 standards. Purpose-built RJ45 Ethernet waterproof connectors have sealing elements built into the body of the connection, which makes them more reliable than snap-on extras. When normal hardware is retrofitted, it can fail sometimes, which might seem fine at first but quickly gets worse in real life.

How hard is it to put compared to regular connectors?

Field-installable RJ45 Ethernet waterproof connectors use a solder-type closure that can be done with simple hand tools and methods that electricians already know how to use. The extra steps include placing the gasket correctly and tightening it with controlled torque. They take minutes instead of hours to complete. This small investment during installation saves hours of work when standard connectors break down too soon and need to be fixed or replaced.

Partner with Cablein for Reliable Industrial Ethernet Connectivity Solutions

Cablein's RJ45 Ethernet waterproof connectors can be installed in the field and offer IP67/IP68 protection along with Cat5e/Cat6 performance. They are used all over the world in LED lighting networks, industrial control systems, surveillance infrastructure, and green energy installations. Our gold-plated contacts and rubber seals on our PA66 nylon housings work reliably from -40°C to 150°C, and they are certified by CE, RoHS, and ISO9001:2015. As a well-known provider of RJ45 Ethernet waterproof connectors, we keep more than 10,000 units in stock per line for fast delivery (7–10 days), and we can also make full custom cable assemblies that fit the needs of your project. Our engineering team is available 24 hours a day to answer questions about connectivity, help with installation, and design needs that are specific to an application. You can talk about your communication problems, ask for samples, or get thorough quotes that fit your project's schedule and budget by emailing nick@cableinco.com.
