When manufacturing lines stop because water got into a sensor connection, it costs more than just to fix the problem. It also affects customer commitments, production goals, and team morale. We've seen this happen many times in automation plants in many different industries. The M12 straight waterproof cable connector fixes this problem by offering threaded, sealed links that keep the signal strong even when they are hit by water jets, dust clouds, and constant movements. This strong circular connector has an IP67 or IP68 rating and a locking mechanism for a 12mm metric thread. It is the best choice for procurement managers and engineers who need reliable connectivity in tough environments without slowing down installation or sacrificing long-term dependability.
What is an M12 Straight Waterproof Cable Connector?
An M12 straight waterproof cable connector is a standard industrial interface that uses a small threaded coupling with a diameter of 12 mm to keep electrical connections safe in tough conditions. This industrial-grade part is different from home connectors because it has a straight body that lines up axially with the wire. This makes it perfect for installations where room is limited and clean routing through panels, enclosures, and drag chain systems is needed.
Core Functional Design
When the design is straight, there is no need for the extra space that right-angle versions need. This choice of design is important when working with control cabinets that are packed full of things or machinery where every millimeter matters. The threaded locking mechanism makes assembly easy without any tools needed and forms a mechanical bond that won't come loose from vibrations, which is a common way for conveyor systems, robotic arms, and mobile equipment to break down.

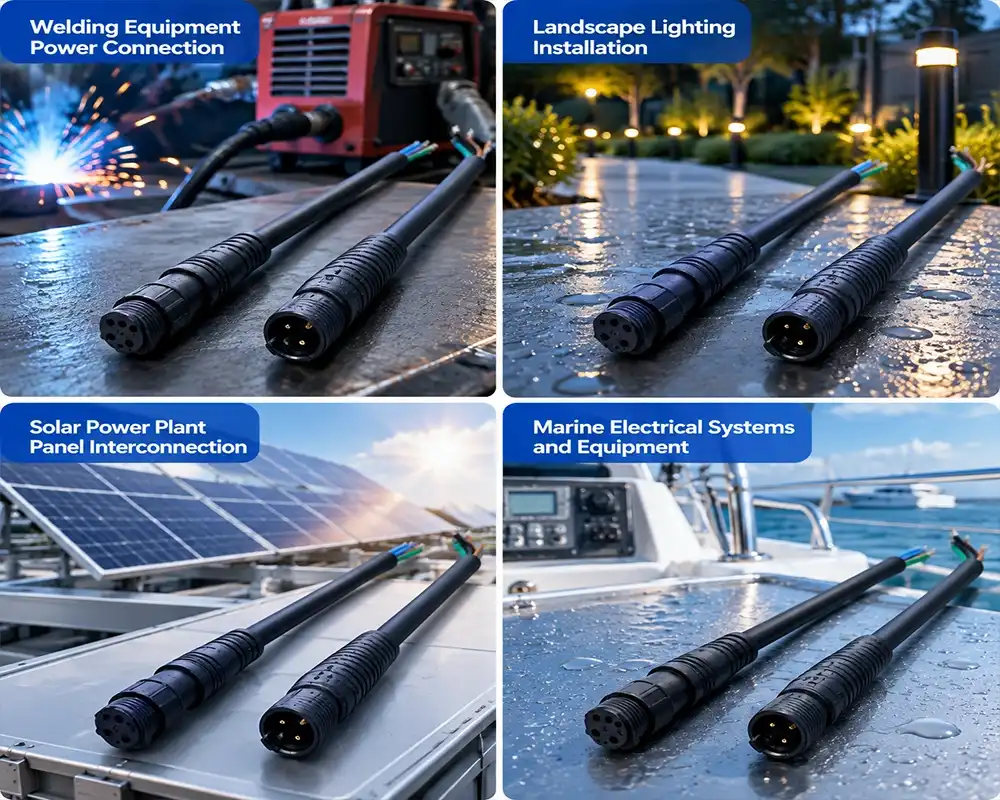

Industry Applications Across Sectors
These M12 straight waterproof cable connectors are used in factories to connect proximity sensors to programmable logic controls. This makes sure that production equipment gets correct position data even when coolant spray or metal debris is present. The waterproof seal covers the electrical contacts during rainstorms and pressure washing, which is good for outdoor LED lighting setups. Solar tracking systems depend on these connectors to keep motors and control units talking to each other even though the temperature changes every day and the connections are exposed to UV light. As part of transport infrastructure projects, they are required for traffic signal controllers and railway signalling equipment where downtime could put people in danger.
Material Construction Standards
Cablein makes our M12 straight waterproof cable connectors with a case made of PA66 nylon, which is resistant to chemicals and pressure. The internal contacts are made of solid brass that has been plated with gold. This combination of materials gives the contacts low resistance and stops oxidation, which over time lowers signal quality. The waterproof barrier is made up of a precision-molded silicone gasket that is pushed down by the threaded connection to keep the seal intact from -40°C to 150°C.
Technical Specifications and Installation Guide
If you know the electrical and mechanical specs of these M12 straight waterproof cable connectors, you can easily match the right parts to your system without having to do a lot of trial-and-error testing.

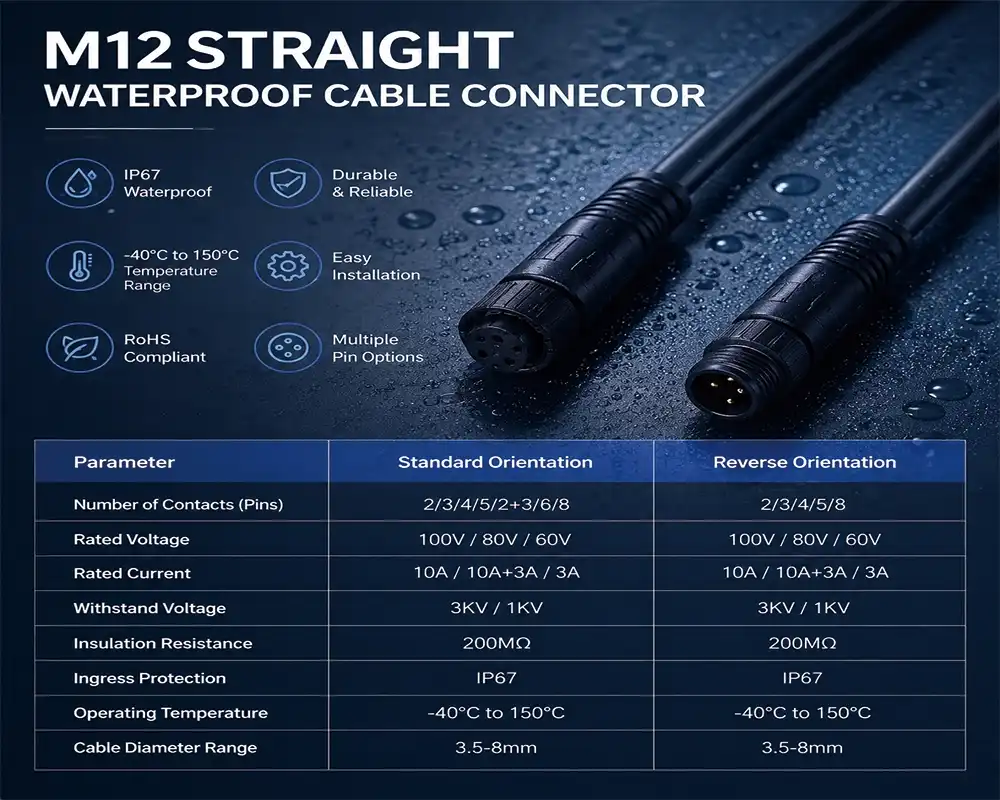

Electrical Ratings by Configuration
Depending on your power and data needs, our normal orientation M12 straight waterproof cable connectors can handle anywhere from 2 to 8 contacts per pin. The 3-pin and 4-pin versions can handle 10A at 80V and are good for sensor power circuits and separate signals. When you need both power and communication, the 2+3 hybrid configuration separates signal lines with low noise from paths with high current. Every setup keeps the 200MΩ insulation resistance, which stops leaking currents that set off false alarms in delicate control circuits. The 3kV withstand voltage grade keeps you safe from sudden voltage spikes caused by motor starters and electromagnetic interference that is typical in industrial settings.
Pin Configuration Options
The A-coded version is the standard way to connect sensors and actuators. It has a keyed design that keeps the M12 straight waterproof cable connector from mating with sockets that aren't compatible. Ethernet communication methods must be supported by D-coded connections in order for fieldbus networks like PROFINET and EtherNet/IP to work. Before you buy, make sure you know which coding your current equipment needs. Mixing codes makes connections incompatible, even if the thread size is the same.
Step-by-Step Installation Process
To prepare the cable, obtain enough jacket strip to fit the depth of the M12 straight waterproof cable connector backshell, usually 35 mm for standard designs. Remove the insulation without breaking the copper wires; broken strands increase resistance and produce hotspots. Pass the ready cable through the strain relief and solder or crimp the contacts according to your pin diagram. Our overmolded cables are factory-assembled and ready to connect, reducing installation time from 15 minutes to 30 seconds per connection.
The thread engagement must be twisted 1.5–2 times to compress the O-ring seal. Too much tightening deforms the seal and causes leaks. Too little tightening lets moisture in. Use a calibrated wrench to provide 0.4 Nm to 0.6 Nm of power to all joints for uniformity. Check for continuity with a voltmeter after installing to ensure pin mapping before turning on the circuit.
Maintaining Waterproof Integrity
Environmental safety scores depend on how well the M12 straight waterproof cable connector parts are put together. The connector can withstand being submerged in water for 30 minutes at a depth of 1 meter, which is what IP67 certification means. IP68 versions can handle being submerged in water all the time, which is useful for underwater robotics and fountain lighting. Even if the O-ring was put together correctly, it should still be checked once a year for compression set or surface cracks that could let air leak in. Replace seals that are showing signs of wear before they fail, especially in places where the temperature is high and the rubber breaks down faster.
M12 Straight Waterproof Cable Connector Comparison and Selection
To pick the best M12 straight waterproof cable connector setup, you have to weigh a lot of different factors that affect both the current costs and the costs over the product's lifetime.
Straight Versus Angled Body Orientation
When the wire path stays in the same direction as the device mounting direction, M12 straight waterproof cable connectors make it easier to manage cables. Angled versions turn the cable 90 degrees, which is helpful for connecting sensors that are flush against machine frames, where straight cables would stick out into work areas. The choice has an effect on more than just how it looks. For example, when bent wires enter M12 straight waterproof cable connectors, they cause stress concentrations that shorten the flex life in moving applications. To get the most out of the cable's durability, match the body style to the shape of your installation.
M8 and M12 Comparison
Smaller M8 connectors have a smaller size, which is helpful when placing several sensors in a small space. However, the smaller size of the contacts means that the maximum current can only be 4A, which is not enough for powered devices like LED drivers or solenoid valves. M12 straight waterproof cable connectors can handle more power and give you more pin choices for complicated messages. When your application only needs simple switch inputs, M8 versions save you money on materials. Even though they cost more at first, M12 straight waterproof cable connector specs are better in the long run because they offer more flexible connections that can support future upgrades.
Material Selection Considerations
Plastic housings made from PA66 or PBT are very resistant to chemicals like oils, coolants, and cleaners that are used in food processing and car production. The material can take multiple hits without breaking, which is important for M12 straight waterproof cable connectors that might be hit by falling tools or equipment. Zinc metal housings with nickel plating offer better electromagnetic protection, which is important for sending data at high frequencies and in places with a lot of RF disturbance. Coastal platforms and naval equipment made of stainless steel don't rust when exposed to salt spray. We help customers make this choice based on their specific electrical needs and the conditions they will be working in.
Supplier Evaluation Criteria
Professional M12 straight waterproof cable connector makers can tell the difference between stock providers and those who make connectors. Look for ISO9001:2015 approval, which means that quality management methods have been written down. International safety approvals like CE, TUV, and ETL show that a product meets well-known standards instead of making claims that can't be proven. The production ability of a supplier tells you if they can handle both small batches for prototypes and large amounts without having to increase lead times too much. When project deadlines are tight, having access to technical support—being able to talk about custom configurations, fix installation problems, and give application advice—is often more valuable than small price differences.
Procurement and Supply Chain Insights for M12 Waterproof Cable Connectors
Strategic sourcing practices lower the total cost of purchase while making sure that the supply of M12 straight waterproof cable connectors matches the plan for output.
Identifying Reliable Sources
Global M12 straight waterproof cable connector brands have large distribution networks, but their prices are often higher than others because they have to pay for marketing and other costs. When you deal directly with a manufacturer, you don't have to pay distributors' fees. This is especially helpful for repeat purchases and custom assemblies. When looking at possible suppliers, don't just rely on catalogue specs; ask for documentation from the production site that shows how it can make things. Cablein has a production facility that is 6,000 square meters and is staffed by more than 200 trained professionals. Each product line has more than 10,000 pieces in stock so that they can be sent out right away.
Volume Pricing Structures
When you buy more than 500 M12 straight waterproof cable connectors, the numbers get a lot better because the setup costs are spread out over more units. At 1,000 pieces, the price of custom cable assemblies is the same as that of normal catalogue items. This means that designs that are specific to an application can be made cheaply for production projects. When negotiating supply agreements, you should think about more than just the unit price. You should also think about the total cost, which includes holding costs for inventory, savings from freight consolidation, and less work for receiving inspection. When you buy things on consignment with a slightly higher piece price and flexible call-off schedule, you can often make more money than when you buy things at the lowest cost with strict minimum order amounts.
Supply Chain Risk Management
When you rely on one source for M12 straight waterproof cable connectors, quality, capacity, or bankruptcy may occur. Finding a backup source for critical links can help you avoid running out of goods, even if you never order from it. Geographic diversity reduces the danger of regional catastrophes like natural disasters, unstable governments, or transportation infrastructure issues that can block shipments. A strategic store of long-lead or high-use M12 straight waterproof cable connectors protects against supplier delays or demand spikes. Use the uncertainty in your production estimate and the average refill time to determine how much inventory you need instead of random safety stock percentages.
Customization Advantages
Custom layouts eliminate system-slowing compromises, although catalogue M12 straight waterproof cable connectors perform well for many applications. Give proper connection lengths to minimise superfluous wiring that clutters containers and complicates debugging. Custom pin designs integrate many wire runs into a single M12 straight waterproof cable connector with power and signal contacts. Material substitutions increase cost-to-performance ratios by using TPU jacketing for wear resistance or UL-recognized wire for North American code compliance. We provide full customising, including wire type, length, connection orientation, and pin configuration. We don't have minimum order quantities, making personalization too expensive for many applications.

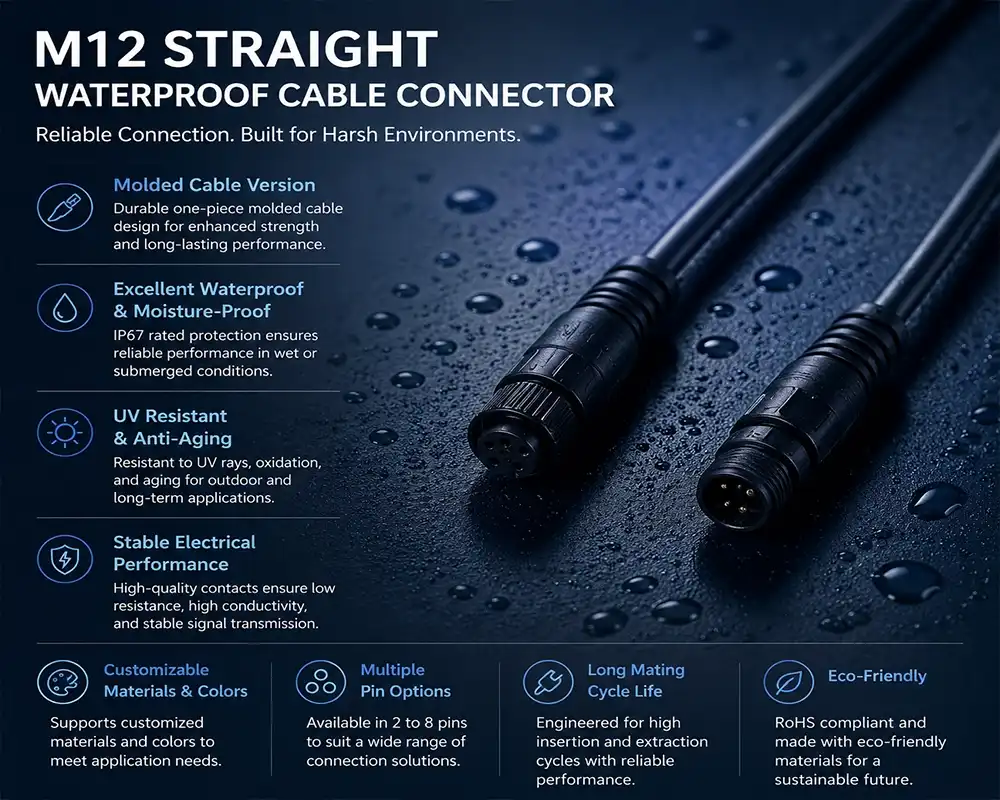

Advantages and Durability of M12 Straight Waterproof Cable Connectors
M12 straight waterproof cable connectors that are properly specified have operational benefits that go beyond basic functionality. They can also lower maintenance costs and increase system uptime.
Environmental Resistance Performance
For IP67 approval, the M12 straight waterproof cable connector has to be able to withstand tests in a dust room, which would clog unsealed connections, and then being submerged in water, which would corrode contacts that aren't protected. These aren't just hypothetical lab conditions; they're meant to be like the dust that builds up in grain processing plants and the high-pressure washing that cleans food production lines. M12 straight waterproof cable connectors that meet IP68 standards can be submerged in water for a long time. This makes them suitable for controlling bilge pumps and underwater car tethers. The rating system takes technical details and turns them into protection levels that you can use in your working environment.
Mechanical Durability Factors
Threaded coupling designs spread binding forces around the M12 straight waterproof cable connector's edge instead of putting all the stress on a few contact pins. This mechanical advantage keeps the contacts from deforming, which happens a lot when push-pull connectors are put under side loads. Vibration-induced loosening is a problem with friction-fit designs in mobile equipment and machines with moving parts. The locked threads stop this from happening. Cable strain relief built into the backshell of the M12 straight waterproof cable connector stops wires from bending at the termination point, which is the main way that connections fail in motion control applications. Our connectors work reliably through 500 mating cycles, which means they can handle maintenance tasks and seasonal equipment disconnection without losing any performance.
Total Cost of Ownership Analysis
When you add up the costs of labor, system integration, and possible failure, the initial price of an M12 straight waterproof cable connector is only a small part of how much it will cost to install. Field termination work costs $15 to $25 per link in North American labour markets. Pre-assembled wire assemblies get rid of that need. When M12 straight waterproof cable connectors are properly specified, they have a lower failure rate. This means that you don't have to spend as much time and money on diagnosing problems, getting replacement parts, and stopping production. Each of these things can cost over a thousand dollars. Longer service life (10 to 15 years in normal industrial circumstances) gets rid of the need to keep track of replacement parts and do regular upkeep. When comparing seller offers, don't just look at the unit price. Instead, figure out the total ownership costs, which include the purchase price, the cost of installation, the expected service life, and the chance of failure.
Real-World Deployment Success
A company in the Midwest that makes farm equipment switched from using traditional terminal blocks to using our M12 straight waterproof cable connectors on their pivot irrigation systems. This cut down on the number of service calls linked to moisture by 80% during the first growing season. A solar installation company in the Southwest switched to our UV-resistant M12 straight waterproof cable connector assemblies after having problems with competing products that broke down too soon. This saved them $47,000 a year in warranty costs. A major auto supplier switched to M12 straight waterproof cable connectors for their robotic welding cells. This cut the time it took to integrate each robot from 12 hours to 6 hours because the sensors could connect to each other more quickly. Results like these show how useful well-designed connection can be in a wide range of situations and uses.
Conclusion
M12 straight waterproof cable connectors provide the reliable industrial connectivity that keeps production systems running in harsh environments that would normally make wiring impossible. Because they have threaded closing security, sealed housing protection, and standardized interface compatibility, these connections can be used in infrastructure, lighting, automation, and energy. Cablein makes M12 straight waterproof cable connectors with gold-plated brass contacts, PA66 housings, and certified IP67/IP68 protection. These connectors come with foreign certifications and can be delivered quickly from a well-stocked store. The technical specs support 10A current capacity, 3kV voltage withstand, and -40°C to 150°C operation, so it can handle tough jobs. The pre-assembled design also gets rid of field termination mistakes. If you know how to choose M12 straight waterproof cable connectors, how to buy them, and the best way to install them, you can choose ones that lower your total cost of ownership and increase system uptime.
FAQ
What differentiates A-coded from D-coded M12 connectors?
A-coded M12 straight waterproof cable connectors have a pin arrangement that is best for delivering power reliably and are the usual way for DC power circuits and digital sensors to be set up. Different types that are D-coded support 100Mbit Ethernet protocols, such as PROFINET and EtherNet/IP, and need controlled impedance contacts to send data. The mechanical keying keeps people from connecting power-rated M12 straight waterproof cable connectors to data ports or data ports to power-rated cables by accident. This keeps sensitive communication equipment safe from voltage damage.
Can M12 connectors function in submerged marine environments?
For marine use, you need M12 straight waterproof cable connectors with an IP68 grade that have been tested to withstand continuous immersion at your working depth. To keep the case and coupler nuts from rusting in saltwater, ask for stainless steel 316 instead of zinc alloy. Polyurethane should be used instead of PVC for cable jacket materials because it is better at protecting against marine life and UV light. In harsh saltwater conditions, regular inspection and M12 straight waterproof cable connector seal replacement can extend the life of a system even if it meets all the requirements.
How much torque ensures proper waterproof sealing?
According to industry standards, M12 straight waterproof cable connectors should be tightened with 0.4 Nm to 0.6 Nm of force. This should be checked with a measured torque wrench instead of guessing by hand. Because there isn't enough force, the O-ring isn't compressed enough, letting water in. When there is too much torque, the gasket is deformed beyond its range of elastic recovery, which makes permanent leak paths. Applying the same amount of force to all M12 straight waterproof cable connectors makes sure that performance is the same and makes troubleshooting easier if problems happen.
What advantages does TPU cable jacketing provide over PVC?
Thermoplastic polyurethane is much more resistant to wear and tear than polyvinyl chloride. This is important for M12 straight waterproof cable connectors with wires that have to go along metal edges or through rough surroundings. PVC stiffens and cracks below -10℃, but TPU stays flexible even at lower temperatures. It stays flexible up to -40℃. It is better at resisting oil and chemicals when it comes to cleaning with solvents or hydraulic fluid. These performance benefits make the higher cost of the materials worth it for installations where replacing M12 straight waterproof cable connectors is hard or expensive.
Partner with Cablein for Your M12 Waterproof Connectivity Needs
By choosing an experienced M12 straight waterproof cable connector manufacturer, you can be sure that your network infrastructure will work as it should, and the purchasing process and technical support will be streamlined. Cablein Technology uses ISO9001:2015 quality management and has certifications from CE, TUV, ETL, and RoHS. They make M12 straight waterproof cable connectors that meet the international standards your projects need. Our 6,000-square-meter warehouse keeps more than 10,000 pieces of each product line in stock. This means that standard configurations can be delivered in 7 to 10 days, and we can also make custom M12 straight waterproof cable connector assemblies to your exact specifications. We offer full customization, including choosing the type of wire, the length, the orientation of the connection, and the layout of the pins. Our 200+ skilled professionals and modern production tools make this possible. Email nick@cableinco.com to talk about your application needs, get detailed technical specifications, or ask for samples that show how well we can make M12 straight waterproof cable connectors. For your automation, lighting, energy, or infrastructure projects, professional technical help and a solid supply chain can make a big difference.
References
1. International Electrotechnical Commission (2008). IEC 61076-2-101: Connectors for Electronic Equipment – Product Requirements – Circular Connectors with M12 Screw-Locking. Geneva: IEC Publications.
2. National Electrical Manufacturers Association (2019). NEMA Standards Publication 250: Enclosures for Electrical Equipment (1000 Volts Maximum). Rosslyn: NEMA.
3. Bowden, M.L. & Richardson, K.A. (2017). Industrial Connector Systems: Design, Specification and Reliability Analysis. Boston: Butterworth-Heinemann Technical Publishers.
4. Zhang, W. & Chen, H. (2020). "Comparative Analysis of waterproof connector Performance in Harsh Industrial Environments." Journal of Manufacturing Systems and Technology, 45(3), pp. 287-301.
5. European Committee for Electrotechnical Standardization (2016). EN 60529: Degrees of Protection Provided by Enclosures (IP Code). Brussels: CENELEC.
6. Anderson, R.T., Phillips, S.J., & Kumar, V. (2021). Automation Component Selection: Engineering Guide for Industrial Control Systems. New York: McGraw-Hill Professional Engineering.
