Top-rated M20 circular connectors for harsh environments?

When your equipment works outside in pouring rain, in solar farms in the desert, or in rail transit systems where it shakes all the time, connector failure is not an option. The best M20 circular connectors have strong waterproof sealing, long mechanical life, and reliable electrical performance—all of which are needed in harsh environments. There is a metric 20mm threaded locking device on these industrial-grade fittings that keeps links safe from water, dust, and physical stress. M20 circular connectors are essential for mission-critical uses in LED lighting, green energy, industrial automation, and security infrastructure. They have IP67 and IP68 ratings, designs that can be serviced in the field, and are compliant with international standards.

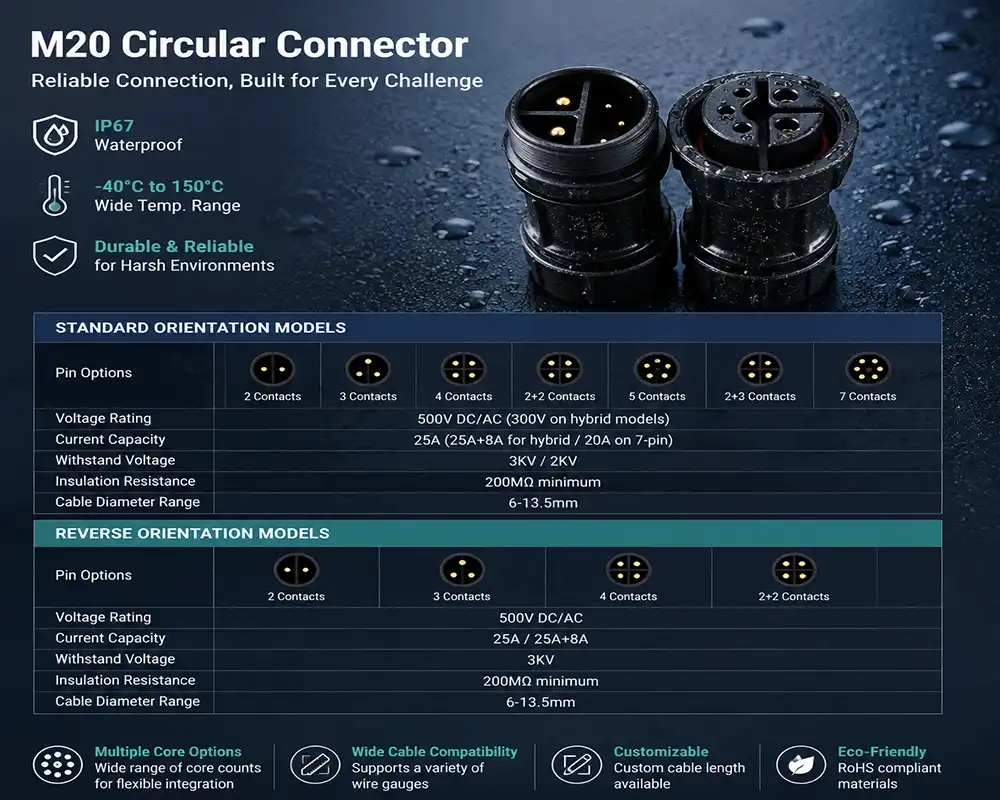

M20 circular connector

Understanding M20 Circular Connectors: Specifications and Applications

What Makes M20 Circular Connectors Essential for Industrial Use?

The M20 circular connector is a well-thought-out answer to three major problems in industrial connectivity: keeping out the elements, keeping things stable, and getting power to where it's needed without taking up too much room. In contrast to rectangular connectors, the circular design fairly spreads mechanical stress around the coupling, which keeps it from coming loose when the system vibrates. The 20mm thread diameter has enough engagement depth for a secure panel fix, and it can fit wire widths from 6mm to 13.5mm. Because of the way they were designed, these links are necessary when other ways of connecting don't work.

Core Technical Specifications That Define Performance

Our field-assembled connectors have a PA66 nylon shell that is strengthened with glass fiber to make it more resistant to chemicals and keep its shape at all temperatures. Gold-plated brass contacts keep oxidation from happening in corrosive environments and lower contact resistance below 5mΩ. The rubber seal technology provides IP67 protection against short-term soaking in water and IP68 protection against prolonged immersion.

Pin configurations range from two to seven pins, and hybrid choices like 2+2 and 2+3 allow power and data transfer at the same time. The maximum voltage is 500V DC/AC, and the maximum current is 20A to 25A, based on the number of contacts. The screw termination chambers can handle wire sizes from 14 AWG to 24 AWG without the need for special joining tools. This makes installation in the field much faster. Insulation resistance is higher than 200MΩ, and testing for withstand voltage confirms a dielectric strength of 2 kV to 3 kV.

Where M20 Connectors Deliver Maximum Value?

In industrial automation, these connectors are used for sensor networks and controlling actuators in places where the signal integrity can't be interrupted. The anti-vibration threaded coupling keeps the contact pressure the same even when it's attached to robotic arms that move thousands of times every day. Outdoor LED installations, like stadium floodlights and building facades, benefit from housings that are UV-stabilized and seals that are IP68-rated, which keep water out for years.

EV charging equipment needs to be able to handle high currents and be safe when it's wet. Our connectors handle charging stations' main power entry. The long thread length makes sure a safe fit through thick enclosure walls. Marine electronics and solar tracking systems have to deal with saltwater spray and temperature changes. In these situations, materials that don't corrode and a working temperature range of -40°C to 150°C are very important for keeping the systems running.

Comparing Top M20 Circular Connectors on the Market

Evaluating Size and Current Capacity Against Alternatives

Purchasing managers often look at M20 circular connectors next to ones of the same size, such as M12, M16, and M23 models. The M12 format works well for sensor applications that don't have a lot of room, but it only allows currents of 4A to 12A. M16 connectors fill in the gaps, but they aren't strong enough to send heavy-duty power. M23 connectors have more contacts, but they need bigger holes to be cut in the panel. The M20 circular connector standard hits the sweet spot for performance, taking 20A to 25A current in a small package that fits in most industrial enclosures.

Aviation-grade circular connectors block electromagnetic interference better, but they cost more and take longer to get. Ethernet-enabled connectors can handle data protocols, but they can't hold as much power. When it comes to cost and supply chain availability, M20 circular connectors are better than specialized options for applications that need rugged power delivery with moderate data needs.

Brand Landscape and Certification Standards

Leading companies like Harting, Amphenol, TE Connectivity, and Phoenix Contact have built their reputations on a lifetime of quality products. These names usually have a lot of information about their products, a worldwide network of distributors, and quick technical help. But their price models often include brand premiums that change how much the whole job costs.

Cablein has spent nine years making M20 circular connector products that work as well as or better than well-known brands while keeping prices low. Our products have been certified by ETL and TUV, as well as by ISO9001:2015 and RoHS/REACH. This means they meet the strict safety standards for the North American and European markets. Our engineering team has improved quick-connect connections, solder-free ending methods, and high-power waterproof technologies that solve problems that come up during installation. They have been granted over 30 utility model patents.

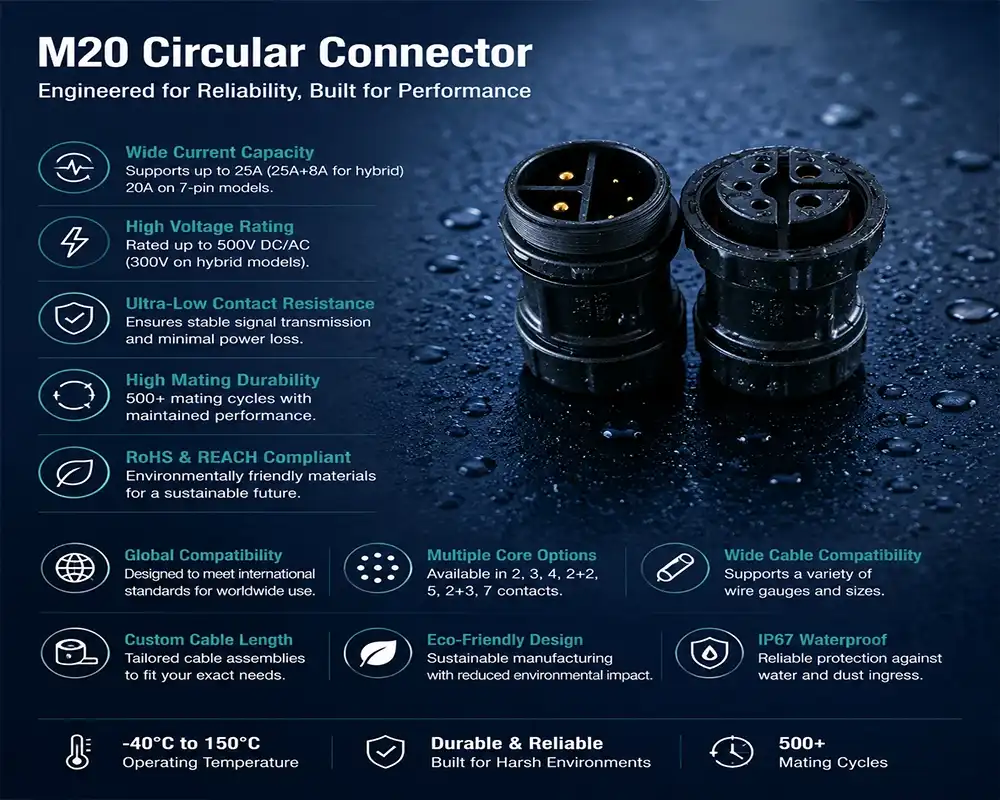

M20 circular connector advantage

How to Select the Best M20 Circular Connector for Harsh Environments?

Assessing Environmental Demands and Electrical Requirements

The first step in your selection process is to honestly look at the working conditions. Will the M20 circular connector be submerged in water all the time or just sometimes? Different seal materials are needed for different temperature ranges. Silicone stays flexible at -40°C, while special compounds don't break down at 150°C. Chemically resistant housing materials are needed for areas that will be exposed to hydraulic fluids, cleaning solvents, or saltwater.

Specifications for electrical work need the same level of care. Figure out the real current loads, not just the steady-state loads. This should include starting spikes as well. In low-voltage, high-current situations like LED drivers, the voltage drop across the contact resistance gets big. The number of pins needs to be able to handle ground and control messages as well as active wires. When you use hybrid configurations with mixed power and signal contacts, you don't have to install multiple connectors.

Material Selection for Longevity and Performance

PA66 nylon housings are very strong for their weight and can stand up to most industrial chemicals. This makes them perfect for use outside and in food processing areas. Zinc metal or brass shells are better at blocking electromagnetic interference on plant floors that are noisy with electricity, but they need to be nickel-plated or coated to keep them from rusting. Gold plating on contacts raises the cost per unit, but it improves dependability by stopping oxidation, which causes breakdowns to happen from time to time.

Balancing Cost and Supply Chain Efficiency

The total cost of ownership is more than just the price of the product. When compared to soldered joints, quick-connect designs cut down on installation work by up to 40%. Field-serviceable connections let repairs be done on-site instead of sending the equipment back to the maker, which cuts down on the cost of downtime. Managers of procurement should negotiate bulk discounts for standard setups and keep working with suppliers who offer fast prototyping for unique needs.

For off-the-shelf items, we can deliver them within seven to ten days thanks to our stable inventory of over 10,000 pieces per standard configuration. Custom pin configurations and cable assembly services work on flexible schedules that fit the needs of your project. They are backed by reliable international shipping through partnerships with UPS, DHL, and FedEx.

Installation and Maintenance Best Practices for M20 Circular Connectors

Step-by-Step Installation for Maximum Reliability

Preparing the cables for the M20 circular connector is the first step in a proper operation. Remove the outer insulation to reveal wire lengths that meet the screw connection depth, which is usually between 8mm and 10mm. To keep stranded conductors from fraying, twist them tightly and then fully insert them into terminal chambers. Tighten terminal screws to the pressure values recommended by the maker. Not tightening them enough leads to high resistance and overheating, while tightening them too much hurts the conductors.

Before putting in the contacts, thread the cable gland onto the wire. This is an important step that is often missed and needs to be redone from scratch if it is. Once the wires are in place, slide the gland forward and hand-tighten it onto the body of the connector. Use the right-sized wrenches to get the right amount of torque without overtightening, which can damage sealing surfaces or crack housings. Before the final assembly, make sure the O-ring or gasket fits properly in its groove.

Maintenance Schedules That Prevent Failures

During yearly checks, the housing should be looked at visually for cracks, discolouration that means the heater is too hot, and rust on metal parts that are visible. Use a megohmmeter set to the rated voltage to check the insulation resistance. Readings below 100 MΩ should be looked into further. By checking sample joints with mechanical cycles, we can see that they are wearing out before they break in large numbers.

To fix signal interference, make sure the grounding is correct and look for broken wire shielding near the connection contact. Contact resistance tests find connections that are rusted or loose. Thermal imaging finds hotspots during operation, which can mean that the conductors are too small or the connections aren't good. When the integrity of the housing is compromised or the contact plating shows a lot of wear, replacement is needed because these problems can't be reliably fixed in the field.

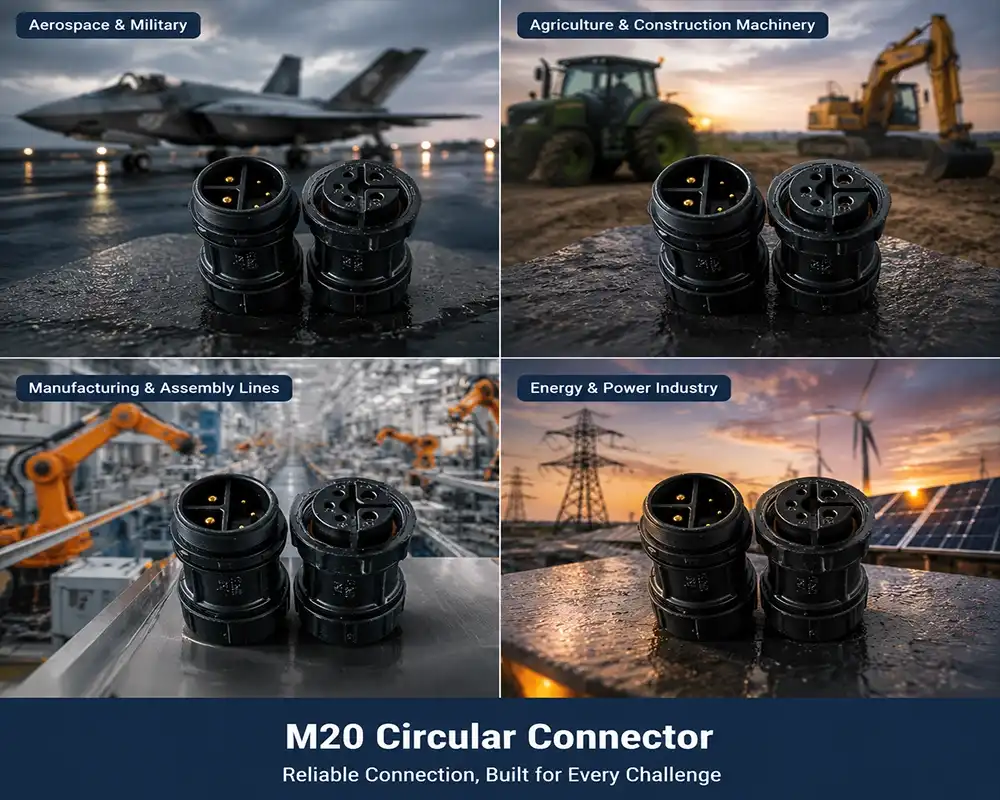

M20 circular connector application

Procurement Insights: Where and How to Buy M20 Circular Connectors?

Identifying Trustworthy Sources and Verification Methods

Authorised distributors sell real goods that come with warranties and technical support from the manufacturer. When you work directly with makers like Cablein, you can get access to technical tools, choices for custom configuration, and low prices for large orders. There are more suppliers to choose from in online business-to-business markets, but they need to be carefully checked by reviewing certifications and trying samples.

Important specs can be found on datasheets, but make sure you check the real test results for IP ratings, temperature cycles, and vibration resistance. Certifications should be able to be tracked back to well-known testing labs. In order to be completely honest, we provide ETL, TUV, CE, and RoHS documentation upon request. This way, your purchasing team can make sure that we follow the rules before committing to large orders.

Pricing Structures and Negotiation Strategies

How much a connector costs depends on how much it costs to make, how much it costs to certify, and how many are made. Standard configurations get economies of scale, while custom designs have to pay for tools up front, but those costs are spread out over many orders. Get suppliers involved early in the planning process to make sure that your needs are met by the tools that are available. This will lower the cost of special engineering.

Long-term supply agreements make sure that prices stay stable and that parts that are in short supply are given priority. Tiered prices are unlocked by making volume promises. When our clients place orders of more than 5,000 units per year, they usually save 15% to 25%. When you buy connectors along with cable assembly services, you can get them from the same providers. This will make transportation easier and lower the total cost of delivery.

Conclusion

To choose the best M20 circular connectors, you need to carefully look at their technical specs, environmental needs, and the supplier's abilities. These strong ways to connect have been shown to work in LED lighting, renewable energy, industrial automation, and security systems where dependability is a must. Procurement teams can choose M20 circular connectors that work well for years without any problems if they know how housing materials, contact plating, IP ratings, and certification standards affect each other. Investing in good connectors pays off in the form of less downtime, lower labor costs, and longer equipment life even in the roughest conditions.

FAQ

Questions People Ask Often

What differentiates IP67 from IP68 ratings in practical applications?

In real life, what makes the IP67 rating different from the IP68 rating? IP67-rated M20 circular connectors can handle being submerged in water up to 1 metre deep for 30 minutes. This makes them ideal for equipment that will be wet or being cleaned. IP68 protection lets things stay submerged for more than one meter, which is important for underwater lights or tools that work in areas that are likely to flood. The higher grade calls for stronger sealing, which slightly raises the cost but is necessary to protect permanent wet installs.

Can M20 connectors support both AC and DC applications?

Can M20 circular connectors be used for both AC and DC tasks? The stated voltage specs are the same for both AC and DC systems. However, because there is no skin effect in DC systems, they may have a slightly higher current capacity. Make sure that the insulation grades and contact materials are right for the voltage and frequency you need to work with. This is especially important for high-frequency uses where dielectric losses are high.

How do I ensure electromagnetic compatibility in sensitive installations?

How can I make sure that sensitive installations are electromagnetically compatible? When properly grounded, metal-shell versions protect against EMI and RFI to keep signals safe in places with a lot of electrical noise. Use wires that are shielded and have a 360-degree shield touch to the body of the connection. For plastic housings, keep high-power conductors far enough away and use twisted-pair wiring for differential signals to cut down on induced interference.

Partner with a Certified M20 Circular Connector Manufacturer for Your Next Project

As you plan your next project, work with a certified M20 circular connector manufacturer. We at Cablein have spent nine years perfecting waterproof technology for connecting things that can handle the harshest environments. Our M20 circular connector portfolio includes designs that have been used in the field and designs that are always being improved. It is backed by certifications from ETL, TUV, and ISO9001:2015. Whether you need standard setups from our collection of over 10,000 pieces or custom pin arrangements with full cable assembly, our engineering team is available to help you with technical issues at any time during the lifecycle of your project. We are based in Shenzhen's high-tech hub and have 6,000 square meters of modern manufacturing space. We can give your procurement strategy the quality consistency and supply chain reliability it needs. Email our team at nick@cableinco.com to talk about how our M20 circular connector products can help your tools work better and last longer in harsh conditions.
