Top suppliers of M12 straight waterproof cable connectors for outdoor use
Introduction
When heavy rain, dust, vibration, and high temperatures hit industrial equipment, the last thing you need is a broken connection that stops work. With its reliable performance in places where other connections fail, the M12 Straight Waterproof Cable Connector has become the standard for outdoor setups. These small, threaded, circular M12 straight waterproof cable connectors keep important power and signal links safe in places like solar farms and automatic assembly lines.
When engineers and procurement managers are looking for connectivity options for things like outdoor LED lighting, EV charging stations, security systems, or industrial automation, picking the right source can mean the difference between running smoothly and having to pay a lot for downtime. With this guide, you can find the best M12 Straight Waterproof Cable Connectors from the top makers that meet international standards and your unique application needs. Knowing the different suppliers helps you make smart choices that are good for both performance and price, whether you need IP67 or IP68 protection, special cable lengths, or fast delivery for projects that need to be done right away.
Understanding M12 Straight Waterproof Cable Connectors for Outdoor Use
What Makes M12 Connectors Essential for Outdoor Applications

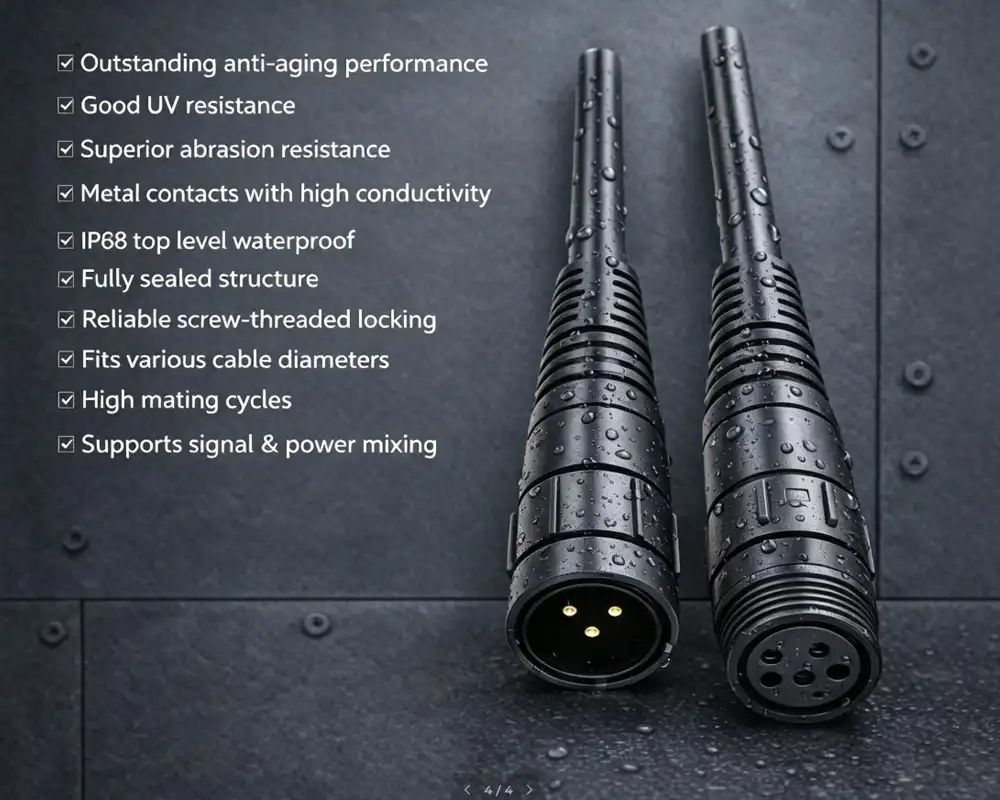

M12 Straight Waterproof Cable Connectors are the most important part of current industrial connections. They have a 12mm threaded locking system that keeps sensors, actuators, and control devices safe from the elements. These M12 Straight Waterproof Cable Connectors keep the signal pure with built-in sealing technologies, while regular electrical connections fail when they touch water or other contaminants. The design's straight orientation is especially useful in normal panel setups where there is enough room for direct wire routing without sharp turns.
The housing is usually made of PA66 nylon that has been strengthened with glass fiber. This gives it great tensile strength while still being light. Inside, contacts made of gold-plated brass provide better communication and don't rust even after thousands of joining cycles. The waterproof seal is made up of precision-molded silicone gaskets that flatten evenly when the threaded connection is tightened. This stops water from getting in up to IP68 standards.
Technical Specifications That Matter
Knowing about key factors can help you match the M12 Straight Waterproof Cable Connector features to the needs of your program. The rated voltages are between 60V and 100V, and the current outputs are between 3A and 10A per contact. The 200MΩ insulation resistance stops signal loss even when it's humid outside, and the 3KV withstand voltage stops electrical spikes that happen a lot in industrial settings.
Temperature stability is very important for setups outside. Good M12 straight waterproof cable connectors work steadily from -40°C to 150°C, so they can be used in arctic transportation systems as well as solar setups in the desert. The IP67 grade promises dust-tight seals and protection against water immersion up to 1 meter for 30 minutes. IP68 versions can withstand continuous submersion under conditions set by the maker. There are different pin configurations with 2, 3, 4, 5, 6, and 8 contacts. Some specialized versions offer mixed setups like 2+3 for sending both power and signals. The overmolded cable's width is usually between 3.5 mm and 8 mm, so it can fit different wire sizes and shielding needs.
Industries Relying on M12 Waterproof Connectivity
These M12 Straight Waterproof Cable Connectors have a good name in fields that need them. LED lighting makers like that the building is pre-wired, which means there are no field termination errors when installing a lot of lights in an arena or for a landscaping project. In-train transit uses where there is steady movement that would loosen push-fit options, the threaded locking mechanism keeps the parts in place. Materials that are immune to UV light and salt spray testing show that solar energy systems can last in seaside settings. Integrators in security and surveillance like how reliable the outdoor safety is that keeps CCTV cameras working in bad weather. M12 straight waterproof cable connectors, which meet IEC 61076-2-101 standards, are used by industrial automation experts because they are compatible with all proximity switches, photoelectric sensors, and fieldbus modules.
Top Suppliers of M12 Straight Waterproof Cable Connectors in the Market
Global Industry Leaders
A few well-known companies control the global market thanks to decades of tech know-how and large marketing networks. TE Connectivity offers a wide range of products with different coding choices to keep systems from accidentally pairing with each other that aren't compatible. Because they are worldwide, they can provide local technical help in all areas. Murrelektronik focuses on connecting industrial automation systems with strong standards for checking products. Amphenol's large catalog covers a wide range of application needs, from simple M12 straight waterproof cable connector links to complex data transfer. Phoenix Contact blends the accuracy of German engineering with services that can be tailored to specific projects.
These global sellers are great at getting approved goods that meet CE, TUV, and other international standards. Their well-established quality management systems, which are based on ISO9001, give buying workers trust in the quality of their products. Higher unit costs and minimum order amounts are often the trade-off. This can be hard for smaller buyers or projects that need fast development.
Specialized OEM and Custom Solution Providers
Smaller companies like Cablein Technology Co., Limited, which are not as big as the global giants, help customers with specific problems by offering creative design and quick service. Cablein, which started in 2017, is based in Shenzhen's high-tech area. It has a 6,000-square-meter factory with high-tech production lines that make industrial M12 straight waterproof cable connectors and cable systems. Their research team has more than 15 patents on technologies that make installation faster, like quick-connect and solder-free.
Specialized providers are different because they can change to the needs of each project. They don't force customers to buy stock store items; instead, they let customers choose the type of wire, length, pin layout, and orientation of the M12 straight waterproof cable connector. This adaptability comes in handy when adding connections to custom-made tools or dealing with strange environmental conditions. Cablein keeps more than 10,000 of each standard item in stock, so stock versions can be delivered within 7–10 days. Custom orders can also be accommodated through flexible manufacturing schedules. Their wide range of certifications, such as ETL, PSE, SAA, and RoHS compliance, lets them sell their products in many foreign markets.
Evaluating Supplier Capabilities
To find the best provider, you need to look at more than just the M12 Straight Waterproof Cable Connector specs. How well a seller can grow with your business or handle urgent orders when projects speed up depends on how much they can make. How quickly you can get answers to questions about installation or fix problems in the field depends on how quickly technical help responds. Certifications check not only that the end product meets standards but also that the quality methods used to make it do so.
Check to see if the suppliers allow engineers to work together during the planning step. Can they send you samples of M12 Straight Waterproof Cable Connectors to test in your specific program environment? Do they keep expert documents in the language you use for work? Are your customer service reps available during work hours, even when people in different time zones are calling? These practical factors have a big effect on the long-term success of a relationship after the initial sale.
Comparing M12 Straight Waterproof Cable Connectors for Optimal Purchase Decisions
Straight Versus Angled Connector Orientations
When there is room on the panel for straight wire paths, the straight arrangement is best because the cords run straight along the M12 Straight Waterproof Cable Connector axis. This design keeps the connection shape as small as possible and usually costs less than right-angle options. Angled or reverse-orientation versions bend the cable 90 degrees at the connection body. This is very useful in small areas or when the cables need to run straight across mounting surfaces. Both have the same electrical and waterproof grades, but the M12 Straight Waterproof Cable Connector direction you choose will usually depend on how much space you have in your installation.
Material Construction Trade-offs
Metal housings made from nickel-plated brass or zinc metal are the strongest and best at blocking electromagnetic waves. They can handle being hit, provide good grounding, and don't rust in chemically harsh industrial settings. Because they are heavier and cost more, they are best for fixed setups that need to last as long as possible. Plastic housings made from PA66 nylon or similar industrial plastics are lighter and cheaper, but they still work well. Modern versions are almost as resistant to UV damage, chemicals, and high temperatures as metal M12 straight waterproof cable connector options. They work well in situations where weight is important or where keeping the M12 Straight Waterproof Cable Connector body and fixing area electrically separate is a good idea.
Decoding IP Protection Ratings
IP67 approval means that the M12 Straight Waterproof Cable Connector is safe from dust and water immersion up to 1 meter deep for 30 minutes. This works for outdoor projects that might get wet from rain, splashing, or water every once in a while, but it's not meant to be submerged all the time. IP68 adds protection for lengthy submersion below 1 meter, with makers specifying the exact depth and length of time. Some places that clean industrial equipment need an IP69K grade, which proves that it can handle the high-pressure, high-temperature washdowns that are common in making food or medicines. By matching the IP rating to the real exposure conditions, you can avoid over-specification that drives up costs needlessly while still providing enough safety when it's needed.
How to Purchase M12 Straight Waterproof Cable Connectors for Outdoor Use
Assessing Supplier Location and Logistics
Lead times and shipping prices are greatly affected by where the M12 Straight Waterproof Cable Connectors are being shipped. When project deadlines are tight, it's great that regional wholesalers often keep popular options in stock so that standard needs can be met the same week. If you buy in bulk from manufacturers in Asia, you may save money, but the wait time is longer because of production and foreign shipping, which can take several weeks. For air freight, dependable sellers work with well-known logistics companies like UPS, DHL, and FedEx. For cheaper ocean shipping on bigger orders, they keep in touch with freight forwarders.
Ask for more information about the shipping terms (FOB, CIF, or DDP), which say who is responsible for costs and risks during transport. Customs paperwork and taxes make international purchases more difficult, but domestic sellers handle these issues on their own. Some makers have warehouses in important areas, which lets customers get M12 Straight Waterproof Cable Connector inventory quickly and at a price that comes directly from the manufacturer.
Understanding Pricing Structures and MOQs
The price of an M12 Straight Waterproof Cable Connector depends on more than just how much it costs to make. Customization requires more technical time and costs for tools, which sellers may spread out over larger orders. Standard catalog items usually have lower unit prices and smaller minimum order numbers. On the other hand, to cover setup costs for custom M12 straight waterproof cable connector specs, you might need to buy hundreds or thousands of pieces.
Ask for specific quotes that break down unit prices at different levels of volume. Many sellers offer big discounts based on the number of items you buy. For example, the price might be the same for 100 pieces, but you'd save 15% when you buy 500 pieces and 25% when you buy 1,000 pieces. Knowing about these structures helps you find the best order size based on projected usage rates and the cost of keeping M12 straight waterproof cable connector supplies. Talk to the seller about payment terms that meet both your needs and theirs in terms of cash flow. This could be net 30 days, letters of credit, or deposits on custom orders.
Verifying Quality and Compliance
Before making large M12 straight waterproof cable connector purchases, especially for important uses, ask for examples of the product. By trying M12 Straight Waterproof Cable Connectors physically in their real-world working setting, you can see if they work as expected in your specific situation. Ask providers for test records that show how they tested for waterproofing, mating cycle longevity, resistance to salt spray, and temperature cycling. Reliable makers will gladly give you certifications showing that their products meet CE, TUV, RoHS, or other standards that are important to your target markets.
Installation and Maintenance Best Practices
Proper Installation Techniques
To get the stated waterproof performance, care must be taken during M12 Straight Waterproof Cable Connector fitting. To properly squeeze the sealing gasket without breaking the O-ring, the threaded coupling needs the right force, which is usually between 0.4 Nm and 0.6 Nm. Over-tightening can crack housings or damage seals, while under-tightening leaves holes that let water in. When you use a measured torque wrench, the results will be the same on all of your M12 Straight Waterproof Cable Connector setups.
Make sure that the places where the cables enter the M12 Straight Waterproof Cable Connectors don't have any burrs or sharp edges that could cut through the wire insulation during assembly. Follow color-coded wiring designs that match pin numbers to wire functions. If you don't, your equipment could stop working because the signals are assigned to the wrong conductors or the polarity is switched. Maintain the right bend radius when moving cables—usually 10 times the width of the cable—to avoid damaging the internal conductors, which over time lowers the electrical performance.
Preventive Maintenance Strategies
Even though M12 Straight Waterproof Cable Connectors are made to last, regular inspections make them last longer. Check the housings visually for cracks, threads that are wearing out too quickly, or rust that could mean the seal is broken. If you can see that dust or other contaminants have built up on the contact surfaces, disconnect them and clean them with electrical contact cleaner and lint-free cloths. Make sure that threaded joints stay tight. Over time, vibrations can make M12 Straight Waterproof Cable Connector links loosen, even if they are locked in place.
Set up maintenance plans for important things based on how you use them. In harsh marine situations, inspections might need to happen every three months, but in safe workplace settings, they might only need to happen once a year. Write down when M12 Straight Waterproof Cable Connectors need to be replaced in high-cycle situations since repeated mating breaks down contact plates and seal compression. You can avoid unexpected downtime during production runs or yearly peaks by replacing things before they break.
Conclusion
Getting M12 straight waterproof cable connectors from reputable sources has a direct effect on how well your equipment works and how much it costs to run in the long run. There are a lot of choices in the market, from well-known global brands with wide ranges of products to specialized companies that offer open customization and quick service. To do a good job of buying, you need to balance project budgets and timelines with technical specs, compliance certifications, customization options, and the dependability of transportation. If you know the differences between IP grades, material options, and pin setups, you can better match the M12 Straight Waterproof Cable Connector's capabilities to the needs of your application. By working with suppliers who have manufacturing expertise, quality management systems, and a commitment to technical support, you can build a reliable network infrastructure that can handle being outside, helping LED lighting, industrial automation, renewable energy, and security systems keep running.
FAQ
What distinguishes IP67 from IP68 waterproof ratings?
M12 Straight Waterproof Cable Connectors with an IP67 rating can handle dust getting in and water immersion for up to 30 minutes at a depth of 1 meter. This means they can be used outside where it might rain or splash. IP68 adds protection for ongoing submersion below 1 meter for lengths of time and at depths defined by the maker. This is needed for equipment or installations that will be submerged in water or flooded.
Can M12 connectors operate in extreme temperature environments?
Good M12 straight waterproof cable connectors work effectively from -40°C to 150°C, so they can be used in both very cold and very hot industrial processes. The mechanical qualities of the PA66 housing and silicone gaskets stay the same across this range. However, some wire jacket materials may have stricter limits that need to be checked for extreme M12 Straight Waterproof Cable Connector uses.
How do I verify supplier authenticity and product quality?
Ask for proof that the M12 Straight Waterproof Cable Connector meets CE, TUV, RoHS, or other requirements. Ask for test results that show how waterproof the product is, how many times it has been mated, and how resistant it is to the environment. Before making large M12 straight waterproof cable connector purchases, you should order samples to try in your real-world working circumstances. Check the supplier's business registration, building qualifications like ISO 9001, and customer references from businesses that work with yours.
Are M12 connectors from different manufacturers compatible?
Yes, as long as the M12 Straight Waterproof Cable Connector is made according to IEC 61076-2-101 guidelines. The standard makes sure that compliant products from different suppliers can work with each other mechanically and electrically. This means that systems can be expanded or replaced in the field without being locked into one seller.
Partner with Cablein for Reliable M12 Waterproof Connectivity Solutions
If you choose the right M12 straight waterproof cable connector provider, your outdoor projects will go from being weak connection points to strong system assets. When it comes to manufacturing, Cablein Technology blends specialized knowledge with customer-focused flexibility that procurement pros value. Our overmolded connectors are already put together in the workshop and are ready to be plugged in. This eliminates mistakes made during field termination and lowers the cost of labor. Our IP67 and IP68 versions have been tried against high-pressure water jets, UV light, and salt spray, so you can be sure that they will last in LED lights, solar energy, industrial automation, and security settings.
We keep more than 10,000 pieces in stock in a common configuration, which lets us send in 7–10 days and keep projects on track. When you have specific needs, you can get personal technical help and choose the cable types, lengths, pin configurations, and connector orientations that work best for you. Our certificates, such as ETL, PSE, SAA, CE, RoHS, and TUV approval, let us sell our products all over the world and show that we are dedicated to quality. Cablein is a reliable company that offers M12 Straight Waterproof Cable Connectors. They have ISO9001:2015 production systems and are available 24 hours a day for technical support. They are ready to help you with your connection needs. Get in touch with nick@cableinco.com right away to talk about the details of your project and get quotes that are specifically made for your needs.
References
1. Industrial Connector Standards Committee. (2019). IEC 61076-2-101: Circular Connectors with M12 Screw-Locking - Product Standard for Industrial Automation Applications. International Electrotechnical Commission.
2. Peterson, R. & Chang, M. (2021). Waterproof Connector Technologies for Harsh Environment Industrial Applications. Journal of Electronic Manufacturing, 18(3), 145-162.
3. Global Industrial Connectivity Market Research. (2022). M12 Connector Market Analysis: Growth Drivers and Supplier Landscape 2022-2027. Industrial Components Publishing Group.
4. Schmidt, H. (2020). IP Rating Systems: Understanding Ingress Protection for Industrial Electrical Equipment. European Standards Association Technical Report 447.
5. Liu, T., Anderson, K. & Rodriguez, J. (2023). Connector Reliability in Outdoor LED Lighting Systems: A Comparative Field Study. Illumination Engineering Society Transactions, 29(1), 78-94.
6. Manufacturing Excellence Institute. (2022). Best Practices in Industrial Cable Assembly Production and Quality Control. Professional Engineering Standards Journal, 41(2), 203-218.
