What are the main features of a qc16 multi-application waterproof connector?

The QC16 fast Lock waterproof connector is a flexible answer that was made to solve important connectivity problems in a number of different industries. Its main features are a quick clamp mechanism that doesn't need any tools, dual IP67/IP68-rated sealing, and construction with gold-plated brass contacts and UV-resistant PA66 nylon. It is made for medium-power uses and can handle voltages up to 500V and currents from 3A to 15A, depending on how the pins are set up. Assembling the wire in the field is less likely to go wrong because it is pre-molded, and it can work in temperatures ranging from -40°C to 105°C.

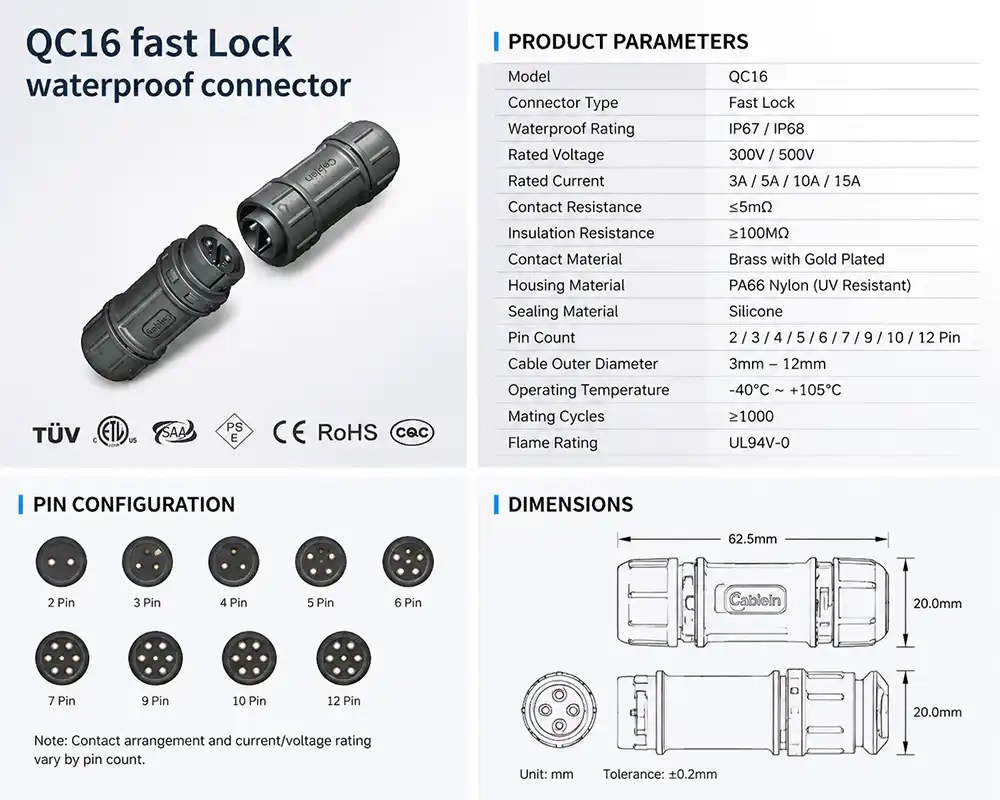

QC16 fast Lock waterproof connector

Overview of QC16 Fast Lock Waterproof Connector

To understand what makes the QC16 fast Lock waterproof connector unique, you must first understand what current industrial settings need. There is more and more pressure on engineers and procurement managers to choose parts that are both easy to install and reliable in the long run. The connector's fast lock feature gets rid of the time-consuming threading process that comes with regular sealed connections. This makes installation about 60% faster than with screw-type options.

Engineering Design Philosophy

We at Cablein worked hard to find real-world answers to problems that come up in solar farms, outdoor lighting systems, and production lines that work on their own. The straight pass-through body design lets you extend cables in-line without using special junction boxes, which makes the architecture of the system easier. This modular approach is especially useful for projects where reducing the number of complicated cable management tasks directly leads to lower labour costs.

Technical Architecture

When the connection is pressed together, it's made of PA66 nylon, which is flame-resistant to UL94V-0 standards. The mechanical strength of this material is high, and it doesn't mix with chemicals. Two O-rings made of silicone are set up in a way that keeps water out. This is how the seal inside works. The gold plating on the brass contacts keeps the contact resistance below 5mΩ even after 1,000 mating cycles. This makes sure that power always flows through the connection.

Application Versatility

The product meets a wide range of needs, including those for LED lights in buildings, infrastructure for charging electric vehicles, and industrial sensor networks. The fact that the same series of connectors can fit cable diameters ranging from 3 mm to 12 mm makes inventory easier for both distributors and end users. Custom configurations can have anywhere from 2 to 12 positions for pins, and voltage requirements are changed based on contact density to keep safety margins.

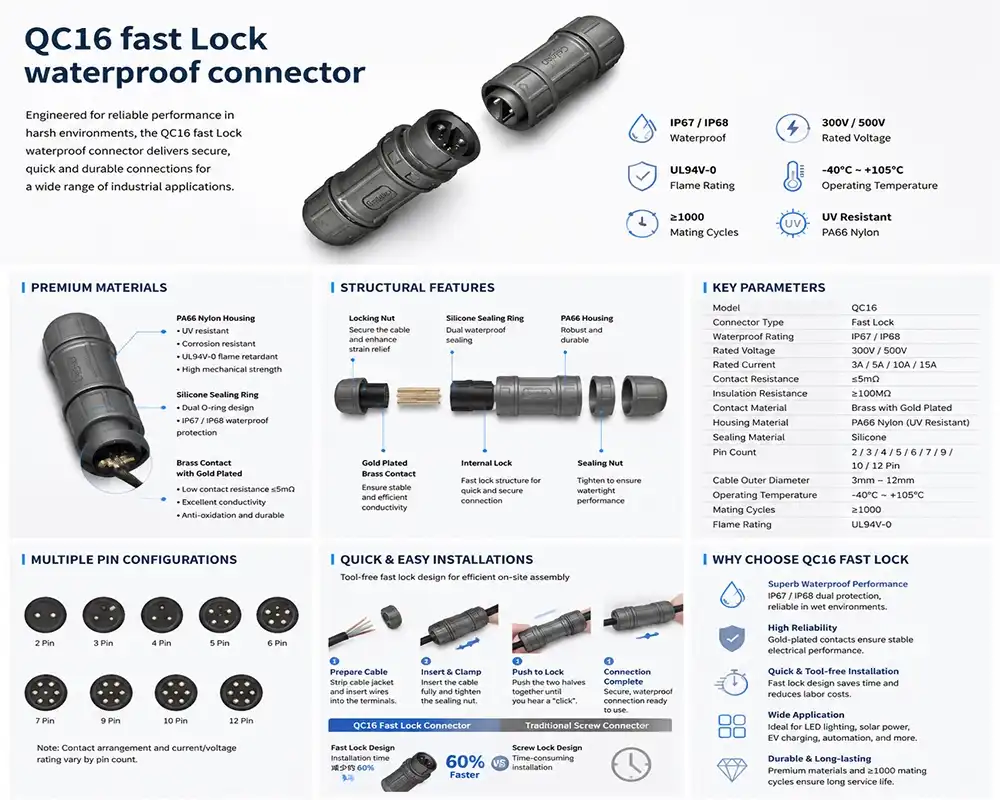

QC16 fast Lock waterproof connector advantage

Durability and Weather Resistance Features

A scary amount of the time, harsh environmental conditions destroy bad connectors, which leads to system failures that affect whole installations. The QC16 fast Lock waterproof connector is IP67-certified, which means it can withstand dust and short-term immersion at depths of up to 1 metre for 30 minutes. Its IP68 version adds the ability to use it continuously underwater in certain situations.

Extremes of temperature are another major problem. Parts of solar systems in the desert that are directly in the sun get temperatures above 80℃, while equipment in the north may have to work at -40℃ in the winter. From -40°C to 105°C, our connectors keep their electrical purity and mechanical flexibility without any material degradation.

Material Science Advantages

A UV stabilisation treatment on the PA66 housing stops photodegradation, which makes plastics that haven't been treated break easily. Field installations in Southeast Asia's tropical environments have been left outside all the time for over five years without cracking or losing their colour. The silicone O-ring compound doesn't break down when exposed to ozone and stays flexible at all temperatures, unlike cheaper rubber options that harden or crack.

Corrosion Resistance

Gold plating on contact surfaces is better at resisting corrosion than tin or nickel finishes. This is especially important in seaside settings where salt spray speeds up oxidation. The chemical resistance of the connector shell includes popular industrial cleaners, agricultural fertilisers, and oil-based products that are used to maintain equipment.

Vibration Performance

Vibrations that happen all the time in industrial automation equipment and transportation uses wear down threaded connections over time. The QC16 fast Lock waterproof connector has a bayonet-style locking device that makes a positive mechanical interlock that can't back out due to vibration. This keeps the contact pressure constant throughout the equipment's operational cycle. To prove this performance claim, testing protocols include simulating vibrations at 10 to 55 Hz for 96 hours.

Comparing QC16 With Other Waterproof Connectors

When making choices about what to buy, it helps to compare them objectively to well-known alternatives. The MC4 connector is popular in solar applications because it is easy to use (snap-lock), but for setups with more than one circuit, you need more than one connector because it only has one pole. The QC16 fast Lock waterproof connector can support up to 12 positions in a single housing. This makes connections more stable and reduces the number of places where something could go wrong.

Traditional screw-type waterproof connectors have been shown to be reliable, but they take a long time to install and have torque requirements that field workers don't always follow. An audible click lets you know when the quick clamp mechanism is working right, so you don't have to use torque wrenches to make sure the connection is secure.

Installation Efficiency Metrics

Time studies of different types of projects show measurable gains in efficiency. For electrical connections, a 200-unit LED street lighting project using threaded connectors took about 15 minutes per fixture. For the same project, installations using the QC16 fast Lock waterproof connector took an average of 6 minutes per fixture. When applied to big deployments, this 60% time savings has a direct effect on project timelines and labor budgets.

Total Cost of Ownership Analysis

Pricing of components is only one factor that goes into decisions about what to buy. Waterproof circular connectors that can be put together without tools cut down on the cost of labour in the field and the number of guarantee claims caused by mistakes during installation. Being able to handle different wire sizes through a single connector design lowers the cost of keeping inventory and makes it easier for maintenance teams to manage spare parts.

Compatibility Considerations

The connector works with current cable systems because it can handle cable diameters from 3 to 12 mm and lets you change the way the pins are arranged. This adaptability is very important when adding newer equipment to installations that are already there and where the cable specifications can't be easily changed. Custom overmold colours make it possible to identify circuits by colour, which speeds up troubleshooting in complicated setups.

Installation, Troubleshooting, and Usage Guidance

When you install a connector correctly, it works better and lasts longer. The first step in getting a cable ready is to remove the insulation so that the conductor lengths that are right for the terminal type can be seen. Crimp terminals need the right tools to make gas-tight connections that stop oxidation, while solder terminals need the right amount of heat to work without hurting the insulation.

Step-by-Step Assembly Process

With the pre-molded cable choice, there is no need for field termination at all; the connections are already sealed and tested at the factory to meet specifications. For models that can be put together in the field, technicians put ready-made cables through the cable gland, connect the conductors to the contact pins according to the wiring diagram, and then thread the housing parts together before using the quick clamp mechanism. The coloured warning band shows up in the viewing window, which means the mechanism is fully engaged.

Common Installation Challenges

Technicians who aren't very experienced sometimes don't properly seat the O-ring during assembly, which compromises the waterproofing. Checking the position of the O-ring before final assembly and making sure that no foreign material gets on the sealing surfaces should be part of quality assurance procedures. To tighten a cable gland, you need to use enough force to squeeze the seal around the cable jacket without pulling too hard, which could damage the housing.

Maintenance Best Practices

Periodic inspection intervals depend on environmental exposure severity. Outdoor installations benefit from annual visual inspections checking for housing cracks, O-ring deterioration, or contact corrosion. Disconnection and reconnection during maintenance cycles should include cleaning contact surfaces with electronic contact cleaner and verifying O-ring condition before reassembly. Replacement O-rings should remain available in maintenance inventory.

Troubleshooting Decision Tree

Connectivity failures manifest as intermittent signals, complete circuit opens, or voltage drops under load. Systematic troubleshooting begins with visual inspection for mechanical damage, progresses to resistance measurements verifying contact integrity, and concludes with seal testing if moisture ingress is suspected. Thermal imaging can identify high-resistance connections generating excessive heat before catastrophic failure occurs.

QC16 fast Lock waterproof connector application

Procurement Considerations and Supplier Information

When you do strategic sourcing, you have to find a balance between technical needs and the facts of the supply chain. Lead times are very different for stock configurations and custom specs. Standard 2-4 pin variants can usually be shipped within 7–10 days from when they are first stocked. If you need custom pin configurations, cable lengths, or colour schemes, the lead time could be up to 3–4 weeks, depending on when the production is scheduled.

Volume Pricing Structure

Unit costs go down a lot as the number of items ordered goes up. This is called economies of scale in manufacturing and quality testing. Sample quantities of 10 to 50 units allow engineers to test the product before committing to large-scale production, and orders over 1,000 units are eligible for better price. Long-term supply deals keep prices stable and make sure that capacity is allocated evenly during times of high demand.

Certification Documentation

Each shipment comes with CE and RoHS compliance certificates, which are needed for governmental approvals and equipment certifications. Consistent manufacturing methods are based on ISO9001:2015 quality management system certification, and IP ratings, dielectric strength, and insulation resistance for each production batch are checked by product-specific test reports.

Technical Support Infrastructure

At Cablein, we keep our engineering help responsive and easy to reach through direct channels of communication. People who ask about purchasing get technical advice on how to choose the best connectors for their needs, based on experience gained in the LED lighting, renewable energy, and industrial automation industries. The first step in developing a custom solution is analysing the needs of the application. The next step is validating the prototype, and the last step is production qualification testing.

The company's 6,000-square-meter building in Shenzhen has high-tech production lines and more than 200 skilled workers who make sure that production can keep up with customer demand. Logistics partnerships with UPS, DHL, FedEx, and freight forwarders make global distribution more efficient. Positioning inventory in key markets across regions also speeds up delivery times.

Conclusion

The QC16 fast Lock waterproof connector delivers measurable advantages through its tool-free installation, robust environmental protection, and versatile electrical specifications. Its PA66 construction, gold-plated contacts, and dual O-ring sealing system ensure reliable operation across temperature extremes and harsh exposure conditions. The connector addresses critical pain points in outdoor LED systems, renewable energy installations, and industrial automation through reduced installation time, lower total cost of ownership, and proven durability. Customization capabilities spanning pin configurations, cable specifications, and housing colors enable tailored solutions for diverse application requirements while maintaining standardized reliability.

FAQ

How does the quick clamp mechanism ensure connection security?

The bayonet-style locking system creates a positive mechanical interlock through spring-loaded engagement. Unlike threaded connectors that can loosen under vibration, the quick clamp maintains constant contact pressure and provides tactile feedback through an audible click confirming proper mating. This design prevents accidental disconnection in high-vibration environments common to industrial automation and transportation applications.

What distinguishes IP67 from IP68 waterproof ratings?

IP67 certification guarantees protection against temporary immersion at 1-meter depth for 30 minutes, suitable for most outdoor installations exposed to rain and occasional flooding. IP68-rated variants undergo continuous submersion testing at manufacturer-specified depths, making them appropriate for underwater lighting, marine equipment, or installations in areas prone to extended flooding. Application requirements determine which rating specification is most appropriate.

Can the connector accommodate different wire gauges within a single installation?

The cable gland accepts diameters from 3mm to 12mm, enabling flexibility across multiple wire gauge selections. This accommodation reduces inventory complexity and simplifies field logistics where multiple cable specifications exist within a single project. Custom configurations can further optimize cable retention and sealing performance for specific wire gauge ranges if application requirements warrant dedicated tooling.

Partner With Cablein for Reliable Waterproof Connection Solutions

Cablein Technology delivers engineered waterproof connector solutions backed by nine years of manufacturing expertise and over 30 utility model patents. Our QC16 fast Lock waterproof connector line exemplifies the commitment to innovation that serves LED lighting manufacturers, solar energy integrators, and industrial automation specialists across global markets. Production capacity supporting volumes from prototype quantities to 10,000+ piece inventories ensures responsive delivery aligned with project schedules.

Manufacturers and distributors seeking a dependable QC16 fast Lock waterproof connector supplier benefit from our ISO9001:2015 certified quality systems, comprehensive international certifications, and 24-hour technical support infrastructure. Custom cable assemblies, specialized pin configurations, and application-specific modifications receive dedicated engineering attention from concept through production qualification.

Contact our team at nick@cableinco.com to discuss your waterproof connectivity requirements. Whether specifying connectors for a new installation or evaluating alternatives to existing solutions, we provide detailed technical consultation and rapid sampling to validate performance in your specific application environment.
