What are common uses for qc20 quick disconnect fittings?

Every minute that your production line is down because a connection broke in the rain costs you money. This issue is fixed by the QC20 quick disconnect Connector, which provides a strong, tool-free connection that works in rough situations and lets equipment be serviced quickly. These industrial-grade quick disconnect fittings are made to handle high currents in harsh outdoor and wet conditions. They combine waterproofing to IP67/IP68 standards with easy quick-clamp operation. Whether you're in charge of EV charging stations, arena lighting networks, or automatic production equipment, knowing how these connectors make things easier can make your project more reliable and less time-consuming to maintain.

Understanding QC20 Quick Disconnect Connector: Specifications and Features

The physics behind QC20 Quick Disconnect Connectors is all about finding the right balance between strong mechanical strength and easy-to-use functionality. QC20 Quick Disconnect Connectors are a compromise between old screw-terminal systems, which need tools and time, and current modular infrastructure, which needs to be set up quickly without affecting the electrical integrity.

Core Construction and Materials

The QC20 Quick Disconnect Connector is made of strong PA66 nylon and has a UL94-V0 flame-retardant rating. It has gold-plated solid brass pins that don't oxidize and keep their low contact resistance even after thousands of joining cycles. When the oversized ergonomic nut is hand-tightened, the silicone sealing ring forms a compression seal. This makes the product waterproof to IP67 or IP68 standards without the need for special tools. This overmolded cable design gets rid of the need for field assembly, so the waterproof performance is uniform right from the factory.

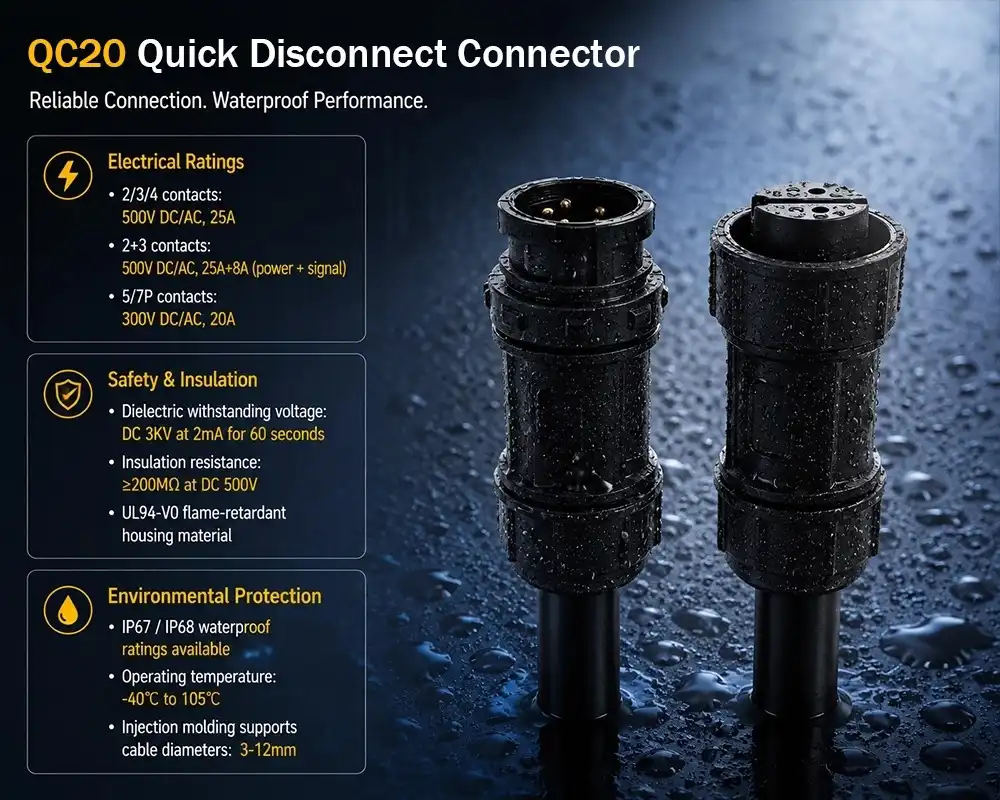

Electrical Performance Parameters

The electrical ratings of the connector directly meet the needs of industrial power distribution. 500V DC/AC at 25A can be handled by configurations with two, three, or four contacts. Hybrid 2+3 contact setups can handle 25A plus an extra 8A circuit. Versions with more pins and five or seven contacts work at 300V DC/AC and 20A. Dielectric withstanding voltage can reach DC 3 kV at 2 mA for 60 seconds, and insulation resistance is more than 200 MΩ at DC 500 V. The wide operating temperature range, from -40°F to 105°F, makes it suitable for Arctic installations as well as high-temperature engine compartments. The injection molding process can handle cable diameters from 3 mm to 12 mm.

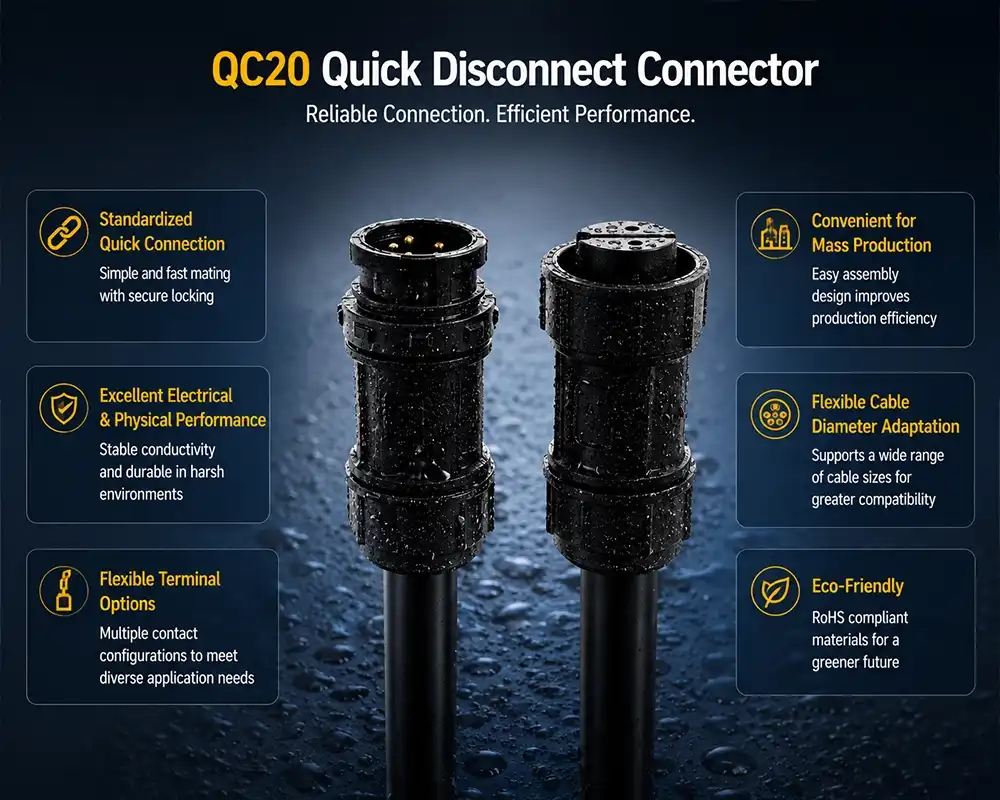

Quick Disconnect Mechanism Advantages

The extra-large quick clamp nut with a natural grip makes it easy to tighten by hand, even when gloves are on or when your hands are dirty, which is very useful in real-life industrial settings. This clamp design is universal, so it can be used with different types of cable jackets. This gives procurement teams more choices for cables without affecting the integrity of the connection. When compared to threaded connections, the straight clamp design cuts down on installation time. This saves money on labor costs while still providing safe mechanical locking that prevents vibration and accidental disconnection.

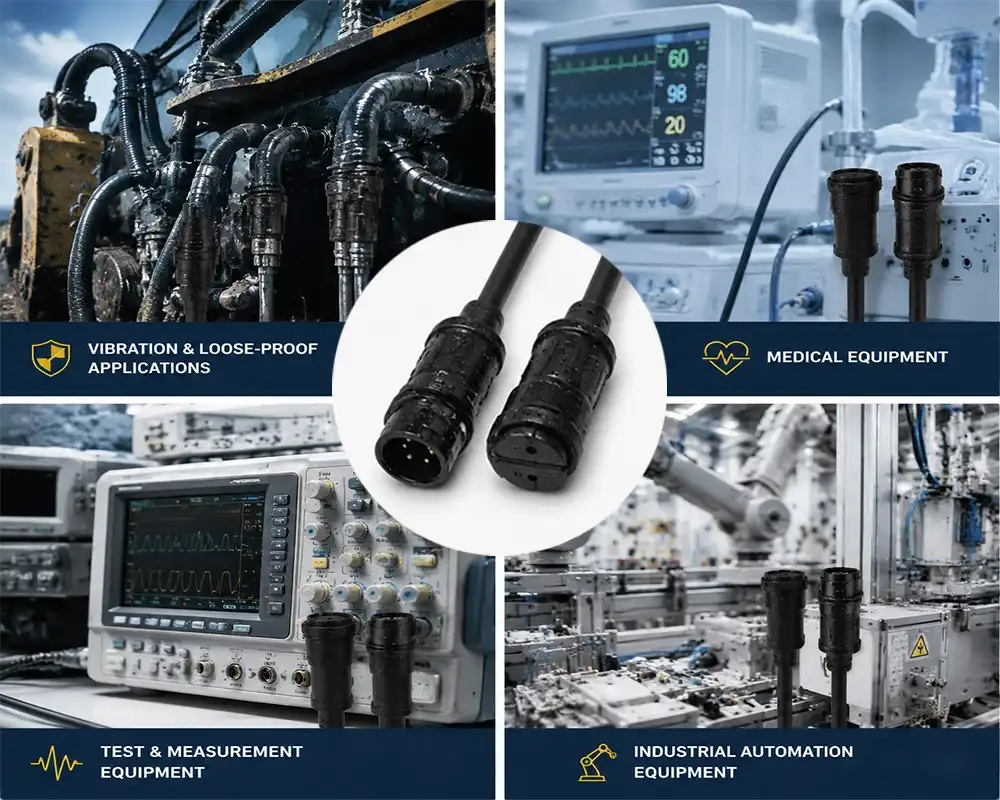

Common Applications and Use Cases of QC20 Quick Disconnect Fittings

QC20 Quick Disconnect Connector technology is essential in many fields where the ability to quickly service equipment, make it modular, and withstand harsh environments is important for operational success. Because it can handle high currents and is waterproof, the connector can be used in both fixed installations and mobile devices.

Electric Vehicle Charging Infrastructure

EV charging sites are outside all year, so they can be damaged by rain, snow, high temperatures, and people. QC20 quick disconnect connectors are the main points where power goes from charging pedestals to underground power distribution. This means that repair teams can swap out broken units in minutes instead of hours. The 25A current ability can handle Level 2 charging needs, and the IP68 waterproof grade keeps water out of flooded parking lots. These connectors meet international safety standards that are important for building public infrastructure. They are certified under ETL and CE standards and are RoHS compliant.

Industrial Automation and Robotics

In manufacturing settings, sensors, motors, and control screens must be able to connect and work without any downtime. With QC20 Quick Disconnect Connectors, production engineers can move assembly lines around without having to rewire them, which supports the ideas of lean manufacturing. The anti-vibration mechanical design keeps the signal strong in robotic applications with a lot of cycles, and the flame-resistant PA66 housing keeps people safe near welding stations and high-temperature processes. Automation integrators like that the number of pins and cable lengths can be changed to fit different PLC configurations without having to make changes in the field.

LED Lighting and Outdoor Illumination

For lights in stadiums, landscaping, and growing crops, you need power lines that are waterproof and can withstand being outside for a long time. QC20 Quick Disconnect Connectors make seasonal setups easier, like when lighting systems are put up and taken down once a year. The UV-resistant housing keeps the components from breaking down when they are left in the sun for a long time, and the corrosion-resistant gold-plated pins keep the contacts solid even when the temperature and humidity change. Landscape workers don't have to work as hard to place these waterproof junction boxes because they don't need any tools. Also, regular upkeep can be done by people who aren't technical.

Solar Energy Systems and Battery Storage

Modular interconnection solutions that allow for system expansion and component replacement are helpful for renewable energy installations. With QC20 Quick Disconnect Connector technology, solar panel arrays can be pre-wired in parts that can be quickly linked on-site. This cuts down on the time and cost of labor needed for installation. Leakage currents can hurt system efficiency over time, but the high insulation resistance stops them. The wide temperature tolerance also makes sure the system works in desert heat and northern winters. Integrators of energy storage systems use these connectors to connect battery packs. The ability to quickly separate makes repair processes safer.

Heavy Industrial Equipment

Construction, mining, and farming vehicles need power lines that can handle constant shaking, dust getting in, and hydraulic fluid getting dirty. The extra-large ergonomic nut lets workers disconnect connections to extra equipment without tools, even when they are wearing heavy gloves. The strong mechanical design can handle the repeated stress of connecting trailer-mounted equipment, and the IP67 grade keeps safety even when it's washed with pressure and stored outside.

Comparing QC20 Quick Disconnect Connector to Alternatives (Decision Support)

When deciding what to buy, it's important to match the connector's specs to the needs of the project and weigh the original cost against the total cost of ownership. Figuring out how QC20 Quick Disconnect Connectors stack up against other options helps you figure out the best ways to use them.

Traditional Screw Terminal Connections

To install and maintain conventional terminal blocks, you need screwdrivers, wire strippers, and skilled labor. There may be less money spent on materials, but the installation process usually takes three to five times longer than quick disconnect options. Screw connectors also need to be retightened on a regular basis to keep the connection from breaking down due to changes in temperature and pressure. This is an ongoing maintenance task that builds up over the life of the equipment. The QC20 Quick Disconnect Connector's one-time setup and tool-free operation get rid of these ongoing costs.

Anderson and Molex Style Connectors

Anderson Powerpole connectors are great for modular power distribution, but they don't come with built-in waterproofing, so you need to use extra enclosures when you use them outside. Molex Mini-Fit systems are great for low-voltage uses because they keep signals safe, but they can't handle the 25A current loads that are common in industrial power feeds. QC20 Quick Disconnect Connectors handle power, protect the environment, and make operation more comfortable, all in one certified assembly. This makes it easier to buy things and keep track of inventory.

Manufacturer Standardization Considerations

Long-term supply chain stability is affected by how easily parts can be swapped out. Hydraulic quick connections are governed by ISO 7241 standards, but electrical QC20 quick disconnect connectors are made to the specifications of the maker. When you choose connectors from well-known brands whose products are always available instead of generic ones whose quality varies, you lower the chance of compatibility problems when fixing equipment years after it was first installed. ETL and CE-certified assemblies are more expensive than non-certified ones, but their proven durability makes it worth it, especially for projects that need compliance documentation.

Procurement Guide: How to Buy QC20 Quick Disconnect Connectors

When looking for industrial connectors, you need to pay attention to their authenticity, wait times, and ability to be customized in a way that fits project plans and technical needs.

Identifying Qualified Suppliers

Buying groups should make sure that sellers are ISO9001:2015 certified and can give them ETL, CE, and RoHS compliance paperwork that is special to the product. Asking for third-party test reports for dielectric withstanding voltage, insulation resistance, and IP rating validation makes sure that product claims match how well the QC20 Quick Disconnect Connector actually works. Well-known companies like Cablein keep stable inventories of more than 10,000 pieces of each item. This lets them quickly finish projects that need to be done right away and makes it possible to make custom cable setups that fit your needs for wire gauge, jacket color, and connector pin design.

Pricing and Volume Considerations

At 500, 1,000, and 5,000 pieces, the unit price of QC20 Quick Disconnect Connectors usually drops by 15 to 30 percent. But when you look at the total cost, you should include the time and money saved on installation (tool-free connectors cut field labor by 40%) and maintenance (waterproof reliability saves money on costs). For stock items, standard lead times are seven to ten days. For customized cable assemblies, however, timelines need to be coordinated based on how complicated the specifications are. When doing international business, you should think about the different shipping options. For example, plane freight can get you parts quickly—within five to seven days—while sea shipping can save you money on planned inventory builds.

OEM and Customization Opportunities

Directly working with manufacturers who offer OEM services is helpful for projects that have specific technical limitations. Custom solutions could include changing the length of the cables to fit the distances between installations, using different pin counts for mixed power-signal uses, or choosing jacket materials that are resistant to chemicals in industrial settings. By asking for engineering samples before placing production orders, validation testing can be done in real-world operating conditions. This lowers the risk of specification mismatches that cause projects to take longer than planned to finish.

Troubleshooting and Maintenance Best Practices for QC20 Quick Disconnect Connectors

To get the most out of a connector's life, it needs to be inspected regularly and given preventative care that is appropriate for its operating environment.

Diagnosing Connection Failures

Electrical continuity that comes and goes often means that there is dirt or oil between the contact surfaces, not that the connector has failed. The problem is found by taking the fitting off and looking at the brass pins for dirt, water, or corrosion. Cleaning contacts with rubbing alcohol and letting them dry completely usually brings them back to full performance. If the problem keeps happening, it could mean that the silicone sealing ring is damaged from being too tight or not being lined up correctly when the parts are mated. Manufacturers sell new sealing components as repair parts.

Preventive Inspection Schedule

Visual checks every three months are helpful for equipment that works in harsh outdoor or dusty conditions. These inspections should look for wear on the wire jacket near the overmolded strain relief, even compression of the seal ring, and proper thread condition on the ergonomic nut. A megohmmeter is used once a year to check that the insulation resistance stays above 200M. This stops degradation before it happens. Keeping inspection records sets baseline performance trends that show when replacement is needed before it happens without planning.

Environmental Protection Measures

Even QC20 Quick Disconnect Connectors with an IP68 rating can last longer if you take care of them. Putting dielectric grease on the surfaces that will be connected before they are connected adds an extra shield against moisture and lowers the force needed to place the parts. Putting connectors so that the cable entries face downwards uses gravity to push water away from seals. Putting protection caps over uncovered pins stops dust from building up and corrosion from moisture in the air when the wires are removed for long periods of time.

Conclusion

QC20 Quick Disconnect Connectors have changed from being a nice-to-have trait to an important part of current industry reliability. The QC20 Quick Disconnect Connector meets important procurement goals by offering strong IP67/IP68 waterproofing, easy-to-use functionality without tools, and flexible configurations that can handle currents ranging from 3A to 25A. These connections make installation easier, lower upkeep costs, and stop weather-related problems that lower working uptime. They can be used in EV charging networks, solar installations, and industrial automation. By choosing certified parts from qualified makers, you can be sure that they will work with international safety standards and that the supply chain will be stable for projects that last for years.

FAQ

1. Can QC20 quick disconnect connectors handle outdoor installations year-round?

Of course. These QC20 Quick Disconnect Connectors can handle rain, snow, and short-term flooding because they have IP67 and IP68 waterproof grades that have been proven through submersion testing. Extreme climates are covered by the working temperature range of -40°C to 105°C, and the UV-resistant case keeps it from breaking down from being in the sun all the time.

2. How do these connectors reduce installation costs compared to traditional wiring?

The tool-free quick clamp design gets rid of the need for screwdrivers and wire pulling, which saves about 40% of the time needed for work in the field. Overmolded cable construction comes ready to install, so you don't have to deal with junction boxes, heat shrink tubing, and waterproofing steps in the field, which take more time and could lead to failure points.

3. What customization options accommodate specific project requirements?

Manufacturers offer custom cable lengths that fit installation distances, different wire gauges based on current loads, and different jacket colors to make it easier to see which circuit is which. Private mold development lets you make custom connectors for equipment interfaces that are only available to you.

Partner with Cablein for Reliable QC20 Quick Disconnect Connector Solutions

To find a reliable QC20 Quick Disconnect Connector provider, you need more than just a good price. You also need production know-how, approval reliability, and quick technical support that fits your project plan. Cablein Technology Co., Limited has 6,000-square-meter production facilities that are ISO 9001:2015 certified and nine years of experience in waterproof connector engineering. Our stable collection of more than 10,000 pieces of each item allows for quick fulfillment, and our in-house R&D team, which has over 15 utility model patents, makes custom cable assemblies that fit your needs for wire gauge, length, and pin design. Every connector comes with documentation that shows it meets ETL, CE, and RoHS standards. You can also get technical support 24 hours a day, 7 days a week during the whole project. Email our engineering team at nick@cableinco.com to talk about your particular needs and get full technical specifications and volume prices for your next purchase.
