Comparison of IP67 vs IP68 rated M12 straight waterproof cable connectors
Knowing the difference between IP67 and IP68 grades is important when choosing industrial connectors for harsh settings because it can have a big effect on how reliable your equipment is and how much it costs to run. The M12 Straight waterproof cable connector is the standard in industrial automation because it has a secure screw-locking system and has been shown to be safe for use in harsh environments. IP67-rated versions can handle short-term immersion up to 1 meter for 30 minutes, while IP68-rated connectors can handle prolonged immersion beyond 1 meter. This makes them perfect for underwater robots, marine applications, and processing areas that are always wet. Both grades promise full protection against dust entry, but which one you choose relies on the depth of the exposure, where the installation will be done, and how much upkeep you want to do in the long term.
Understanding M12 Straight Waterproof Cable Connectors
M12 Straight waterproof cable connectors are now an important part of modern industrial communication, especially in harsh settings where dirt and moisture can damage systems. The 12mm metric threaded connection system in these small connecting solutions keeps things mechanically stable and keeps out the elements at the same time.
Core Construction and Materials
The housings of our joints are made of PA66 nylon, which is designed to be very strong and resistant to chemicals. The cover protects solid brass contacts that are gold-plated and have a minimum contact resistance of less than 5 mΩ. This means that the contacts will still conduct electricity well after hundreds of joining cycles. The important sealing contact is made up of a precision-molded silicone waterproof gasket that is squeezed evenly during fitting to stop water from getting in. This multi-material method strikes a good balance between sturdiness and cost-effectiveness, and it works reliably in temperatures ranging from -40°F to 150°F.

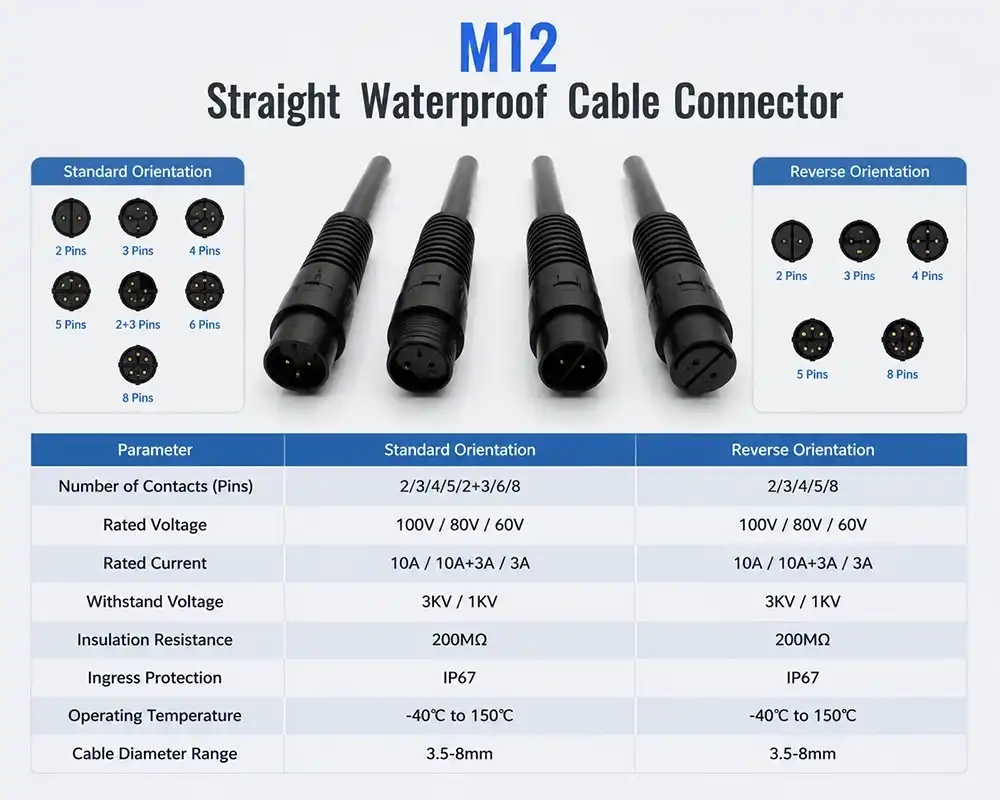

Pin Configuration and Electrical Specifications
Standard positions can handle 2, 3, 4, 5, 6, or 8-pin setups, so they can meet a wide range of power and data needs. Depending on the number of pins, the rated voltages run from 60V to 100V, and the maximum current for power transfer is 10A. Insulation resistance is higher than 200MΩ, and tests for withstand voltage prove dielectric strength between 1KV and 3KV. These requirements are in line with the international standard IEC 61076-2-101. This makes sure that tools from different makers can work together around the world.
Pre-Wired Overmolded Advantages
Overmolded construction that is already put together in the factory combines the wire and connection into a single sealed unit. This eliminates the need for field termination work, which can lead to failure spots. The straight overmolded design makes it easy to route through standard panel installations and drag chains, which makes it easier to handle cables in small areas. Compared to traditional wiring methods, this ready-to-install method saves a lot of money on labor costs and makes installation more consistent across large-scale operations.
Comprehensive Comparison of IP67 vs IP68 Ratings for M12 Connectors
The Ingress Protection grade method tells you how well a container keeps solids and liquids out. Both numbers are important, but the second number tells you how resistant the connection is to water.
Decoding the IP Code System
The first number (6 in both grades) means that there is full protection against dust particles, which is very important in industrial settings to keep surfaces from getting scratched. The second number tells you the amount of water resistance: IP67 means it can withstand short-term immersion, while IP68 means it can withstand ongoing immersion. Connectors are tested by putting them under standard water pressure and time limits. For example, IP68 requires depth and time limits set by the maker that are higher than IP67 minimums.
Water Immersion Capabilities
IP67-rated M12 Straight Waterproof Cable Connectors can be submerged in water up to 1 meter deep for 30 minutes without losing their electrical function. This level is good for situations where there are occasional splashes, high-pressure washdowns, or short-term floods. Versions with an IP68 rating can withstand continuous submersion up to 1 meter deep. Depending on the purpose, ratings are often approved to 3 meters or deeper. IP68 is no longer a choice when it comes to underwater robots or sensor networks that are submerged all the time.
Real-World Application Scenarios
IP67 protection works well for outdoor LED lighting systems in arenas and landscaping projects. It keeps out rain, snow, and cleaning products. Ground-level switch boxes that get wet when it rains a lot should have IP68 grades for solar energy systems. When it comes to EV charging infrastructure, IP67 is usually used for links above ground, and IP68 is used for wire transitions underground. IP67 ratings are usually enough for industrial automation areas that need to be cleaned with chemicals on a regular basis. However, IP68 or even IP69K ratings are needed for food preparation areas that need to be cleaned with harsh chemicals at high temperatures every day.
Knowing your real exposure conditions stops you from either over-specificating, which raises costs needlessly, or under-specificating, which causes the product to fail too soon. Our engineering team helps match the amount of protection to the real world of the surroundings, weighing the original cost against the total cost of ownership.
M12 Straight Waterproof vs Angled and Other Connector Types
Connector position and form factor have a big impact on how well and reliably a system is installed, especially in situations where room is limited.
Straight vs Angled Orientation Benefits
Straight M12 Straight Waterproof Cable Connectors work best in standard panel-mount situations where the equipment layout makes sense for cables to leave at an angle. The straight wire path reduces bending stress, which makes cables last longer in fixed placements. Angled connections (usually 90 degrees) work great in small areas where running cables parallel to each other lowers the overall height of the assembly. This is especially important for stacked sensor arrays or robotic arm joints that don't have a lot of room. The direction you choose depends on the shape of your mounting and how you handle your cables.
Comparison with M8 and Other Circular Connectors
M8 connectors have smaller footprints that make them good for miniaturized sensors and apps that need to save room. However, they can't handle as much power and have fewer pin choices. For most industrial control needs, the M12 is the best choice because it strikes the best mix between small size and electrical performance. Bigger M23 plugs can handle more power, but they take up more room, which is why M12 is the better standard. When a lot of industrial equipment uses M12, it makes it possible for all of it to work with each other. This makes managing extra parts easier and integrating systems from different vendors easier.
Material Impact on Longevity
The choice of housing material has a direct effect on how long a connection lasts when exposed to external stress. PA66 nylon is very resistant to chemicals and keeps its mechanical qualities even at very high and very low temperatures. It also does better than most plastics when exposed to UV light and changing temperatures. It is important to keep the contact resistance low in wet or chemically active environments, and gold-plated contacts do this much better than tin or nickel plating. Our thorough testing of salt spray confirms that it works in coastal sites and on highway traffic equipment that is subject to deicing salts.
How to Choose the Right IP-Rated M12 Connector for Your Procurement Needs
When choosing the right waterproof connectors, you need to carefully think about the climate, the electricity needs, and the supply chain. The M12 Straight Waterproof Cable Connector has become the industry benchmark for reliable sealing performance in demanding environments.
Assessing Environmental Requirements
Instead of making worst-case assumptions, start by writing down the real exposure circumstances. Find out the deepest water that you can go, how long you can be submerged, and how often it happens. Cleaning agents, fuels, and process fluids can all expose sealing materials to chemicals that can break them down. Extreme temperatures are important. Our joints stay strong from -40°C to 150°C, but check your individual range. Vibration levels in transportation or high-speed machinery need screw locking that is secure and won't come away after millions of cycles.
Evaluating Electrical and Mechanical Specifications
Make sure that the number of pins and the voltage levels match your power and data needs, leaving some room for future growth. Current capacity changes the size of the conductors in a wire assembly. Conductors that are too small get too hot, while conductors that are too big cost more and are less flexible. The cable width range that our injection molding can handle (3.5-8mm) works well for most commercial uses, but we can also make custom specs for specific needs. Mating cycle requirements help you figure out how often to repair things. Our gold-plated contacts have a much longer service life than normal platings.
Supplier Selection and Customization Options
By working with Cablein, you're dealing with a company that has CE, TUV, PSE, SAA, and RoHS certifications, which means that your products will work in all markets around the world. Our ISO9001:2015 quality control system makes sure that the quality of each batch of output is the same. You can choose the type of wire, its length, the orientation of the connector, and the pin pattern so that it fits the style of your equipment. Our stable collection has more than 10,000 pieces of each standard item, which means that stock configurations can be delivered in 7–10 days. Custom orders, on the other hand, are scheduled in a way that fits your project plan.
The unit costs are much lower when you buy in bulk, which is especially helpful for big infrastructure setups or production runs with a lot of units. We have long-term partnerships with UPS, DHL, FedEx, and other freight forwarders that help us get the best rates and fastest delivery times around the world.
Installation and Maintenance Best Practices for IP67 and IP68 Rated M12 Connectors
Installing and maintaining connectors correctly will get the most out of them and keep them from breaking down, which can be expensive.
Step-by-Step Installation Guidelines
First, before mating, inspect the O-ring seal on your M12 Straight Waterproof Cable Connector for any damage, debris, or deformation. Use isopropyl alcohol to clean joint surfaces and remove any dirt or grime that could affect bonding. Line up the code key on the connection with the receptacle to avoid cross-mating. Forcing pins into connectors that don't work together damages them permanently. Tighten the threaded coupling by hand until you feel resistance. Then, use a measured torque wrench to apply the torque that the maker recommends, which is between 0.4 Nm and 0.6 Nm. When you over-tighten, the O-ring gets crushed, but when you under-tighten, water can get in under pressure.
Common Installation Pitfalls to Avoid
If you put connectors together with wet O-rings, the wetness that was trapped during assembly will eventually move into the electrical contact. To keep the overmolded transition zone, the weakest part of the assembly, from being stressed, don't route wires in tight bend angles. Cable ties should hold wires in place without squeezing them too hard, which can damage the jacket and the stability of the conductors inside. In situations with a lot of shaking, extra strain relief keeps the cable-connector contact from wearing out.
Maintenance Scheduling and Inspection Protocols
Set regular check times based on how bad the situation is. Visual checks every three months are enough for safe indoor settings, while monthly checks are needed for places outside or where chemicals are present. Check for cracks in the case, O-ring tension set, or corrosion on metal parts. Use a megohmmeter to check the insulation's resistance once a year to find signs of moisture damage before they lead to fails. Replace worn-out links before they break—the cost of emergency maintenance is much higher than the cost of planned replacements. Our expert support is available 24 hours a day, 7 days a week. They can help you fix unexpected speed problems and make maintenance programs work better.
Conclusion
You should know what your weather conditions and operating needs are before choosing between IP67 and IP68 rated M12 Straight Waterproof Cable Connectors. IP67 is good for short-term immersion and high-pressure washdown situations, while IP68 is better for long-term exposure in tough situations. Our connectors are made of tested PA66 nylon, have gold-plated contacts, and use precision sealing technology to work reliably in a wide range of temperatures and tough industrial settings. We help procurement teams find the best option that meets their performance, cost, and delivery needs by providing full certification, the ability to customize, and quick expert assistance.
FAQ
What distinguishes IP67 from IP68 in practical terms?
IP67 ports can handle being submerged for up to 30 minutes at a depth of 1 meter, which is enough for splash zones and washdown areas. IP68 connectors can be submerged continuously in water up to 1 meter deep, which is necessary for underground uses or places that get flooded for a long time. Both guard against dust completely.
Can these connectors handle heavy industrial outdoor environments?
Yes, our M12 connections are put through strict tests for UV protection and salt spray to make sure they will work well for a long time in outdoor solar systems, coastal facilities, and traffic control equipment. Extreme weather conditions around the world are covered by the temperature range of -40°C to 150°C.
Which certifications matter most for international procurement?
European safety standards are checked by CE and TUV certifications. For the North American, Japanese, and Australian markets, ETL, PSE, and SAA certifications are used. Following RoHS and REACH rules shows care for the earth. Our ISO9001:2015 approval ensures that the quality of our products will always be the same.
Partner with Cablein for Reliable Industrial Connectivity Solutions
Cablein is an engineering company that focuses on making waterproof cable kits that help LED lighting makers, solar system installers, industrial automation providers, and people who are building transportation infrastructure solve real-world problems. Our M12 Straight Waterproof Cable Connector source can make any changes you want, from the type of cable and length to the pin design and orientation. We have over 30 utility model patents and 9 years of experience in the field. We keep over 10,000 of each item in stock, which means that common setups can be delivered quickly (7–10 days). Our engineering team is also available 24 hours a day to help you with any technical questions you have throughout the lifecycle of your project. Get in touch with our team at nick@cableinco.com to talk about your unique application needs and find out how our certified, tried, and proven connectivity solutions can make your equipment more reliable while lowering the total cost of ownership.
