What are the common applications for quick-lock waterproof electrical connectors?

Quick-lock waterproof electrical connectors are made for industries that need to connect things that need to last in harsh conditions. These connectors make it easier to place electrical components and keep them waterproof against water, dust, and other contaminants. The QC16 Fast Lock waterproof connector is a great example of this technology because it can be quickly installed without any tools, has two layers of protection, and can be used in a lot of different ways in outdoor LED lighting, green energy systems, industrial automation, and security infrastructure. With IP67/IP68 ratings and gold-plated contacts inside UV-resistant PA66 nylon, these connections solve important problems for procurement workers in North America and beyond when it comes to how quickly they can be installed, how well they hold up in bad weather, and how reliable they are over time.

Understanding Quick-Lock Waterproof Electrical Connectors

Quick-lock waterproof connections are a big improvement over screw-thread designs because they allow for faster release without lowering the level of environmental protection. Quick-lock systems don't need multiple rotations or torque tools like regular connectors do. Instead, they use simple push-and-twist or bayonet mechanisms that engage with tactile feedback. This cuts installation time by up to 70% and eliminates human error during field assembly.

Ingress protection ratings between IP66 and IP68, which confirm complete dust-tightness and protection against temporary or continuous submersion, are the main requirements that drive adoption. Extreme temperature ranges are supported—the QC16 Fast Lock Waterproof Connector series works reliably from -40°C to 105°C, making it suitable for both high-temperature industrial machinery environments and outdoor installations in the Arctic. The choice of material is also very important. For example, PA66 nylon housings are resistant to UV damage and chemicals, and gold-plated brass contacts reduce resistance and stop rust even after thousands of joining cycles.

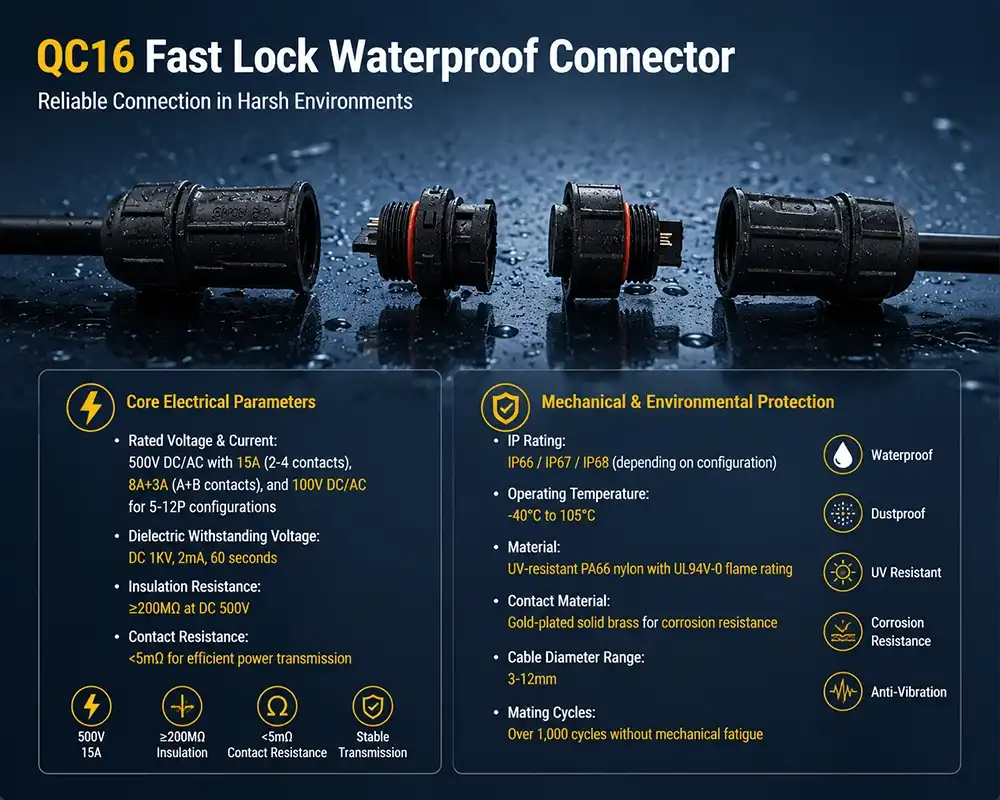

Technical Specifications of the QC16 Series

The QC16 Fast Lock Waterproof Connector family can be set up in a number of different ways to meet different power and signal needs. Rated voltage and current specs include 2/3/4 contact types that can handle 500V DC/AC at 15A for power applications and multi-pin designs (5-12 contacts) that can handle 100V DC/AC at 8A for signal and low-voltage control circuits. Dielectric withstanding voltage goes up to DC 1 kV, which makes it safe to work close to high-voltage areas, and insulation resistance goes over 200 MΩ at DC 500 V, which stops leakage currents that hurt system performance.

Through injection-molded strain relief, the straight quick clamp mechanism can accommodate cable diameters from 3 mm to 12 mm. This means that different wire gauges can be used without having to keep different connectors on hand. This design flexibility is very important for procurement managers who need to keep costs low while also being able to adapt to new technologies. Two waterproof sealing rings, usually silicone O-rings, make two extra barriers against water getting in. This way, the seal stays intact even when it's vibrating or changing temperatures, which can happen in industrial and transportation settings.

How the Fast-Lock Mechanism Works

The bayonet-style locking system has spring-loaded pins that make contact with grooves that match during a quarter-turn spin. This creates a mechanical interlock that won't come loose under vibration, which is a common way for threaded connections to fail in robots and public transit. The tactile "click" lets you know right away if the parts are properly engaged, which is very important in noisy manufacturing environments where visual inspection is hard. This mechanism can handle more than 1,000 mating cycles without breaking down. This makes it useful for maintenance schedules in places like security cameras that need to be serviced regularly.

Common Applications of QC16 Fast Lock Waterproof Connectors

Quick-lock waterproof connectors are used in fields where long-term reliability, exposure to the environment, and quick installation are all important factors. The QC16 Fast Lock Waterproof Connector solves certain operational problems in these areas by being sealed with IP68, working without tools, and being able to be set up in different ways.

Outdoor LED Lighting and Digital Signage

Connectors that can handle constant UV exposure, temperature changes, and water intrusion are needed for architectural lighting systems, landscape lighting, and outdoor advertising displays. The QC16 Fast Lock Waterproof Connector's UV-stabilized PA66 housing keeps the material from becoming rigid, which is what happens to materials that aren't protected from the sun after months of contact. The connector's low contact resistance below 5 mΩ helps LED drivers that work at 15 A by reducing power loss and heat buildup that shorten the life of LEDs.

The pre-molded cable design is especially helpful for daisy-chain installations that connect multiple light fixtures because it eliminates the need for soldering and crimping on-site, which are common mistakes that happen at night when installation work is being done. When technicians finish connections in seconds instead of minutes per joint, stadium lighting projects with hundreds of connection points can save a lot of money on labor. The IP68 grade makes sure that the device works when it is being pressure washed for cleaning tasks that are common in public buildings.

Renewable Energy Systems

MC4 connectors are usually used for solar photovoltaic installations, but the QC16 Fast Lock Waterproof Connector has some advantages over them in certain situations. Standard signal plugs can't handle the amount of power that battery energy storage systems need. The QC16 Fast Lock Waterproof Connector's 15A rating makes it perfect for connecting inverters to batteries in both home and business storage grids. The -40℃ working floor is suitable for setups in cold climates, where other joints become brittle and more likely to crack during winter maintenance.

EV charging infrastructure is another area for growth. The connector's high vibration strength is perfect for equipment that is placed on pedestals and is hit by vehicles or shakes from the ground. Customization options, such as cable length and pin configuration, let OEMs integrate their own charging systems without having to pay for the expensive tooling needed for fully custom connector designs. CE and RoHS certifications make it easier for equipment exported to North America and Europe to meet safety standards. This speeds up the process of getting approval from regulators.

Industrial Automation and Robotics

When you work in a manufacturing environment, you have to deal with harsh conditions like cutting fluid exposure, metal particulate contamination, and constant mechanical vibration from production equipment. The QC16 Fast Lock Waterproof Connector's two sealing rings keep IP67/IP68 protection even when cables bend while the robotic arm moves. This keeps water from getting in, which can cause sensor faults and unplanned downtime.

The connector's stable signal transmission properties are good for PLC control systems, and its insulation resistance above 200MΩ stops crosstalk between circuits that are close to each other in dense wiring bundles. When changing equipment, production managers are under a lot of pressure to keep the line running as smoothly as possible. The quick-connect design is very helpful because it lets technicians swap connected modules in seconds without having to fiddle with threaded couplings or find special tools. Quick-lock connectors are being used in more and more modular machine designs so that they can be quickly reconfigured between product runs, which supports the principles of lean manufacturing.

Security and Surveillance Infrastructure

CCTV cameras and traffic monitoring systems are always on and in open areas, so the reliability of the connectors has a direct effect on how public safety operations work. In retrofit installations where structured cabling isn't possible, the QC16 Fast Lock Waterproof Connector can handle both power and low-voltage signal connections for IP cameras that need power over Ethernet options. The wide temperature range lets systems work in places like the desert, where the ground is 50°C, and the north, where winters are below zero.

Corrosion resistance is very important in coastal surveillance systems because salt spray makes connectors break down faster. Oxidation raises contact resistance and eventually causes signal loss in copper links that aren't protected. Gold-plated contacts don't oxidize. Smart city projects with hundreds of connected sensors like the QC16 Fast Lock WaNorth,of Connector's pre-assembled cable method because it cuts down on mistakes that happen during installation in the field that lead to costly service calls during system activation.

Rail Transit and Transportation

Connectors for rail vehicles need to be able to withstand high levels of shaking and shock while still keeping their environmental covers when they are exposed to chemicals used for deicing and pressure washing. The QC16 Fast Lock Waterproof Connector's mechanical interlock keeps the connectors from coming apart during the steady vibrations that happen during track travel. This is different from threaded connectors, which tend to loosen over time even with the right amount of installation torque.

Stable signal transmission is important for train control systems that have connections that go out and on, which can cause false faults and service delays. The 1KV dielectric withstanding voltage of the connector gives you extra safety in high-voltage close-quarters situations that are common in electrified rail infrastructure. For transportation infrastructure contractors, tool-free connections make installation easier, especially for vehicle retrofit projects that need to be finished quickly. This is because technicians don't need to use special tools or have a high level of skill.

Comparing QC16 Fast Lock Waterproof Connector with Other Solutions

When procurement leaders look at connector choices, they need to weigh technical performance, total cost of ownership, and the dependability of the supply chain. The QC16 Fast Lock Waterproof Connector stands out from established competitors in the market because it is fast to install, protects the environment, and costs less than other options.

Performance Benchmarking

Deutsch connectors are top-of-the-line products that have been used for a long time in aerospace and are very resistant to vibration. However, their complexity and high cost make them better for high-reliability defense applications than for commercial outdoor lighting projects. The QC16 Fast Lock Waterproof Connector offers similar IP68 sealing and touch longevity at prices that are in line with budgets for LED infrastructure and solar installations, which are usually 30–40% less than military-specified options.

MC4 connectors are the most common type used in photovoltaic systems because they are easy to snap together and meet industry standards. However, their current ratings and wire diameter acceptance limits their use beyond solar string connections. The QC16 Fast Lock Waterproof Connector can handle 15A and can fit wires between 3 and 12 mm in diameter, which makes it useful for more tasks, like connecting batteries in green energy systems and distributing power from inverters. Standard MC4 configurations don't give designers as much freedom as being able to change the number of pins from 2 to 12.

Molex waterproof connectors have a lot of different product families that can be used for a lot of different things. However, procurement teams often have to deal with longer lead times for custom configurations and hard minimum order quantities for projects that need to be done in medium to large amounts. Cablein keeps more than 10,000 pieces in stock for the standard QC16 Fast Lock Waterproof Connector configuration. This means that stock items can be delivered in 7–10 days, and flexible production scheduling lets them meet custom needs. This supply reliability directly answers the project timing risks that procurement professionals say are important factors to consider when choosing a provider.

Advantages Over Traditional Screw-Lock Designs

To properly seal against the environment, threaded waterproof connectors need to be torqued to the right level. If they are undertightened, water can get in, and if they are overtightened, the sealing surfaces or housings can crack. The QC16 Fast Lock Waterproof Connector gets rid of this variation by using mechanical stops that make sure the right engagement, no matter how the user does it. This lowers the number of failures in the field and the costs of the insurance.

Installation times show that the quick-lock is faster: techs can make screw-thread connections in 45–60 seconds per joint, including checking the torque, while the QC16 Fast Lock Waterproof Connector can protect the same area in 10–15 seconds with its simple push-and-twist operation. When projects have hundreds of connection points, they save a lot of time and money on labor, which cancels out any extra cost for connectors. This improves the overall project's economics and speeds up the commissioning schedule.

Accessibility for maintenance is another practical benefit. Equipment that needs to be serviced on a regular basis can be disconnected without tools, which lets parts be replaced quickly without having to look for the right wrench sizes or risk dropping screws in hard-to-reach places. This is especially helpful for high-up installations like stadium lighting or wind turbine systems, where the efficiency of the technician directly affects the cost of service.

Installation Guide and Best Practices for QC16 Connectors

Following the right steps during installation will make sure that the QC16 Fast Lock Waterproof Connector works as expected and is waterproof for as long as it is used. The quick-lock system makes field assembly easier than with threaded options, but common failure modes can be avoided by paying attention to how the cables are prepared and how they are mated.

Step-by-Step Installation Procedure

To prepare the cable, use sharp cable shears to make clean cuts that are perpendicular to the cable. Rough or angled cuts stop the sealing ring from compressing properly. To meet the terminal depth requirements, which are usually 6 to 8 mm for the QC16 Fast Lock Waterproof Connector series, you need to strip the insulation off the wire so that there are no nicks that create stress concentration points that cause the conductor to fail early. For Cablein's pre-molded cable assemblies, this preparation is done in a controlled workplace setting with automatic equipment that makes sure the quality is the same from one production run to the next.

To avoid cross-threading, connector mating requires aligning keyed housings. The QC16 Fast Lock Waterproof Connector uses asymmetric collar designs that only let it be inserted in the right way. Keep the axial pressure on the coupling ring while turning it clockwise by about 90 degrees until you meet strong resistance and hear the clicking sound that means the bayonet pin is engaged. If the turn isn't full, the sealing rings are left partly compressed, which lets water in and lowers the IP rating.

Common Installation Mistakes and Solutions

When seal failure is looked into, it's often found that the O-ring surfaces or mating faces are dirty. Before putting the parts together, wipe them down with lint-free cloths. This is especially important in dusty outdoor areas where particles can get into the silicone and make leaky channels. If you need to lubricate something to make it easier to insert a cable, don't use a petroleum-based lubricant because it breaks down silicone O-rings. Instead, use only compounds that have been approved by the manufacturer.

Too much stress on the wire near the connector can cause peel forces that are stronger than the O-ring's grip. If you route wires with service loops or strain relief supports within 150 mm of the connection body, mechanical loads won't be able to go straight to the environmental seal. If you need cables to move, like on robotic arms, you should choose flex-rated cable designs that keep the bending away from the rigid connection housing.

Maintenance Recommendations

The frequency of inspections depends on how dangerous the environment is—monthly visual checks work well in coastal or chemically rich industrial settings, while once-a-year inspections are enough for protected architectural lighting. Check the housings for cracks that could mean UV damage or physical damage, and make sure the locking rings are still fully engaged. In critical situations, disconnect and check O-rings every 24 months. If any show lasting compression set or surface damage, replace them.

Protocols for storing extra links keep sealing materials from wearing out too quickly. Keep the temperature and humidity under control, between 15 and 25°C and below 60% relative humidity. Keep the rubber out of direct sunlight, which breaks it down faster. First-in, first-out inventory rotation should be used, especially for assemblies that have O-rings that were attached at the plant and have a set shelf life.

Why Choose QC16 Fast Lock Waterproof Connectors

When it comes to technical performance, supply chain reliability, and total cost of ownership, the QC16 Fast Lock Waterproof Connector meets the needs of businesses that buy things in bulk. These benefits show that Cablein is a flexible company that provides quality-approved goods and technical support to industrial markets around the world.

High Reliability and Reduced Maintenance

IP67/IP68 environmental safety directly leads to lower long-term upkeep costs by lowering the number of times that connectors need to be replaced. Installations in tough settings that keep things from breaking down too soon get rid of the need for emergency service calls, which cost more for labour and faster shipping. The working range of the connector is -40°C to 105°C, which means it will work properly even when the temperature changes with the seasons without the need for heated shelters or yearly component swaps.

Gold-plated contacts keep their low resistance over the estimated 1,000+ mating cycle lifespan. This stops the contact degradation that happens in tin-plated alternatives after hundreds of connections, which leads to occasional failures. This reliability is very important for modular equipment that needs to be rearranged often or for systems that need to be disconnected often for repair.

OEM Customization and Certification Support

Cablein's engineering team can meet special requests like non-standard cable lengths, different wire gauges, custom overmold colors to make the product stand out, and different pin designs that work with secret equipment. This gives you the freedom to keep the reliability of tried-and-true platform designs while cutting out the costs and lead times of creating fully customized connections. Rapid prototyping makes it possible to get working samples for integration testing within two to three weeks, which is helpful for development projects.

International certifications like CE, RoHS, and manufacturing under ISO9001:2015 quality systems show that the product meets customer requirements. There are ETL, PSE, and SAA entries for certain product lines that meet safety guidelines in North American and Asian markets. Technical support teams help procurement workers understand certification standards, which makes the process of qualifying products easier for administrative staff.

Supplier Advantages and Service Quality

Cablein keeps a store of more than 10,000 units per standard setup, which lets them quickly meet the needs of both prototypes and large-scale production. Standard wait times of 7–10 days work better for project plans than competitors' order cycles of 4–6 weeks, which cuts down on the need for pipeline inventory and makes better use of working capital. When it comes to custom orders, production is not limited to set windows but rather adapts to the needs of the customer and their projects.

Through relationships with global delivery companies like UPS, DHL, FedEx, and freight forwarders, you can ship items quickly and cheaply. Technical support is available 24 hours a day, 7 days a week, and promises to answer engineering questions quickly, no matter what time zone they are in. This focus on service shows that Cablein wants to build long-term ties with customers instead of just doing business with them as a seller. They do this by helping customers with product selection, integration, and the working lifecycle.

Conclusion

Outdoor lighting, renewable energy, automation, security, and transportation are just some of the industries that need quick-lock waterproof electrical connectors to connect their equipment. The QC16 Fast Lock Waterproof Connector protects against IP67 and IP68 environments, can be installed without tools, which saves up to 70% on labor costs, and has gold-plated contacts that ensure long-term reliability through 1,000+ mating cycles. Its PA66 construction can handle temperatures from -40°C to 105°C and doesn't break down when exposed to chemicals or UV light. Cablein's stable inventory makes shipping possible in 7–10 days, and the company's flexible OEM customization and foreign certifications make compliance easier. The QC16 Fast Lock Waterproof Connector gives you the speed, stability, and supply chain response you need for a successful project, whether it's for LED infrastructure, solar installations, or industrial equipment.

FAQ

1. What waterproof ratings does the QC16 connector achieve?

There are two levels of protection for the QC16 Fast Lock Waterproof Connector: IP67 and IP68. IP67 certification means that the product is completely dust-tight and can withstand being submerged in water up to 1 meter deep for 30 minutes. This makes it suitable for outdoor installations that get wet in heavy rain or floods sometimes. IP68 certification adds security against continuous submersion under conditions set by the maker. This makes it useful for situations where equipment is washed or underwater lighting is used for a long time.

2. How does the fast-lock mechanism compare to screw-thread connectors?

Fast-lock designs make installation faster, from 45 to 60 seconds per connection to 10 to 15 seconds. They do this by letting you push and twist without using any tools. The bayonet system gives a tactile click that confirms proper contact, so you don't have to guess about how tight to tighten threaded connections. Vibrations can loosen screw threads, but spring-loaded mechanical interlock stops this from happening. This makes transportation and industrial machinery more reliable without having to be re-tightened on a regular basis.

3. Can the QC16 connector handle high-vibration environments?

The bayonet locking system on the connection makes a mechanical interlock that can't come free even when the device is vibrating. This is different from threaded designs, which loosen over time even with the right amount of installation force. For this reason, the QC16 Fast Lock Waterproof Connector can be used in rail transit systems, robotic equipment, and industrial automation systems that are constantly vibrating. The dual O-ring sealing design keeps the environment safe even when the cable is bent. This stops moisture from getting in and affecting the signal or cutting off the power while the equipment is running.

Partner with Cablein for Your QC16 Fast Lock Waterproof Connector Needs

Cablein Technology delivers proven connectivity solutions backed by nine years of industrial waterproof connector expertise and ISO9001:2015-certified manufacturing. Our QC16 Fast Lock Waterproof Connector inventory exceeds 10,000 pieces per configuration, ensuring rapid fulfillment for urgent project requirements while our engineering team supports OEM customization, including cable length, wire gauge, and pin configuration modifications. As an established QC16 Fast Lock Waterproof Connector manufacturer, we maintain international certifications, including CE, RoHS, ETL, and PSE, streamlining your compliance documentation. Contact our technical specialists at nick@cableinco.com to discuss your specific application requirements, request detailed product specifications, or obtain volume pricing for your next outdoor LED, renewable energy, or industrial automation project. Our 24-hour support commitment and flexible production scheduling ensure your connectivity needs receive prompt, expert attention.
