Guide to Selecting the Right QC12 Quick Clamp Waterproof Connector for Industrial Use

It's very important that you pick the right waterproof connector for your industrial project. When you need to set up something quickly in a tough environment, the QC12 quick clamp waterproof connector is the best choice. It was designed to be both quick to install and reliable for a long time. This connector solves problems that procurement managers, R&D engineers, and operations teams in the LED lighting, renewable energy, industrial automation, and outdoor surveillance sectors face in the real world. It has a tool-free quarter-turn mechanism, a PA66 nylon housing, gold-plated brass contacts, and two stages of silicone sealing. This guide will show you the technical aspects, relative benefits, and buying methods that will assist you in making a smart choice that safeguards your investment and keeps your business running smoothly.

Understanding QC12 Quick Clamp Waterproof Connectors

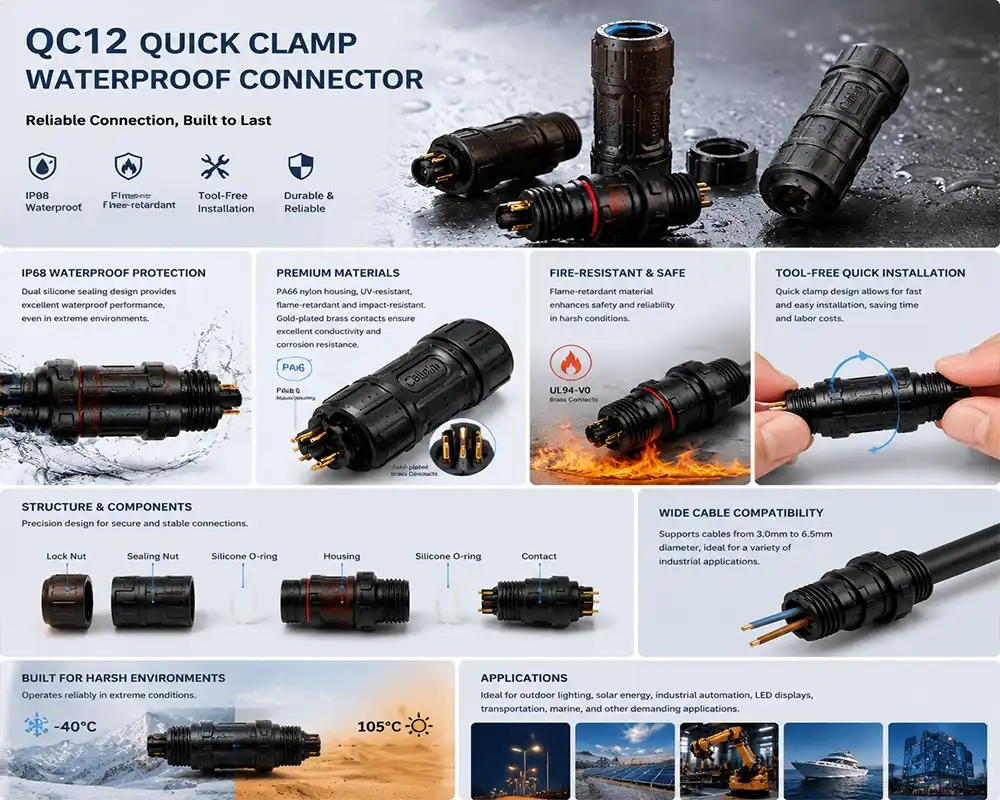

The QC12 quick clamp waterproof connector is a type of field-assembled connection that was made for places where moisture, dust, vibration, and temperature changes can damage electrical stability. The connector doesn't need any special tools or torque to secure cables; instead, it uses a quarter-turn quick clamp mechanism that works in seconds and doesn't require any special tools. This design philosophy directly addresses two major problems that production and operations managers face when they have to meet tight project deadlines: lowering the cost of labor and making installations more efficient.

Working Principles and Sealing Technology

The connector's dual-stage closing method is what makes it work so well. When the housing of the connection is locked in place, compression forces turn on silicone O-rings that are placed at two important interfaces. One seals around the wire jacket, and the other creates a barrier at the contact chamber. With this double closing system, the connection is certified IP68, which means it can be submerged in water up to one meter deep for 72 hours straight without getting wet. The PA66 nylon body doesn't break down when exposed to UV light and stays structurally sound from -40°C to 105°C, so it can be used in both Nordic street lighting installations and rooftop solar arrays in the Middle East.

Technical Specifications That Matter

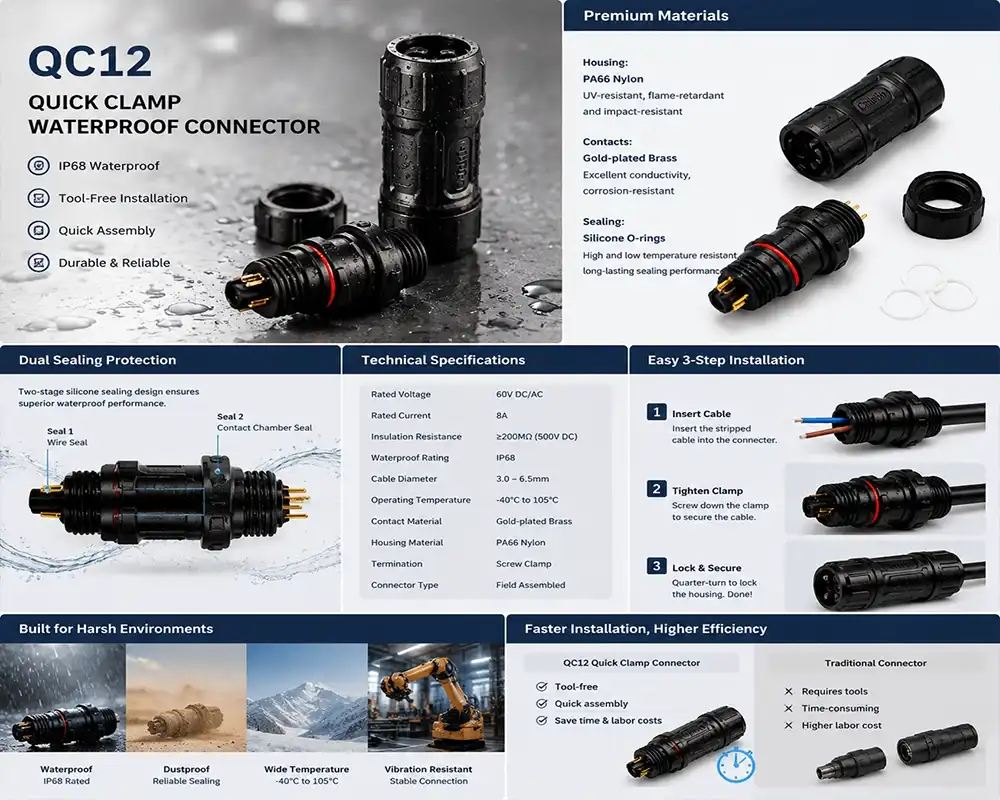

Electrical factors determine whether an application is right for it. The unit can handle 60V DC/AC and can handle up to 8A of current. It can be used for low-voltage control systems, sensor networks, and LED signs. Gold-plated brass contacts keep their insulation resistance above 200 MΩ at 500 V DC, which keeps the signal stable in places where electromagnetic interference is common, like in industrial automation. The screw termination works with cables with sizes between 3 mm and 6.5 mm, and it can handle both solid and stranded wires without the need for adapters. The connector can be used in situations where maintenance needs to be done often or where installations are only done during certain times of the year.

Typical Industrial Use Cases

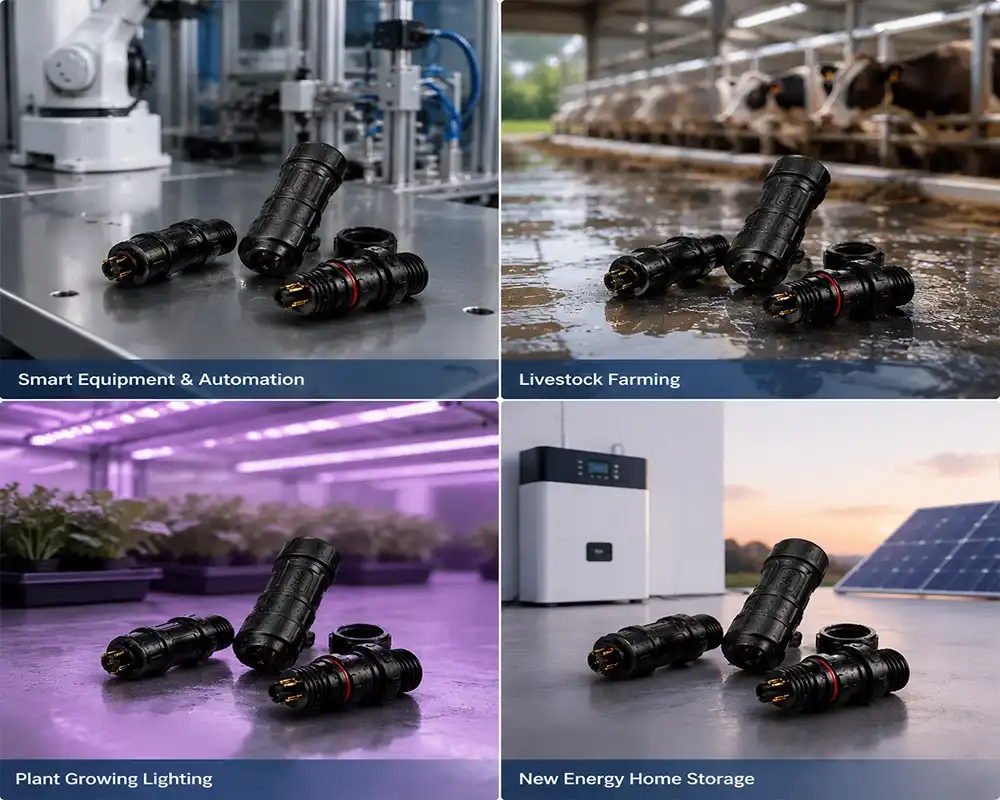

Manufacturers of outdoor LED lighting depend on the solution to light up the front of buildings, where wind and temperature changes could cause traditional connections to come free. It is used by security and surveillance integrators in traffic monitoring systems that are exposed to dust, rain, and changes in temperature. Solar energy system builders like how resistant it is to rust in seaside settings where salt spray speeds up metal breakdown. It is used by companies that make agricultural equipment in environmental monitors and irrigation controls that have to deal with dirty soil and high-pressure washdowns. In the real world, these uses show how the design of the connection turns technical specs into operating dependability.

Comparing QC12 with Other Waterproof Connectors

To choose between connector types, you need to know how to balance performance. Traditional waterproof connections with screws have been shown to be reliable, but they take longer to install and require tools that make the job more expensive. When installing 50 light fixtures, a field technician takes about 30% longer with screw connectors than with the QC12 quick clamp waterproof connector's quarter-turn system. When a lot of devices are used at once, like in smart city infrastructure projects with hundreds of connection points, this time difference gets bigger.

Performance Metrics and Lifecycle Advantages

The connector's quick clamp design ensures better sealing stability because it gets rid of the chance of human mistake that comes with screw connections that are too tight or too loose. Test results from factories show that screw joints that aren't properly torqued are responsible for about 40% of breakdowns in the field in the first year. The tactile and audio closing feedback lets you know right away if the mechanism is properly engaged, which cuts down on installation mistakes. Compared to normal brass contacts, the gold-plated contacts are better at resisting oxidation, which means they last about 30% longer in humid settings.

User Feedback from Engineering Teams

When quality assurance teams work in harsh outdoor conditions and switch to quick clamp designs, they report measurable improvements. A company that makes equipment for the auto industry saw a 25% drop in warranty claims after switching from screw-type sensor connectors to the units in robotic assembly lines. During troubleshooting, being able to disconnect and reconnect without tools cut the average time to fix something by 15 minutes per incident. Maintenance teams who work on boats really like the rust resistance that is proven by ASTM B117 salt spray testing, which mimics years of exposure to the coast in a lab setting.

How to Choose the Right Waterproof Connector for Your Industrial Needs?

By matching QC12 quick-clip waterproof connector specs to application needs, you can avoid costly failures in the field and early replacements. Before looking at electrical parameters and regulatory compliance, you should start the decision process with a clear estimate of the surroundings.

Environmental Factors to Evaluate

Extreme temperatures have a direct effect on how well materials work. If your equipment works in deserts where the temperature rises above 90℃ during the day, make sure that the housing material of the connection stays flexible and the seal stays intact when exposed to heat. Exposure to moisture can range from light rain to constant submersion. IP67 ratings protect against short-term immersion, while IP68 certification guarantees reliability in underwater applications. Vibration causes mechanical stress, which is important in places like transportation and factories where parts are always moving and can break connections over time.

Electrical Specifications and How They Work Together

The ratings for voltage and current must include enough safety margins. To keep the dielectric from breaking down when the voltage goes up, a system that runs on 48V DC should use connectors that can handle at least 60V. The amount of current affects the temperature of the contact; connectors that are too small produce heat that speeds up the breakdown of insulation. The unit can handle 8A of current, which is enough for LED lighting grids and sensor networks. However, high-power uses like charging electric vehicles (EVs) need connections that can handle more current. Contact plating is important for keeping the signal strong; gold plating lowers resistance and stops oxidation, which can break links in data transfer apps.

Material Compatibility and Needs for Maintenance

Chemical processes that break down seals are stopped by cable jacket compatibility. Silicone O-rings in the connector don't react with the petroleum-based oils that are popular in industrial settings. EPDM O-rings, on the other hand, work well with ketones and esters. Total cost of ownership is affected by how easy it is to maintain. Tool-free designs cut down on service time when techs have to reach connections in tight areas or at heights. Crimped contacts need special tools and training to be able to replace wires, but screw termination makes it easier to do so.

Procurement Guide: Buying QC12 Quick Clamp Waterproof Connectors

Buying QC12 quick clamp waterproof connectors: A Procurement Guide requires looking at both the supplier's qualifications and the product specs. Getting original connectors from certified manufacturers keeps you safe from fakes that don't work or aren't safe.

Evaluating Supplier Credibility

Authorised distributors and manufacturers who have ISO9001:2015 certification show that they have quality management systems that make sure that production standards are always met. Make sure that the suppliers you're considering have CE, RoHS, and the industry-specific certifications you need for your project. For example, ETL for North American markets, PSE for Japan, and SAA for Australia. Ask for test records that show that the IP grade is correct, that the dielectric strength was measured, and that the mating cycle endurance was checked. Suppliers that offer OEM support services can change the lengths of cables, the way pins are arranged, and pre-wired kits that make installation faster on your production floor.

Pricing Strategies and Warranty Considerations

Prices that are based on volume encourage people to buy in bulk, but stocking costs need to be balanced against project deadlines. If a supplier keeps more than 10,000 units of each SKU in stock, they can fill urgent orders faster than makers who make to order and take 30 days to deliver. The length of the warranty shows how confident the maker is in the product. Standard warranties last between one and three years, but longer warranties are available for important uses. Instead of just focusing on unit price, negotiate prices that take into account the total cost of ownership, such as the time saved on installation and the number of failures that will happen.

Logistics and Installation Best Practices

Delivery speed is affected by regional availability. Stock items are usually shipped within 7 to 10 days by suppliers with delivery networks in the USA and Europe. Custom orders, on the other hand, take longer to make. High-value packages can be tracked and insured through partnerships with companies like UPS, DHL, and FedEx. It is recommended that technical documents come with installation instructions that list the lengths of cable stripping, the values for ending torque, and the steps to take for inspecting the seal. As part of regular maintenance, seals are looked at visually for cracks or dirt, and contact resistance is measured on a regular basis to find degradation before it happens.

Why QC12 Quick Clamp Waterproof Connector is the Preferred Choice?

Superior waterproofing mixed with quick installation creates value that can be measured in commercial settings. The design of the QC12 quick clamp waterproof connector handles specific problems that engineers and procurement managers have when they have to balance performance needs with price limits.

The installation doesn't need any tools, which directly cuts down on labor costs in large operations. When compared to traditional connectors, a lighting contractor installing 200 fixtures over the course of a weekend saves about eight hours of work. This can save a lot of money on big infrastructure projects. The quarter-turn mechanism lets technicians work with one hand, which makes the machine safer when they are on ladders or scaffolding. Mechanical strength proven by more than 500 mating cycles provides dependability in situations where equipment needs to be changed seasonally or where repair needs to be done often.

Multiple certifications that show the quality of the manufacturing give buyers confidence. The factory where Cablein makes their products uses ISO9001:2015 quality control systems. Before they ship any connectors, they are tested for insulation resistance, contact resistance, and IPX8 submersion validity. Meeting the standards of European law, CE and RoHS compliance proves that chemicals are safe and responsible for the environment. OEM makers who need custom solutions for specialised equipment can get them with the help of custom pin layouts and cable connections.

Because the connector is flexible, it is an investment that will pay off in the long run. As smart city projects and green energy installations grow, so does the need for reliable communication outside. The unit can handle a wide range of temperatures and doesn't corrode, so it can be used in new infrastructure-based applications like EV charging networks and agricultural IoT sensors. Engineering teams like being able to choose their own cable lengths and pre-wired kits that make installation easier in enclosures with limited room.

Conclusion

To choose the right industrial connection, you need to think about the total cost of ownership, technical requirements, and the needs of the surroundings. The QC12 quick clamp waterproof connector has proven IP68 protection and can be installed quickly and easily without any tools. This saves time and money and makes the connector more reliable. It can handle rough conditions like salt spray from the coast and chemicals used in factories thanks to its PA66 housing, gold-plated contacts, and two layers of silicone seals. Suppliers with ISO9001 certification, flexible customisation, and quick expert help are good for procurement managers. You can get reliable connection that protects your equipment investments and keeps operations going in harsh industrial settings by making sure that the connectors' features match the needs of your specific application and by working with reputable makers.

FAQ

What IP rating does the QC12 connector provide?

The QC12 quick clamp waterproof connector is certified IP68, which means it can withstand dust and water immersion up to one metre for 72 hours straight. This grade is good for outdoor systems that get wet from rain, flooding, and high-pressure washing.

Can the QC12 handle extreme temperature environments?

It works in temperatures ranging from -40°F to 105°F, so it can handle both cold Arctic winters and hot dry summers. Throughout this range, the PA66 housing stays structurally sound and doesn't break or bend.

How difficult is installation without specialized tools?

The quarter-turn quick clamp system locks with a physical feedback and doesn't need any tools. When compared to screw-type connectors, field workers can make connections in seconds, which cuts installation time by about 30%.

What customization options are available?

Custom cable lengths, pin configurations with 2 to 12 contacts, and pre-wired assemblies are all things that manufacturers can do. OEM services include making private molds for custom housing designs that meet the needs of specific applications.

Partner with Cablein for Reliable QC12 Quick Clamp Waterproof Connector Solutions

Cablein offers designed solutions backed by nine years of industry experience when your projects need waterproof connectors that are easy to install and have been shown to last. As a QC12 quick clamp waterproof connector supplier, we can keep more than 10,000 units of each item in stock, which means that we can deliver quickly for urgent deployments. We are ISO9001:2015 certified and follow CE, RoHS, and ETL standards. Our engineering team has more than 30 utility model patents and can help OEMs customise their products. You can talk about your specific needs, get technical specs, or get bulk pricing for your next industrial connectivity project by emailing nick@cableinco.com. Our expert support is available 24 hours a day, 7 days a week, and our customization services let you make the best connection solutions that can handle the roughest working conditions.
