How to Find a Reliable M20 T-Type Waterproof Connector Manufacturer and Supplier

First of all, you should know precisely what you need to find a trusted manufacturer of M20 T-type waterproof connectors. These 3-way branch M20 t-type waterproof connectors are rated at 400V, 24A, are IP68 rated for 10 meters of submersion for 72 hours, and are available in 2-6 pole combinations. Do your homework before you approach a supplier. Check if he has third-party test results, stock of more than 10,000 units, and can assure delivery in 7 to 10 days. For foreign applications, certifications such as CE, RoHS, and ISO 9001:2015 are required. This tutorial takes you through each stage in that assessment process.

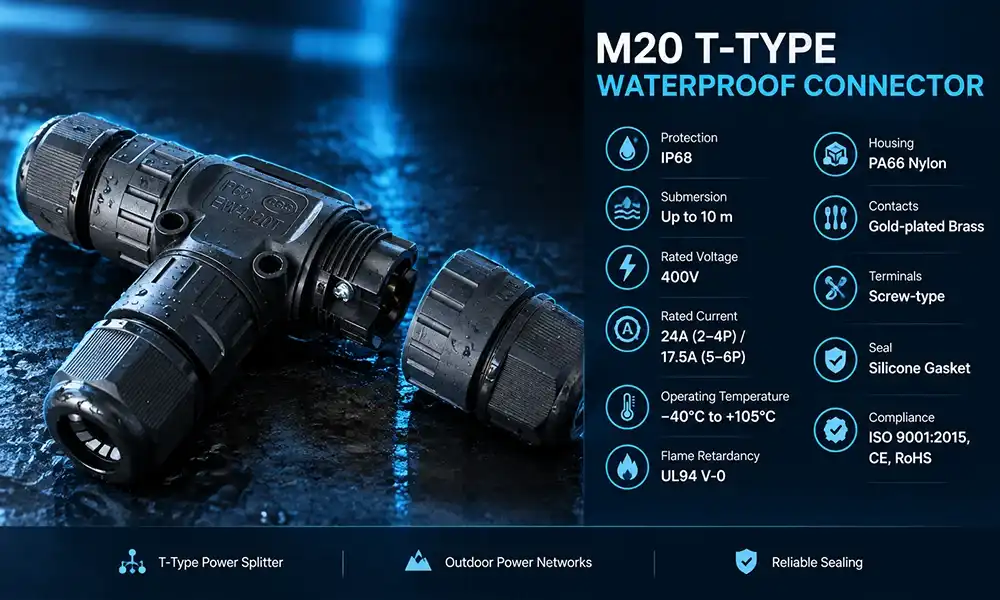

M20 t-type waterproof connector

Understanding M20 T-Type Waterproof Connectors

You should really know what this product does and why its specs are important on the job site before you look at different suppliers.

What the T-Shape Actually Does

The T-shaped body makes a framework with branches going in and out. You don't have a junction box where one input wire divides into two output lines. It cleans up the wire run, reduces down on the amount of locations items may join, and gets the work done quicker. Electricians who deal with cities indicate that when field teams utilize screw-terminal T-connectors instead of hand-connecting, the installation time for a single node drops from 15 minutes to only 5.

Key Electrical and Mechanical Specifications

It can withstand 400V, 24A current for 2-4 poles versions and 17.5A for 5-6 poles versions. It can handle cables 5 to 9 mm and 9 to 12 mm thick, and wire sections 0.5 mm³ to 2.5 mm³ thick on the exterior. The enclosure is built from UL94-V0 flame-resistant, UV-light-stabilized PA66 with solid brass pins with gold plating. Contact resistance is ≤5 mΩ at 500V DC and insulation resistance is > 2,000 MΩ. It works in temperatures from -40°F to +105°F.

IP67 vs. IP68: Why the Distinction Matters

IP67 allows immersion up to 1 meter for 30 minutes. Even better, IP68 can withstand being submerged in water for 72 hours straight. If you only want to connect aquaculture pumps or light up streets in areas that are susceptible to flooding, then IP68 is the only one you want to use. Always ask for the true third-party test result; don't believe the label on the packaging.

Critical Factors to Evaluate When Choosing a Manufacturer

You could have problems with the warranty, the project taking longer than planned, or issues in the field if you choose the wrong supplier. These four things should be looked at before you sign a purchase order.

Certifications and Test Documentation

That's right, a trustworthy company gives out test reports, not private papers. These reports are made public by a third party and spell out the exact test method, depth, and length of time for IP68 compliance. Check to see if it has CE, RoHS, ISO 9001:2015, ETL, or TUV. If it does, that's a good sign. Everything that Cablein makes has been approved by CE, RoHS, ETL, PSE, SAA, CQC, and TUV. Also, every batch that ships comes with quality records that can be checked. You shouldn't do business with a company that can't give you a third-party IP68 report within 24 hours of it being asked for.

Material Quality and Build Consistency

Different types of paint are a big problem on public works projects; inspectors can see them right away. The shell should always be made of the same PA66 mix. To save money, it shouldn't be switched to a less expensive PA6 material in the middle of the process. When salt spray is used, it's better to have contacts that are gold-plated than tin-plated, since tin changes more quickly. No matter what temperature it is, the silicone gasket that seals must stay flexible. Things that aren't real rubber get hard below -20℃ and break.

Customization Capability and Lead Times

Engineers in charge of lights in cities often need specific branch lengths, pole numbers, or wire entry angles that match how the poles are set up. Some makers will change pin forms and branch sizes right away, so you won't have to wait six weeks if you want to work with them. It's also important to have enough stock. You can place an urgent order and get the product within 7–10 days if you have 10,000 or more pieces of each SKU on hand. This is fast enough to meet construction deadlines.

Comparing Top Waterproof Connector Brands and Suppliers

The M20 t-type waterproof connector market includes well-known European and American names alongside specialized Asian manufacturers. Each category has different strengths depending on your project type.

European and American Brands

HARTING, TE Connectivity, Amphenol, Phoenix Contact, and Molex are trusted names in industrial connectivity. They excel in high-reliability automation and defense applications, carry broad certifications, and maintain extensive distribution networks across North America and Europe. The trade-off is cost: these brands typically price at a significant premium over equivalent-spec Asian-manufactured parts, and minimum order quantities can be high for project-scale purchasing.

Specialized Manufacturers from China

Manufacturers like Cablein, founded in 2017 and operating from a 6,000 m² facility in Shenzhen, focus specifically on industrial waterproof connectors and cable assemblies. With 200+ engineers and production staff, 30+ utility model patents, and direct factory pricing, they serve the cost-efficiency requirements of EPC contractors and cross-border e-commerce sellers simultaneously. The M20 T-type connector range covers 2–6 poles with dual cable diameter ranges, giving procurement teams a single-model solution across multiple project specifications.

How to Verify a Supplier's Legitimacy

Cross-reference the supplier's business registration, request a factory audit or video walkthrough, and ask for references from past clients in your industry segment. Verified Alibaba International listings with Gold Supplier status and transaction history provide a baseline signal. Direct factory websites like connectorswaterproof.com allow you to review product datasheets, certifications, and contact information before committing to a sample order.

Practical Guide to Procuring Waterproof Branch Connectors

You can avoid fakes, running out of stock, and specs that don't match if you have a structured procurement process.

Where to Source and How to Verify

There are a lot of good places to find trade show contacts, such as Alibaba International, made-in-china.com, direct maker websites, and the Guangzhou International Lighting Exhibition. You should always ask for samples to be sent to you before you place a big order. To compare the sample to the published document, weigh it, measure the housing's size, and do an easy pull test on the cable gland. The wall sections of fake M20 t-type waterproof connector s are often thinner, which makes them break when torque is put on them.

Negotiating Bulk Order Terms

When you order more than 1,000 pieces, you should talk about how to pay, how the items will be packed, how the labels will work with FBA, and how often broken items will be replaced. As a safety net, you should keep anywhere from 0.5 to 1% of the total order amount. An important part of a project-type order is making sure that every batch is the same. You can do this by adding a material change notification clause to the contract. This means the maker must first get written permission before using a different kind of housing glue or contact plate.

After-Sales Support and Warranty Terms

A three-year guarantee with a clear way to replace broken items sets serious makers apart from sellers who are just looking to make a sale. Check to see if the supplier offers how-to videos, installation guides, and torque specification sheets. For the M20 T-type, the locking torque should be between 1.5 and 2.0 Nm. Field leak rates go down a lot when installation crews follow that rule. You have less work to do on-site when your suppliers train your team.

Installation and Application Insights

It depends on how well it was put together whether or not a link works well in the field.

Best Practices for Waterproof Sealing

Thread the cable through the gland nut before putting it in the terminal block. For 1.5–2.0 Nm, you should use a calibrated torque wrench. As you tighten, be careful not to leave gaps in the silicone gasket. If you tighten it too much, the PA66 housing could crack. A quick test with low-pressure compressed air makes sure the seal is still good after everything is put together, before it is buried or put on a pole. Also, the closing grommet needs to be the right size for the cable's outside thickness. People often say that grommets that don't fit let water in after they've been installed.

Primary Application Sectors

This kind of communication is good in many areas both inside and outdoors. It is most often used in the following places:

Smart street lighting and tunnel illumination: Daisy-chain branch circuits withstand persistent rain, humidity, and seasonal temperature fluctuations without deterioration.
Aquaculture and maritime systems: Oxygenation pumps and automated feeders work in salt spray and submerged situations where the 48-96 hour salt spray rating and IP68 depth protection both apply.
Solar PV monitoring networks: Outdoor string-level sensors need vibration-tolerant, thermally robust connections that last years of daily temperature cycling.
Industrial IoT sensor networks: Decentralized sensor nodes benefit from modular branch wiring, enabling the replacement of individual nodes without affecting neighboring connections.

In all of these deployment circumstances, one need is that the connection must be able to run for lengthy periods of time without having to be repaired. This works well with a T-type branch link, which is rated for over 1,000 joining cycles and can tolerate 2,000V AC.

Conclusion

Three things are important to select the best waterproof branch connection. Check the specifications. Be sure the M20 t-type waterproof connectors are always built the same way. And purchase from a vendor that backs their goods with papers and stock. The M20 T-type connection is waterproof up to IP68, UV-stable PA66, and the contacts are gold-plated brass. It's good enough for naval systems, solar panels, streetlights, and industrial IoT. Before you purchase, make sure third-party test results are valid. Be certain the material is the same batch to batch, and explicit guarantee conditions are in place. Check all of those boxes, and you will have a supply chain that fits with your project timeline and a product that the inspection team will accept.

FAQ

1. What is the difference between IP67 and IP68 for branch connectors?

IP67 certifies temporary immersion at 1 meter for 30 minutes. IP68 certifies continuous submersion—in this case, 10 meters for 72 hours. For permanent outdoor installations, IP68 is the appropriate rating.

2. What is the minimum order quantity for bulk procurement?

Standard stock orders start at 100–500 pieces for mixed SKUs. Project-scale orders typically begin at 1,000 pieces per configuration, with delivery in 7–10 days from confirmed stock.

3. Can pin count and branch length be customized?

Yes. Cablein offers OEM and ODM customization covering pole count (2–6P), cable entry diameter, branch length, and housing color. Custom orders are scheduled based on project timelines.

4. How do I verify that an IP68 rating is genuine?

Request the third-party test report directly—not a product brochure. The document should state the testing laboratory name, test method, immersion depth, duration, and pass/fail result.

5. What torque setting prevents field leaks?

The recommended installation torque is 1.5–2.0 Nm. Using a calibrated torque wrench eliminates the guesswork that leads to under- or over-tightened seals on job sites.

Get a Quote from Cablein for Your Next M20 Connector Project

Since 2017, projects in more than 100 countries have used waterproof connectors from Cablein Technology that have an IP68 rating. Our M20 t-type waterproof connector comes in both standard sizes and sizes that you can make yourself. It has paperwork for CE, RoHS, and ISO 9001:2015. We have more than 10,000 of each SKU in stock and can ship them within 7–10 days. This lets us keep up with building project plans. You can email your needs or ask for a sample to nick@cableinco.com.
